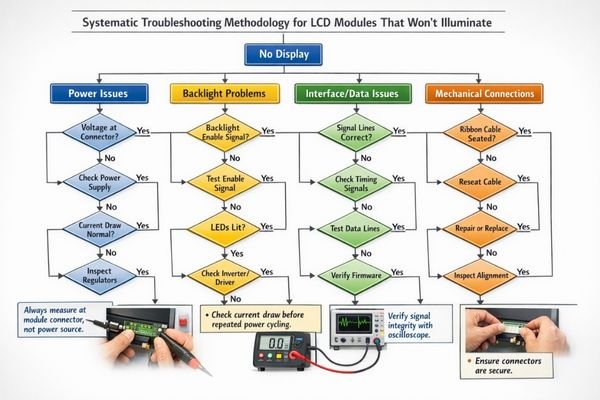

How do you validate and diagnose a module that won’t light up?

When an LCD display module won’t light up, systematic diagnosis requires separating power, backlight, and interface issues to identify the root cause efficiently and avoid random troubleshooting.

A module that won’t light up typically indicates one of four failure modes: missing or incorrect power rails and sequencing, backlight driver problems or enable signal issues, interface timing or initialization failures, or mechanical connection problems. Effective diagnosis requires systematic validation of each subsystem before concluding the module itself has failed.

In my LCD display module integration work at MEIDAYINGNUO, I’ve found that "won’t light up" problems are most often integration issues across power sequencing, backlight control, or interface initialization. Teams sometimes assume hardware failure and request replacements when the actual cause is a missing enable signal, incorrect timing table, or marginal power supply behavior. A faster approach is to treat the symptom as a system-level integration problem¹ until you have evidence that the module itself is at fault—and to avoid changing multiple variables at once.

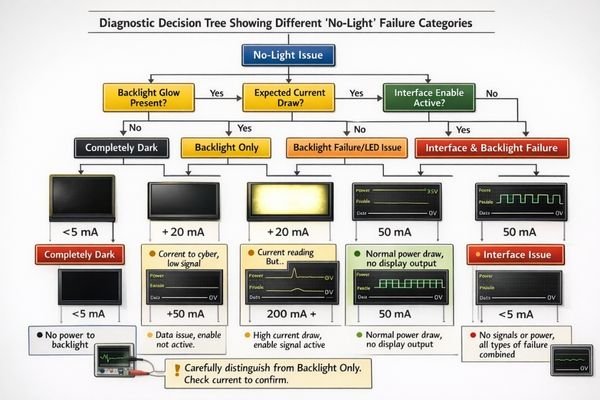

What does "won’t light up" mean for an LCD display module?

"Won’t light up" encompasses several distinct failure modes that require different diagnostic approaches to identify the root cause.

"Won’t light up" can indicate backlight is off with panel logic inactive, backlight is on with no image data, panel receives power but remains in reset or standby mode, or complete power failure. Classification requires simple observations: backlight glow presence, current draw measurement, and interface enable status verification.

From an engineering standpoint, I usually classify no-light symptoms² by checking three basic indicators: any visible backlight glow, expected current consumption, and host interface enable status. To make that classification actionable, I map common symptom combinations to the next diagnostic step: if there is no backlight glow and the module draws almost no current, prioritize rails/enables/reset; if the backlight is clearly on but the screen is black, prioritize interface enable, timing, and initialization; if current draw is unusually high or the module heats quickly, treat it as a protection/short risk and stop before repeated power-cycling causes secondary damage. This approach prevents random probing and keeps troubleshooting focused on the most likely subsystem.

Failure Mode Categories

No-light symptoms divide into power/enable failures, backlight drive problems, interface/timing issues, and mechanical connection problems. Each category has characteristic symptoms and diagnostic signatures that guide troubleshooting priorities. A helpful practice is to write down the observed state (backlight, current, enable/reset) before touching anything—then change only one variable per test so you can trust the conclusion.

System-Level Context

A perfectly functional module can appear completely dead if power sequencing is incorrect, enable signals are missing, or the host never releases reset conditions. Treating no-light as a system integration problem improves diagnostic efficiency, especially when the issue only appears after harness routing changes, enclosure assembly, or temperature transitions.

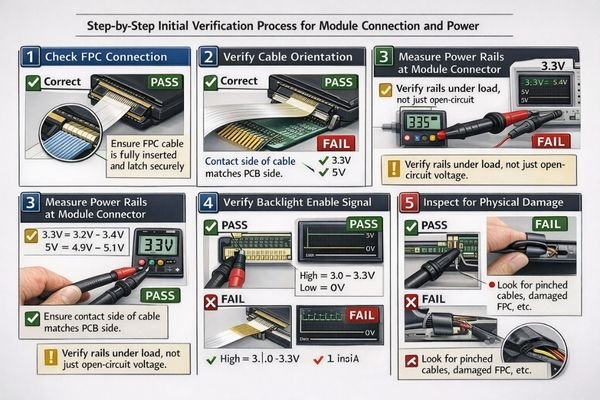

Which first checks should you do before deep debugging?

Initial checks should eliminate common integration mistakes with minimal effort before proceeding to detailed electrical measurements.

Start with mechanical verification: correct part orientation and connector seating, fully latched FPC connections without inversion, and inspection for obvious damage or pinched cables. Then confirm basic power presence by measuring each required rail at the module connector rather than at the power source to detect connection failures.

Based on the projects I support with integration issues, mechanical problems and basic power failures account for the majority of no-light symptoms. In practice, three “low-effort, high-hit-rate” checks catch many cases: confirm the FPC is not inverted and the latch is fully closed; confirm the backlight enable (BL_EN)³ is actually asserted with the expected polarity; and confirm you are not only seeing voltage at the regulator output while the module-side rail is sagging due to connector seating, cracked solder joints, or thin traces. If any of these are uncertain, fix them before moving into deeper measurements.

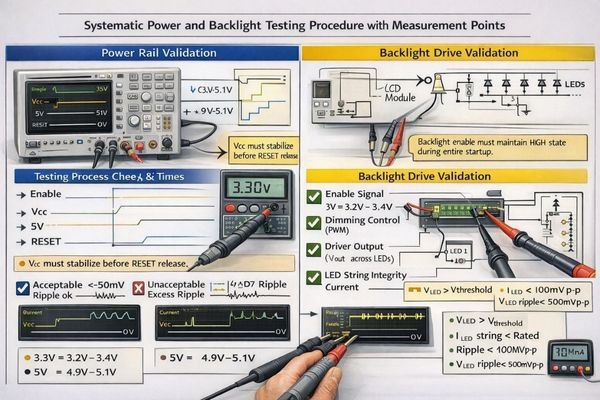

How do you validate power rails, sequencing, and backlight drive?

Power validation requires systematic verification of voltage levels, current consumption, timing relationships, and backlight driver operation.

Validate power using a checklist approach: measure each rail voltage under load with acceptable ripple and noise levels, verify inrush and steady-state current draw, and confirm sequencing timing with aligned measurements of rails, enables, and reset signals. For backlight, separate driver operation from LED string integrity by checking input power, enable signals, dimming control, and output compliance.

When I troubleshoot power-related no-light issues, sequencing violations and marginal supply behavior are frequently the root cause. The key is to measure at the module connector under load, not at the power source: a rail can look perfect at the regulator and still be invalid at the module due to drops or intermittent contacts. If you have access to an oscilloscope, capture the power-up event with rails, enable signals, and reset release on a shared time base; this quickly reveals wrong order, late enable, or brown-out resets that occur during backlight startup⁴. For backlight, treat “control looks correct” and “output is correct” as two separate proofs: verify BL_EN and dimming are present as expected, and also verify the driver output behavior indicates it is within compliance and actually driving the LED load rather than faulting out due to open/short/mismatch. Grounding and return path quality also matters—poor return routing can create false undervoltage trips or unstable dimming that looks like a dead backlight.

Power System	Key Measurements	Common Failures	Diagnostic Focus
Logic Rails	Voltage, current, ripple	Undervoltage, sequencing	Load regulation, timing
Backlight Drive	Enable, dimming, compliance	Missing enable, wrong polarity	Control signals, LED load
Sequencing	Rail timing, reset release	Brown-out, wrong order	Power-up coordination

Systematic power validation prevents misdiagnosis and focuses troubleshooting on actual failure modes rather than assumed component defects. As a simple rule: if rails, enables, and reset are not proven at the module connector with stable behavior during startup, do not move on to interface debugging.

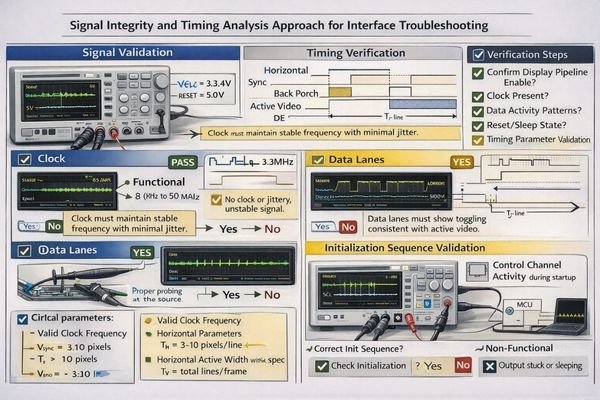

How do you confirm interface activity and timing when the screen stays black?

Interface diagnosis requires verifying signal presence, timing parameters, and initialization sequence completion when backlight operates but no image appears.

Confirm the host enables the display pipeline, interface signals exist at the connector with appropriate signal integrity, and the panel is not held in reset or sleep mode. Use oscilloscope or logic analyzer to verify clock presence and data lane activity consistent with active video, then validate timing parameters against panel acceptance ranges including blanking intervals and signal polarity.

I’ve observed that interface problems often result from "almost correct" timing that works inconsistently due to thin margins. The fastest way to avoid guesswork is to build a minimum evidence chain in order: confirm the host actually enables the display pipeline; confirm clocks are present at the connector; confirm data lanes toggle in a way consistent with active video; confirm the panel is not held in reset/sleep; then confirm the timing set matches the panel’s acceptance ranges (including blanking intervals and polarity assumptions). Bench conditions can hide margin problems, so validation should be repeated at the real cable/FPC length and in the real electromagnetic environment (with the noisiest operating states enabled) before concluding the issue is “random.”

For comprehensive interface timing analysis and troubleshooting support, engineering teams can contact info@lcdmodulepro.com during integration development.

Signal Integrity Requirements

Interface signals must meet timing, voltage, and noise specifications under actual routing conditions including cable length, connector quality, and electromagnetic environment effects that may differ from laboratory validation. A practical margin check is to see whether behavior changes with small routing differences (cable position, grounding point, proximity to switching regulators, motors, or radios). If minor harness movement changes the symptom, treat it as a margin problem first—then decide whether the best fix is better routing/return paths, reduced coupling, or a more robust timing configuration.

Initialization Sequence Validation⁵

Many panels require specific initialization commands through control channels before displaying video, and missing or incorrect initialization can cause black screen symptoms despite proper high-speed interface operation. To validate this, confirm the panel is exiting sleep/standby as intended and that required initialization steps complete before video enable. If the system sometimes shows an image after repeated resets or only after delays, it often points to sequencing/initialization timing rather than a true hardware fault.

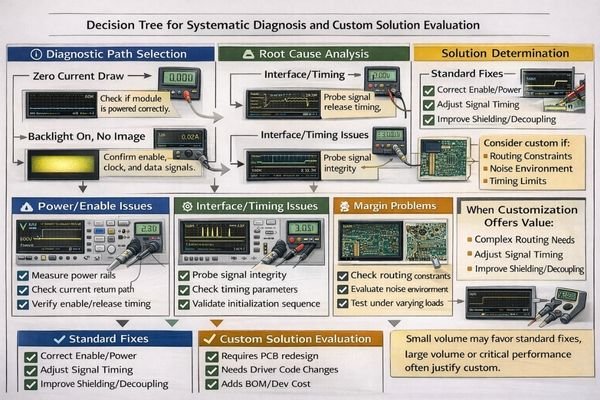

How to choose a troubleshooting path and decide when customization is needed?

Systematic troubleshooting requires dividing the problem into independent blocks and validating each subsystem before considering more complex solutions.

Use a decision tree approach: prove power rails and sequencing, validate backlight operation and control, confirm interface activity and timing, then assess margin-related issues. Apply decision criteria to avoid endless iteration: routing sensitivity suggests margin problems, missing current draw indicates power/enable issues, and backlight-without-image points to timing or initialization failures.

In practice, the most productive troubleshooting path is to isolate one block at a time and establish a “known-good” proof before changing anything else. Start by proving rails/enables/reset at the module connector, then prove backlight strike and dimming control, then prove interface activity and timing, and only then investigate deeper causes like marginal signal integrity, EMI coupling, or mechanical strain. To avoid endless iteration, use clear stop conditions: if the symptom changes with small routing or grounding changes, focus on margin (SI/EMI/return path) rather than swapping parts; if current draw is consistently near zero, stay on rails/enables/reset until it is resolved; if the backlight is stable but the image never appears, stay on timing/initialization/control signaling until you can prove video activity matches the panel requirements.

In my experience with challenging integration environments, customization becomes valuable when product constraints make stable operation difficult within standard specifications. Space limitations, cable routing restrictions, noise environments, or unusual timing requirements can create situations where a “barely works” configuration is too sensitive for production. When constraints interact to create persistent no-light issues, I evaluate whether the fundamental requirements can be met with adequate guard band using a standard approach or whether custom optimization offers more predictable results. Custom solutions can align FPC orientation, interface expectations, and validation targets to reduce bring-up risk and improve production consistency—especially when the product’s mechanical and EMI constraints leave little margin.

FAQ

How can I quickly tell if the problem is backlight or video?
Check for any backlight glow and measure backlight supply/enable first. If the backlight is on but the image is black, focus on interface enable, timing, and initialization rather than the LED driver.

Why does the module draw almost no current?
Common causes are missing enable/reset release, incorrect rail connection, blown protection devices, or an open backlight path. Measure rails at the module connector and confirm control pins are asserted correctly.

The backlight is on but there’s no image—what’s most likely?
The host may not be enabling the display pipeline, the timing table may be incompatible, the panel may be in sleep/reset, or required initialization commands were not sent. Verify clock/data activity and control signaling.

Can wrong power sequencing cause a "dead" module symptom?
Yes. If rails and enables come up in an invalid order or the system browns out during backlight startup, the module may never initialize or may repeatedly reset.

Why does it work on the bench but fail in the enclosure?
Longer routing, worse grounding, added noise sources, and mechanical strain can reduce margin. Validate with the real cable/FPC path, worst-case temperature, and the noisiest operating state.

When should I involve the module supplier or consider customization?
When you’ve confirmed rails/enables and still see unstable bring-up, or when constraints like routing length, EMI, or unusual timing leave little margin, supplier support or customization can align integration details and reduce risk.

Conclusion

LCD display modules that won’t light up typically result from integration issues rather than component failures, requiring systematic diagnosis of power, backlight, and interface subsystems. Effective troubleshooting follows a decision tree approach that eliminates common integration mistakes before assuming hardware defects. A repeatable “shortest path” is: classify the symptom (backlight vs image), prove rails/enables/reset at the module connector, prove backlight drive behavior, then prove interface activity and timing/initialization against the panel requirements under representative conditions. This evidence-first method also helps avoid unnecessary module swaps—if routing/temperature/noise changes alter the symptom, treat it as a margin problem until proven otherwise.
