What is frame rate, and why does it affect smoothness and power?

Frame rate fundamentally determines visual smoothness and power consumption through display timing control and switching activity across LCD module subsystems.

Frame rate represents the number of complete image refreshes an LCD panel presents per second, controlled by display timing parameters including pixel clock and scanning intervals. Higher frame rates improve perceived motion smoothness by reducing time gaps between consecutive updates while increasing power consumption through greater switching activity across interface, timing controller, and driver circuits, requiring balanced optimization for visual performance and energy efficiency.

In LCD display module integration, frame rate decisions affect more than “how smooth it looks.” A refresh setting is implemented through a timing package—pixel clock plus horizontal/vertical totals and blanking—so changing frame rate changes how often pixels are transmitted and how frequently internal clocks and drivers switch. That makes frame rate both a user-experience lever and a power/thermal/EMI variable, especially in embedded and industrial designs with tight budgets. The practical goal is to pick a refresh strategy¹ that meets motion requirements without paying unnecessary power or stability costs.

What is frame rate in an LCD display module, and how is it defined?

Frame rate represents the frequency of complete image refresh cycles controlled by display timing parameters and panel driving schemes.

Frame rate is the number of complete image refreshes an LCD panel presents per second, typically expressed in Hz, realized through display timing including pixel clock, horizontal and vertical totals, and blanking intervals combined with panel driving schemes. Frame rate affects interface transmission frequency, timing controller and source driver switching rates, and display pipeline stability requirements, making it both a visual specification and an electrical design parameter.

From an engineering standpoint, frame rate configuration is rarely a single knob—it’s a set of timing parameters² that together determine the panel’s scan cadence. When the host “sets refresh,” it is really selecting pixel clock and total timings that define how often each line and each frame is driven. This matters because the electrical workload scales with how frequently the system must move pixel data and toggle internal logic. A helpful mental model is: frame rate is not only what the user perceives, it is also how often the display subsystem performs work.

Timing Parameter Integration

Frame rate is implemented through timing: pixel clock plus horizontal/vertical totals (including blanking) define how long a line and a frame take. Changing refresh typically changes pixel throughput and clocking, not just “visual cadence.” In embedded designs, small timing shifts can change margins—especially if the interface or the panel driving scheme has limited tolerance. Always treat timing changes as electrical changes that must remain stable across voltage and temperature variation.

System-Level Impact

Frame rate affects interface bandwidth requirements, switching activity levels, and power consumption patterns across timing controllers and source drivers. Even if content is static, many systems continue scanning and refreshing at the configured rate, so clocks and data paths keep toggling. Higher refresh can also tighten EMI margins by increasing data activity and clock harmonics. This is why frame rate selection should be evaluated as a system-level trade-off, not only a UI preference.

Why does a higher frame rate look smoother to human eyes?

Higher frame rates improve perceived motion smoothness by increasing temporal sampling frequency and reducing visible motion artifacts.

Perceived smoothness improves when motion is sampled and displayed more frequently, reducing time gaps between consecutive motion positions and lowering visible judder during scrolling, panning, and animation. Higher frame rates enable more continuous object movement appearance and can reduce input-to-photon latency in interactive interfaces, particularly noticeable on high-contrast edges and fast transitions, though smoothness is constrained by content frame rate and system rendering consistency.

Higher refresh reduces the time between updates, which can make scrolling, panning, and animated transitions look more continuous. It can also improve “responsiveness feel” when the system is interactive, because the display has more opportunities to present a newly rendered state. However, perceived smoothness³ depends on stable frame pacing: if the host cannot render consistently, uneven frame delivery (stutter) can dominate even at a high refresh setting. Content frame rate also matters—if content updates are inherently slow, raising panel refresh alone may not produce a meaningful improvement.

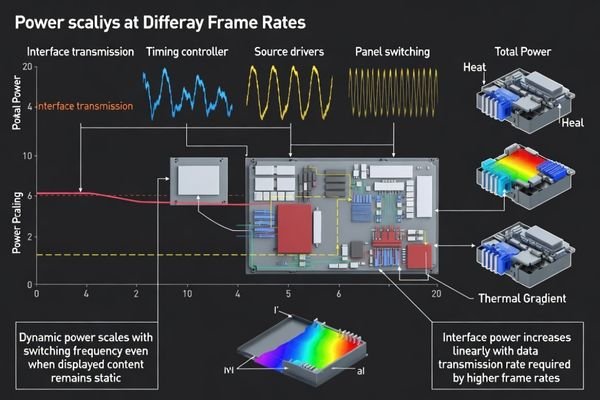

Why does frame rate increase power consumption in LCD display modules?

Frame rate directly correlates with switching activity and dynamic power consumption across display subsystem components.

Higher frame rates increase switching activity across the entire display path including interface pixel data transmission, timing controller and source driver toggling frequency, and internal clock operation, raising dynamic power consumption. Even with static image content, display pipelines continue refreshing and scanning at the set rate, maintaining work each frame while host-side display engines consume additional power maintaining interface links and timing, with thermal and EMI implications for system design.

A practical rule is: higher refresh usually means more toggling per second, which increases dynamic power⁴. The interface sends more pixel data per unit time, internal clocks run faster or remain active more often, and panel driving activity occurs more frequently. This cost can exist even on static screens because scanning and timing may continue at the configured rate regardless of content changes. As a result, frame rate can be a meaningful optimization lever alongside backlight brightness—particularly in battery-powered, thermally constrained, or EMI-sensitive products.

Subsystem Component	Frame Rate Impact	Power Scaling Characteristics
Interface Transmission	Linear scaling with data rate	Higher bandwidth increases switching losses
Timing Controller	Clock frequency dependent	Dynamic power scales with switching activity
Source Drivers	Scan frequency related	Panel driving frequency affects power consumption
System Thermal	Heat accumulation impact	Higher power reduces available thermal margin

Power consumption scaling with frame rate requires comprehensive analysis across multiple subsystem components rather than focusing only on direct display power measurements. For comprehensive power optimization analysis and frame rate selection support during LCD module integration planning, engineering teams can contact info@lcdmodulepro.com when balancing visual performance with power budget constraints requires expert system-level optimization.

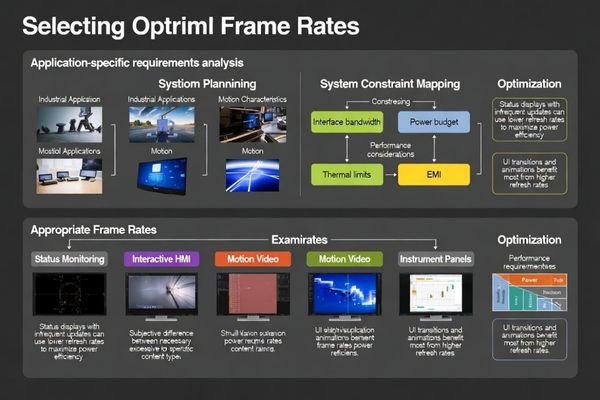

What frame-rate trade-offs matter most for industrial and embedded LCD applications?

Industrial and embedded applications require frame rate optimization balancing user experience needs with power, thermal, and reliability constraints.

Optimal frame rate selection involves choosing the lowest value meeting user experience requirements while preserving power efficiency, thermal stability, and long-term reliability. UI-heavy applications with frequent scrolling or fast-moving indicators benefit from higher refresh rates, while status displays and instrument panels can prioritize energy efficiency through moderate refresh focused on readability and consistent rendering, considering interface bandwidth limits, rendering headroom, EMI risk, and thermal constraints.

For many industrial HMIs and embedded dashboards, the best refresh rate is the lowest one that still feels smooth for the real UI behavior. If the interface frequently scrolls, animates, or shows camera-like motion, a higher refresh may be justified; if the screen mostly shows stable values and occasional updates, moderate refresh often provides better efficiency with minimal UX penalty. The trade space is not only smoothness vs power—timing margins, EMI, thermal headroom, and long-term stability can become tighter as switching activity increases. A robust design aligns refresh targets with actual usage patterns rather than defaulting to the maximum available setting.

Application-Specific Requirements

Different industrial applications tolerate different motion quality: a control UI with frequent user interactions may need a higher refresh than a monitoring display with slow-changing data. Also consider perceived smoothness drivers beyond refresh rate, such as consistent frame pacing and avoiding dropped frames during peak compute load. If the UI updates in bursts, test the worst-case interaction path rather than average behavior. Selecting refresh based on real user flows prevents over-design and avoids power costs that do not translate into perceived benefit.

System Constraint Integration

Frame rate decisions must consider interface bandwidth limitations, host rendering capability, thermal management⁵ requirements, and EMI implications for robust long-term operation. If the system is near bandwidth limits, higher refresh can expose timing sensitivity during temperature shifts or voltage droops. If thermal margins are tight, refresh increases can raise internal temperatures and reduce reliability headroom. Validate the refresh plan under realistic environmental and electrical stress, not only in short bench demos.

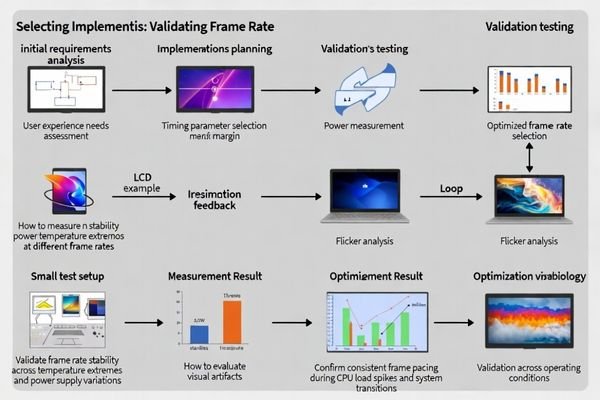

How should you choose and validate frame rate for a stable, low-power LCD module integration?

Frame rate selection requires systematic evaluation of application needs, system capabilities, and validation under realistic operating conditions.

Frame rate selection should start from application motion and interaction requirements, working backward through timing and power budgets by determining minimum refresh preserving perceived smoothness, confirming consistent host rendering capability, and ensuring comfortable interface bandwidth and timing margins across temperature and voltage variation. Validation must include power and temperature measurement at different refresh settings, flicker and artifact checking under dimming and low-brightness conditions, and verification of stable behavior during sleep/wake transitions and scene-idle states.

A practical selection method is to start with the minimum refresh that meets the UI’s motion needs, then prove that the system can sustain stable pacing at that setting. Validate not only average behavior but also transitions: boot, sleep/wake, brightness changes, and heavy CPU/GPU load moments that can disturb cadence. Then quantify the trade-off by measuring module and system power plus temperature at different refresh settings, because small refresh reductions can produce meaningful energy savings over long runtimes. Finally, confirm that any low-power strategy (such as idle-state lower refresh) does not introduce flicker, artifacts, or link instability.

Frame Rate Optimization Implementation Framework:

• Application Requirements Analysis: Evaluate motion smoothness needs for specific UI patterns, interaction latency requirements, content update characteristics, and user perception expectations under realistic usage scenarios
• System Capability Assessment: Validate host rendering consistency and timing stability, confirm interface bandwidth margins across operating conditions, assess power budget allocation and thermal management capabilities
• Integration Optimization Strategies: Implement dynamic frame rate adjustment⁶ capabilities for power savings during static scenes, optimize timing parameter selection for stable operation across environmental conditions, develop custom display timing alignment for specific system requirements
• Validation Testing Protocols: Establish comprehensive testing including power consumption measurement across frame rate settings, flicker and artifact evaluation under varying brightness and temperature conditions, timing stability verification during system state transitions, and long-term reliability assessment under realistic deployment stress

FAQ

Is frame rate the same as refresh rate on an LCD display module?
In most embedded contexts they are used interchangeably, but "frame rate" can refer to content frames while "refresh rate" is the panel scan/update frequency set by timing; the visual result depends on both.

If I increase frame rate, will backlight power always increase?
Not always; backlight power is mainly driven by brightness and LED current, but higher frame rate can increase total system power and heat, reducing available thermal headroom.

Why can high frame rate still look "not smooth" sometimes?
If the host can’t render consistently, dropped or unevenly paced frames cause stutter; timing instability or content limited to a lower frame rate can also cap perceived smoothness.

Does lowering frame rate risk flicker?
It can, depending on panel drive scheme, timing, and dimming method; validation at low brightness and across temperature is important to avoid flicker and artifacts.

How does frame rate relate to EMI in embedded designs?
Higher refresh usually means higher switching frequency and data activity on interfaces and clocks, which can increase radiated and conducted emissions if layout and grounding aren’t robust.

Can I dynamically change frame rate to save power?
Often yes, but it must be implemented carefully so timing changes don’t cause visible glitches, link instability, or unexpected latency during transitions.

Conclusion

Frame rate represents a timing-controlled refresh behavior that directly shapes motion smoothness while driving switching activity and power consumption across the entire display pipeline from interface to panel drivers. Effective LCD module integration requires understanding frame rate as both a visual quality parameter and an electrical design variable affecting power budgets, thermal management, and system stability. Optimization success depends on systematic analysis of application requirements, system capabilities, and validation under realistic operating conditions rather than defaulting to maximum available refresh rates.
