High-temperature luminance validation should be built to answer two questions reliably: what brightness the module delivers while hot (usability), and how much brightness is permanently lost after exposure (aging). A repeatable method locks the thermal setup and operating point so results reflect the module, not fixture differences.
High-temperature luminance degradation is the reduction of emitted brightness when a module operates or dwells at elevated temperature. Part of the drop can be reversible (it recovers after cooling), while part can be irreversible (aging-driven loss that remains at a reference condition). For wide-temp modules, this matters because brightness margin is often the first user-visible reserve to disappear under heat, reducing readability and perceived quality before any hard failure occurs.
In wide-temp validation programs, the most common mistake is mixing thermal dependence and aging into one number, or changing mounting/airflow between tests. A correct approach separates reversible thermal behavior from permanent degradation1, and ties the test to real use cases such as sustained high ambient, enclosure heat soak, and worst-case duty cycles that drive the true backlight temperature.
What is "high-temperature luminance degradation" and why does it matter for wide-temp modules?
High-temperature luminance degradation represents brightness reduction under elevated temperature conditions affecting wide-temp module performance and long-term reliability in demanding thermal environments.
High-temperature luminance degradation is the reduction of emitted brightness when a module operates or dwells at elevated temperature, and it can be temporary (recoverable with cooling) or permanent (aging-driven loss). For wide-temp modules, this matters because brightness margin is often the first user-visible reserve to disappear under heat, affecting readability and perceived quality long before a hard failure occurs. Validation should therefore separate “hot-condition luminance” (usability) from “residual loss at a defined reference temperature” (aging).
Degradation can come from multiple contributors that behave differently with temperature: backlight source efficiency changes, optical film behavior, thermal effects within the LCD stack, and driver/current-control behavior that shifts under heat or triggers derating. Because these effects can overlap, a good definition of what you are validating—and when you measure it—prevents incorrect conclusions about reliability or real-world readability.
Degradation Mechanisms and Contributing Factors
High-temperature luminance degradation results from multiple mechanisms including backlight efficiency reduction, optical component changes, LCD stack thermal effects, and control circuit behavior shifts that can occur individually or in combination depending on module architecture and thermal stress levels.
Impact on Wide-Temp Module Performance
For wide-temp applications, luminance degradation2 affects user perception and system functionality because brightness margin directly impacts readability under various ambient conditions, making thermal stability critical for maintaining consistent performance across the specified temperature range and operational lifecycle.

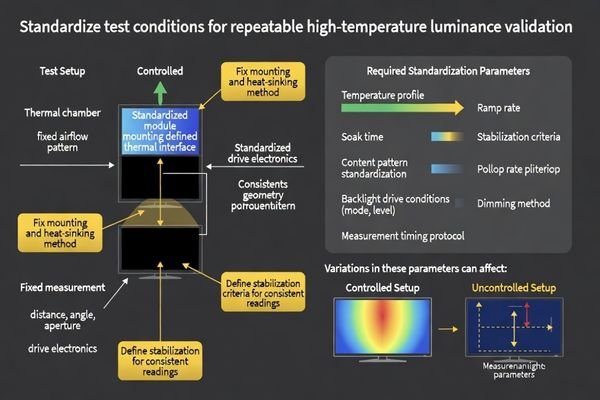

Which test conditions should be fixed to make high-temperature luminance validation repeatable?
Repeatable validation requires systematic control of measurement environment, module operating conditions, and thermal exposure profile ensuring consistent and comparable results across different test sessions and units.
Repeatable validation starts with fixing the thermal environment and the module operating point. Lock the temperature profile (ramp, soak duration, and stabilization criteria), airflow, and mounting/heat-sinking method because fixture differences can dominate results. Lock measurement geometry (distance, angle, aperture), the content pattern, and the backlight drive conditions (mode, level, dimming method). If thermal derating or power limiting can occur, require that it is detected and logged so a control strategy change is not mistaken for degradation.
From an engineering standpoint, uncontrolled variables3 can create variations larger than the effect you are trying to measure. Define when readings are taken—immediately at temperature, after thermal equilibrium, and after a cool-down recovery—and specify stabilization rules so different labs or fixtures do not “pass” or “fail” the same module for setup reasons.

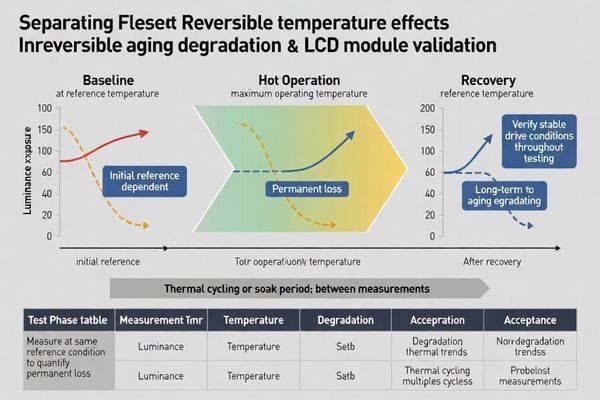

How do you separate reversible temperature drop from irreversible aging loss?
Systematic testing sequence with baseline measurement, controlled thermal exposure, and recovery assessment enables accurate separation of reversible thermal effects from permanent aging degradation.
Use a structured baseline–exposure–recovery sequence. Measure initial luminance at a defined reference temperature, then measure at the high-temperature condition after reaching thermal equilibrium to quantify the reversible temperature-dependent drop. To quantify irreversible loss, apply a defined high-temperature dwell or cycling profile for set operating hours, then return to the same reference temperature and re-measure under identical conditions; any residual loss at the reference condition indicates aging-driven degradation. Repeat at multiple time points to form a degradation curve, and verify the backlight drive remains constant to avoid control artifacts.
When teams separate these components, the results become actionable: the hot-condition value4 informs readability margin, while the residual loss trend informs lifetime planning. The measurement checkpoints should be pre-defined and repeatable so results reflect true behavior rather than differences in warm-up time, meter placement, or uncontrolled derating.
| Test Phase | Measurement Timing | Temperature Condition | Degradation Component | Acceptance Criteria |
|---|---|---|---|---|
| Baseline | Reference stabilization | Defined reference temperature (e.g., 25°C) | None – establishes initial performance | Initial luminance specification |
| Hot Operation | At temperature equilibrium | High temp (operating max) | Reversible thermal drop | Acceptable hot-condition brightness |
| Thermal Soak | During extended exposure | High temp maintained | Progressive aging acceleration | Degradation rate limits |
| Recovery | After cooling stabilization | Defined reference temperature | Irreversible aging loss only | Maximum allowable permanent loss |
| Trend Analysis | Multiple time intervals | Alternating cycle | Combined degradation tracking | Long-term stability requirements |
Systematic separation methodology enables accurate assessment of both immediate thermal effects and long-term aging trends providing comprehensive understanding of module performance degradation under high-temperature operating conditions.

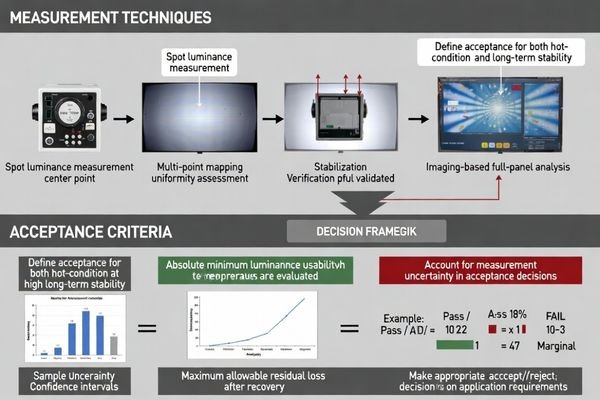

What measurement methods and acceptance logic work best for wide-temp luminance validation?
Effective measurement methodology combines appropriate instrumentation with statistical acceptance criteria accounting for application-specific requirements and measurement uncertainties.
Choose measurement depth based on program risk. Spot luminance at a defined center point is efficient for trending, while multi-point mapping is preferred when uniformity drift at temperature could affect perceived quality. Define stabilization criteria (temperature and luminance settling) and acceptance logic that covers both absolute minimum luminance at the hot condition and allowable residual loss (or loss rate) at the reference condition after exposure. Include worst-case mounting and airflow in the acceptance model, and document uncertainty drivers so decisions are based on meaningful change, not noise.
A practical acceptance approach combines usability and aging protection: the module must remain readable at the hottest realistic condition, and the post-exposure residual loss must remain within an agreed limit over time. To avoid false alarms, specify meter repeatability, positioning tolerance, and sample-to-sample spread, then apply acceptance with appropriate statistical confidence when differences are near the noise floor.
Instrumentation and Measurement Technique Selection
Luminance Measurement Strategy:
Select appropriate measurement approach balancing speed and accuracy requirements including spot photometry for trending analysis, multi-point mapping for uniformity assessment, and imaging-based methods for comprehensive spatial characterization ensuring measurement technique matches validation objectives and program requirements.
Stabilization and Timing Control:
Implement systematic stabilization criteria including thermal equilibrium verification, luminance settling requirements, and measurement timing protocols ensuring consistent and repeatable results while accounting for thermal time constants and measurement system response characteristics.
Statistical Analysis and Acceptance Framework
Degradation Trend Analysis5:
Develop statistical methods for degradation rate calculation, trend analysis, and projection methodology enabling accurate assessment of long-term performance while accounting for measurement uncertainty and sample variation across production lots and environmental conditions.
Risk-Based Acceptance Criteria:
Establish acceptance limits considering worst-case application conditions, mounting thermal interfaces, and enclosure effects ensuring validation results predict real-world performance while maintaining appropriate safety margins for product reliability and customer satisfaction.
How to select a wide-temp LCD module solution with high-temperature luminance stability in mind?
Wide-temp module selection requires systematic evaluation of thermal performance, architectural stability, and application-specific requirements ensuring reliable luminance performance across temperature range and operational lifecycle.
Selection should begin with thermal reality of end product and work systematically through module capabilities, validation requirements, and lifecycle management to achieve stable high-temperature luminance performance.
Thermal Environment Assessment and Requirements Definition
Application Thermal Analysis:
Evaluate maximum ambient conditions, enclosure heat soak characteristics, airflow availability, and duty cycle requirements because these parameters define backlight junction temperature that drives luminance degradation and determine thermal stress levels for module selection and validation.
Performance Margin Planning:
Define required brightness levels at high-temperature conditions including safety margins for aging and worst-case mounting scenarios ensuring adequate luminance performance throughout product lifecycle while accounting for thermal derating and degradation effects.
Module Architecture and Stability Evaluation
Backlight Technology Assessment:
Compare backlight efficiency characteristics, thermal derating behavior, current control stability, and aging profiles across different architectures selecting technology that maintains stable performance under thermal stress while providing adequate brightness margin for application requirements.
Optical Stack Robustness:
Evaluate diffusion film thermal stability, adhesive performance, sealing material behavior, and mechanical stack integrity under temperature cycling ensuring optical components maintain performance characteristics and do not introduce additional degradation mechanisms or reliability risks.
Validation Strategy and Configuration Control
Representative Testing Protocol:
Develop validation methodology reflecting actual mounting interfaces, thermal conditions, and operational profiles rather than ideal laboratory conditions ensuring test results accurately predict field performance and identify potential thermal-luminance issues before deployment.
Lifecycle Management and Supply Control:
Establish configuration control procedures, change notification requirements, and supply continuity planning ensuring thermal-luminance behavior remains consistent across production revisions and supplier changes while maintaining validated performance characteristics throughout product lifecycle.
FAQ
Should luminance be measured while hot, or only after cooling back to room temperature?
Both are useful. Hot measurements capture reversible temperature dependence, while reference-condition re-measurement after exposure reveals irreversible aging loss.
How long should the high-temperature soak be for validation?
It should reflect the product’s heat-soak risk and the purpose of the test. Longer dwell or repeated cycles are needed when you want to characterize aging trends rather than only immediate thermal behavior.
Why do results vary a lot between fixtures or labs?
Differences in airflow, mounting heat sinking, sensor geometry, stabilization criteria, and backlight drive control can dominate readings at temperature, so the setup and criteria must be tightly defined.
Can dimming method affect apparent degradation at high temperature?
Yes. Some dimming strategies and thermal derating behaviors change delivered current at temperature, which can look like degradation unless drive conditions are fixed and logged.
Should uniformity be validated along with luminance?
Often yes, because heat can change backlight distribution and diffuser behavior, so a module may meet center luminance but show unacceptable non-uniformity at temperature.
How do you prevent surprises after a supplier revision or replacement?
Lock a validated configuration, require change notification, re-validate key hot-condition luminance checks, and keep reference samples so thermal-luminance behavior remains consistent across production.
Conclusion
Validating high-temperature luminance degradation for wide-temp modules requires a repeatable setup, fixed operating conditions, and a sequence that separates reversible thermal drop from irreversible aging loss. By measuring both at the hot condition (usability) and at a defined reference condition after controlled exposure (aging), teams can build meaningful degradation curves and set acceptance logic that protects real readability in the hottest use case.
