What are H/V porch, and why can they shift the image position?

Understanding horizontal and vertical porch timing parameters is essential for preventing image positioning problems during LCD module integration.

Horizontal and vertical porches are timing intervals within blanking periods that define where active image content begins and ends in each line and frame. These non-visible timing counts act as digital positioning margins that determine active window placement, causing image shifts when porch values change even if resolution remains constant.

In my LCD display module integration work at MEIDAYINGNUO, I’ve found that porch-related image positioning issues often surprise teams because everything “looks compatible” on paper. The active resolution may match, the interface may have headroom, and the panel may light up—yet the image lands slightly off-center, crops at one edge, or shows uneven borders. A useful troubleshooting sequence is to first confirm whether the active window is simply shifted (a timing placement issue) versus resized or distorted (a scaling/aspect issue). Next, compare the complete timing preset¹ (totals, porches, sync widths, and polarity) between the source, any intermediate bridge/scaler, and the module’s expected timing range. Finally, validate the chosen preset under real operating conditions—temperature, EMI exposure, and production-like cabling—because reduced guard-band margin can turn a “centered on the bench” setup into intermittent flicker or loss of lock in the field.

What are horizontal and vertical porch in display timing?

Horizontal and vertical porches are timing intervals that surround sync pulses within blanking periods and establish active image boundaries.

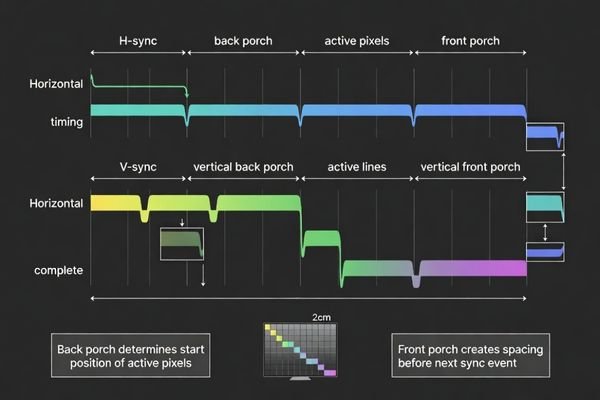

Horizontal and vertical porches are timing padding intervals around sync pulses within blanking time that define where active image begins and ends in each line and frame. Front porch occurs after active pixels before sync pulse, while back porch follows sync pulse before next active region starts, creating timing counts that position the visible image relative to synchronization events.

From an engineering standpoint, I describe porches as the “digital margins” that place the active window relative to the sync event inside the full line/frame timing. They don’t carry visible pixels, but they are real counts used by timing generators and receivers to decide exactly when active data begins. Because those counts are part of the placement reference, porch mismatches can create image offsets even when the active resolution is identical.

Horizontal Porch Structure²

Horizontal front and back porches create timing margins around the horizontal sync event that determine where the receiver starts sampling active pixels within each line. In practice, the horizontal back porch is often the “settling” interval after sync before the active window opens, while the front porch separates the end of active pixels from the next sync boundary. Changing these counts can move the active start position without changing the number of active pixels. That’s why a mode can be the correct resolution yet appear shifted, with a border on one side and cropping on the other.

Vertical Porch Structure

Vertical front and back porches perform the same job at the frame level: they place the first active line relative to the vertical sync boundary and define where active video begins inside the overall frame timing. Vertical porch values matter because many systems treat the frame boundary as the reset point for line counting, and the active window opens after a defined porch interval. If those counts don’t match what the receiver expects, the image can appear too high or too low, sometimes with missing top/bottom lines or uneven blank borders that make the UI look “off” even though resolution is unchanged.

Why do porches exist if they don’t carry visible pixels?

Porches provide essential timing guard bands that ensure stable transitions between active video and synchronization boundaries across system tolerances.

Porches create settling time for panel timing controllers, source output stages, and intermediate components to cleanly transition between active video and synchronization without violating internal pipeline constraints, while accommodating clock tolerance, jitter, temperature drift, and different component interpretation of sync timing for stable operation in production environments.

Based on timing optimization work, porches function as guard bands that absorb real-world variation: clock tolerance³, jitter, temperature drift, and the small differences in how devices interpret sync boundaries. They give panel timing controllers and any bridges/scalers time to settle so the receiver opens the active window consistently. When porches are pushed too small, systems may still pass in a quiet lab, but become sensitive in production—cable routing changes, EMI exposure, or power-noise events can reduce tolerance and trigger intermittent re-lock, flicker, or occasional loss of sync.

How can H/V porch values shift the image position?

Image position depends on active window placement relative to sync events, which changes when porch timing distribution is modified.

Image position shifts occur because receivers position active windows relative to sync events and porch timing rather than just active pixel counts. Increasing horizontal back porch delays active pixel start time creating leftward shift, while reducing back porch advances start time creating rightward shift, with vertical porches affecting up/down positioning through similar timing relationships.

When I troubleshoot image positioning problems, the fastest win is often to compare porch distribution between a “known-good” timing preset and the current output. Two modes can share the same active resolution while placing that active window differently inside the total timing, producing a consistent offset or edge crop. Porch tuning can correct placement without changing active pixels, but only when it stays within the receiver’s accepted timing range and preserves enough guard-band margin for stable lock.

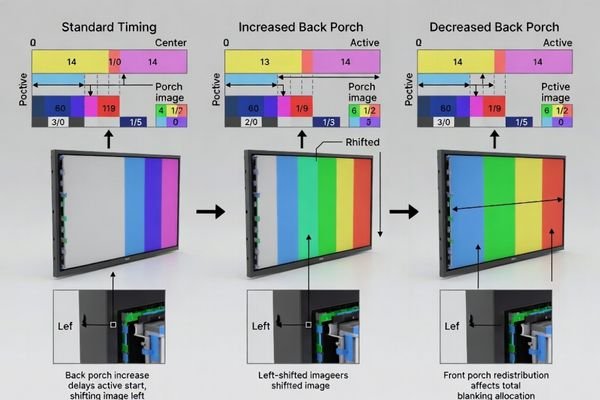

Porch Adjustment4	Horizontal Effect	Vertical Effect
Increase Back Porch	Image shifts left	Image shifts down
Decrease Back Porch	Image shifts right	Image shifts up
Increase Front Porch	Image shifts right	Image shifts up

Porch timing redistributions can move active windows without changing pixel clock or total timing, creating position adjustments that maintain bandwidth compatibility. Direction can vary by implementation (sync polarity, reference edge, and receiver logic), so treat the table as a common pattern and confirm the actual behavior using measurement and the receiver’s timing definitions.

For comprehensive display timing analysis and porch optimization support during integration challenges, engineering teams can contact info@lcdmodulepro.com when positioning issues require expert troubleshooting.

What symptoms and integration pitfalls indicate porch-related misalignment?

Porch-related problems manifest as consistent image offsets and integration instabilities that differ from scaling or resolution issues.

Common symptoms include consistent image offset with visible borders on one side, cropped edges when active window extends beyond panel boundaries, intermittent position shifts after mode switching due to different timing preset porch distributions, and stability problems including flicker or sync loss when reduced guard time stresses receiver timing tolerance under real operating conditions.

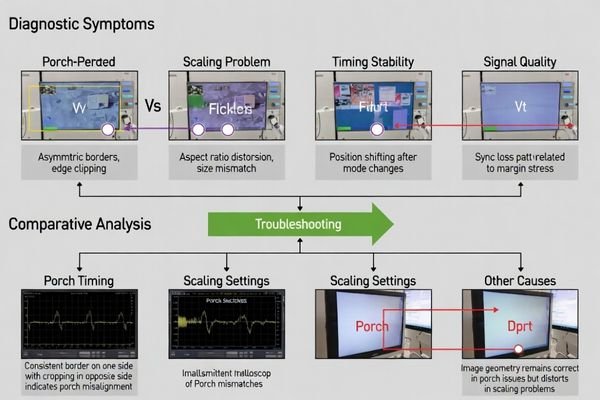

I’ve observed that teams often chase the wrong lever by treating a placement problem like a resolution or scaling problem. A porch issue typically looks like a whole image “slid” in one direction (with asymmetric borders or a clipped edge), while scaling issues look like size/aspect problems (stretched UI, wrong geometry, or blurred resampling). Another common pitfall is mode switching: two presets may share the same active pixels but differ in porch distribution, so the receiver re-locks with a different active window placement. In tighter systems, reducing porch guard time can also turn a positioning tweak into a stability problem.

Position Offset Symptoms

Consistent image displacement with visible borders indicates porch timing mismatch rather than scaling problems, requiring timing adjustment rather than resolution changes. The tell is that pixel geometry remains correct—circles stay circular, fonts keep their proportions—but the entire active area appears shifted or slightly cropped. Start by documenting the full timing preset (H/V totals, porches, sync widths, polarity, refresh) from the source and comparing it to the receiver/module expectations. If the receiver provides a status readout for detected timing, use it to verify where it believes active video begins. This evidence-first approach prevents trial-and-error changes that create new mismatches.

Stability Impact Indicators

Reduced timing margins from improper porch values can cause intermittent synchronization problems⁵ that appear as flicker, periodic image shifts, or occasional loss of display lock. These symptoms often show up after environmental changes—temperature variation, EMI events, or power-noise transients—because the receiver’s tolerance is being stressed by smaller guard bands. If a porch adjustment “fixes centering” but introduces intermittent instability, treat it as a margin regression. Restore guard time, validate with production-like cabling and harness placement, and confirm the timing remains within accepted ranges across operating conditions.

How to choose an LCD module and timing strategy when porch tuning is required?

Module selection and timing strategy must prioritize adjustment flexibility and compatibility validation when porch optimization is anticipated.

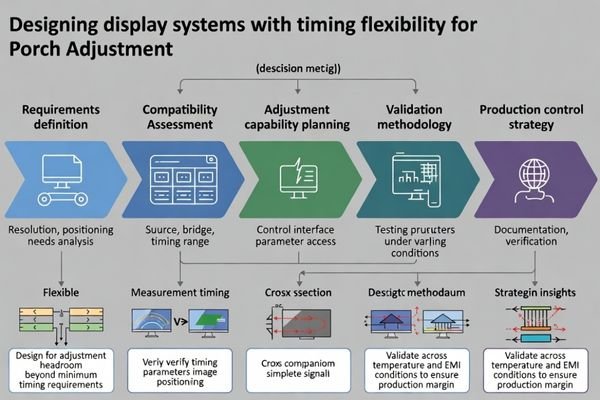

Strategy should prioritize timing compatibility and adjustment headroom by fixing required active resolution and refresh behavior, verifying module accepted timing ranges and system porch control capability, evaluating complete signal chain constraints including source limitations and intermediate component requirements, confirming mechanical and optical stack effects on border perception, and protecting production stability through adequate margin validation.

Based on timing-critical projects, the safest approach is to assume porch tuning may be needed and design the timing plan around controllability and validation. That means choosing components and configurations that let you adjust porches without breaking totals, violating accepted ranges, or collapsing guard-band margin. It also means defining what “centered” means for the shipped product (bare module vs assembled optical stack) so acceptance is consistent and reproducible across production and service.

Custom Timing Solutions Approach:

• Timing Flexibility Assessment: Evaluate source timing generation capability, intermediate component constraints, and module timing controller acceptance ranges to determine available adjustment parameters
• Signal Chain Validation: Test complete pathway including bridge chips, cable routing effects, and connector timing integrity under production-representative conditions
• Position Optimization Strategy: Develop systematic porch adjustment methodology with documented validation criteria and production control procedures
• Margin Protection Planning: Establish guard band requirements across temperature, EMI exposure, and manufacturing variation to maintain stable operation throughout product lifecycle

FAQ

Are porches the same thing as blanking?
Porches are part of blanking. Blanking includes porches plus the sync pulse; together they form the non-active timing around the active image.

If I change the porch, does the pixel clock always change?
Not necessarily. If you keep total horizontal and vertical timing constant and only redistribute porch counts, the pixel clock can stay the same—yet the image position can shift.

Why does the image shift even when the resolution stays the same?
Because the receiver positions the active window relative to sync and porch timing, not just the active pixel count. Same resolution can be "placed" differently inside the line/frame.

Can porch tuning fix cropped edges?
It can fix cropping caused by mispositioned active windows, but it won’t fix scaling or aspect-ratio mistakes. Verify whether pixels are missing due to placement or due to scaling.

What causes intermittent shifts after mode switching?
Different timing presets may have different porch distributions, and some receivers re-lock differently depending on margin. Consistent presets and sufficient guard time reduce this risk.

How should porch values be documented for production?
Document the full timing preset (totals, sync, porches, refresh) as a controlled configuration, and require re-validation when firmware or upstream timing generators change.

Conclusion

H/V porches function as blanking intervals that create timing margins around sync events while defining active image window positioning within line and frame structures. Understanding porch timing relationships is critical because position shifts can occur when porch values change even with constant resolution, requiring systematic validation of timing compatibility across complete signal chains. Successful integration demands treating porch values as controlled timing parameters with documented presets and adequate guard margins to maintain stable positioning across operating conditions and production variation.

MEIDAYINGNUO can support LCD module timing analysis when porch-related positioning or stability issues appear during integration. Our team can help review timing presets across the signal chain, define a repeatable porch adjustment method, and plan production-representative validation so image placement remains stable across temperature, EMI exposure, and lifecycle changes.
