LCD Interface Selection: LVDS vs eDP vs MIPI

Choosing the interface for an LCD module often looks like a narrow hardware decision. In practice, it rarely stays narrow for long. The interface choice affects how the host board talks to the panel, how the cable is routed through the enclosure, how difficult the layout becomes, and how much validation work the project carries later. A display that looks fine in a specification table can still become a poor project fit if the interface creates avoidable system friction.

LVDS, eDP, and MIPI should be compared as system-level display paths, not just as display-side specifications. The right choice depends on host compatibility, physical routing, bandwidth needs, software support, and the amount of integration risk the project can tolerate.

In real projects, interface problems are often discovered later than they should be. A team may choose a panel based on size and resolution, only to find that the required interface is awkward for the processor, difficult for the cable path, or unstable once an adapter board gets added. At that point, the display is no longer just a panel choice. It has started shaping the board architecture and the validation burden around it.

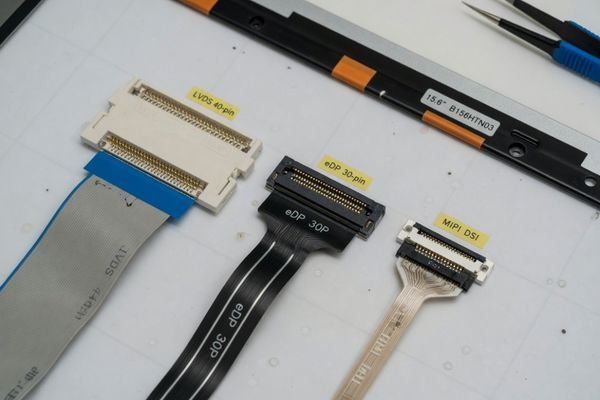

This is why LVDS¹, eDP, and MIPI are worth comparing carefully. They are not just different connectors on the back of a display. They represent different assumptions about the host platform, the routing style, the integration distance, and the overall product architecture.

Selection summary:

• LVDS is often the lower-friction choice in mature industrial platforms with native support and less pressure to minimize cable width.
• eDP is often attractive in newer high-resolution designs where cleaner routing and fewer pairs matter.
• MIPI is often the strongest fit when the product is built around a compatible SoC ecosystem and the display is tightly integrated over a short distance.

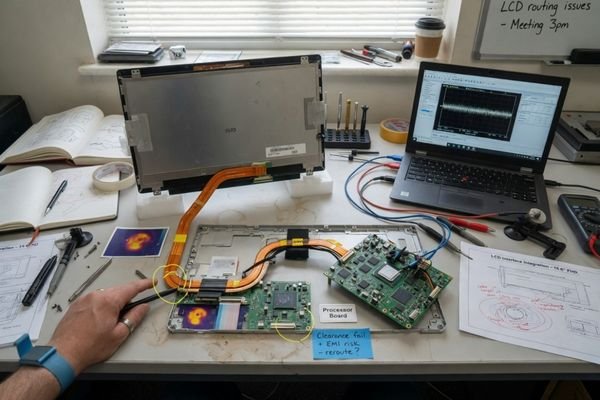

Why LCD Interface Selection Matters in Real Projects

LCD interface selection is not a small downstream detail. It influences the display architecture early, even when teams think they are still only comparing panels.

A mismatch at the interface level can show up in several ways at once:

• the processor does not support the selected interface natively,
• the cable becomes harder to route than expected,
• the connector takes more space than the enclosure allows,
• a bridge board becomes necessary,
• EMI or signal-integrity problems start appearing during validation,
• or software support turns out to be thinner than assumed.

What makes this important is that none of those problems are panel-only problems. They are system problems. A technically workable interface is not always the best project choice if it adds unnecessary adaptation, power overhead, routing difficulty, or debug time.

In early engineering reviews, interface selection² usually makes the most sense when it is evaluated together with host capability, cable path limits, connector space, target resolution, and enclosure constraints—not as a display parameter floating on its own.

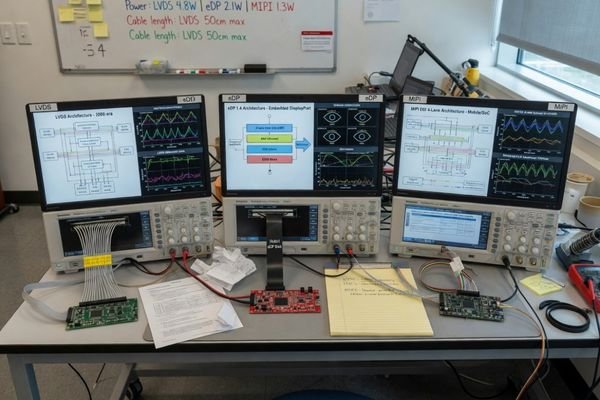

What LVDS, eDP, and MIPI Each Represent

LVDS, eDP, and MIPI are often mentioned as if they were simple alternatives in one menu. They are not. Each one usually comes with a different host-side ecosystem and a different set of layout assumptions.

LVDS is commonly associated with mature industrial and legacy-compatible platforms. eDP is often tied to newer high-resolution designs with leaner cabling. MIPI is usually strongest in SoC-centric embedded systems where the display sits close to the processor and the platform already supports it well.

LVDS: The Established Workhorse

LVDS remains common in industrial, medical, and other long-running embedded platforms because it is familiar, mature, and widely supported. It uses multiple differential pairs and has a long track record in systems where stability and continuity often matter more than pushing the newest display architecture. Its trade-off is physical bulk: more pairs usually mean a wider cable and a higher pin-count connector.

eDP: The Modern High-Bandwidth Successor

eDP is a packet-based interface derived from DisplayPort. It can carry high data rates³ with fewer lanes, which often makes the cable simpler and the connector smaller than LVDS. That becomes useful when the project is moving toward higher resolution, cleaner routing, or a more modern host platform. The catch is that it depends heavily on the processor and platform supporting it properly from the start.

MIPI: The SoC-Centric Embedded Path

MIPI DSI is often the natural choice in compact embedded products built around mobile or embedded SoCs. It is designed for short-distance integration and low-power operation, which is why it appears so often in tightly integrated products. Its downside is that it is less forgiving outside that ecosystem. If the host platform is not already comfortable with MIPI, or if the physical integration is less compact than expected, it can become a less practical choice than it first appears.

System Compatibility Often Decides the Best Interface

In real LCD projects, the best interface is often the one that fits the host system with the least resistance, not the one with the most attractive headline features.

The most reliable interface decision usually starts with the host platform: what it supports natively, what the board already assumes, and how much architectural change the project can realistically absorb.

I have seen plenty of projects where a display could be driven in theory but still created trouble in practice because the interface fit was poor. A processor with native LVDS support⁴ but no eDP support is a simple example. In that case, forcing eDP with a bridge chip may look modern on paper, but it can add parts, power, layout complexity, and another point of failure for no real project benefit.

The same pattern shows up with MIPI. If the platform was never designed around it, then choosing MIPI because the product is compact can still backfire if software support, timing behavior, or debugging tools are weaker than expected.

In our early interface reviews at LCD Module Pro, we usually start with four practical checkpoints: the host processor’s native display outputs, the intended resolution, the available routing path, and the connector space inside the product. In real projects, those four constraints often narrow the interface choice faster than any protocol comparison table. They also reveal when a project is leaning toward a bridge board or workaround before the team has admitted that to itself.

What Does the Host Actually Support Natively?

That answer usually narrows the field faster than any generic interface comparison chart. If the host already supports one direction well, and the project does not have a strong reason to move away from it, that path is often lower risk.

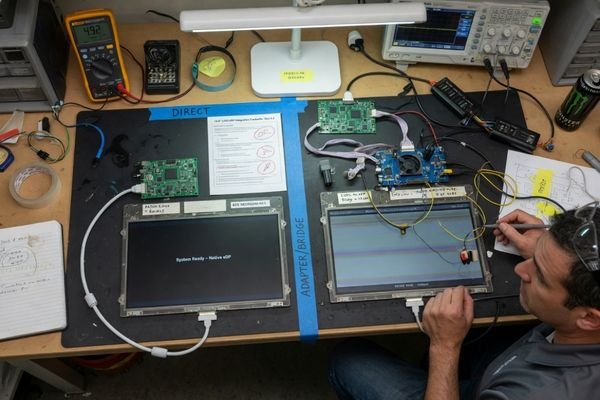

When Adaptation Starts Costing More Than It Helps

Adapter boards and bridge chips are sometimes justified, but they should be treated as real system costs, not invisible conveniences. Once a project needs them, the interface decision is no longer just about display compatibility. It is also about whether the surrounding system is being forced into a shape it did not naturally want.

👉 Engineering:
For a project-specific engineering review for LCD interface selection, it usually helps to compare host capability, routing limits, and connector space together before the architecture is locked.

Routing, Cable Length, and EMI Change the Comparison

Once the host side is roughly understood, the physical layout starts changing the picture. An interface that works comfortably on a bench can become much less attractive once the real cable path and enclosure geometry enter the discussion.

Routing path, cable length, connector position, and EMI sensitivity often shift the LVDS vs eDP vs MIPI comparison more than people expect.

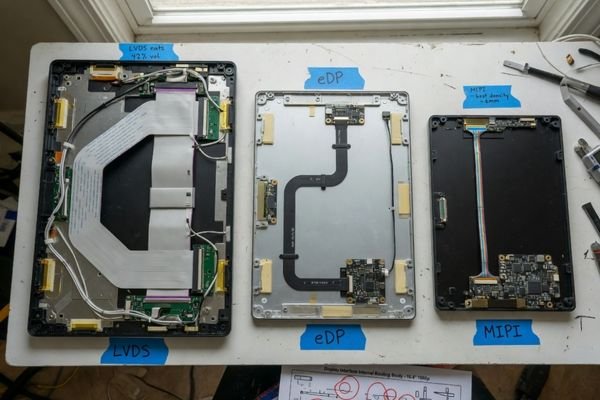

Physical Space and Cable Management

LVDS usually needs more conductors, so it tends to consume more physical space in the cable and connector. In some products, that is acceptable and not especially painful. In others—especially slimmer or more compact designs—it becomes one of the main reasons teams start leaning toward eDP or MIPI⁵.

eDP and MIPI often benefit from thinner signal paths, which can make routing cleaner in space-constrained designs. That advantage is real, but it is only helpful if the rest of the system supports those interfaces well.

Signal Integrity and EMI Risk

This is where the comparison gets less generic. Long cable paths, dense internal layouts, and noisy subsystems can change which interface feels stable and which one becomes sensitive. LVDS has a long reputation for robustness in many embedded environments. eDP and MIPI can work very well too, but they tend to ask for tighter discipline in layout and signal path control.

In practice, interface problems are often caused less by the panel than by the distance, routing, shielding, and surrounding system behavior. A design that works fine with a short clean cable path may become much harder to validate when that same path has to pass near power circuitry, motors, or cramped mechanical features.

In practical layout reviews, we do not judge interface risk by cable length alone. We also look at cable path complexity, proximity to noisy subsystems, connector orientation, and how much shielding discipline the enclosure can realistically support. That is often the point where an interface that looked acceptable on a bench starts becoming risky in the real product.

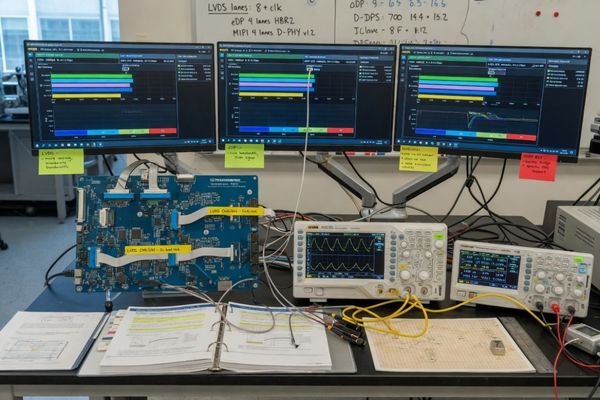

Bandwidth, Resolution, Power, and Integration Trade-Offs

Once host fit and physical routing are on the table, the next comparison layer is the trade-off between data demands and integration cost.

LVDS, eDP, and MIPI differ not only in bandwidth capability, but also in how they balance power, lane structure, routing simplicity, and dependence on the surrounding system.

The trap here is assuming that a higher-bandwidth interface is automatically the better project choice. It may be, but only if the host platform, cable path, and software environment are all aligned with it.

Factor	LVDS	eDP	MIPI DSI
Bandwidth	Good for many common embedded targets; higher resolutions increase pair count and complexity	High bandwidth with fewer lanes; often strong for newer high-resolution designs	High and scalable within compatible SoC ecosystems
Power Use6	Moderate	Often lower than LVDS in modern implementations	Often favorable in mobile and low-power embedded systems
Integration Overhead	Often lower when the host already supports it well	Moderate, depending on host support and high-speed layout discipline	Can be high if the platform is not naturally built around MIPI
Cable / Connector Size	Larger and wider	Smaller and cleaner	Very compact in short integrated paths
Platform Dependence	Broad legacy and industrial support	Stronger dependence on modern host support	Strong dependence on SoC ecosystem and software stack

This is also a good place to remember that interface selection is rarely independent from the module direction itself. Higher resolution, brightness targets, mechanical thickness, and connector limits often interact with the interface choice rather than sitting beside it.

👉 Modules:
If the project is still open on display direction, it often helps to explore our Modules before treating interface selection as a stand-alone decision.

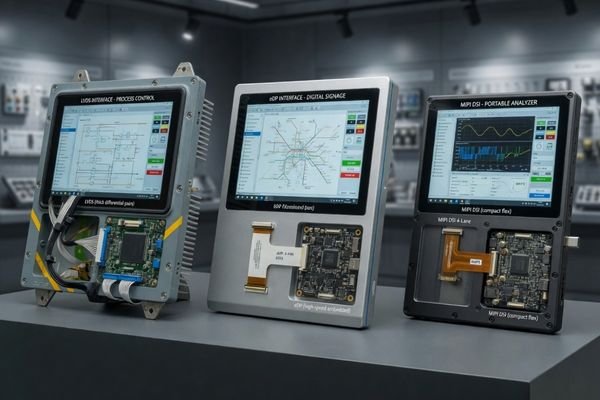

Where LVDS, eDP, and MIPI Usually Fit Best

There are no absolute rules here, but there are clear patterns. Some project conditions tend to line up more naturally with one interface than another.

A useful interface choice is usually the one that fits the project’s platform, layout, and risk profile—not the one that sounds most advanced in isolation.

Where LVDS Often Fits Best

LVDS often remains a practical choice when the project is built on a mature industrial board, when native support already exists, or when the value of platform continuity is higher than the value of moving to a newer interface.

Where eDP Often Fits Best

eDP is often a strong fit in newer high-resolution designs where reducing cable bulk and keeping the routing cleaner matter. It becomes especially attractive when the host platform already supports it natively and the project is not carrying legacy interface constraints.

Where MIPI Often Fits Best

MIPI is often the best fit when the product is built around a compatible SoC platform and the display is closely integrated over a short physical distance. That is why it appears so often in compact embedded designs, but it does not automatically make it the best answer for every small product.

A simple project-oriented comparison helps:

Project Condition	Interface Often Favored
Mature industrial board with native display output already defined	LVDS
Higher-resolution design with emphasis on cleaner cable routing	eDP
Compact SoC-based embedded product with short display path	MIPI
Longer cable path or stronger dependence on legacy embedded architecture	LVDS
Modern embedded system where host support and layout both favor a newer link	eDP

👉 Solutions:
If the display path is being shaped by the application itself—such as industrial control, transportation, marine, or smart terminal use—it can help to explore our Solutions before locking the interface.

What to Define Before Choosing an LCD Interface

A productive interface discussion usually requires more than knowing the panel size. The project has to define enough of the surrounding system to make the comparison real.

Before choosing LVDS, eDP, or MIPI, the project should define the host platform, target resolution, routing path, connector limits, power assumptions, and whether the architecture is already fixed or still flexible.

The minimum inputs that usually make the first discussion worthwhile are:

• host processor or mainboard direction,
• target resolution and refresh assumptions,
• panel size and form factor,
• cable path or routing distance,
• connector space limits,
• major power assumptions,
• and whether the platform is fixed or still open to change.

In first-round engineering discussions at LCD Module Pro, we usually prioritize four things before going deeper into secondary detail: host interface direction, target resolution, routing constraints, and connector limitations. If those four are still fuzzy, the interface comparison stays theoretical. If they are clear enough, the discussion becomes much more practical and the risk of locking the wrong architecture drops quickly.

A small but important distinction matters here as well: the project does not need every pin detail finalized before this discussion. It does need enough structure to avoid making the interface decision blind.

👉 Engineering:
When the project already has a host direction, resolution target, and routing limits in view, it is a good time to discuss your custom display project and review the interface path before more layout work accumulates.

FAQ About LVDS, eDP, and MIPI Selection

Is eDP always better than LVDS because it is newer?

No. eDP can be a better fit in many newer architectures, but newer does not automatically mean better for every project. If the host platform already aligns well with LVDS, forcing eDP may add more complexity than value.

Why can a display work in theory but still cause interface problems in the project?

Because interface stability depends on the whole signal path, not just the display. Cable length, routing, connector position, EMI exposure, timing assumptions, and software support all affect whether the implementation remains stable in the real product.

Is MIPI always the best choice for compact embedded products?

Not always. MIPI is often attractive in compact SoC-based systems, but it depends heavily on the host ecosystem and short-distance integration assumptions. If the platform is not naturally built around MIPI, the practical fit may be weaker than it first appears.

What usually causes the biggest interface-selection mistakes?

The most common mistake is treating the interface as a panel-side specification instead of a system decision. Teams often focus on display compatibility while underestimating host support, routing limits, software dependence, and connector constraints.

What information should be available before discussing interface selection with an engineering team?

At a minimum, the project should clarify the host interface direction, target resolution, panel size, routing constraints, connector limits, and major power assumptions. That is usually enough to make the first interface discussion meaningful.

Conclusion: The Best LCD Interface Is the One That Fits the System Best

LVDS, eDP, and MIPI should not be compared as if one of them is universally superior. In real projects, the best interface is usually the one that matches the host platform, the routing reality, the physical layout, and the project’s tolerance for integration risk with the least friction.

That is why LCD interface selection works best as a system decision. When it is treated as a simple panel parameter, problems tend to surface later—in layout, validation, EMI work, or software adaptation. When it is evaluated early in the context of the surrounding architecture, the project usually moves with fewer surprises.

In our project reviews, the most stable interface decisions usually come from evaluating host compatibility, routing reality, resolution targets, and connector constraints together before the board and enclosure assumptions are locked. That usually sounds obvious in hindsight, but it is often the step that saves the most rework.
