LCD Module Development Process: From Prototype to Mass Production

A prototype LCD module that lights up on the bench is not the same as a production-ready LCD module. Many project teams spend most of their attention on getting the first sample to work, then discover later that the real difficulty is stable integration, repeatable assembly, quality consistency, and long-term supply.

The LCD module development process goes beyond a working prototype. It includes requirements review, feasibility analysis, solution confirmation, prototype validation, engineering verification, pilot run, mass production planning, quality control, and lifecycle management.

In custom LCD module development projects, problems often appear when teams move too quickly from “sample works” to “ready for production.” A sample may display normally on a lab bench, but behave differently after it is installed inside the final enclosure. The interface may become unstable after long operation, the cable route may interfere with internal structure, the touch response may change after cover glass integration, or a high-brightness backlight may create heat inside a sealed device.

The purpose of a structured development process is not to add unnecessary steps. It is to reduce risk before the project becomes expensive to change¹.

Stage	Main Goal	Typical Output
Requirements review	Understand device and application needs	Requirement list and feasibility direction
Solution confirmation	Choose standard, modified, or custom path	Module proposal and customization scope
Prototype validation	Check the first sample in real device conditions	Issue list and design adjustment
Engineering validation	Confirm key risks before design freeze	Verified design configuration
Pilot run	Check repeatability and production consistency	Small-batch validation result
Mass production	Control quality and supply stability	Stable production and lifecycle plan

Start With Requirements and Feasibility Review

Every successful LCD module development project starts with the device, not with a panel model number. Before hardware is built, the project team should review the operating environment, technical requirements, mechanical constraints, production expectations, and lifecycle needs.

A good LCD module development process starts by connecting application requirements with real integration conditions. Size, resolution, brightness, interface, mechanics, touch, environment, quantity, and lifecycle should be reviewed before the solution path is confirmed.

In early project reviews, our engineering team usually checks the application environment, target size, resolution, interface, brightness, touch requirement, mechanical drawing, production quantity, and lifecycle expectation before recommending a development path. This prevents the project from starting with a display that looks suitable on a datasheet but cannot fit the final device.

For applications such as transportation systems, industrial control equipment, outdoor terminals, and smart devices, the LCD module development process should start from the real operating environment and integration requirements.

Defining the Operational Environment

The operating environment affects almost every display decision. An indoor control panel, outdoor terminal, transportation device, and high-brightness industrial interface may all require different brightness, touch, cover glass, temperature, vibration, and optical design considerations.

Questions to clarify early include: Will the device be used indoors or outdoors? Will it face direct sunlight, rain, dust, vibration, or high ambient temperature? Will users operate it with fingers, gloves, or a stylus? Does the project need optical bonding, high brightness, touch integration, or cover glass protection?

Aligning Technical Specifications With Integration Reality

Technical specifications should be reviewed together, not one by one. Interface type, mechanical dimensions, mounting method, cable route, power budget, touch requirements, brightness target, quantity, and lifecycle expectation all affect the development path.

Information Needed	Why It Matters
Application environment	Defines brightness, temperature, touch, and reliability needs
LCD size and resolution	Helps confirm the module platform direction
Interface type	Determines controller board compatibility
Mechanical drawing	Checks fit, mounting, connector access, and cable path
Touch and cover glass	Affects optical stack, thickness, and user interaction
Brightness requirement2	Impacts backlight, power, thermal design, and readability
Quantity and schedule	Affects customization feasibility and production planning
Lifecycle requirement	Helps reduce supply and EOL risk

The earlier these details are reviewed, the easier it is to decide whether the project can use an existing LCD platform, a modified standard module, or a deeper custom LCD module design.

Confirm the LCD Module Solution and Customization Path

After the requirements are clear, the next step is to confirm the most practical solution path. Not every project needs a fully custom LCD module. In many cases, starting from an existing platform and modifying only the necessary parts is faster and safer.

Customization should be based on real project need, feasibility, quantity, budget, and lifecycle. A modified existing LCD module platform may reduce development time and risk while still meeting the key device requirements.

Before moving into prototype development, we usually compare whether the project can use an existing platform, a modified standard module, or a deeper custom design. This helps avoid validating a sample that cannot realistically meet production, integration, or lifecycle requirements.

You can Explore high brightness display modules and other LCD module platforms if your project can start from an existing module before moving into customization.

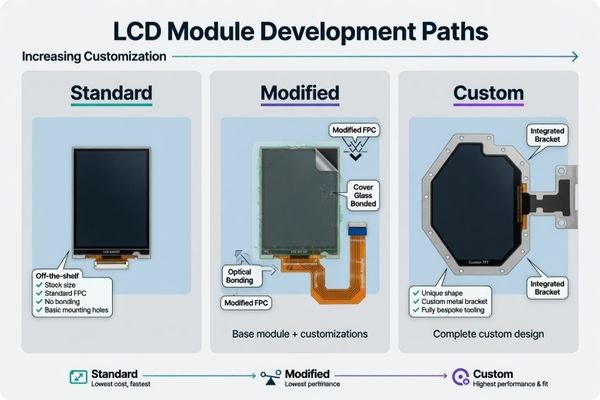

Development Path	When It Fits	Typical Modification
Existing standard module	Requirements match an available platform	Minimal change
Modified standard module	Platform fits but needs adaptation	Brightness, touch, cover glass, cable, interface
Deeper custom module	Standard platforms cannot meet device constraints	Mechanical structure, backlight, interface, optical stack

Common modification paths include brightness adjustment, LVDS/eDP/MIPI interface adaptation, PCAP or resistive touch integration, cover glass customization, optical bonding, FPC or cable adjustment, mechanical mounting changes, and backlight dimming control.

The solution path should be confirmed before prototype development. Otherwise, the team may spend time testing a sample that cannot meet the final production or lifecycle requirements.

Build and Validate the Prototype Sample

The first prototype sample is an important milestone, but it is not the end of development. A prototype is mainly a learning tool. It helps expose risks before the design becomes harder and more expensive to change.

A working prototype is not a production-ready LCD module. Prototype validation should check interface compatibility, mechanical fit, optical performance, touch response, cable routing, power behavior, and early thermal performance before design freeze.

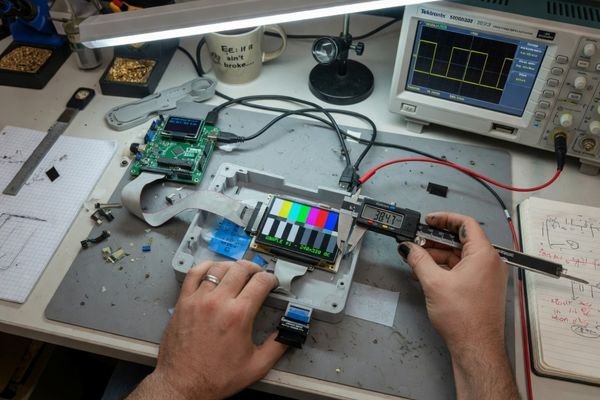

During prototype validation, we usually check the sample inside the actual device structure whenever possible. Interface stability, cable routing, touch behavior, brightness, thermal response, and mechanical fit often reveal issues that cannot be seen from a bench test alone.

Some problems only appear after the LCD module is installed with the final controller board, cable path, enclosure, touch stack, and power condition. A module may light up normally but fail to fit the housing. A touch panel may work in a simple test but become unstable after cover glass integration³. A high-brightness backlight may look strong at first but create heat after long operation.

Key prototype validation items include:

• Interface timing and signal stability
• Compatibility with the final controller board
• Mechanical fit inside the enclosure
• Cable routing and connector access
• Brightness and optical readability
• Viewing angle and UI visibility
• Touch response and tuning
• Cover glass and bonding result
• Backlight dimming and power behavior
• Early thermal behavior inside the device

The purpose of this stage is not to prove that the project is finished. It is to identify what still needs adjustment before the design is frozen.

Review Engineering Validation Before Design Freeze

After prototype validation, the project should move into a more formal engineering review before design freeze. A design freeze should not happen just because the first sample works. It should happen after the main integration risks are understood and controlled.

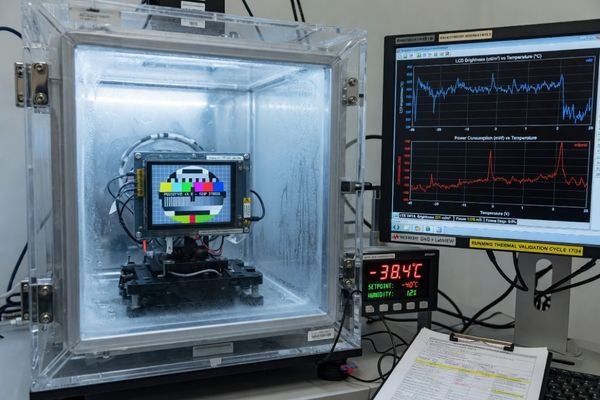

Engineering validation confirms whether the LCD module can perform consistently under expected device conditions. Interface stability, mechanical tolerance, optical consistency, touch tuning, thermal behavior, EMI/ESD risk, packaging, and early reliability should be reviewed before design freeze.

EVT, DVT, and PVT can be used as project checkpoints, but this article only treats them as part of the broader development flow. The main point is simple: a working sample should not be treated as a finished design.

Validation Area	What to Confirm
Interface	Stable signal timing and controller compatibility
Mechanical	Tolerance, mounting, connector access, and cable route
Optical	Brightness, bonding, readability, and consistency
Touch	Accuracy, glove or water tuning, and stability
Power	Backlight driving, dimming, and power behavior
Thermal	Heat buildup and brightness stability
EMI/ESD	Noise risk, grounding, and protection strategy
Reliability	Aging behavior and early failure risk
Packaging	Protection during handling and transportation

For projects with interface uncertainty, fixed mechanical constraints, high brightness requirements, touch integration, or lifecycle concerns, it is better to Discuss your custom display project before design freeze or pilot production.

Use Pilot Run to Check Production Consistency

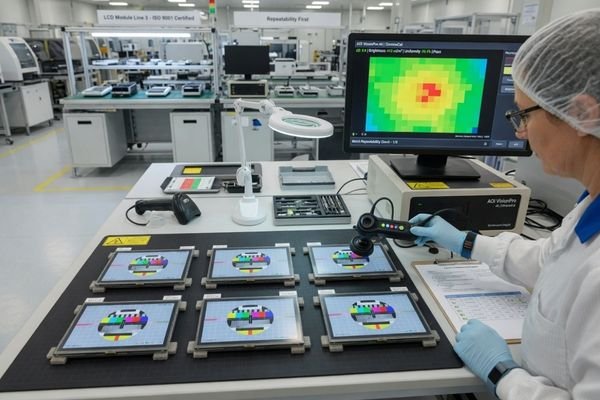

The pilot run is the bridge between prototype approval and mass production. Prototype validation checks whether the design works. A pilot run checks whether the approved design can be produced repeatedly under controlled conditions.

Pilot run is not only about producing more samples. It checks whether the LCD module can be assembled, inspected, packaged, and supplied with stable quality across a small batch before volume production begins.

Before volume production, our review usually focuses on repeatability: whether the approved design can be assembled, inspected, packaged, and supplied consistently across batches. This is where process-related issues often become visible.

A pilot run may reveal issues that one or two hand-built samples cannot show. Brightness may vary across units.⁴ Touch response may need tuning limits. Cable routing may be difficult for repeated assembly. Optical bonding may need clearer inspection criteria.

Important pilot run checks include:

• Brightness consistency
• Color and optical uniformity
• Touch response consistency
• Optical bonding quality
• Cable and connector reliability
• Mechanical tolerance control
• Assembly sequence and work instructions
• Inspection criteria and pass/fail limits
• Packaging protection
• Batch sample comparison

Solving process issues at this stage helps reduce unstable quality and unexpected variation after mass production begins.

Manage Mass Production, Quality, and Lifecycle

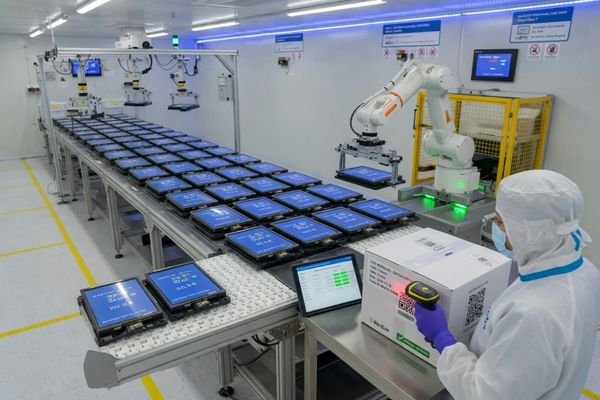

Mass production is not only about increasing quantity. A production-ready LCD module must remain stable in function, quality, supply, and lifecycle. For industrial equipment, transportation systems, outdoor terminals, and other long-lifecycle devices, supply continuity can be as important as prototype performance.

A production-ready LCD module must be stable in interface compatibility, mechanical fit, optical performance, production consistency, quality control, and lifecycle supply.

During mass production planning, teams should confirm lead time, inspection standards, BOM stability, panel and component availability, batch traceability, packaging method, change control, and possible EOL risk.

Key mass production and lifecycle topics include:

• Production lead time
• Incoming and outgoing quality inspection
• BOM stability
• Panel and component availability
• Batch traceability
• Packaging and transport protection
• Production change control
• PCN communication
• EOL notice monitoring
• Alternative module planning
• Long-term supply review

Lifecycle planning should start before mass production begins. If a panel, connector, backlight component, or touch controller reaches EOL unexpectedly, the device team may face redesign pressure. Reviewing alternatives and change control early helps keep the project more stable over time.

LCD Module Development Process FAQ

How long does custom LCD module development take?

The timeline depends on customization level, sample availability, tooling needs, interface adaptation, touch or cover glass integration, validation scope, and production quantity. A modification based on an existing platform is usually faster than a deeper custom LCD module project.

What information is needed before prototype development?

Useful information includes application environment, LCD size, resolution, brightness requirement, interface type, mechanical drawing, touch requirement, cover glass design, operating temperature, expected quantity, production schedule, and lifecycle requirement.

Do all LCD module projects require a fully custom design?

No. Many projects can start from an existing LCD module platform with selected modifications such as brightness, touch, cover glass, interface, cable, or optical bonding. A deeper custom solution is needed when existing platforms cannot meet the device requirements.

Is a working prototype enough for mass production?

No. A working prototype only proves that the basic design can function. Before mass production, the LCD module should be validated for mechanical fit, interface stability, optical performance, touch behavior, thermal performance, production consistency, and supply stability.

What is the difference between prototype and pilot run?

A prototype verifies function and integration feasibility. A pilot run checks whether the approved design can be produced repeatedly with stable quality, consistent assembly, reliable materials, and clear inspection standards.

What should be tested before LCD module mass production?

Key checks include interface stability, display performance, brightness consistency, touch response, mechanical tolerance, cable reliability, optical bonding quality, thermal behavior, aging performance, packaging protection, batch consistency, BOM stability, and supply lifecycle.

How can EOL risk be managed in LCD module projects?

EOL risk can be reduced by reviewing panel lifecycle, component availability, alternative module options, BOM stability, production change notices, and change control planning before mass production begins.

Conclusion

A working prototype is only the first milestone in the LCD module development process. To reach stable mass production, the module must be reviewed for interface compatibility, mechanical fit, optical performance, touch integration, thermal behavior, production consistency, quality control, and lifecycle stability.
