What is TCON, and why does it affect power sequencing and compatibility?

A TCON (timing controller) can make or break power sequencing and interface compatibility because it bridges host video signaling to panel-specific driving behavior, with strict expectations for reset, initialization order, and stable rail conditions.

A TCON is the timing-and-control function that converts incoming video data into the panel’s required gate/source drive timing. It coordinates line timing, pixel sampling, polarity inversion, and panel clocks, often with gamma, dithering, and interface adaptation. Because panel driving depends on stable bias and precise timing, TCON behavior effectively defines what “compatible” means and what sequencing is required.

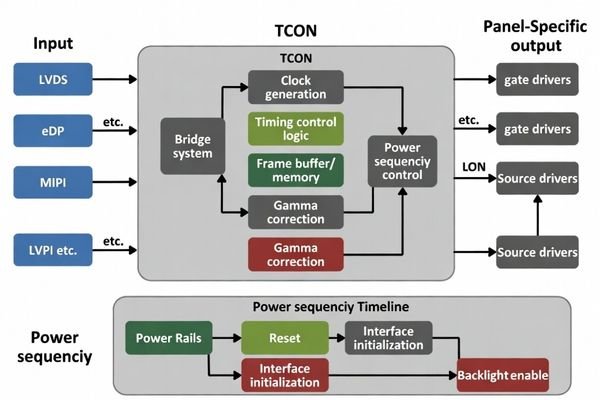

TCON timing controller architecture for LCD display modules showing interface bridging and power sequencing integration
Comprehensive TCON analysis framework addressing timing control and compatibility requirements

Many integration failures happen when teams assume “same connector” equals “same behavior.” In reality, small differences in TCON bring-up timing, reset windows, and initialization dependencies can cause intermittent boot, unstable image lock, or unreliable resume. A solid understanding of TCON behavior1 helps teams design repeatable sequencing, validate edge cases, and avoid production escapes caused by tolerance spread and environmental variation.

What does a TCON do inside an LCD display module?

TCON serves as the critical timing and control bridge converting input video signals into panel-specific driving waveforms while managing initialization sequences and panel operational parameters.

Inside an LCD module, the TCON function translates host video into the exact panel-driving timing the display needs. It aligns clocks and sampling to the panel’s scan method, manages polarity inversion, and may apply gamma or dithering. Whether implemented as a separate IC or integrated into other silicon, it still sets the rules for initialization and stable operation across power states.

TCON functional architecture for LCD modules establishing timing control and signal processing requirements
Systematic TCON analysis methodology addressing timing coordination and panel driving functions

TCON behavior extends beyond basic signal conversion. It often controls the sequence that brings the panel to a valid operating state, including when scanning starts and how panel parameters are loaded. Because these behaviors depend on rail stability and reset timing, the TCON function becomes a key part of the module’s “interface contract” with the host electronics.

Signal Processing and Timing Coordination

TCON manages video formatting, color depth handling, and timing alignment between gate scanning and source driving so pixels charge consistently across the frame. When timing margins are tight, small differences in clock generation, lock behavior, or internal state handling can translate into flicker, unstable images, or intermittent blank screens during startup and transitions.

Panel Management and Interface Adaptation

TCON also supports panel-specific bring-up behavior2, including sequencing dependencies and configuration steps that must occur before the panel is driven reliably. In many modules, it adapts the incoming protocol behavior to the panel’s native timing assumptions, so correct operation depends on both the electrical link and the correct order of reset release, configuration, and video start.

Why does TCON architecture change interface compatibility?

TCON implementation differences affect interface compatibility through protocol variations, initialization requirements, and timing behavior that extend beyond basic connector and signal matching.

Interface compatibility has three layers: mechanical (connector/pinout), electrical (signal levels and protocol details), and behavioral (reset windows, initialization order, sleep/wake expectations). A module can match the first two yet fail the third if the TCON expects different training/clocking behavior, data mapping, or configuration steps. That’s why “drop-in replacement” often requires validation beyond datasheets.

TCON compatibility analysis for LCD display modules identifying protocol variations and initialization dependencies
Comprehensive compatibility assessment framework addressing TCON implementation differences

Even when two modules share a similar protocol name, the TCON may differ in how it locks to clocks, accepts video, or handles errors. Differences in data mapping assumptions, blanking behavior, or configuration timing can show up as intermittent image lock or wake failures. Treat TCON behavior as part of the interface definition3, and validate the full bring-up path on representative hardware, cables, and power ramps.

How does TCON relate to power sequencing and reset timing?

TCON operation requires controlled power sequencing and reset timing to ensure proper initialization and prevent undefined states that can cause display failures or reliability issues.

Sequencing matters because the TCON function, panel driver ICs, and bias rails must reach valid states in a controlled order. Reset must be released only after rails are stable, and video should start only after the TCON is ready to lock and configure. If timing is violated, you may see blank screens, flicker, white/garbled frames, or artifacts that disappear after a power cycle but return in production spread.

Power sequencing framework for TCON-based LCD modules establishing timing relationships and reset control requirements
Systematic sequencing analysis methodology ensuring reliable TCON initialization and panel operation

A robust approach ties sequencing to measurable “ready” conditions rather than fixed delays. Use rail-good indications where available, enforce monotonic ramps, and define reset pulse width and release windows per module. Treat backlight enable4 as a dependent action: it should follow confirmed stable scanning (or a defined “panel ready” criterion) to avoid exposing transient artifacts and adding unnecessary stress during unstable states.

Sequencing Stage Key Requirements Timing Considerations Failure Risk if Violated
Logic Power Ramp Stable voltage before reset release Monotonic rise, controlled slew rate Undefined TCON state, erratic behavior
Analog Bias Setup Panel driver supply stability Proper bias levels before scanning Panel stress, image artifacts
Reset Release All supplies stable, controlled timing Minimum pulse width, setup time Initialization failure, intermittent operation
Interface Initialization TCON ready before video transmission Link training, register setup complete No display, unstable image lock
Backlight Enable Panel scanning established Stable image generation confirmed Visual artifacts, reliability stress

Systematic power sequencing ensures TCON and panel components initialize correctly while preventing undefined states and reliability risks that can affect both immediate functionality and long-term operational stability.

What integration pitfalls cause "it works on the bench but fails in production"?

Production failures often result from incomplete sequencing validation, environmental sensitivity, and manufacturing tolerance effects that don’t appear during initial bench testing.

Bench success can hide race conditions. Fixed delays may pass in a lab but fail when rail ramps vary, temperature shifts timing margins, or component tolerances change lock behavior. Common issues include video starting before reset is fully released, backlight enabling before stable scanning, shared reset lines across domains, and poor brownout handling. Robust designs validate cold boot, resume, and brownout recovery.

Integration pitfall analysis for TCON-based LCD modules identifying production failure mechanisms and prevention strategies
Comprehensive failure analysis methodology addressing bench-to-production transition challenges

Many failures are not constant—they are conditional. A design may boot reliably at room temperature with a bench supply but become intermittent with different ramp rates, cable impedance, or regulator tolerance. The solution is to define the sequence as a contract: rails and ramp constraints, reset timing windows, initialization order, and backlight enable conditions, then verify across temperature, voltage tolerance, and representative production hardware.

Environmental and Tolerance Sensitivity Issues

Temperature shifts, supply tolerances, ramp-rate variation, and aging can move timing relationships enough to expose edge-case behavior. If the design has no margin or relies on fixed delays without readiness checks, intermittent lock or resume issues become more likely as production spread increases and environmental conditions vary in the field.

Initialization and State Management Problems5

Incomplete initialization, missing recovery logic, and weak state-machine handling can create failures that only appear after brownouts, rapid power cycling, or resume transitions. Treat these as first-class tests: define expected states, handle partial power domains, and ensure the host does not transmit video until the module is confirmed ready to accept and display stable frames.

How to select an LCD module with TCON constraints in mind?

TCON-aware module selection requires systematic evaluation of host platform capabilities, interface requirements, and integration constraints to ensure reliable compatibility and long-term stability.

Selection should begin with host platform realities and work systematically through TCON requirements, compatibility risks, and integration details to achieve reliable long-term operation.

Host Platform Capability Assessment

Interface and Control Resources:
Confirm what the host can truly control: link type and clocking, the ability to sequence multiple rails with controlled ramps, and enough GPIOs for reset and enables. Also confirm how the system handles sleep/wake and power transitions, because those behaviors often drive TCON bring-up and resume reliability more than a single cold boot.

Power Management Integration:
Review the rail architecture and how accurately the host can enforce ramp monotonicity, slew rate, and stable thresholds. Include brownout detection and recovery behavior, because many “compatibility” complaints are actually undervoltage or partial-initialization problems that only show up under real power events.

TCON-Specific Requirements Analysis

Sequencing and Timing Constraints:
Identify the required order and timing window for logic rails, analog bias rails, reset assertion/release, and backlight enable. Document minimum pulse widths, delay ranges, and “ready” criteria so the sequence is deterministic and resilient to ramp variation and environmental changes.

Interface Protocol Validation:
Validate not only the protocol name but the behavioral details: link bring-up expectations, data mapping and color depth assumptions, configuration dependencies, and recovery behavior after errors. Confirm the host can implement the required initialization order before starting video streaming.

Compatibility Risk Management

Supplier and Revision Control:
Treat TCON behavior as part of the interface contract over time. Require change notification, manage revision equivalency carefully, keep golden samples for regression checks, and re-validate key scenarios (cold boot, resume, brownout recovery) when anything changes in the module stack or firmware behavior.

Long-term Stability Considerations:
Account for EMI/ESD margin on high-speed links6, connector and cable tolerance, thermal behavior, and aging. These factors can shift timing margins and lock behavior, so building margin into sequencing and validation reduces the risk of field failures and future replacement incompatibilities.

Integration Validation Strategy

Comprehensive Testing Requirements:
Validate beyond “it lights once.” Test cold boot, fast power cycle, sleep/wake, brownout recovery, and thermal variation using representative cables, regulators, and production-like assemblies. Confirm that readiness checks and reset windows behave consistently across expected spreads.

Production Readiness Assessment:
Add production-representative tests that include supply tolerance corners, ramp-rate variation, connector variance, and environmental stress. Monitor pass/fail with objective criteria (stable frames, no transient artifacts at backlight-on, consistent lock time) to prevent intermittent issues from escaping into volume builds.

FAQ

Q: Is TCON always a separate chip in an LCD module?
A: Not always. Some designs integrate timing control into the panel’s driver ICs or a combined interface bridge, but the timing-control function still exists and can still impose sequencing and initialization constraints.

Q: Why can two "same interface" modules behave differently at boot?
A: Because TCON lock and initialization behavior can differ: reset requirements, clock expectations, link bring-up timing, and internal configuration dependencies may not match even if the connector and protocol name look similar.

Q: What symptoms suggest a power-sequencing problem rather than a signal issue?
A: Intermittent boot, flicker during ramp, occasional white/garbled screen that recovers after power-cycle, or failures that correlate with temperature or supply ramp speed often point to sequencing/reset timing rather than pure signal integrity.

Q: Should backlight enable be delayed even if the panel shows an image?
A: Often yes. Turning on the backlight before stable panel scanning can expose artifacts and add stress; aligning backlight enable to a verified "panel ready" condition reduces both visual defects and reliability risk.

Q: How do we manage compatibility across module revisions over time?
A: Treat TCON behavior as part of the interface contract: lock down a tested sequence, require change notification, re-validate key power and resume scenarios, and keep golden samples for regression comparison.

Q: Can a "drop-in replacement" module still require firmware changes on the host?
A: Yes. If the TCON expects different initialization commands or timing windows, the host may need updated sequencing control, reset logic, or driver parameters even when the mechanical and electrical interface looks compatible.

Conclusion

TCON timing controller serves as the critical bridge between host video input and panel-specific driving requirements, directly influencing interface compatibility and power sequencing behavior throughout module integration and operation. Effective integration requires treating sequencing and initialization as a validated contract rather than assuming connector matching ensures reliability. By validating cold boot, resume, and brownout recovery across temperature and tolerance, teams can prevent intermittent failures and production escapes.
