What is Pixel Clock?

Pixel clock is the fundamental timing signal that synchronizes data transmission in LCD display modules, determining bandwidth requirements and signal integrity constraints for stable image display.

Pixel clock is the rate at which pixel timing slots are transmitted through the display interface, calculated from resolution, refresh rate, and blanking intervals. It directly affects signal integrity, EMI performance, and display stability, making it a critical parameter for reliable LCD module integration.

In my LCD display module integration work at MEIDAYINGNUO, I’ve found that pixel clock misunderstanding causes more integration failures than resolution or interface selection errors. Teams often focus on headline specifications while overlooking how pixel clock¹ affects cable length limits, EMI performance, and timing margin. In the field, the same root issue often shows up as flicker during temperature transitions, “sparkles” or line noise during high-activity content, or occasional loss of sync that disappears when the cable is shortened or rerouted. Successful integration requires treating pixel clock as a system constraint that connects display requirements with interface capability and signal integrity limits.

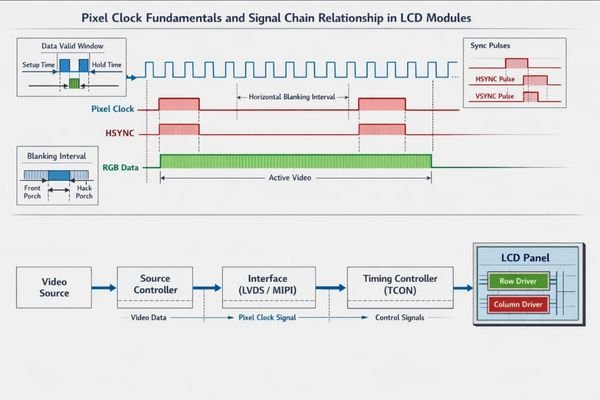

What does "pixel clock" mean in an LCD display module signal chain?

Pixel clock represents the fundamental timing reference that governs data transmission rates and synchronization in LCD display interfaces.

Pixel clock is the rate at which individual pixel data slots are transmitted through the display interface, including both active pixels and blanking intervals. It serves as the master timing reference that synchronizes all display data transmission and determines the bandwidth requirements for stable image delivery.

From an engineering standpoint, I usually explain pixel clock as the "heartbeat" of the display interface that must be fast enough to deliver all required pixel data plus synchronization overhead within each frame period. Unlike refresh rate², which measures complete frames per second, pixel clock measures the pixel timing slots used to construct each frame, including the horizontal and vertical blanking periods required for proper synchronization. In practice, the integration question is not only “can the host generate the clock,” but also “can the whole signal chain carry that clock with margin” after accounting for routing, grounding, cable/FPC length, and noise coupling.

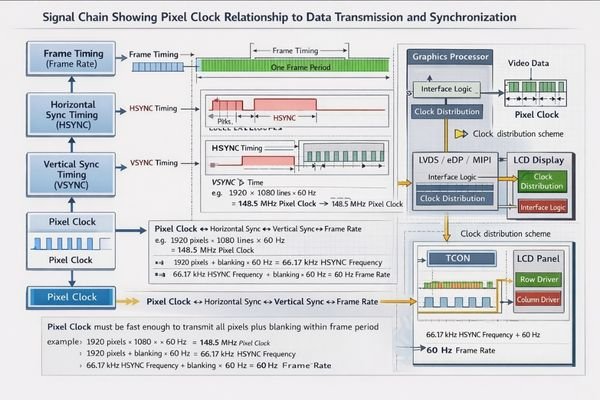

Timing Hierarchy Relationship

Pixel clock sits at the foundation of display timing, driving horizontal and vertical sync generation, blanking interval management, and overall frame rate achievement. A quick pass/fail check I use is whether a valid timing combination can be selected within the panel’s accepted ranges (total pixels per line and total lines per frame), while still meeting the UI requirements for resolution and refresh rate. If the only way to hit a target is to squeeze timing to an extreme edge of what the panel accepts, the design often becomes sensitive to jitter, temperature drift, and production variation.

Interface Protocol Integration

Different interface standards (LVDS, eDP, MIPI) handle pixel clock differently, but all require adequate clock rate to support the chosen resolution, refresh rate, and blanking requirements within their bandwidth and timing constraints. A common mistake is assuming the interface name alone guarantees stability, then discovering later that the actual cable length, return-path quality, or grounding reference makes the receiver far more sensitive at the chosen pixel clock. The safest approach is to treat the interface, timing table, and physical routing as one budgeted system.

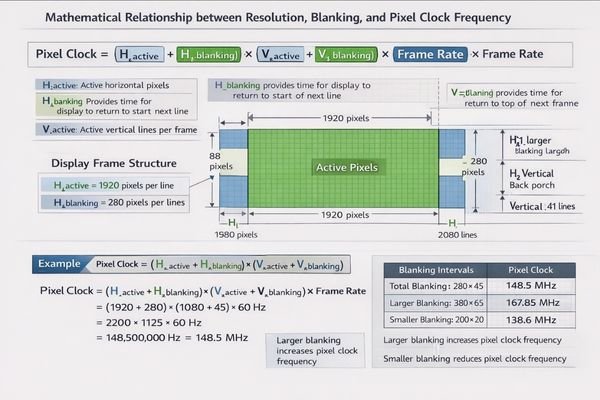

How is pixel clock calculated from resolution, refresh rate, and blanking?

Pixel clock calculation combines active display requirements with blanking overhead to determine total bandwidth needs.

Pixel clock equals the product of total pixels per line, total lines per frame, and frame rate. Total pixels per line includes horizontal resolution plus horizontal blanking (front porch, sync width, back porch). Total lines per frame includes vertical resolution plus vertical blanking periods.

Based on the projects I support with system developers, pixel clock confusion often stems from ignoring blanking overhead³. The formula is: Pixel Clock = (H_active + H_blanking) × (V_active + V_blanking) × Frame_rate. Blanking values depend on timing standards, panel requirements, and chosen margin, which explains why identical resolutions can have different pixel clocks. In practice, I avoid “default timing tables” unless they are explicitly compatible with the panel: I pull Htotal/Vtotal (or porch/sync values) from the panel timing documentation and verify the final timing falls inside the panel’s accepted ranges. This simple discipline prevents a frequent failure mode where the pixel clock looks correct on paper but produces marginal lock or intermittent artifacts in the real product.

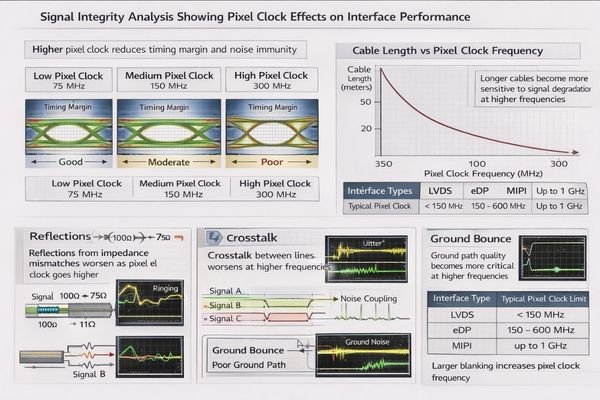

Why does pixel clock affect signal integrity, EMI, and display stability?

Pixel clock frequency directly impacts electrical performance through bandwidth requirements, switching activity, and noise generation.

Higher pixel clock increases signal bandwidth requirements, reduces timing margin at cable and connector interfaces, and generates more switching noise that can affect EMI performance. Signal integrity becomes more critical as pixel clock approaches interface limits, making routing quality, grounding, and power integrity essential for stable operation.

When I troubleshoot display stability issues, pixel clock⁴ often reveals itself as the root cause through marginal timing behavior. Higher frequencies reduce noise immunity, increase sensitivity to cable quality, and amplify the impact of poor grounding or inadequate power decoupling. In practical terms, the warning signs of shrinking margin include issues that change with cable placement, improvements when shielding or return paths are improved, and problems that appear only after warm-up or at temperature extremes. Pixel clock also increases EMI risk because higher switching activity and tighter timing budgets make the system more vulnerable to noise coupling from power conversion circuits, motors, or radios in compact enclosures.

Pixel Clock Range	Signal Integrity Focus	EMI Considerations	Stability Factors
Lower frequency (example)	More tolerance for cable length	Less switching activity	Larger timing margin
Mid frequency (example)	Impedance/return path matters	Ground reference quality	Moderate margin
Higher frequency (example)	Routing/cable becomes critical	Filtering/shielding may be needed	Limited margin

System-level validation must confirm timing margin under worst-case conditions including temperature, cable variation, and power supply noise, rather than relying on a single “short cable at room temperature” test.

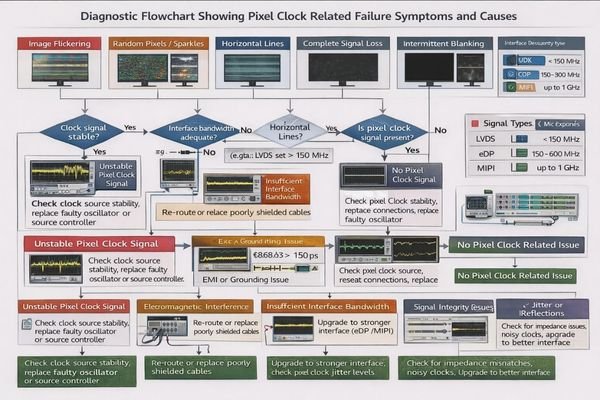

What common pixel-clock mistakes cause flicker, artifacts, or blank screens?

Pixel clock errors create visible symptoms through timing violations, bandwidth limitations, and synchronization failures.

Common mistakes include pixel clock too high for interface capability causing signal integrity failures, pixel clock too low creating synchronization problems, blanking periods too narrow for panel requirements, and timing parameter mismatches between source and display. Cable length and routing quality compound pixel clock margin issues.

I’ve observed that pixel clock problems often appear intermittently or under specific conditions, making diagnosis challenging. Symptoms include occasional flicker during temperature changes, artifacts during high-activity content, or complete loss of sync under marginal conditions. When I debug these issues, I follow a consistent sequence: confirm the timing table matches the panel’s accepted ranges, verify blanking/porch values are not overly aggressive, validate real cable/FPC length and return-path continuity, then look for jitter sensitivity or unfavorable sampling/edge assumptions, and finally evaluate EMI/noise coupling from the surrounding system. For comprehensive pixel clock analysis and troubleshooting support, engineering teams can contact info@lcdmodulepro.com during integration development.

Timing Margin Analysis

Proper pixel clock selection requires margin analysis that accounts for temperature variation, component tolerance, aging effects, and worst-case operating conditions to ensure stable long-term operation. In validation, I avoid “best case only” checks and instead test the timing under representative extremes: the longest intended cable path, the noisiest operating state of the product, and the temperature conditions most likely to reduce margin. If symptoms only appear during warm-up, cool-down, or after the system has been running for extended periods, that is a strong signal the design is operating too close to the edge.

Interface Compatibility Validation

Pixel clock must be validated against interface specifications, cable limitations, and panel acceptance ranges to prevent compatibility issues that emerge only under specific operating conditions. A practical way to force repeatable results is to change one variable at a time—cable length, routing proximity to noisy power stages, grounding connection point—and observe whether artifacts track that change. If small mechanical routing changes can “fix” the display, the timing is usually marginal and needs more margin through better timing selection, cleaner return paths, or a more robust integration approach.

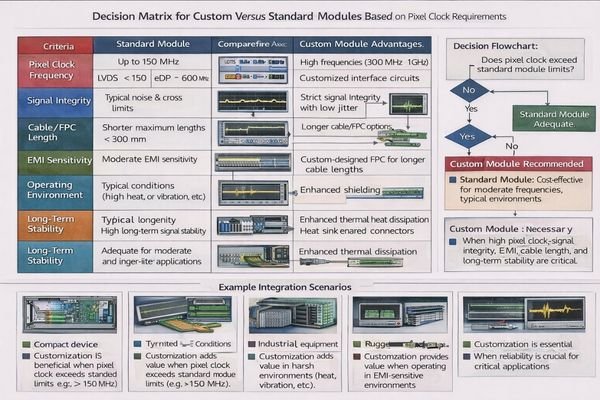

When should you choose a custom LCD module for pixel-clock constraints?

Custom modules become advantageous when pixel clock requirements exceed standard solution capabilities or create integration constraints.

Custom LCD modules help when pixel clock timing is unusual for standard products, when margin is tight due to cable length or EMI constraints, when the enclosure creates challenging routing conditions, or when long-term stability requires pixel clock optimization for specific operating environments. Customization can align timing characteristics with system-level constraints.

In my experience with complex integration challenges, pixel clock constraints⁵ often interact with mechanical, thermal, and EMI requirements in ways that standard modules cannot accommodate. Custom solutions are most valuable when the goal is to recover timing margin and make behavior repeatable across temperature and production variation—not to push the clock faster. Customization can align the interface expectations and tolerance, adjust the integration constraints such as FPC orientation and practical length, and reduce sensitivity to routing near noise sources by making the real signal chain more forgiving. When pixel clock requirements are challenging, I evaluate the complete signal path including source capabilities, cable constraints, environmental conditions, and panel specifications, then decide whether a standard timing configuration has adequate guard band. If the system is already operating near its limits, customization becomes a controlled way to stabilize timing behavior for the intended application environment and lifecycle requirements, while preserving predictable production consistency.

FAQ

Is pixel clock the same as refresh rate?
No. Refresh rate is frames per second, while pixel clock is the rate at which pixel timing slots are transmitted, including blanking. Pixel clock must be high enough to carry the full timing pattern for the chosen resolution and refresh.

Why do two systems with the same resolution and refresh have different pixel clocks?
Because blanking intervals can differ. Different timing standards, panel requirements, and chosen porch/sync values change the total pixels per line and total lines per frame, which changes pixel clock.

What happens if the pixel clock is slightly too high?
The link may become marginal: intermittent artifacts, flicker, or occasional blanking can occur, especially with longer cables, higher temperature, or noisy power/ground conditions.

Can I reduce pixel clock without changing resolution?
Sometimes you can reduce blanking, but only within what the panel and interface accept. Cutting blanking too far can break synchronization and cause instability.

How does pixel clock relate to EMI issues?
Higher pixel clock generally increases switching activity and can worsen emissions if routing, grounding, and shielding are weak. Managing edge rates, return paths, and layout is key.

When should I consider customization due to pixel-clock limits?
When the required timing is unusual, margin is tight, cable routing is constrained, or the enclosure noise environment is harsh, customization can align timing expectations and integration constraints more predictably.

Conclusion

Pixel clock serves as the fundamental timing constraint that connects display requirements with interface capability and signal integrity limits in LCD module systems. Understanding pixel clock calculation and its impact on system stability enables better integration decisions and prevents timing-related failures. As an engineer, I treat pixel clock as a system-level parameter that requires validation under representative conditions including temperature variation, cable constraints, and electromagnetic environment effects. A reliable rule of thumb is to keep the summary logic clear and repeatable: pixel clock is set by total timing (including blanking), stability comes from margin, and troubleshooting should start with the timing table and accepted ranges before chasing layout and EMI details.
