What is the porch in LCD display modules?

Porch refers to the non-active timing intervals surrounding sync pulses in LCD display module timing that provide blanking space for stable synchronization and pixel data transmission.

Porch is the timing buffer that separates visible pixel data from synchronization boundaries in LCD display modules, existing as front porch (before sync) and back porch (after sync) in both horizontal and vertical directions. These intervals are part of the total timing budget that determines pixel clock, bandwidth requirements, and interface stability margin.

In my LCD display module integration work at MEIDAYINGNUO, I’ve found that porch timing misunderstanding¹ creates more subtle integration problems than obvious specification mismatches. Teams often focus on resolution and refresh rate while treating porch as "free space," not recognizing that porch values directly affect pixel clock, timing margin, and system stability under real-world conditions. In the field, porch-related margin issues often appear as edge clipping on one side, shifting images after a timing change, intermittent flicker during temperature transitions, or a display that “works on the bench” but becomes unstable after the cable/FPC is routed differently or the EMI environment gets harsher. Proper porch management is essential for robust timing across temperature, cable variation, and EMI environments.

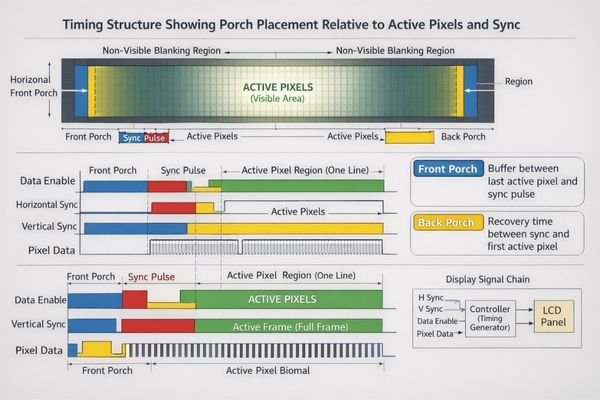

What does "porch" mean in LCD display module timing?

Porch represents the non-active pixel intervals that create timing buffers around sync pulses for stable display synchronization.

In LCD display module timing, porch refers to the blanking intervals that separate visible pixel data from synchronization boundaries, allowing source and panel timing controllers to settle and align before the next active region begins. Porches exist horizontally around line sync and vertically around frame sync, forming part of the total timing budget.

From an engineering standpoint, I usually describe porch as the timing "cushion" that ensures stable pixel sampling by preventing active data from occurring too close to sync transitions. When porch values are inadequate or mismatched to panel requirements, systems may appear functional in laboratory conditions but become marginal under temperature variation, cable routing constraints, or electromagnetic interference. The most important practical rule is that porch values² should start from the panel timing table and its accepted ranges, not from a copied default standard, because the panel’s internal timing and lock behavior often depend on minimum blanking around sync boundaries.

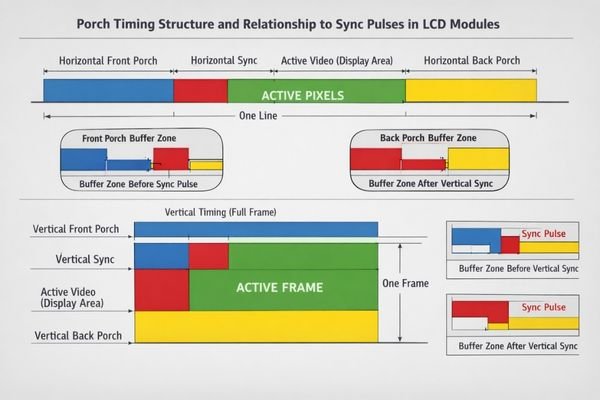

Horizontal and Vertical Porch Functions

Horizontal porches frame each line’s sync pulse and manage timing between pixel rows, while vertical porches frame each frame’s sync pulse and manage timing between complete frames. Both contribute to overall timing stability and interface margin. A practical pass/fail check is whether the system stays stable when you change the routing length and operating temperature: if small cable/FPC placement changes or temperature transitions suddenly introduce sparkles, flicker, or drifting edges, the timing is usually operating too close to the sync boundary and needs more porch margin.

Integration with Sync Timing

Porches work with sync pulses to create the complete blanking structure that enables reliable pixel data transmission and reception across varying operating conditions and signal quality constraints. A common mistake is treating porch as “free space” to compress for a lower pixel clock without verifying the panel’s accepted timing window; this often produces a setup that looks fine at room temperature but becomes jitter-sensitive and unstable when noise coupling increases or the return path changes.

How do front porch and back porch differ, and where do they sit relative to sync?

Front and back porches occupy specific positions in the timing sequence, providing different functions in the synchronization process.

Front porch is the blanking interval immediately after active pixels end and before the sync pulse begins, while back porch is the blanking interval after the sync pulse ends and before the next active pixels start. This pattern applies to both horizontal timing (around line sync) and vertical timing (around frame sync).

Based on the projects I support with timing optimization³, the distinction between front and back porch becomes critical when timing margins are tight. A simple way to position them correctly is: front porch sits between the last visible pixel and the sync edge, and back porch sits between the end of sync and the first visible pixel of the next line or frame. If those intervals are shifted or too small, the active window can move relative to the panel’s sampling expectation, which can show up as clipping on one edge, an image that appears slightly “off center,” or a system that only fails with longer routing or different grounding.

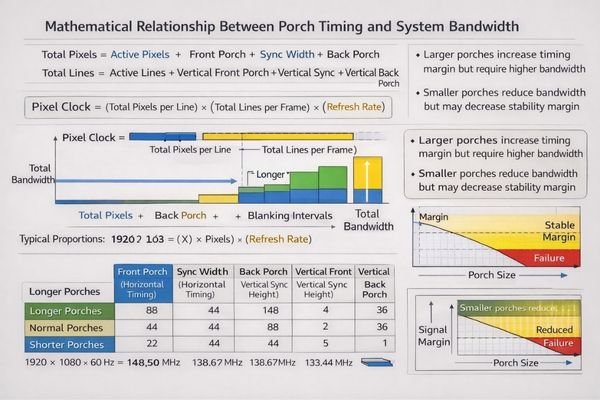

Why do porch values affect pixel clock, bandwidth, and timing margin?

Porch intervals directly contribute to total timing requirements, influencing pixel clock calculation and system bandwidth demands.

Porches contribute to total pixels per line and total lines per frame, directly affecting pixel clock requirements even when active resolution and refresh rate remain constant. Increasing porch improves synchronization margin but raises pixel clock and bandwidth demand, while reducing porch can lower pixel clock but only within panel acceptance limits.

When I troubleshoot timing-related stability issues, porch optimization often becomes a practical balance between bandwidth constraints and timing robustness⁴. In space-constrained designs with longer FPC routing or noisy power environments, porch choices serve as a critical parameter for trading bandwidth against stability margin. A reliable working strategy is to protect stability first—stay comfortably inside the panel’s accepted ranges with a guard band—and only then optimize for bandwidth or a lower pixel clock. Any attempt to “squeeze” porch to reduce bandwidth should be treated as a margin trade that must be re-validated under worst-case conditions.

Porch Adjustment	Pixel Clock Impact	Bandwidth Effect	Stability Trade-off
Increase Porch	Higher pixel clock	Increased bandwidth demand	Improved timing margin
Decrease Porch	Lower pixel clock	Reduced bandwidth demand	Reduced timing margin
Optimize Balance	Controlled pixel clock	Managed bandwidth	Adequate stability margin

System-level validation must confirm that chosen porch values provide adequate margin under worst-case operating conditions, and any “pixel clock reduction” should be accepted only if stability remains unchanged in real routing and EMI conditions.

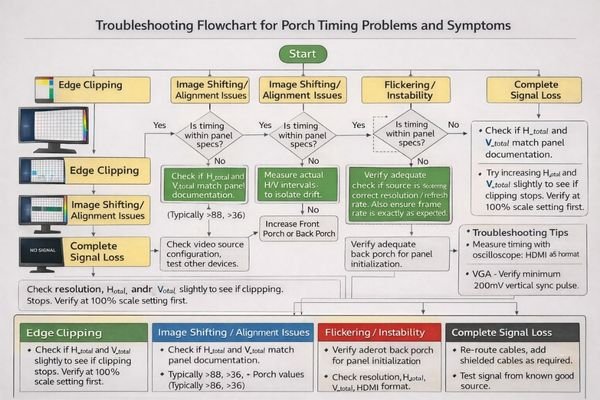

What porch-related mistakes cause clipping, flicker, or unstable sync?

Porch timing errors create visible symptoms through synchronization failures, timing violations, and pixel sampling problems.

Common mistakes include using timing modes the panel doesn’t accept, compressing porch values to achieve lower pixel clock without validating panel requirements, and mismatching timing sets so receivers sample active pixels too close to sync boundaries. These issues manifest as edge clipping, image shifting, intermittent flicker, or displays that fail with longer cables.

I’ve observed that porch problems often appear as intermittent issues that worsen under stress conditions like temperature changes, cable routing variations, or power supply noise. Teams frequently treat porch as adjustable "free space" without recognizing that panels require minimum porch intervals for internal processing and stable lock across real-world variation. When debugging, I use a consistent sequence: first confirm the timing table (including porch and sync) is within the panel’s accepted ranges, then check whether porch was compressed to chase a lower pixel clock, then verify real cable/FPC length and return-path continuity, and finally evaluate EMI/noise coupling from the surrounding system. For comprehensive porch timing analysis and troubleshooting support, engineering teams can contact info@lcdmodulepro.com during integration development.

Timing Validation Requirements

Robust porch selection requires validation against panel acceptance ranges, confirmation under worst-case conditions, and margin analysis that accounts for temperature variation, cable constraints, and electromagnetic environment effects. Practically, that means verifying the longest intended routing, the noisiest operating state of the product, and the temperature conditions most likely to reduce margin. A useful reproduction technique is to change one variable at a time—cable length, routing proximity to switching power stages, grounding connection point—and observe whether symptoms track that change; if small routing changes “fix” the display, the timing is usually marginal.

System-Level Impact Assessment

Porch timing affects not only immediate display function but also long-term stability, production consistency, and compatibility across component variations and environmental conditions. If stability depends on a specific cable placement or a single build condition, the design is unlikely to be robust across production variation, service routing changes, or aging effects, which is why porch should be treated as part of a system margin budget rather than a one-time bench adjustment.

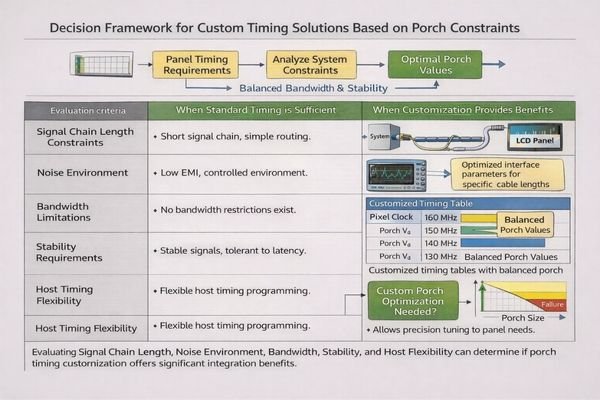

When should you use customization to align porch timing with your signal chain?

Custom solutions become valuable when porch constraints interact with system-level limitations that standard timing cannot accommodate.

Customization helps when systems have tight bandwidth or routing constraints making timing margin sensitive to porch choices, when cable or FPC length is fixed creating signal integrity challenges, when noise environments are harsh, or when host timing generators have limited flexibility. The goal is optimizing timing within panel acceptance ranges while supporting real signal chain requirements.

In my experience with challenging integration environments, porch constraints often interact with mechanical, routing, and EMI requirements in ways that require systematic optimization. Custom solutions enable timing parameter alignment with specific application constraints while maintaining adequate stability margin and production consistency. The key is to use customization to recover margin—not to shrink porch to the smallest possible values—by aligning the accepted timing window with the real signal chain, including practical routing length, return-path grounding strategy, and sensitivity to noise coupling. When porch timing becomes critical, I evaluate the complete signal path including source capabilities, routing constraints, environmental conditions, and panel specifications to confirm whether standard timing solutions provide adequate guard band or whether custom optimization⁵ offers better risk management for the intended application environment and lifecycle requirements.

FAQ

Is "porch" the same thing as blanking?
Porch is part of blanking. Blanking includes the front porch, sync pulse, and back porch; porch refers specifically to the non-active intervals before and after the sync pulse.

Do porch values change pixel clock even if resolution stays the same?
Yes. Pixel clock depends on total timing (active + blanking). Changing porches changes total pixels per line or total lines per frame, which changes pixel clock.

What happens if I reduce porch values too much?
The link may become marginal: unstable sync, sparkles, flicker, or occasional blanking can appear, especially across temperature, cable variation, and noisy power/ground conditions.

Why do panels have minimum porch requirements?
Many panels need sufficient time around sync boundaries for internal timing, processing, and stable lock. Minimum porches help prevent sampling too close to transitions and improve tolerance to variation.

Can porch values cause visible clipping at the edges?
Yes. If the timing set is wrong or the porch/sync placement shifts the active window, the image can clip on one or more edges even though the resolution setting looks correct.

How do I choose porch values safely?
Start from the panel’s accepted timing ranges and validated timing tables, then confirm margin under worst-case temperature, routing length, and EMI conditions instead of optimizing for the lowest pixel clock.

Conclusion

Porch timing serves as a critical balance point between bandwidth efficiency and synchronization stability in LCD display module systems. Understanding porch placement and its impact on pixel clock enables better timing decisions that support robust operation across real-world conditions. As an engineer, I treat porch values as part of validated timing tables that must maintain adequate margin under temperature variation, cable constraints, and electromagnetic environments rather than simply minimizing pixel clock. A repeatable summary rule is: porch defines the non-active buffer around sync, porch changes total timing (and therefore pixel clock), and safe values are those verified inside the panel’s accepted ranges with margin under real routing and EMI conditions.
