The BU156X is a 15.6-inch bar LCD display reference module designed for long-format display projects in retail systems, industrial HMIs, smart terminals, and public information equipment.
This page presents a reference solution rather than an off-the-shelf product. Final specifications can be customized based on brightness, interface, structure, and application requirements.
The BU156X is a reference bar LCD module developed for long-format display projects requiring stable visibility, compact integration, and flexible interface adaptation.
It can be used as a starting point for retail shelf systems, industrial control panels, smart terminals, and public information displays, with customization available based on project requirements.
The BU156X page presents a reference configuration for a 15.6-inch bar LCD display module. It is intended to show a typical solution direction for long-format LCD projects rather than a fixed off-the-shelf product.
For actual development, specifications can be adjusted according to brightness targets, interface requirements, structural constraints, and application environment.
The BU156X is a 15.6-inch bar LCD display reference module developed for projects that require a long-format visual layout within limited installation space.
With its ultra-wide format, stable brightness performance, and flexible integration potential, it can serve as a useful reference direction for retail systems, industrial interfaces, self-service devices, and public information equipment.
This page is intended to present a typical module direction rather than a fixed catalog item. For actual projects, parameters such as brightness, interface, mounting structure, and controller compatibility can be adjusted according to application requirements.
The specifications below describe a reference configuration. Final parameters can be adjusted based on project requirements.
| Model | 15.6-inch Bar LCD Display |
|---|---|
| Size | 15.6 inch |
| Pixel Number (Resolution) | 1920 × RGB × 158 pixels |
| Active Area (AA) | 394.9(H) × 32.5(V) mm |
| Pixel Pitch | 0.2057(H) × 0.2057(V) mm |
| Aspect Ratio | Ultra-wide bar type |
| LCD Type | TFT, IPS, Transmissive |
| Viewing Angle | 178°(H) × 178°(V) |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) |
| Response Time | 6 ms (Typ.) |
| Color Depth | 16.7M colors |
| Surface Treatment | Glare |
| Backlight Type | LED, normally white |
| Backlight Lifetime | 30,000 hours (Typ.) |
| Interface | To be configured (LVDS / HDMI / other controller options) |
| Power Supply | DC 12 V (Typ.) |
| Power Consumption | 20 W (Typ.) |
| Operating Temperature | 0℃ to +40℃ |
| Storage Temperature | -20℃ to +50℃ |
These features make the BU156X a practical reference platform for long-format display projects that require compact integration, stable readability, and customization flexibility.
The 15.6-inch Bar LCD Display offers an ultra-wide bar-type form factor that fits perfectly into narrow spaces such as shelf edges, slim kiosks and compact HMI panels, where a long, continuous display area is required.
The bar LCD display delivers fine pixel density across the entire 15.6-inch active area, making it ideal for data dashboards, status bars and digital signage layouts that demand crisp text and detailed graphics.
Designed for off-axis viewing, the 15.6-inch Bar LCD Display maintains consistent brightness and color from different directions, supporting multi-user reading in retail, transportation and industrial environments.
The bar LCD display uses an energy-efficient LED backlight that combines high brightness with low power consumption, ensuring clear visibility in bright indoor areas while supporting long-duration operation.
The 15.6-inch Bar LCD Display supports common display interfaces and standard timing configurations, allowing quick integration with existing controller boards and embedded platforms in commercial and industrial systems.
Built for continuous-duty applications, the 15.6-inch bar LCD display combines a robust mechanical structure with stable electronic design, making it suitable for 24/7 operation in vending, signage and control equipment.
The BU156X serves as a reference direction for long-format display projects across different equipment types. Final configuration can be customized according to brightness, interface, structure, and operating environment.

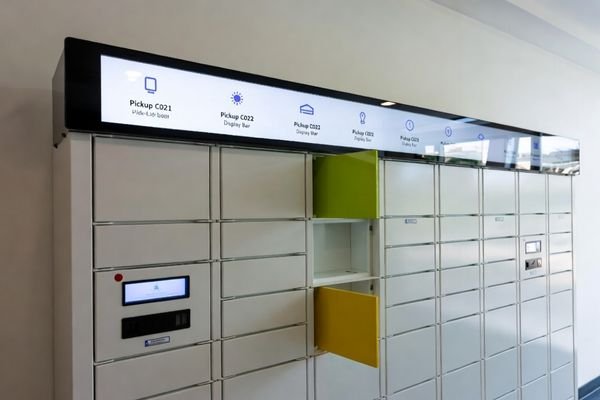

Bar LCD Displays are widely used on smart parcel and locker systems to show pickup codes, parcel status, and basic instructions. The ultra-wide bar format fits narrow spaces and keeps key information clear, readable, and easy to follow for users.
In malls and office buildings, Bar LCD Displays work well as wayfinding strips, showing floor directories, area labels, and navigation arrows. The ultra-wide screen combines content into one continuous information bar for clearer guidance.
Bar LCD Displays are ideal for corporate reception areas, presenting welcome messages, brand statements, or visitor information. The slim ultra-wide design fits various front desk layouts while keeping the visual clean and enhancing brand presence.
If your project requires a long-format LCD module with specific brightness, interface, or structural requirements, our engineering team can help evaluate a suitable customization direction based on your application.
We specialize in ultra-wide Bar LCD Display products, offering reliable technical expertise to support the integration of 15.6-inch bar screens across retail, commercial and industrial applications.
Each Bar LCD Display is manufactured with strict quality standards, ensuring stable performance, long-lasting components and consistent operation in demanding environments.
We provide customization options including brightness, interface, structure and mounting design, making it easy to adapt the 15.6-inch bar display to kiosks, wayfinding systems and smart lockers.
Strong supply chain capabilities allow us to support prototype runs, pilot builds and mass production with consistent delivery schedules and dependable product availability.
Our engineering team provides assistance with display timing, integration, electrical design and performance optimization to ensure smooth deployment of your bar display project.
Beyond the 15.6-inch Bar LCD Display, we offer a wide selection of TFT display modules in various sizes and aspect ratios, supporting unified design across multiple product families.
The BU156X page presents a reference module direction. For actual projects, parameters such as brightness, interface, and structural details can be customized based on application requirements.
Typical customization items include brightness, interface direction, mechanical structure, mounting method, optical enhancement, and system integration requirements.
Yes. Similar projects may require different brightness targets, interface definitions, or structural changes depending on whether the module is used in commercial, industrial, or public information equipment.
Yes — we offer customization of the backlight brightness and LED backlight configuration to meet different operational environments (e.g. indoor, bright mall, or semi-outdoor scenarios). This ensures clear visibility under strong ambient light or varied lighting conditions.
Yes. We offer the display as a bare module (LCD panel + driver, without housing), allowing customers to design and integrate their own enclosures according to their device structure — ideal for projects with specific size, thickness, or integration requirements.
For mass production orders, we have a minimum order quantity (MOQ). Please contact us to get the current MOQ. We also support sample runs and small-batch orders so that customers can first evaluate display performance.
Yes. Considering many use cases (e.g. parcel lockers, wayfinding bars, reception displays) require continuous operation, our Bar LCD Display is designed to support 24/7 operation. Frequent on-off switching is not recommended in order to preserve backlight longevity and display stability.
We provide compatibility guidance and technical support, including driver signal specifications, timing references, and interface definitions, to help customers integrate the module smoothly with various controller boards or embedded systems.
Tell us about your required size, brightness, interface, structure, and application scenario.
Our engineering team will review your requirements and suggest a suitable solution direction for your project.
