Brightness Target & Backlight Design
Tailored backlight design with optimized LED layout, light-guide structure, and 700–1500 cd/m² brightness options for 24/7 industrial operation.
Reference high-brightness LCD display solutions for industrial and outdoor equipment.
These modules are typically customized based on brightness target, interface, structure, optical treatment, and application environment — not supplied as off-the-shelf stock products.
Suitable for outdoor kiosks, industrial HMI, transportation terminals, warehouse devices, and public information systems.
Reference Module Category:The high-brightness modules shown on this page are representative design directions. Final brightness, interface, touch, cover glass, optical treatment, and structure are customized based on project requirements.
Start from an application-oriented high-brightness LCD solution before reviewing detailed reference module directions. These project entry pages help procurement and engineering teams evaluate brightness, optical treatment, structure, and integration requirements.
For marine control systems, outdoor terminals, rugged equipment, and high ambient-light applications
where sunlight readability is required.
For industrial interfaces, machine panels, bright workshops, and optically bonded display systems
where stronger readability is required.
For information systems, public displays, transportation terminals, and commercial environments
where a larger visual area is required.
Need model-level reference directions? Review the high-brightness reference modules below after selecting the closest application direction. The featured solution pages are designed for project evaluation, while the reference models provide typical technical starting points.
For manufacturers building products for brighter environments, a high-brightness LCD module is rarely just a panel selection issue. The right direction should be reviewed together with ambient light, optical structure, power conditions, enclosure design, and field readability expectations.
Early evaluation helps avoid choosing an indoor-oriented display direction for outdoor, marine, industrial, or high ambient-light equipment.
Evaluate where the display will be used, how strong the surrounding light may be, and whether direct or indirect sunlight exposure is expected.
Review brightness, cover lens, touch structure, surface treatment, and viewing angle together instead of treating brightness as an isolated number.
Higher brightness may affect power design, heat behavior, enclosure space, and long-term operating stability inside the final equipment.
The module direction should support real readability tests before pilot or production planning, especially for outdoor and industrial deployment.
These models are provided as technical starting points for high-brightness LCD module projects. Final brightness, interface, touch integration, cover glass, optical treatment, and mechanical structure can be adjusted according to project requirements. For project evaluation, please start from the featured high-brightness solution pages above.
| Model | Resolution / Brightness | Typical Direction | Role | Link |
|---|---|---|---|---|

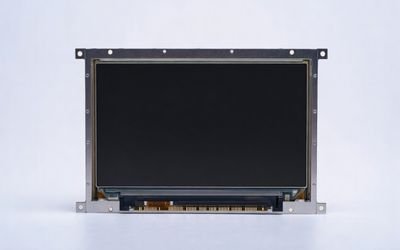

| HB156X |
1920 × 1080 800–1500 cd/m² |
Compact high-brightness display direction for industrial HMI panels, self-service kiosks, and embedded equipment. | Technical starting point | Review model |

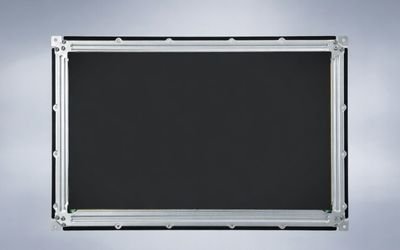

| HB185X |
1366 × 768 / 1920 × 1080 1000 cd/m² |
High-brightness display direction for industrial control interfaces, information displays, and semi-outdoor terminals. | Technical starting point | Review model |
| HB215X |
1920 × 1080 1200 cd/m² |
High-brightness direction for outdoor kiosks, industrial machines, and public information systems. | Technical starting point | Review model |

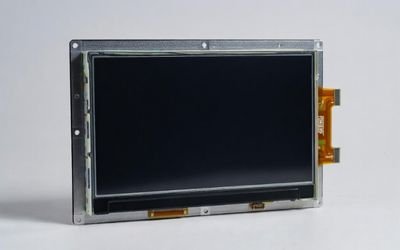

| HB238X |
1920 × 1080 1000 cd/m² |
High-brightness display direction for retail signage, monitoring interfaces, operator consoles, and outdoor equipment. | Technical starting point | Review model |

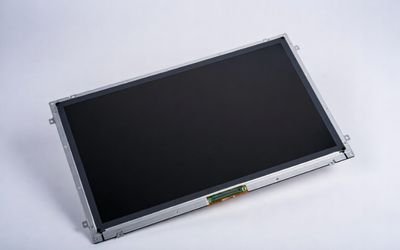

| HB270S |
2560 × 1440 1500 cd/m² |
High-brightness direction for control centers, industrial workstations, surveillance displays, and optical enhancement projects. | Technical starting point | Review model |
| Custom High-Brightness Configurations | Project-defined | Project-defined high-brightness direction for EV charging stations, parking payment machines, outdoor kiosks, and OEM equipment. | Project-defined direction | Discuss project |
These reference modules can be adapted to your project requirements, including brightness level, interface, optical treatment, touch integration, cover glass, and structure.
High-brightness display development usually requires more than increasing luminance. Optical readability, thermal behavior, signal stability, backlight lifetime, and structural reliability all affect final field performance.
Uses high-efficiency LEDs and precision light-guide design to improve brightness uniformity while keeping overall power consumption under control.
Anti-reflection and surface treatment coatings reduce glare and reflection, enhancing clarity and readability in strong ambient light environments.
Wide-range PWM dimming enables smooth brightness control, maintaining stable visual performance from dark indoor spaces to bright outdoor conditions.
Robust electrical architecture supports stable LVDS or eDP signal transmission and seamless integration with industrial control systems and embedded platforms.
Optimized backlight driving and thermal design help extend LED lifetime and support reliable 24/7 continuous operation in demanding applications.
Reinforced mechanical structure and comprehensive reliability testing ensure stable performance under vibration, temperature variation, and industrial environments.
Need these capabilities combined into one project solution? → View Engineering Services
High-brightness modules are commonly used in devices where standard indoor displays cannot maintain readability, reliability, or long-term stability under strong ambient light or outdoor conditions.

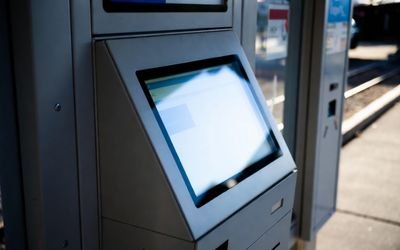

High brightness LCD industrial displays offer sunlight-readable visibility for outdoor kiosks, ticketing terminals, and public information devices in bright environments.

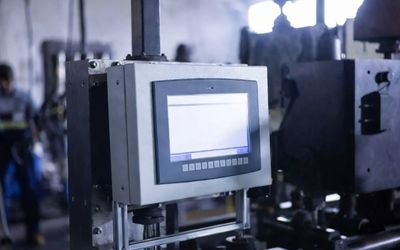

High brightness LCD industrial panels deliver reliable visibility in bright factory conditions, ideal for automation systems, HMI terminals, and industrial control equipment.

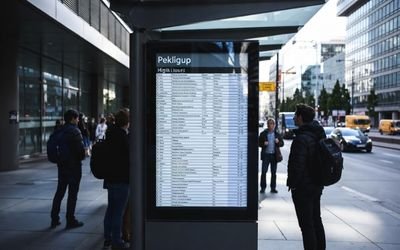

High brightness LCD displays ensure outdoor readability for bus stop signage, metro wayfinding screens, and urban transportation systems under strong daylight.

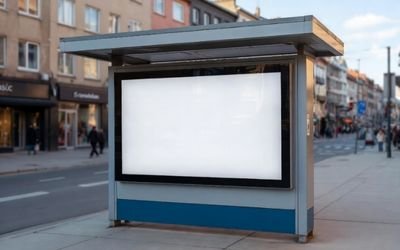

High brightness LCD displays provide vivid daytime visibility for outdoor digital signage in commercial areas, ensuring clear content in bright outdoor environments.

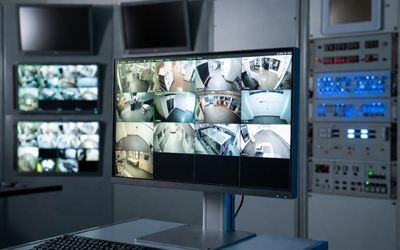

High brightness LCD industrial displays offer clear visibility for security monitoring stations and control rooms operating under mixed or bright lighting conditions.

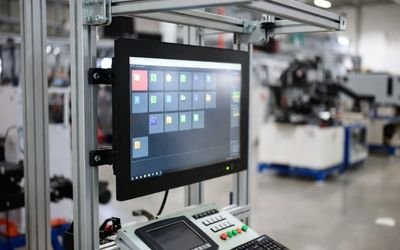

High brightness LCD industrial screens ensure reliable readability for warehouse terminals, logistics devices, and forklift stations operating in bright or mixed lighting environments.

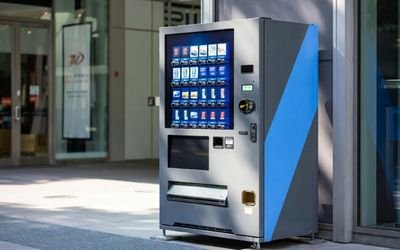

High brightness LCD displays maintain clear visibility for outdoor vending machines and smart retail devices in bright commercial and high-traffic environments.

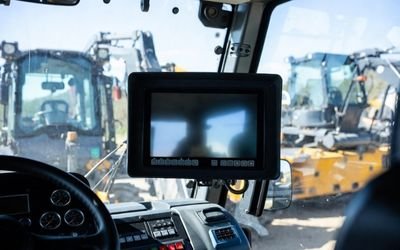

High brightness LCD industrial displays offer sunlight-readable clarity for heavy machinery dashboards and construction vehicle cabins exposed to bright outdoor conditions.
Most high-brightness projects require more than a higher luminance specification. Optical readability, thermal design, interface matching, touch integration, cover glass, and mechanical structure often need to be aligned with the final device and operating environment.
Tailored backlight design with optimized LED layout, light-guide structure, and 700–1500 cd/m² brightness options for 24/7 industrial operation.
AG/AR coating, optical bonding, high-transmittance cover glass, and color-uniformity tuning to keep the display readable under strong ambient light.
LVDS/eDP signal matching, custom pin assignment, FPC routing adjustments, and timing optimization for seamless integration with various industrial mainboards.
Enhanced thermal design, backlight heat management, wide-temperature options, and reliability validation for outdoor and industrial high-brightness applications.
Custom bezels, mounting holes, thin-module structures, and bracket solutions to match different enclosure designs and installation methods.
Integration of PCAP touch (G+G/G+F), custom black-frame printing, and high-transparency cover glass with tuned touch performance for outdoor and industrial use.
Choosing a high-brightness module is often only the starting point. Final project success depends on how well the display is aligned with your enclosure, interface, optical treatment, thermal design, touch structure, and field environment.
This is why most projects move from reference module selection to engineering-based customization.
For indoor strong-light environments, 700–1000 cd/m² is usually sufficient.
For outdoor kiosks, charging stations, and sunlight-exposed devices, we recommend 1200–1500 cd/m² to ensure clear visibility.
Yes, high-brightness backlight systems produce more heat.
We offer optimized thermal solutions, including heat-spreading plates, improved backlight structures, and wide-temperature designs to ensure long-term stability.
Absolutely.
Brightness, LVDS/eDP interfaces, FPC layout, bezel design, mounting holes, and overall mechanical structure can all be customized for project requirements.
Yes.
We provide AG/AR surface treatments, OCA optical bonding, high-transmittance cover glass, and uniformity tuning to enhance outdoor readability.
Depending on brightness level, the backlight lifespan typically ranges from 30,000 to 70,000 hours, with options for enhanced long-life LED backlight systems.
Yes.
Our industrial-grade designs support continuous 7×24 operation with strict reliability validation, making them ideal for kiosks, industrial HMI, and public terminals.
Yes.
We offer demo driver boards, timing support, engineering Q&A, and integration guidance to help you evaluate and deploy the display quickly.
Tell us your target size, brightness level, interface, optical requirements, touch needs, and application environment. Our engineering team will review your project and respond with a suitable module direction.
