The BU173X is a 17.3-inch ultra-wide bar type TFT display module featuring a 1920×720 resolution, 1200 cd/m² high brightness, IPS wide viewing angles and an eDP interface with optional LVDS. It is designed for sunlight-readable retail signage, industrial HMI systems, transportation information displays, and other applications that require a long-format, high-visibility display.
The BU173X features a 17.3-inch ultra-wide 1920×720 layout with a high brightness of 1200 cd/m², combined with IPS wide viewing angles and a standard eDP interface. It remains clearly visible even under direct sunlight, making it ideal for retail signage, industrial HMI systems, self-service terminals, and transportation information displays.
The BU173X is a 17.3-inch ultra-wide TFT display module designed for advanced visual applications in industrial systems, commercial signage, and information terminals. Its 1920×720 stretched resolution provides a spacious horizontal layout, allowing complex data, visual indicators, and multi-zone UI elements to be displayed clearly within a narrow and elongated footprint. With a powerful 1200 cd/m² backlight, the module delivers excellent outdoor readability, making it well-suited for smart retail pricing bars, automation equipment status displays, transportation information panels, and other environments with strong ambient light.
Equipped with IPS wide viewing angle technology, the BU173X maintains consistent color performance and contrast from all directions, ensuring visual accuracy even in high-brightness conditions. The module comes standard with an eDP interface for stable, high-speed transmission and also supports optional LVDS or mechanical customization to fit a variety of embedded platforms. In addition, the BU173X offers customization options for brightness, mechanical structure, mounting design, and FPC configuration, providing exceptional flexibility for integrators and product developers. It is a reliable, versatile, and high-performance display solution tailored for wide-format visualization needs.
| Model | BU173X |
|---|---|
| Size | 17.3 inch |
| Pixel Number (Resolution) | 1920 × RGB × 720 pixels |
| Active Area (AA) | 409.6(H) × 153.6(V) mm |
| Module Dimension | 430.0(H) × 170.0(V) × 12.0(T) mm (Typ) |
| Pixel Pitch | 0.213(H) × 0.213(V) mm |
| LCD Type | TFT, IPS Technology, Normally Black, Transmissive |
| Viewing Angle (CR > 10) | 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) |
| Surface Treatment | Anti-glare |
| Brightness | 1200 cd/m² (Typ) |
| Contrast Ratio | 1000 : 1 (Typ) |
| Backlight Type | LED Backlight, White, Constant Current |
| Interface | eDP 30pin (Standard), LVDS Optional (Custom) |
| Touch Panel | Without touch panel (Optional PCAP available) |
| Operating Temperature | -30℃ to +85℃ |
| Storage Temperature | -40℃ to +90℃ |
| Logic Supply Voltage (VDD) | 3.0 V (Min) / 3.3 V (Typ) / 3.6 V (Max) |
| Logic Supply Current (IDD) | 600 mA (Typ) |
| LED Backlight Voltage (VLED) | 24.0 V (Typ) |
| LED Backlight Current (IL) | 350 mA (Typ) |
| LED Lifetime | 50,000 hours (Typ) |
The BU173X 17.3-inch bar type TFT display module offers an ultra-wide aspect ratio designed for long-format layouts, enabling clear visualization of timelines, process flows and multi-section interfaces in narrow and space-constrained equipment designs.
With a typical brightness of 1200 cd/m², the BU173X TFT display module remains readable in strong ambient light and semi-outdoor conditions, making it suitable for storefront signage, transportation information bars and high-bright industrial terminals.
Built on IPS technology, the BU173X bar type TFT display module delivers wide viewing angles and stable color performance, ensuring that graphics, text and icons remain legible and accurate when viewed from different directions or multiple user positions.
The BU173X uses a standard eDP interface for high-speed, low-EMI signal transmission and offers LVDS as a customizable option. This gives system designers the flexibility to match existing platforms while benefiting from modern TFT display module integration.
Designed for demanding environments, the BU173X bar type TFT display module supports a wide operating temperature range and stable 24/7 operation, making it suitable for industrial control, transportation systems and outdoor-oriented equipment.
The BU173X TFT display module supports customization of brightness, mechanical structure, mounting points and optional touch solutions, helping OEMs and system integrators build tailored bar-type displays that fit their enclosure, UI and application requirements.
With its ultra-wide format and crisp display performance, the BU173X serves as an excellent auxiliary information bar for vehicle dashboards, displaying navigation cues, system statuses, and driving-related alerts. Its industrial-grade stability and high-brightness design make it suitable for transportation applications.
The BU173X is suitable for wayfinding applications in hotels, hospitals, office buildings, and public spaces, displaying room numbers, directional icons, scheduling details, or queue information. Its slim, elongated design fits perfectly into narrow spaces while delivering clear and modern visual guidance.

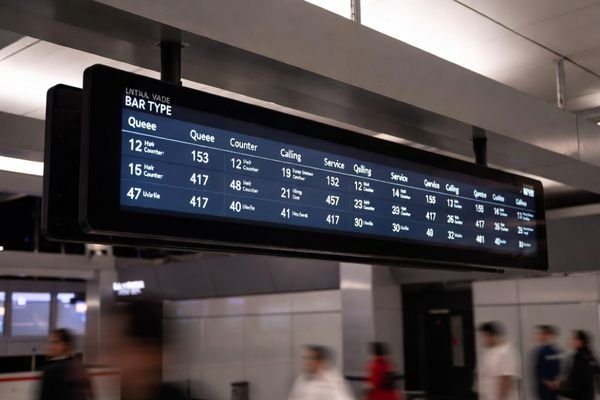

The BU173X bar-type TFT display module is ideal for station queue calling systems, delivering clear visibility of queue numbers, service counters, and directional guidance within narrow display areas. Its high brightness and wide viewing angles ensure easy readability for passengers across busy station halls.
The BU173X 17.3-inch TFT display module is specifically designed for ultra-wide 1920×720 bar applications, delivering a long-format viewing area that fits modern signage, dashboard and status-bar layouts without wasted space.
With up to 1200 cd/m² high brightness, the BU173X TFT display module remains readable in strong ambient light, making it suitable for semi-outdoor kiosks, shopfront displays and high-illumination industrial sites.
The BU173X adopts a standard eDP interface for modern systems, while offering optional LVDS for legacy platforms. This flexibility allows the same bar type TFT display module to be reused across different controller boards.
Designed as an industrial-grade TFT display module, the BU173X uses reliable LED backlight and robust construction, supporting long-hour, 24/7 operation for digital signage, control rooms and transportation systems.
Our team can assist with BU173X integration, including mechanical fitting, interface matching, power design and brightness tuning, helping you build a complete solution around this bar type TFT display module faster.
Alongside the BU173X 17.3-inch bar TFT display module, we provide multiple ultra-wide and standard TFT modules, enabling consistent design language across product lines and supporting long-term, stable supply for your projects.
Yes. The BU173X bar-type display module can be customized in structure, mounting holes, and frame dimensions to fit your device enclosure.
The BU173X uses a mainstream eDP interface (optional LVDS), making it highly compatible with most industrial PCs and controller boards.
Yes, the BU173X uses an industrial-grade backlight and stable driving design, suitable for 24/7 continuous operation.
Yes. With 1200 cd brightness, anti-glare surface, and wide-temperature performance, the BU173X works well in outdoor-readable environments.
Yes. A projected capacitive touch panel (PCAP) can be added upon request, including custom cover glass options.
Yes. We can help test your UI or interface graphics to ensure the best clarity and proportion on the 17.3-inch 1920×720 bar display.
Yes. Long-term stable supply and version control are available, ideal for retail and self-service terminal applications.
