The SQ198H is a 19.8” 960×960 square lcd display module designed for industrial and commercial applications. Featuring high resolution, wide viewing angles and stable 24/7 performance, this lcd display module is ideal for digital signage, kiosks, vending machines, retail displays and other embedded systems that require a compact 1:1 aspect ratio display.
SQ198H is a square lcd display module tailored for international OEMs and system integrators. It delivers stable image performance and is easy to customize and integrate into professional devices.
SQ198H is an industrial-grade square lcd display module developed for OEMs and system integrators who need a compact 1:1 display solution. Compared with conventional widescreen panels, the square form factor allows information, graphics and status data to be arranged more efficiently in limited spaces, making it well-suited for kiosks, vending machines, control consoles, retail fixtures and other embedded terminals.
Built on a stable driving system with uniform backlight and wide viewing angles, this lcd display module is designed for 24/7 operation in demanding environments. Key parameters such as interface type, brightness level, mechanical structure, and optional touch or cover glass can be customized, helping international B2B customers balance performance, cost and lifecycle management in their projects.
| Model | SQ198H Square LCD Display Module |
|---|---|
| Size | 19.8 inch |
| Pixel Number (Resolution) | 960 × RGB × 960 pixels |
| Active Area (AA) | Approx. 356.6(H) × 356.6(V) mm |
| Pixel Pitch | Approx. 0.371(H) × 0.371(V) mm |
| Aspect Ratio | 1:1 square |
| LCD Type | TFT, IPS, Normally Black, Transmissive |
| Viewing Angle | 178°(H) × 178°(V) (Typ.) |
| Brightness | 800 cd/m² (Typ.), customizable |
| Contrast Ratio | 1000:1 (Typ.) |
| Response Time | 8 ms (Typ.) |
| Color Depth | 16.7M colors |
| Surface Treatment | Anti-glare, hard coating |
| Backlight Type | LED backlight, normally white |
| Backlight Lifetime | 50,000 hours (Typ.) |
| Interface | To be configured (LVDS / eDP, controller board optional) |
| Power Supply | DC 12 V (Typ.) |
| Power Consumption | 15 W (Typ.) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
The SQ198H lcd display module adopts a square 1:1 form factor, making it easier to design creative layouts for dashboards, status tiles and compact information windows in kiosks, vending machines and embedded terminals.
Fine pixel structure across the active area ensures crisp text, sharp icons and smooth graphic elements, making this lcd display module ideal for industrial HMI, control panels and information-rich user interfaces.
IPS wide viewing performance keeps colors and brightness consistent from different directions, ensuring that key data and messages remain readable in multi-user and off-axis viewing scenarios.
The lcd display module uses an efficient LED backlight with uniform illumination and long lifetime, and can be configured with different brightness levels to match indoor industrial use or brighter commercial environments.
SQ198H is designed as a custom-friendly lcd display module, supporting configurable interfaces, structure design and optional touch or cover glass, helping OEMs and system integrators simplify integration into their existing platforms.
With a robust mechanical structure and stable driving design, this lcd display module is suitable for continuous-duty applications, supporting long-term 24/7 operation in industrial, retail and public information systems.

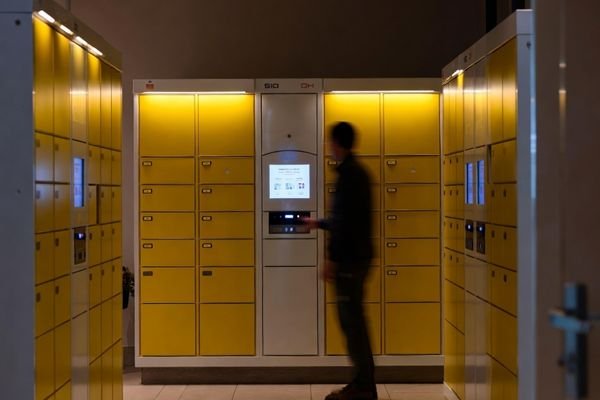

In self-service parcel lockers and logistics cabinets, the square lcd display module offers a clear, intuitive interface for parcel pickup and drop-off. With customizable brightness, interface and structure, it helps OEMs build reliable, unattended last-mile delivery terminals for daily 24/7 operation.

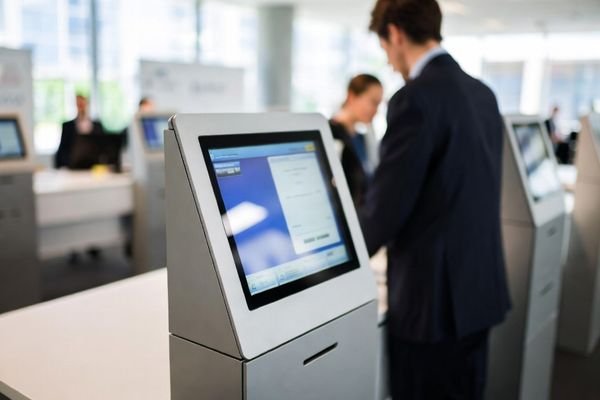

For self-service banking kiosks and compact ATM-style devices, the square lcd display module delivers a professional, easy-to-use interface for routine account inquiries and transactions. Its industrial-grade reliability and straightforward integration support OEMs and system integrators in deploying secure, always-on financial service terminals.

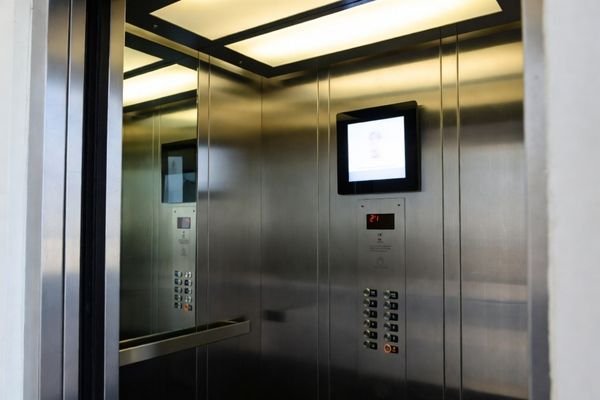

Inside office and residential elevators, the square lcd display module is used to present floor information, building notices and simple promotions. With wide viewing angles, consistent image quality and flexible mounting options, it enables clear, continuous information displays in busy building environments.
We focus on square lcd display module solutions for international OEMs and system integrators, helping you integrate SQ198H into parcel lockers, banking kiosks and elevator information displays with confidence.
Each lcd display module is built with industrial-grade components and strict quality control, ensuring stable performance and long-term reliability in demanding commercial and industrial environments.
We support customization of interface, brightness and mechanical design, so the SQ198H square lcd display module can be tailored to your specific device structure and application needs.
A stable supply chain allows us to support prototypes, pilot runs and mass production, providing predictable lead times and consistent availability for long-lifecycle projects.
Our engineering team offers support on display timing, system integration and performance optimization, helping you deploy the SQ198H lcd display module smoothly from design phase to mass production.
Alongside the SQ198H square lcd display module, we offer a wide range of tft lcd display modules, enabling unified design and scalable solutions across different product lines and screen formats.
The SQ198H square lcd display module is designed for professional OEM and B2B projects such as parcel lockers, self-service banking kiosks, elevator information displays and other embedded terminals. It offers stable image performance and a compact 1:1 form factor for industrial and commercial devices.
Yes, the SQ198H lcd display module supports customization for parameters such as brightness, interface, cable length and mechanical structure. We work with OEM customers to adjust the module to fit their device design, mounting requirements and application environment.
The SQ198H lcd display module is designed with standard industrial display interfaces such as LVDS or eDP (depending on the version). Detailed interface pinout, signal timing and power requirements will be provided in the datasheet and application notes for your engineering team.
Yes, the SQ198H square lcd display module is built with industrial-grade components and is suitable for 24/7 continuous operation when used within the recommended operating conditions. It is ideal for unattended terminals and information displays in public and commercial environments.
To integrate the SQ198H lcd display module, you only need a compatible controller board, correct interface connection and appropriate power supply design. We provide datasheets, mechanical drawings and integration guidelines to help your hardware and firmware engineers complete the design quickly.
Lead time for the SQ198H lcd display module depends on order quantity and customization level. For standard configurations, we usually support sample orders and small batches within a shorter lead time, while mass production orders follow an agreed production schedule.
Yes, we support sample orders for the SQ198H square lcd display module so that your team can evaluate display performance, structure and system compatibility. After validation, we can move smoothly to pilot runs and mass production.
