The BU215X is a 21.5-inch bar type lcd display module designed with an ultra-wide 1920×720 resolution and 1000-nits high brightness, delivering outstanding clarity even in strong ambient light.
With its stretched aspect ratio, IPS wide-viewing technology, and optional touch functionality, BU215X is ideal for digital signage, retail shelf displays, transportation systems, industrial terminals, and any application that requires an ultra-wide, high-visibility display solution.
The BU215X is a reference display module for long-format applications that require clear readability in bright environments, wide viewing performance, and flexible system integration.
It can serve as a starting point for commercial signage, transportation displays, appliance control panels, and interactive terminal projects that need a panoramic display format with higher brightness capability.
The BU215X page presents a reference configuration for a 21.5-inch bar type high-brightness LCD display module. It is intended to show a typical solution direction for panoramic display projects rather than a fixed off-the-shelf product.
For actual development, parameters can be adjusted according to brightness goals, interface definition, touch requirements, structural constraints, and application environment.
The BU215X is a 21.5-inch ultra-wide bar LCD reference module developed for projects that require panoramic visual presentation, strong ambient-light readability, and flexible system integration.
With its 1920 × 720 resolution, 1000-nit brightness direction, IPS viewing characteristics, and LVDS / HDMI interface flexibility, it provides a practical starting point for digital signage, transportation displays, smart appliance interfaces, and interactive terminal equipment.
This page is intended to present a reference solution rather than a fixed catalog item. For actual projects, specifications such as brightness, interface, optional touch, mounting structure, and enclosure adaptation can be adjusted according to application requirements.
The specifications below describe a reference configuration. Final parameters can be adjusted based on project requirements.
| Model | BU215X |
|---|---|
| Size | 21.5 inch |
| Pixel Number (Resolution) | 1920 × RGB × 720 pixels |
| Active Area (AA) | 511.56(H) × 191.52(V) mm |
| Module Dimension | 540.0(H) × 220.0(V) × 12.0(T) mm |
| Pixel Pitch | 0.2664(H) × 0.2664(V) mm |
| LCD Type | IPS TFT, Normally Black, Transmissive |
| Brightness | 1000 cd/m² (High Brightness) |
| Viewing Angle (CR > 10) | 178 / 178 / 178 / 178 (Top / Bottom / Left / Right) |
| Surface Treatment | Anti-glare or Optional Glare |
| Backlight Type | LED, Normally White |
| Interface | LVDS / HDMI (Customizable) |
| TFT Driver IC | Industry Standard Driver IC |
| Touch Panel | Optional PCAP Touch (Projected Capacitive) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Logic Supply Voltage (VDD) | 3.0 V (Min) / 3.3 V (Typ) / 3.6 V (Max) |
| Logic Supply Current (IDD) | 600 mA (Max) |
| LED Backlight Voltage (VLED) | 24.0 V (Typ) |
| LED Backlight Current (IL) | 350 mA (Typ) |
| LED Lifetime | 50,000 hours (Typ) |
These features make the BU215X a practical reference platform for high-brightness bar display projects that require panoramic layouts, stable readability, and flexible embedded integration.
The BU215X 21.5-inch bar type lcd display module features an ultra-wide aspect ratio that is ideal for shelf displays, dashboard layouts and stretched signage, allowing long-format content, tickers and status information to be shown in a slim, space-saving design.
With a 1920×720 pixel matrix, the BU215X delivers crisp text, fine graphics and clean UI layouts across the entire bar area, supporting dashboards, data bars and advertising content without sacrificing clarity or readability.
Rated at 1000 cd/m², this high-brightness bar lcd display module maintains excellent visibility under strong ambient light, making it suitable for shop windows, bright retail spaces, transportation hubs and semi-outdoor digital signage applications.
Built on an IPS normally-black panel, the BU215X offers wide 178°/178° viewing angles and consistent colors from all directions, ensuring that critical information, logos and branding remain accurate and easy to read in multi-user and off-axis viewing scenarios.
The BU215X supports LVDS and HDMI interface options for easy integration with a wide range of industrial boards and media players, and can be equipped with a projected capacitive touch panel to create interactive shelf displays, kiosks and control panels.
Engineered for continuous operation, this bar type lcd display module combines a long-life LED backlight and wide operating temperature range, providing a robust solution for industrial control systems, transportation displays and other 24/7 commercial signage environments.
The BU215X serves as a reference direction for panoramic bar display projects that require strong readability, compact structural integration, and application-specific interface or touch adaptation.

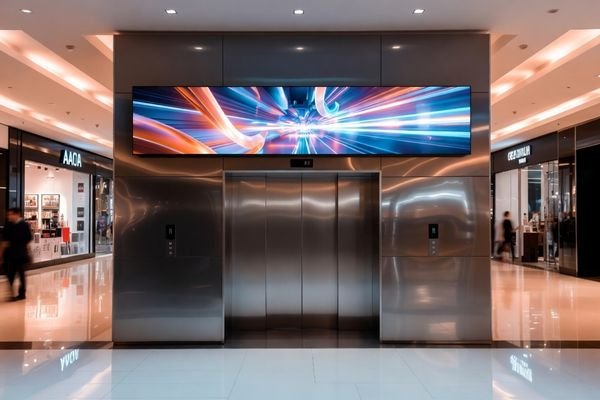

The BU215X ultra-wide bar display is designed for elevator-area advertising in busy shopping malls, delivering vibrant promotional content with excellent clarity. Its high brightness and wide viewing angles ensure visibility from multiple directions, making it an effective display solution for enhancing brand exposure and customer engagement.

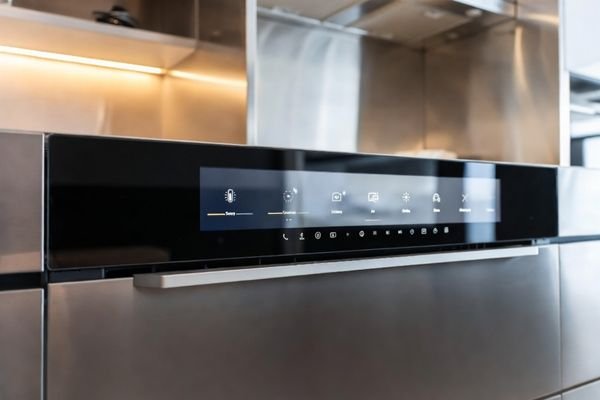

The BU215X ultra-wide lcd display module integrates seamlessly into smart kitchen appliances, offering a clear and intuitive control interface. Its high brightness ensures excellent readability under various lighting conditions, while optional touch support enables smoother interaction, making it ideal for premium appliance designs.

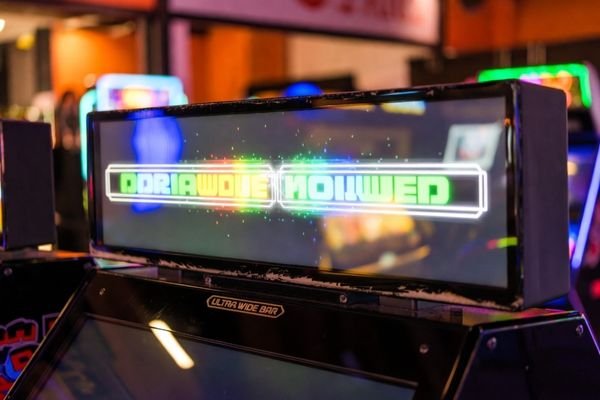

The BU215X stretched display is ideal for displaying dynamic status visuals on arcade machines, offering vibrant colors and immersive lighting effects. Its high brightness and fast response ensure smooth visual output, enhancing the gaming experience while maintaining stable performance for long-term use in high-demand entertainment environments.
If your project requires a panoramic bar display with higher brightness, interface flexibility, optional touch, or application-specific structural adaptation, our engineering team can help evaluate a suitable customization direction.
The BU215X is a 21.5-inch ultra-wide bar lcd display module with 1920x720 resolution, tailored for shelf displays, dashboards, menu boards and other panoramic layouts where traditional 16:9 panels cannot fit.
With up to 1000 cd/m² brightness, the BU215X remains clearly visible in high-ambient-light environments such as shop windows, transportation hubs and semi-outdoor signage, helping your content stand out all day long.
The BU215X bar lcd display module is built for 24/7 operation with a long-lifetime LED backlight and industrial-grade design, making it suitable for kiosks, vending machines, control panels and other continuous-use projects.
We support flexible interface options and optional PCAP touch, so the BU215X lcd display module can be easily integrated into embedded systems, media players or custom housings without redesigning your whole platform.
We focus on B2B projects and provide stable supply, predictable lead time and responsive engineering support, helping you bring BU215X-based equipment from concept to mass production with lower project risk.
Beyond the standard BU215X 21.5-inch bar lcd display module, we offer customization for brightness, mechanical structure, glass cover, touch solution and cables, enabling a unified look and feel across your entire product line.
The BU215X page presents a reference module configuration. For actual projects, parameters such as brightness, interface, optional touch, and structural details can be customized according to application requirements.
Typical customization items include brightness level, LVDS or HDMI direction, optional PCAP touch, mounting structure, optical treatment, and enclosure adaptation.
Yes. Similar projects may require different brightness targets, interface definitions, touch solutions, or structural changes depending on the equipment type and operating environment.
Yes, BU215X supports customization for brightness, cover glass, interface board and optional touch.
Yes, PCAP touch is available as an optional feature.
It supports LVDS or HDMI via a driver board, making integration simple.
Yes, samples are available for evaluation before mass production.
MOQ is flexible for standard versions; customized projects may require higher volume.
Samples ship quickly; bulk lead time depends on quantity and customization.
Yes, it is built for commercial and industrial applications with a long-life backlight.
