BU320S is a next-generation 32-inch stretched display designed to deliver ultra-wide visual performance for modern industrial, retail, and transportation environments. With its sleek form factor and exceptional clarity, it provides a versatile platform for creative system integration and high-impact digital signage applications.
The BU320S 32-inch stretched display provides a reliable ultra-wide visual format that fits seamlessly into industrial equipment, retail fixtures, transportation systems, and customized digital signage solutions. Its optimized design supports stable integration, delivering consistent clarity and performance across diverse environments.
The BU320S 32-inch stretched display is engineered for applications that require a wide-format visual platform with stable performance and high integration flexibility. Its ultra-wide form factor allows it to fit seamlessly into industrial machines, retail fixtures, transportation systems, and modern signage environments. Designed with long-term reliability in mind, the BU320S offers consistent image clarity and dependable operation, making it suitable for both standard and fully customized deployments.Designed with an 8-bit LVDS interface, the BU123X provides stable signal transmission and broad compatibility with industrial controllers and embedded computing platforms. The module incorporates a long-life, high-uniformity LED backlight to maintain reliable brightness performance during extended operation. With its slim bar-type structure, the BU123X integrates seamlessly into retail shelf displays, industrial HMI panels, vending machines, automotive dashboards, and any application that demands an ultra-wide aspect ratio display. It is a versatile and robust solution for next-generation equipment requiring a compact yet high-performance TFT display module.
| Model | BU320S |
|---|---|
| Size | 32 inch |
| Pixel Number (Resolution) | 3840 × RGB × 720 pixels |
| Active Area (AA) | 798.72(H) × 149.76(V) mm |
| Module Dimension | 820.0(H) × 170.0(V) × 12.0(T) mm |
| Pixel Pitch | 0.208(H) × 0.208(V) mm |
| LCD Type | TFT, IPS, Normally Black, Transmissive |
| Viewing Angle (CR > 10) | 178 / 178 / 178 / 178 (Top / Bottom / Left / Right) |
| Surface Treatment | Anti-glare, 3H Hardness |
| Backlight Type | LED, Normally White |
| Brightness | 1500 cd/m² (Typ.) |
| Interface | V-by-One / eDP (TFT LCD Module Interface, customizable) |
| TFT Driver IC | Integrated TCON / source driver or equivalent |
| Touch Panel | Without touch panel (projected capacitive touch optional) |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +70℃ |
| Logic Supply Voltage (VDD) | 3.0 V (Min) / 3.3 V (Typ) / 3.6 V (Max) |
| Logic Supply Current (IDD) | 800 mA (Max) |
| LED Backlight Voltage (VLED) | 30.0 V (Min) / 36.0 V (Max) |
| LED Backlight Current (IL) | 450 mA (Typ) |
| LED Lifetime | 50,000 hours (Typ) |
The BU320S 32-inch stretched display features an ultra-wide 3840×720 resolution, providing a panoramic canvas for status dashboards, wayfinding, tickers and digital signage where long-format content and space-efficient integration are essential.
With a typical brightness of 1500 cd/m², the BU320S stretched display delivers strong visibility even under high ambient light, making it suitable for semi-outdoor and high-brightness indoor environments such as transportation hubs, shop windows and industrial halls.
Built on an IPS, normally-black TFT panel, the BU320S offers 178° wide viewing angles and stable color performance from all directions, ensuring content remains readable and accurate for viewers approaching from different sides of the display.
Designed for continuous-duty installations, the BU320S 32 inch stretched display supports a wide operating temperature range and long-life LED backlight, making it a robust choice for transportation, industrial control, kiosks and 24/7 digital signage applications.
The BU320S stretched LCD supports high-speed interfaces such as V-by-One or eDP, enabling reliable transmission of 3840×720 video data and simplifying integration with industrial PCs, media players and custom embedded mainboards.
To better fit different projects, the BU320S 32 inch stretched display supports customization options such as cover glass, touch panel, mounting brackets and optical enhancements, helping OEMs and system integrators shorten development time and reduce mechanical design effort.

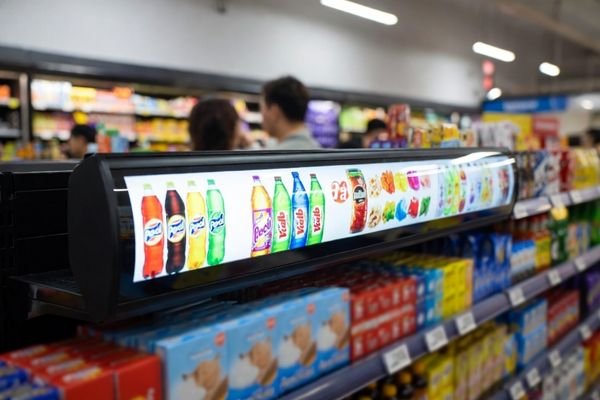

The BU320S 32-inch stretched display is ideal for retail shelf-edge advertising and digital shelf labeling. Its ultra-wide 3840×720 resolution clearly presents pricing, product details, and promotional messages, enhancing customer engagement and improving product visibility in supermarkets and modern retail environments.
The BU320S stretched display delivers clear pricing and promotional information above deli counters, offering excellent readability with its 1500-nit high brightness. It enhances communication for fresh food areas by displaying dynamic menus, discounts, and real-time updates, ensuring customers easily access key information in busy supermarket environments.

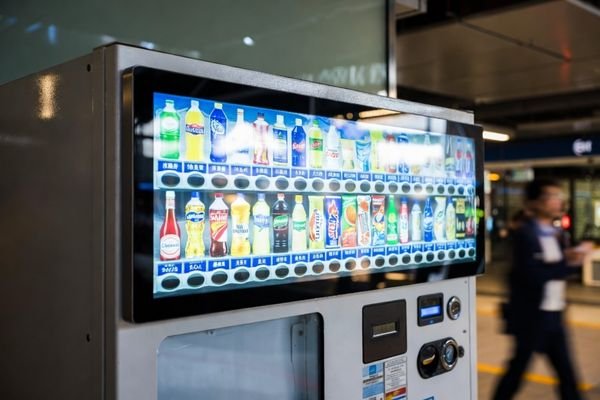

The BU320S 32-inch stretched display is perfectly suited for installation on top of vending machines, delivering eye-catching advertisements and product promotions. Its ultra-wide aspect ratio and high brightness improve customer attention, making it ideal for metro stations, office buildings, and other high-traffic locations.
We specialize in ultra-wide stretched displays, delivering optimized optical performance for signage, transportation, retail, and industrial integrations. BU320S is built on mature stretched display engineering experience.
The BU320S features a 1500 nits high-brightness backlight, ensuring clear visibility in semi-outdoor and high-ambient-light environments where standard LCD modules fail.
Interface, brightness, mechanical structure, coating, and mounting options can all be customized—making the BU320S adaptable for kiosks, digital signage, retail shelves, and embedded systems.
Designed with wide temperature support and long-life LED backlight, the BU320S maintains stable operation in demanding industrial and semi-outdoor environments.
Our technical team assists with integration, timing, structural assembly, and system optimization—reducing development cycles and ensuring seamless deployment of the 32-inch stretched display.
With a solid supply chain and strict quality control system, the BU320S offers long-term availability, making it suitable for projects requiring consistent supply across multiple production phases.
Yes. With its 1500 nits high brightness and wide viewing angle, the BU320S is suitable for semi-outdoor and high-ambient-light environments.
Yes, both interface types can be customized according to system requirements.
Prototype lead time is usually 2–4 weeks, and mass production varies based on order quantity.
Yes, PCAP and industrial touch options are available on request.
Yes, optical bonding is available to improve sunlight readability and reduce reflection.
Yes. Custom mechanical design is supported for kiosks, shelves, and signage systems.
Yes. Custom mechanical design is supported for kiosks, shelves, and signage systems.
The standard operating range supports indoor and semi-outdoor usage. Extended wide-temperature versions can be customized.
