How do you choose a bar LCD display module for bus stop info displays?

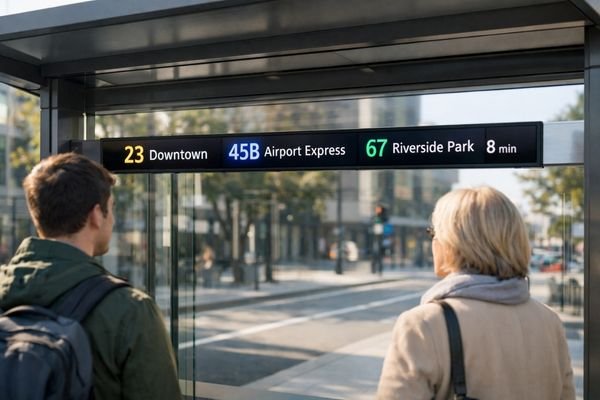

Selecting the right bar LCD display module for a public bus stop is about more than just screen size; it’s about delivering clear, reliable information to passengers in a demanding, uncontrolled environment. These displays are a critical part of the public transit experience, and a poor choice can lead to confusion, frustration, and a significant long-term maintenance burden for transit authorities. This article focuses on selecting an embedded bar LCD display module and the key integration considerations around it (not a complete enclosure system).

Choosing a bar LCD for bus stop displays requires prioritizing sunlight readability, wide-angle viewing, and robust environmental durability. The right module keeps route numbers and arrival times glanceable and trustworthy under conditions from direct sun to rainy nights, while reducing long-term maintenance risk.

In many public information display deployments supported by LCD Module Pro, the most successful projects are the ones built around the user’s core need: fast, unambiguous communication. A passenger at a busy intersection has seconds to find a route number and next-arrival time. If the screen is washed out, flickering, or inconsistent, trust in the information system drops quickly.

That reality means engineering decisions must be grounded in real-world conditions. The display module is the centerpiece of a communication tool expected to operate predictably for years. The selection process should therefore be driven by readability, reliability, and total cost of ownership¹—not just a spec sheet.

What are the real display requirements for bus stop info displays?

The purpose of a bus stop display is purely functional. It must convey time-sensitive information clearly and consistently, which dictates a specific set of performance priorities.

The core requirements for bus stop displays are exceptional readability and high perceived contrast for glanceable information (often read from meters away), coupled with stable long-hour operational reliability. Visual effects and color gamut are far less important than crisp, unwavering presentation of text and numbers.

When working with system integrators for public transit projects, it helps to prioritize application-specific requirements² that reinforce public trust.

Clarity for Glanceable Communication

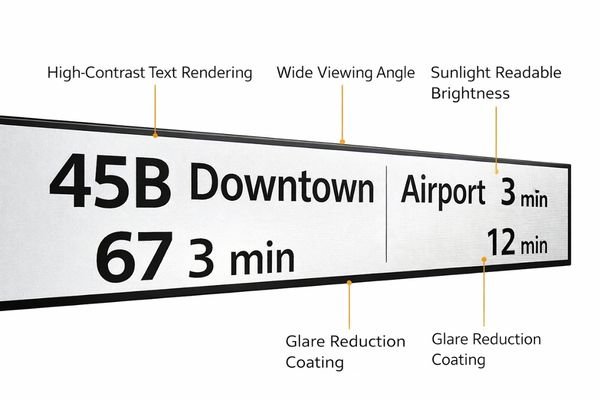

Passengers are often in motion, reading from a distance and at an angle. The module must render text and numbers with sharp edges and high contrast so it is legible in a two-second glance. This is crucial for route numbers, destination names, arrival countdowns, and service alerts—especially for thin digits and narrow characters.

Unwavering Operational Reliability

These displays run for 12–18 hours a day, every day. They must maintain consistent brightness and uniformity over long operating periods. Artifacts such as flicker, partial dimming, uneven backlighting, or intermittent resets can make the information feel unreliable and drive complaints and service calls.

How do ambient light, glare, and viewing distance influence bar LCD selection?

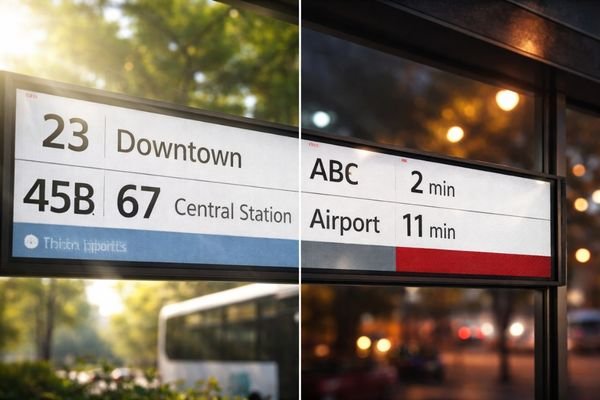

Bus stops are among the toughest readability environments because lighting is extreme and unpredictable: direct sun, cloudy daylight, night streetlights, wet pavement reflections, and nearby glass glare.

A bar LCD for a bus stop must combine brightness margin with strong reflection control and wide viewing behavior to remain legible. Glare and off-axis viewing can erase small text even when brightness is high, so selection must consider the final optical stack, not the panel alone.

From an engineering standpoint, achieving all-weather readability³ is a system-level challenge. Instead of selecting by a fixed brightness number, start by defining worst-case ambient lux and reflection scenarios with the final cover lens and mounting geometry, then choose brightness and contrast margin so content remains readable without continuously overdriving the backlight (which increases heat and accelerates aging).

Reflection management is often decisive. The protective cover glass can be a major glare source, so surface finish and reflection-control strategy must be considered early. In many designs, reducing internal reflections through stack decisions can significantly improve perceived contrast and the legibility of thin fonts.

Viewing angle must also be validated in real use. Passengers approach from varying heights and angles, so the module should maintain usable contrast without color inversion or severe washout when viewed off-axis. Finally, ensure the display can dim comfortably at night without visible flicker, and validate that night operation remains stable under street lighting and typical camera exposure conditions where applicable.

What mechanical and environmental durability factors matter at bus stops?

A bus stop display is unattended public infrastructure. It must survive years of weather exposure, vibration, and physical interaction while maintaining stable optical performance behind protective materials.

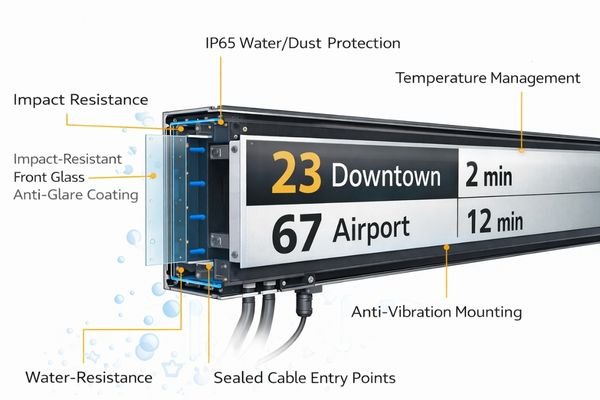

For bus stop applications, the bar LCD module should support wide operating conditions and be integrated into an enclosure strategy that protects against moisture, dust, vibration, and impact. Mechanical stability of mounting and connectors is crucial for long-term reliability and predictable field behavior.

Based on common deployment realities, the table below can be used as a durability quick-check reference:

Durability Factor	Challenge at Bus Stop	Key Engineering Consideration
Temperature & Humidity	Hot summers, freezing nights, and condensation cycles can reduce readability and stability.	Validate across temperature corners; implement sealing strategy and condensation management so contrast remains consistent behind the cover lens.
Vibration	Passing traffic causes constant low-level vibration that can produce intermittent faults over time.	Use rigid mounting, locking connectors, and cable strain relief to prevent connector fretting and harness movement.
Power Stability4	Public power can be noisy with sags/surges; outages may occur.	Ensure clean recovery from brownouts/outages without stuck dim states, random resets, or brightness anomalies.
Physical Impact	Public exposure increases risk of bumps or vandalism.	Use durable protective lens materials and rugged mounting so optics and alignment remain stable after impacts.

Choosing an industrial/outdoor-capable module is only the first step; integrating it with a durable mechanical and environmental strategy is what determines long service life and maintenance cost.

How do you align resolution, aspect ratio, and UI layout for bar-type displays?

The elongated shape of a bar LCD is its greatest strength, but only if the UI is designed for it. Stretching a standard 16:9 layout onto an ultra-wide screen usually produces clutter and poor readability.

An effective bar-display UI embraces the aspect ratio by organizing information along the length with a clear hierarchy. Resolution should be chosen to support legible fonts and clean digit rendering at the required viewing distance, not simply to maximize pixel count.

A content-first approach helps the form factor work for you.

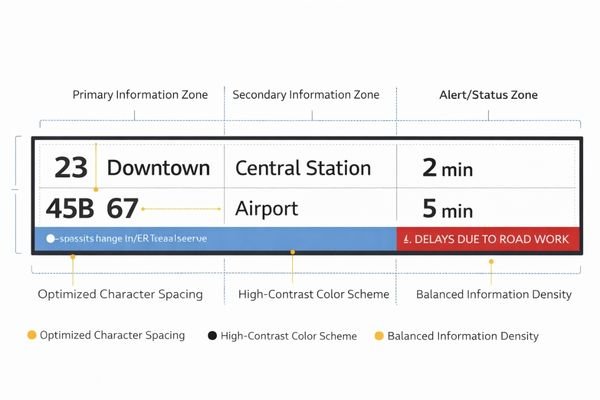

Establish a Clear Information Hierarchy⁵

Define what must be readable first and from the farthest distance. Route number and direction should be prominent. Next-arrival times should be grouped and aligned for fast scanning. Alerts can sit in a separate zone (for example, a ticker area) so they don’t hide the primary schedule information. The layout should guide the eye naturally along the bar.

Choose Resolution and Fonts for Legibility

Select resolution and font sizing so key digits remain distinct (especially narrow characters like “1/7”) and thin strokes do not disappear under glare. Avoid over-dense layouts that force tiny text. Validate with real content, including worst-case long destination names and crowded schedules, at expected distances and approach angles.

What integration and validation steps reduce risk before city-wide deployment?

Before deploying hundreds or thousands of displays, a rigorous system-level validation process is essential to catch issues that do not show up on a lab bench.

Before mass deployment, validate the complete display stack—including the bar LCD module, cover lens, mounting geometry, and controller behavior—under real optical, electrical, and environmental stress conditions to ensure long-term readability and reliability.

A rollout-ready validation plan should produce clear pass/fail evidence:

Real-World Readability Testing

Test a complete prototype outdoors (or under controlled high-lux lighting). Verify that route numbers⁶, arrival times, and alerts remain legible under worst-case glare angles and at expected viewing distances. Test night conditions under street lighting and confirm comfortable dimming without visible flicker.

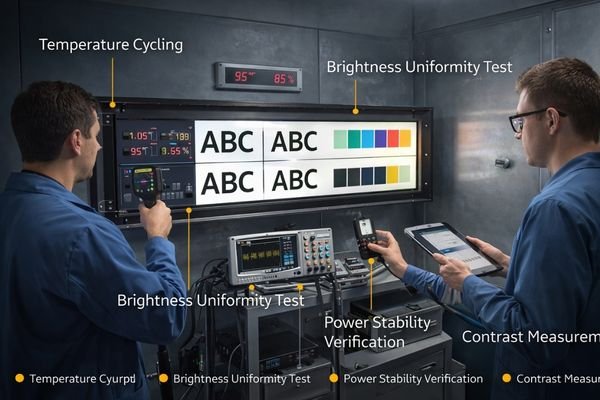

Electrical and Environmental Stress Testing

Cycle temperature and humidity to expose condensation-related contrast loss, brightness drift, or intermittent behavior. Simulate brownouts and surges and confirm clean recovery—no stuck dim states, random resets, or persistent brightness anomalies after power events.

UI and Content Validation

Load real UI assets and real data, including the longest destination names and densest schedule updates. Confirm updates remain smooth, readable, and stable without tearing-like artifacts or momentary partial refresh behaviors that erode trust.

Configuration and Lifecycle Control

Once validated, lock firmware settings, brightness behavior, and key timing parameters. Document the revision baseline so field replacements behave consistently and do not introduce silent changes that require re-validation across the network.

FAQ

Do bus stop info displays need very high resolution?
Usually not. Readability at a glance matters more than peak resolution, so choose resolution to support your font sizes, digits, and spacing with good contrast.

How bright should a bar LCD be for outdoor bus stops?
Define worst-case ambient lux and reflections with the final cover lens, then choose brightness with margin so content is readable without overdriving the backlight.

Will glare control matter more than brightness in some locations?
Yes. Strong reflections can wash out thin text even at high brightness, so cover lens and surface finish decisions are critical.

How do you keep text readable across wide viewing angles?
Use wide viewing behavior panels, avoid overly thin fonts, and validate with real UI at the expected approach angles and distances.

What causes random dimming or flicker in outdoor deployments?
Power disturbances, poor grounding, or marginal dimming control can cause visible instability. Validate under brownouts and noisy conditions

How do you reduce long-term maintenance risk across many stops?
Lock mechanical interfaces and configuration baselines, and choose controlled revisions so replacements behave consistently.

Conclusion

Choosing a bar LCD display module for a bus stop information system is a decision rooted in building public trust through reliable communication. The focus must be on practical performance: clear readability under highly variable lighting, robust durability for outdoor exposure, and stable long-hour operation that minimizes maintenance burden. By prioritizing reflection control and contrast margin on the final optical stack, validating wide-angle legibility at real viewing distances, and running disciplined electrical/environmental stress tests before scale-out, transit authorities can deploy information displays that truly serve passengers.

At LCD Module Pro, we support customers with documentation and engineering guidance for selection, integration, and lifecycle consistency. By combining a risk-based validation approach with controlled revisions and configuration baselines, you can scale from pilot units to city-wide deployment with fewer field surprises.
