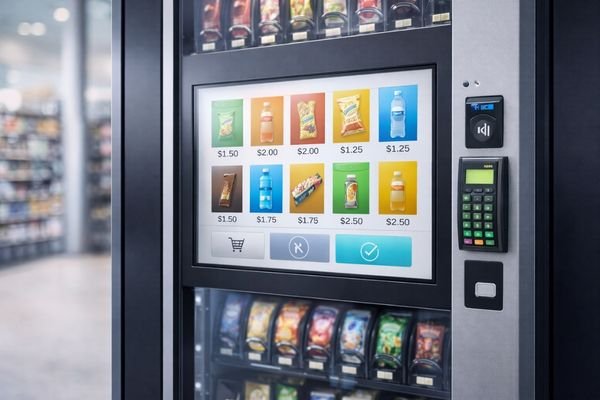

How do you choose an LCD display module for vending machines?

Choosing an LCD display module for a vending machine goes far beyond simply selecting a screen size and resolution. These displays are mission-critical user interfaces that must operate reliably for years in challenging public environments—dealing with glare, temperature swings, cabinet heat, electrical noise, and repeated public interaction.

Choosing an LCD for a vending machine starts with defining the environment and user journey, then selecting optics for real-world readability and validating integration in the final cabinet. The most reliable results come from confirming brightness/reflection/viewing angle needs, and proving power, EMI/ESD, thermal, and mechanical margins before deployment.

In LCD Module Pro customer integrations, teams sometimes focus on module specs in isolation. However, many field failures are integration-driven: a display that looks perfect on a bench can become unreadable due to glare, run hot inside the cabinet, or behave intermittently when motors and payment hardware inject noise. Treating the display as part of an electromechanical system—optical stack, cabinet thermal path, power integrity, and grounding—is the most effective way to prevent “works in lab, fails on site” outcomes.

A structured selection process begins with the machine’s environment and user flow, then closes the loop with real-cabinet validation¹. The sections below outline what to define, what to prioritize, and what to test so the display remains readable and stable across the vending machine’s service life.

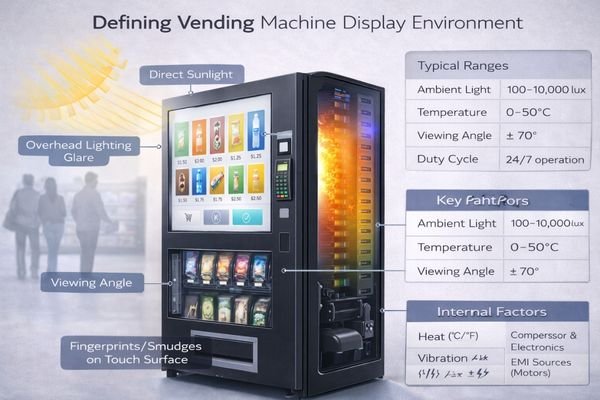

What vending-machine environment and user flow should you define first?

Before you even look at a display module datasheet, the first and most critical step is to document the real-world conditions the machine will face. This context will drive every subsequent technical decision.

Define placement, ambient light, viewing angles, and the complete user flow first. Include duty cycle, cleaning and public-use risks, and cabinet thermal constraints. These factors determine the required optical stack, durability, and lifetime stability far more than the “resolution” line on a datasheet.

The environment defines the performance envelope. A module that works in a climate-controlled office may fail in a bright storefront or humid station entryway. Break the analysis into external conditions users see and internal conditions created by the vending machine.

Defining the External Operating Conditions

Document where the machine lives: indoor, semi-outdoor (covered), or fully exposed. Estimate the ambient light range, including glare sources (windows, overhead lighting, sun angles). Determine how users approach the machine: straight-on or from side angles in crowded corridors. Finally, define public-use risks² such as repeated touch, impacts, vandal resistance requirements, and cleaning chemicals that the cover lens must survive.

Defining the Internal System Constraints

Cabinet conditions matter as much as the outside. Compressors, motors, and power supplies generate heat and electrical noise. Define internal temperature range and airflow characteristics, because heat is a primary driver of backlight aging and brightness drift. Confirm duty cycle (24/7 vs scheduled downtime), window size and bezel depth, sealing/condensation risk, and any service constraints that influence replacement and cleaning procedures.

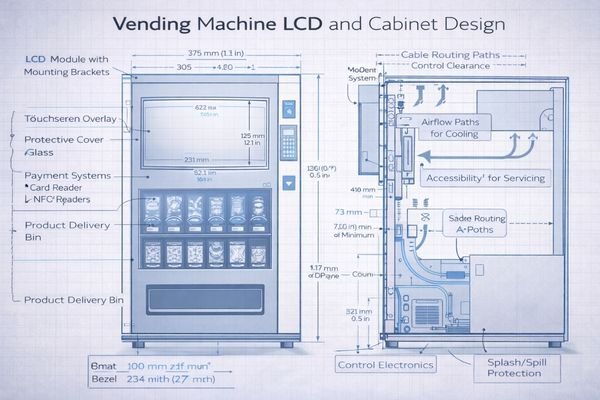

How do size, aspect ratio, and touch choices affect usability and cabinet design?

Once the environment is defined, you can focus on the display’s physical and interactive characteristics. The goal is to select a form factor that enhances usability and integrates seamlessly with the vending machine’s hardware.

Size and aspect ratio should be driven by UI clarity and cabinet integration, not by “largest possible.” Early choices on orientation and touch/cover lens affect mounting, cable routing, reflections/contrast, ESD grounding paths, and the placement of payment peripherals—so lock these decisions before the cabinet design is finalized.

A larger screen is not automatically a better choice if it forces compromises in front-panel layout or creates a cluttered UI. Prioritize real usability at the expected viewing distance: clear product information, legible pricing, and touch targets sized for fast selection and payment confirmation. Decide portrait vs landscape early, because it drives bracket design, mounting points, and how you allocate front-panel space among NFC readers, QR cameras, bill acceptors, and printers.

Touch and cover lens integration³ changes more than mechanics. It affects reflections and perceived contrast, changes ESD behavior through grounding and discharge paths, and defines serviceability (how quickly a technician can replace or reseal the front stack). Align the active area with the window opening and manage tolerance stack-up so content isn’t clipped and touch doesn’t create dead zones near the bezel.

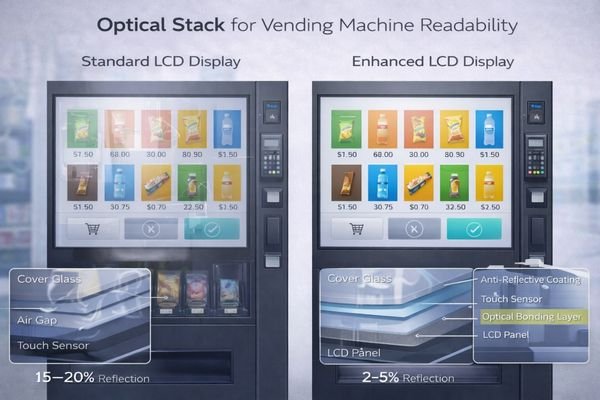

What brightness, optical stack, and viewing-angle requirements keep vending UIs readable?

A vending machine UI is unreadable if it is washed out by reflections or if the colors shift when viewed from the side. Achieving robust readability is about managing light, not just generating it.

Vending readability depends on the full optical stack: brightness, reflection control, and off-axis contrast. In bright locations, glare reduction and internal-reflection control can improve usability more than simply increasing backlight power, which raises heat and can shorten lifetime if cabinet thermal margin is limited.

“Washed out” screens are frequently caused by reflections and smudges rather than insufficient backlight. In bright storefronts and near windows, reflection control is as important as luminance. Cover lens selection and surface treatments can materially improve perceived contrast, and approaches that reduce internal reflections can help maintain readability without forcing the backlight to run at the edge of thermal limits.

Viewing angle is also critical because users rarely stand perfectly centered. Ensure the display maintains usable contrast and color across typical side approaches. Finally, define a brightness-control strategy⁴: fixed brightness can waste power at night and increase heat load, while sensor-driven control can reduce power, extend life, and maintain comfort. Always validate readability with a physical prototype under representative lighting and with realistic smudge/cleaning conditions.

How do interface, power, EMI/ESD, and reliability testing reduce field failures?

A vending machine is a harsh electrical environment. The display module must coexist with noisy components like motors, compressors, and high-frequency payment readers. Robust electrical integration and targeted testing are non-negotiable.

Reduce field failures by validating the entire cabinet system: confirm interface/timing compatibility, ensure stable power sequencing through brownouts, and verify ESD grounding paths for the user-facing stack. Run thermal soak, power-cycle, vibration, and EMI checks with motors and payment subsystems active to catch “bench-pass, cabinet-fail” issues early.

The highest-cost failures are discovered after deployment. Start by confirming interface compatibility and stable bring-up behavior under real power conditions. Retail power environments can include voltage sags and noisy transients, so the display must boot consistently through brownouts and frequent power cycling. ESD is also a major risk: user touch can inject high-voltage discharge, so grounding and discharge paths through the bezel and cover lens must be validated in the final mechanical stack, not in isolation.

System-level testing⁵ should be performed inside the final cabinet. Thermal soak at the required brightness exposes backlight and enclosure margin issues. Vibration with motors running can reveal intermittent connectors or mechanical stress. EMI checks with motors, compressors, and readers active help ensure the display remains stable and free of intermittent artifacts.

What LCD module selection strategy fits common vending machine scenarios?

A successful selection strategy aligns the module’s capabilities with the specific risks and requirements of the vending machine’s application. It’s a process of matching the right technical solution to a well-defined problem.

Build a shortlist from the environment and uptime targets: indoor machines often prioritize wide viewing angles, stable contrast, and smudge resistance, while bright storefront or semi-outdoor machines prioritize reflection control and higher luminance with verified cabinet thermal margin. In both cases, lock interface/timing, define serviceability, and validate in the real cabinet.

Trying to use one generic display for every vending deployment often increases risk. A safer approach is to tailor selection and validation to the scenario.

For Indoor, Controlled Environments

For machines in malls, offices, or lobbies, prioritize usability and longevity. Wide viewing angles help users approach from the side. Smudge resistance and durable surfaces support frequent touch and cleaning. Brightness should be chosen for the actual lighting and reflection conditions, keeping power and heat modest to support long backlight life and stable cabinet temperatures.

For Semi-Outdoor and High-Ambient-Light Environments

For bright storefronts, stations, or covered outdoor areas, readability under high ambient light becomes the dominant requirement. In these cases, higher luminance and strong reflection control are often necessary, but they must be paired with cabinet thermal validation so increased backlight power does not create early dimming, throttling, or protection behavior. When window geometry, thermal paths, or optical stack requirements are unusual, a custom or semi-custom module integration approach can reduce risk compared with forcing a generic module to operate at its limits.

FAQ

Do vending machines always need high-brightness LCD modules?
Not always. Indoor machines in controlled lighting may prioritize contrast and reflection control, while storefront or semi-outdoor placements often require higher luminance with verified thermal margin.

Why does a vending screen look “washed out” even when brightness is high?
Reflections, fingerprints, and internal optical interfaces often reduce effective contrast more than brightness can compensate for; improving the optical stack usually helps more than increasing backlight current.

How do motors or compressors affect display stability?
They can inject conducted and radiated noise that impacts power rails or signal integrity; validating EMI/ESD and power sequencing in the full cabinet is essential.

Is touch integration mainly a mechanical choice?
No. It also changes reflections, contrast, grounding/ESD paths, and serviceability, so it should be decided early and validated as part of the full stack.

What tests best predict field reliability for vending displays?
Thermal soak in the cabinet at required brightness, repeated power cycling, ESD validation with the final bezel/cover lens, and EMI checks with motors and payment readers active.

When is customization the safest option?
When the window, ambient light, thermal path, or lifecycle requirements are unusual, customizing optics, mechanics, and validation can reduce risk versus forcing a generic module.

Conclusion

Choosing the right LCD display module for a vending machine is fundamentally a system integration challenge. The best outcomes come from defining the real environment and user flow, selecting optics and brightness for real-world readability, and validating thermal and electrical behavior inside the final cabinet. Teams that lock requirements early, prototype under representative lighting and noise conditions, and treat lifecycle continuity as a requirement are far less likely to see field failures.

At LCD Module Pro, we help customers select and integrate LCD display modules for public-use deployments by focusing on integration-aware validation and long-term stability—so vending machines remain readable, reliable, and serviceable throughout their lifecycle.
