What is DE-only mode in an LCD display module?

When integrating an LCD display module, engineers often focus on the main data interface, like RGB or LVDS. However, the timing signals that frame the data—HSYNC, VSYNC, and DE—are just as critical. A common source of confusion and bring-up problems is a timing scheme known as "DE-only mode," where the system’s behavior is dictated almost entirely by the Data Enable signal.

DE-only mode is an LCD timing scheme where the Data Enable (DE) signal is the sole determinant of the active video area. The display module ignores HSYNC/VSYNC for boundary detection and treats pixel data as valid only when DE is active. This makes DE signal integrity and timing precision paramount for a stable image.

DE-only mode can be challenging because it shifts most of the image-framing responsibility onto a single signal. In traditional SYNC modes, HSYNC and VSYNC provide explicit horizontal and vertical synchronization pulses. In DE-only mode¹, the display effectively applies a simple rule: when DE is active, it samples pixel data and draws the image; when DE is inactive, it ignores pixel data.

This sounds simpler, but it does not reduce timing requirements. Any flaw in the DE signal—jitter, skew, noise, incorrect polarity, or incorrect pulse width—can directly translate into visible boundary artifacts such as a shifted image, clipped edges, black bars, or flickering lines. DE should be treated not as a casual gate, but as a high-precision boundary reference that must be designed, routed, and validated with care.

What does “DE-only mode” mean in practical interface terms?

In DE-only mode, the Data Enable signal moves from being a supplementary indicator to the primary marker for defining the active display area. This has significant consequences for configuration, routing, and debugging.

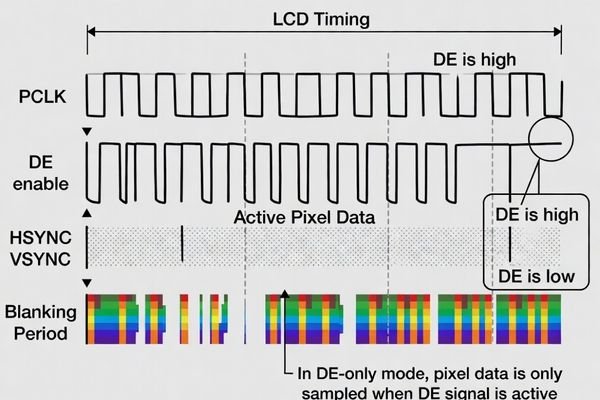

Practically, DE-only mode means the display module’s timing controller (TCON) uses the rising and falling edges of the DE signal to determine the start and end of each active line of pixels. The image is effectively “painted” inside the DE window, so any error in DE timing or integrity becomes visible as a boundary artifact.

In concrete terms, DE-only mode depends on three relationships being correct at the module input: DE defines the active window, PCLK (pixel clock) defines the sampling moment, and pixel data must be stable around the sampling edge while DE is active.

DE as the Active Window Marker²

The host graphics controller generates a DE signal that is asserted (often high, depending on polarity) for the exact duration of active pixel data on each line. For example, if a panel is 1024 pixels wide, DE should remain active for exactly 1024 pixel clock cycles during each active line. When DE is inactive, the panel interprets that time as horizontal blanking. Similarly, the vertical blanking interval is represented by whole lines where DE remains inactive.

Shifted Responsibility from HSYNC/VSYNC

In DE-only mode, the display’s TCON may ignore HSYNC and VSYNC for positioning the active region, even if those pins are still present. HSYNC/VSYNC may simply help the panel maintain overall timing lock, while DE remains the authority on what is “active.” As a result, a misplaced DE window can misplace the image even when HSYNC/VSYNC pulses look perfect. Any noise or jitter on DE can directly modulate the visible window.

Why do some LCD modules prefer DE-only over HSYNC/VSYNC?

DE-only mode is not an arbitrary design choice. It is often used when it aligns well with host timing generation and simplifies the definition of “active video.”

Some LCD modules prefer DE-only mode because it provides an unambiguous definition of the active video window and reduces reliance on HSYNC/VSYNC polarity conventions that can vary across platforms. This can streamline bring-up by focusing timing validation on one signal that directly gates pixel validity—at the cost of making DE integrity and alignment more critical.

Two practical drivers are common:

First, DE-only can reduce ambiguity. Host platforms and display modules sometimes differ in HSYNC/VSYNC polarity expectations (active-high vs. active-low) and in which edge is treated as the boundary. With DE-only framing, the DE active state and its edges define the active region more directly. If an image is present but framed incorrectly, investigation can center on DE placement, width, polarity, and integrity.

Second, many modern graphics controllers and SoCs naturally output DE-based digital video timing³ where DE delineates active video. Using a DE-only module can match that native output cleanly, avoiding extra logic to translate DE into custom sync pulse behaviors. The trade-off is clear: benefit—simpler active-window definition; cost—greater sensitivity to DE edge quality, routing, and noise.

What are the typical symptoms of incorrect DE timing in DE-only mode?

Because DE-only mode makes DE the master of the active window, errors produce specific and recognizable boundary artifacts. These differ from the random “snow” or pixel corruption typically associated with marginal signal integrity on the data bus.

Incorrect DE timing typically causes deterministic boundary artifacts. A shifted DE window results in a stably shifted image, an incorrect DE width causes clipping or black bars at the edges, and DE jitter leads to flickering or tearing-like instability at the image borders.

A full-border test pattern is often the fastest way to make DE-only problems obvious. The table below can be used as a quick diagnostic reference⁴:

Symptom	Likely Cause (DE Timing Error)	Diagnostic Clue

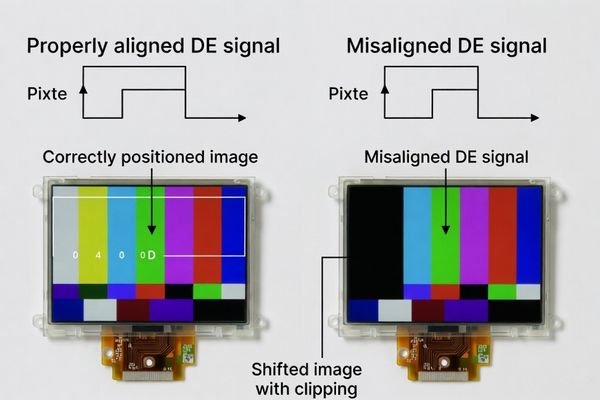

Stably Shifted Image	The entire DE window is asserted too early or too late relative to the start of the line/frame.	The image content is correct, but moved left/right or up/down.

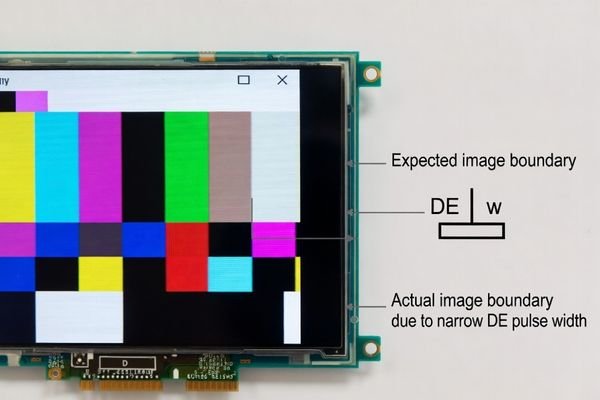

Black Bar on One Side	The DE pulse is narrower than the active resolution (e.g., fewer clocks than the active width).	Part of the image is cut off and replaced by a black region.
Garbage/Repeated Pixels at Edge	The DE pulse is wider than the active resolution, causing sampling during blanking.	The main image is correct, but the right or bottom edge shows noise or repeats.
Flickering or "Jittery" Edges	The DE signal has jitter or noise coupling that creates edge instability.	Boundaries shimmer or appear unstable, often worsening under electrical load.

These symptoms point directly to DE timing placement, width, polarity, and integrity. Diagnosis then becomes correlating DE edges to where the first and last active pixels actually land at the module input.

How do you configure and verify DE-only mode during bring-up?

A successful bring-up of a DE-only module relies on systematic configuration followed by instrumented verification. The goal is to meet the datasheet timing requirements and then prove the timing remains robust at the module connector, not only in firmware.

To configure DE-only mode, set the host controller to generate a DE window with the exact width of the active resolution and align it correctly to pixel data. Verify by probing DE, PCLK, and data at the module input while displaying a full-border test pattern, confirming DE edges align with the first and last active pixels.

A practical two-stage approach keeps bring-up objective and repeatable:

Correct Configuration in Firmware

Use the module datasheet timing diagrams as the source of truth. Configure display registers so DE pulse width matches the active resolution exactly (for example, active width clocks per line), and confirm DE polarity matches the module’s expectation (commonly active-high, but not always). Even in DE-only mode, total line time (active + blanking) must still be correct to maintain the required line rate and overall frame timing.

Instrumented Verification at the Connector⁵

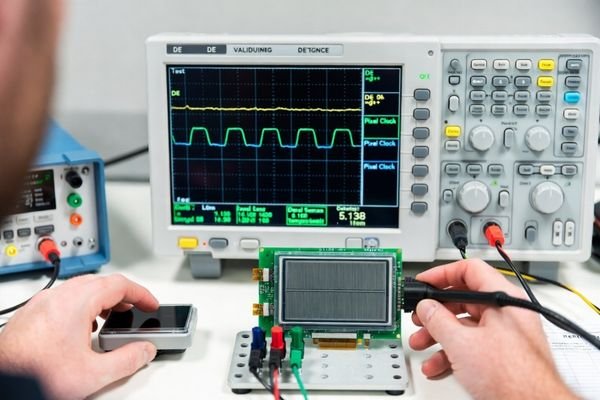

Do not assume register values produce clean edges at the panel. Probe signals at the module input connector with an oscilloscope or logic analyzer. Display a deterministic test pattern with a thin border around the entire active area and optional near-edge markers. Trigger on a stable timing reference available in the system (such as VSYNC if present, or another frame marker), measure DE pulse width, and confirm it is stable and matches the intended active pixel count. Then zoom in at the DE rising edge and confirm the first active pixel data is stable relative to PCLK at the sampling edge while DE is asserted. If the image is shifted, clipped, or shows edge noise, treat DE placement/width/integrity as the first hypothesis before chasing less likely causes.

What design and validation checklist helps DE-only mode stay robust in real products?

Getting DE-only mode to work on a lab bench is only the first step. Real products may face EMI, cable movement, supply ripple, and temperature variation that can disturb DE edges and shift the visible window. A disciplined checklist helps prevent “bench-only success.”

A robust DE-only implementation requires disciplined routing for DE, careful EMI planning, and validation across temperature, voltage, and electrical noise conditions. The DE path should be treated as a timing-critical link from design through production testing.

Here is a practical checklist for DE-only designs:

• Signal Path Design: Route DE with similar care as PCLK. Keep it short, well-referenced to ground, and avoid stubs. Manage skew by keeping DE timing relationship to PCLK/data within margin at worst-case voltage and temperature.
• EMI Mitigation⁶: Treat DE as a primary victim of electromagnetic interference. Route it away from switching power nodes, motors, relays, and noisy harnesses. Use appropriate shielding and a solid, low-inductance ground strategy between host and module.
• Power Integrity: Ensure stable rails for the display interface and backlight driver. Supply ripple and ground bounce can shift edge thresholds and create intermittent DE edge jitter that looks like timing misconfiguration.
• Firmware Discipline: Generate a clean, deterministic DE window and keep blanking strictly outside DE. Avoid activities that inject noise during active display periods if they disturb power or ground reference.
• Test Pattern Strategy: Use deterministic patterns for validation. A full-screen border pattern is ideal for boundary alignment. A checkerboard or high-transition pattern can stress data switching and reveal margin problems.
• Robustness Validation: Validate across temperature and supply variation, and under real electrical stress (motors switching, readers active, cable movement). Confirm image boundaries remain stable over long-duration operation without intermittent glitches.

FAQ

Is DE-only mode the same as “no blanking”?
No. DE-only still uses blanking; DE explicitly marks the active region and blanking occurs when DE is inactive. The host must still generate proper total line/frame timing.

Do HSYNC and VSYNC disappear completely in DE-only designs?
It depends on the module and interface. Some designs still carry HSYNC/VSYNC pins, but the active-area decision is driven primarily by DE. Always follow the module timing definition.

What is the most common bring-up mistake in DE-only mode?
Misplacing the DE window—wrong polarity, wrong width, or misalignment to the active pixel region—so the panel latches pixels outside the intended area and shows shifts or edge artifacts.

How can I quickly check DE alignment without complex tooling?
Use a border pattern with near-edge markers and inspect whether borders land exactly at the physical edges. Stable offsets or clipping strongly suggest DE placement/width issues.

Can EMI create DE-only artifacts even when timing registers look correct?
Yes. Noise on DE can create false edges or jitter, directly modulating the active window. Good routing, grounding, and validation under real EMI conditions are essential.

Does DE-only mode change backlight behavior?
Not directly. DE-only defines pixel validity timing; backlight control is separate. However, poor power integrity can affect timing thresholds and brightness stability, so issues can appear together.

Conclusion

DE-only mode is a powerful but demanding timing scheme for LCD display modules. By making the Data Enable signal the sole gatekeeper of the active display area, it can simplify active-window definition and reduce reliance on HSYNC/VSYNC polarity conventions, but it also increases sensitivity to DE placement, edge integrity, and noise. Most bring-up failures in this mode—shifted images, clipped edges, black bars, and unstable borders—are direct consequences of an incorrectly generated or disturbed DE window.

At MEIDAYINGNUO, we provide documentation and engineering support to help teams validate timing behavior during integration. By treating DE as a timing-critical boundary signal, verifying alignment at the module input with deterministic patterns and instrumentation, and validating robustness under real-world stress conditions, you can achieve stable, predictable results with DE-only mode.
