Sleep-to-wake display failures can feel “random,” especially in kiosks and industrial HMIs. In my experience, teams often blame software first—until we capture the wake window and see reset timing is the real culprit.
Reset sequencing after wake fails when the module’s controller doesn’t re-enter a clean, defined state. The result is typically a blank screen, a frozen frame, or corrupted output. The fastest way to prove it is to measure rails, reset, and interface activity at the module connector, then adjust only timing knobs and watch the wake success rate change.
I’ve been pulled into a lot of “no display after wake1” cases where the first boot is perfect, but resume fails after hours or after dozens of cycles. That’s usually a clue: wake paths often use different rail behavior, shorter delays, or a different command sequence than cold boot. When reset timing lands in the wrong window, the controller’s internal state machine can get stuck, and only a full power cycle clears it. Below is the workflow I use to make this kind of bug predictable—and fixable.
How do you diagnose reset sequencing when an LCD display module shows no display after wake?
The key is to treat wake as its own bring-up path. I don’t start by “changing code.” I start by making the failure repeatable and capturing the exact wake timing at the connector.
I diagnose reset sequencing by locking a repeatable sleep state and wake trigger, capturing a known-good wake waveform, then comparing it to a failed wake. After that, I change only reset/rail timing (not the init script) to see if reliability moves—because that single correlation separates “timing window” problems from “software state” problems.
The trap I see most often is debugging a vague report like “it sometimes won’t wake.” If you can’t reproduce it on demand, you can’t shorten the loop. So I build a test case that’s specific enough to run as a script and repeat overnight.
Creating a Repeatable Test Case
I define the wake scenario in concrete terms: which sleep state2 the system enters, which rail(s) remain on, what event triggers wake, and what “success” looks like. Then I add stress variables one at a time—sleep duration, temperature, and supply level—until the failure rate becomes measurable.
A good test case reads like a lab recipe: “Enter display sleep after 60 s idle, stay asleep 300 s, wake by touch, show a 50% gray + UI overlay. Run 200 cycles. Failure is backlight on + black image that requires full power cycle.” If you need help turning your symptom into a repeatable loop, you can reach me at info@lcdmodulepro.com.
Measurement and Analysis Approach

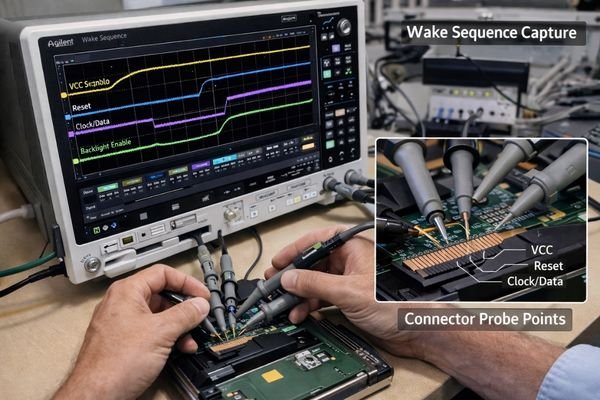

Once I can reproduce the issue, I capture a few “good wakes” first—those become my baseline. Then I capture failing wakes and compare deltas. I always measure at the module connector because cables and ground paths can completely change what the module actually sees.
Minimum signals I want on the scope/logic capture:
- Logic rail(s) at the connector (VCC / VDDIO)
- Reset line (RESX / RST)
- Any bias rails that change during wake (if accessible)
- Interface activity timing (first clock/LP-HS transitions/first command)
- Backlight enable/PWM if it toggles during wake
If I see “reset released early” or “commands arrive too soon,” that’s usually enough to build a timing fix with high confidence.
What does "no display after wake" really mean, and how do you reproduce it reliably?
“No display” isn’t one failure. The symptom pattern usually points toward either link lock, controller state, or incomplete initialization, so I try to classify it before I touch anything.
After wake, “no display” usually falls into a few buckets: black screen with backlight on, frozen last frame, or corrupted/partial image. I reproduce it with automated sleep/wake loops across temperature and supply corners, because marginal reset windows often fail statistically—only after many cycles or under specific conditions.
Here’s the quick “symptom → clue” mapping I use:
- Backlight on + black image: panel scanning didn’t restart, or interface never re-locked.
- Frozen last frame: display path is partially alive, but refresh/state transition stalled.
- Corrupted image / bands / partial draw: init sequence incomplete, or timing window violated.
To make it repeatable, I run:
- Loop testing: 100–1,000 sleep/wake cycles (automation matters here).
- Temperature corners: at least cold and hot steady states; often failures shift with temp.
- Supply corners: min/max input voltage; reset thresholds can be voltage-sensitive.
- Sleep duration sweep: short sleeps (seconds) and long sleeps (hours).
- Rapid cycling: wake quickly after sleep to mimic partially discharged rails.
Once you can say “it fails 12% of the time at cold after rapid cycling,” you’ve turned a mystery into an engineering problem.
Which reset signals and "rails-ready" conditions usually matter during wake?
During wake, the controller needs a clean “power-good → reset → first command” chain. If any part of that chain is fuzzy, the state machine can land in a bad place.

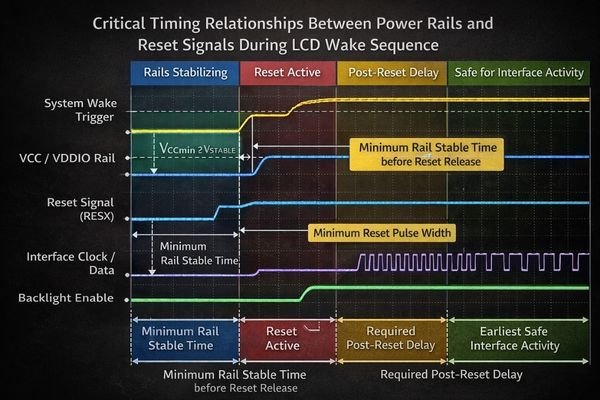

On wake, the usual critical chain is: logic rail stable at the connector → reset held low long enough → reset released cleanly → post-reset delay → first interface activity/commands. If bias rails or clocks change during wake, they also become part of the contract. “Rails-ready” should be defined as a measured threshold plus a stable time window, not a guess.
In my LCD Module Pro projects, wake failures often come from the host assuming “toggle reset and go,” while the module expects a longer settle time or a different post-reset delay than cold boot.
| Signal/Condition | What to verify at the connector | Common failure if violated |
|---|---|---|
| Logic Power (VCC/VDDIO) | Crosses a defined threshold and stays stable (no bounce) | Controller boots into undefined state |
| Reset (RESX/RST) | Clean low time, clean rising edge, valid logic levels | State machine not fully initialized |
| Bias Rails (if used on wake) | Stable before scanning starts (if they re-enable) | Odd brightness, artifacts, unstable image |
| Interface Clock / Activity | Starts only after reset + required delay | Commands/data ignored or mis-read |
| Post-reset delay | Host waits long enough before first command/data | “Looks fine sometimes,” fails statistically |
| Backlight gating | Backlight only after stable scanning | User sees black screen / flash / artifacts |

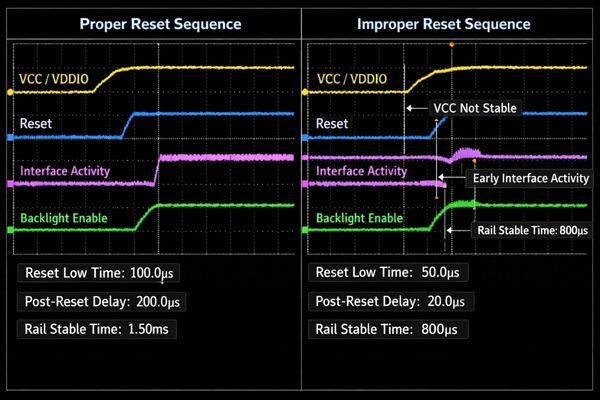

The mistake I see most: reset releases while VDDIO is still settling or dipping slightly. It may look “fine” at the regulator, but at the connector it can bounce below the controller’s threshold for a fraction of a millisecond—and that’s enough to poison the wake.
How do you tell if it’s a reset-sequencing problem or an initialization/state problem?
I don’t guess. I run a controlled experiment: keep software identical, move only reset timing, and watch whether the failure rate moves.
If extending reset low time, delaying first command, or increasing rail-stable time materially improves wake success, it’s a reset sequencing/timing window issue. If timing changes do nothing but a full re-init script fixes it, you’re likely dealing with software state handling or missing wake-specific commands.

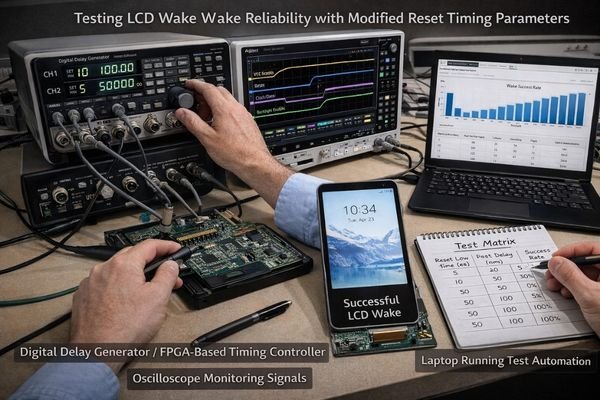

Timing-only perturbation tests
I change one knob at a time:
- Reset low time: 1 ms → 10 ms (or whatever the controller tolerates).
- Post-reset delay: add 10–50 ms before first command.
- Rail-stable time: hold reset until rails are stable for longer.
- Edge quality: strengthen pull-ups/downs or add filtering if reset is noisy.
If wake reliability jumps, I treat timing as root cause and then tighten the sequence so it’s robust at corners, not just “better.”
Software/state tests (only after timing tests)
If timing changes barely move the needle, I test behavior:
- Send a full init after wake (not only sleep-out).
- Add inter-command delays around sensitive commands.
- Log and verify the controller state (where possible).
Often the best fix is both: reset that truly cleans the state, plus a wake flow3 that re-establishes the expected mode cleanly.
What measurements and stress loops expose the real reset window during wake?
The real reset window is rarely found at room temperature with a gentle test. I map margins by running stress loops while measuring at the connector and tracking time-to-first-frame.

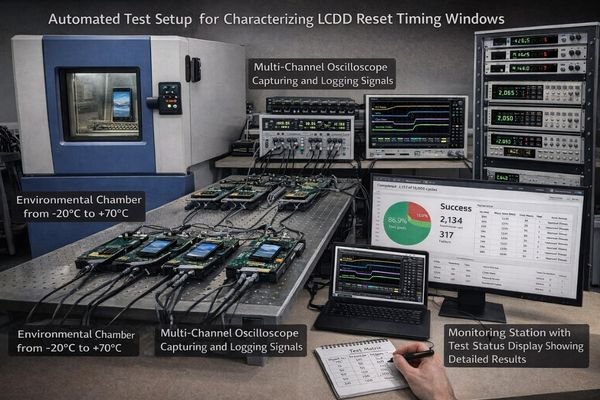

To expose the real reset window, I probe rails/reset at the module connector while running automated sleep/wake loops under rapid cycling, temperature extremes, supply corners, and brownout-like dips. For each timing configuration, I log wake success rate and time-to-first-frame so I can draw a “safe margin” map instead of relying on one lucky boot.
My practical workflow looks like this:
-
Capture baseline waveforms
- 5–10 successful wakes, same trigger, same probe points.
- Verify what “rails-ready” looks like at the connector.
-
Run stress loops
- Rapid wake loop: 1–5 s sleep / 1–5 s wake, 200+ cycles.
- Cold/hot loop: repeat the same script at temperature corners.
- Supply corner loop: min/max input voltage.
- Brownout emulation: controlled dips during wake (short and repeatable).
-
Record outcomes
- Wake success/fail count
- Time-to-first-stable-frame distribution
- Whether failures cluster at certain corners or transitions
When you see a failure cluster at “cold + rapid cycling + short post-reset delay,” you’ve basically identified the timing window the controller needs.
FAQ
Backlight turns on after wake, but the screen is black—does that prove it’s not reset-related?
No. Backlight can wake independently while the controller/link is stuck. Reset timing and post-reset delay can still be the root cause.
Why does it appear only after many sleep/wake cycles?
Because rapid cycling starts from partially discharged rails and shifted thresholds, so a marginal reset window fails statistically.
What’s the most important place to probe during wake debugging?
At the module connector pins. Cable IR drop and ground bounce can make the module see a different waveform than the mainboard.
If re-sending the init script fixes wake, should we still change reset timing?
Usually yes. A clean reset reduces “unknown states,” and correct delays make init commands reliable.
How do brownouts create “no display after wake”?
A partial rail dip can leave the controller half-alive and not fully reset, so it never returns to a valid scanning state.
What process prevents this from returning after supplier changes?
Freeze the validated wake sequence + tests, require change notification for controller/firmware/power parts, and re-run sleep/wake stress loops on new revisions.
Conclusion
When an LCD module shows no display after wake, I treat it as a reset-and-state-window problem until proven otherwise. The fastest path to clarity is to make the failure repeatable, measure rails and reset at the module connector, and run timing-only perturbation tests. Once you can map the safe reset window across rapid cycling, temperature corners, and supply variation, the “random” wake bug usually stops being random.
