How do you diagnose surge/ground bounce when an LCD display module flashes during relay switching?

When an LCD display module flashes during relay switching, the first priority is to determine whether the disturbance comes from surge, ground bounce, or signal-path instability. In most real projects, this symptom does not mean the LCD display module itself is defective. Instead, it usually indicates that a relay-driven transient is disturbing the display’s power rail, local ground reference, reset behavior, or interface stability at the exact moment the relay energizes or de-energizes.

Diagnosing LCD display module flashing during relay switching requires a structured measurement process across the power, ground, and signal paths. The most effective approach is to capture the relay event with an oscilloscope at the display module side, identify whether the dominant disturbance is a supply dip, voltage overshoot, ground potential shift, or interface corruption, and then correct the actual path through which the transient reaches the module.

Based on my LCD display module integration work at LCD Module Pro, I have seen this issue many times in industrial control and relay-driven embedded systems. The first reaction is often to suspect the display module, especially when the screen blinks only for a fraction of a second. However, in most relay-switching cases, the LCD display module is the victim rather than the source of the fault. A sensitive display path will often reveal weaknesses in power distribution¹, grounding architecture, transient suppression, or interface reference stability long before other parts of the system show obvious failure.

A reliable fix depends on disciplined diagnosis rather than random filtering attempts. Adding capacitors, ferrites, or snubbers without confirming the disturbance mechanism may reduce symptoms temporarily, but it rarely resolves the actual integration weakness. In practical debugging, power and ground should always be verified before analyzing the display interface. A structured engineering workflow makes it possible to move from a vague “the LCD flashes” complaint to a precise root-cause decision.

What Does Relay-Switching Flashing Usually Look Like on an LCD Display Module?

The first step in diagnosis is to define exactly what “flashing” means in the target system. Different visible symptoms often point to different failure mechanisms.

Relay-switching flashing usually appears as a brief, repeatable display disturbance synchronized with the relay event. Depending on the dominant electrical path, it may appear as a full-screen blink, backlight flicker, temporary image corruption, horizontal noise, or a short reset followed by immediate recovery.

When I troubleshoot this kind of field issue, I ask the engineering team to describe the visual symptom precisely before touching the hardware. A quick white flash, a backlight dip, and a full module reset may all be described as “flashing,” but they do not point to the same electrical root cause.

Defining the Visual Symptom

Common manifestations include:

• Full Screen Blink: The entire screen, including the backlight, drops out briefly and then returns. This usually suggests a severe transient on the module’s power or reset path.
• Backlight Flicker: The image content remains present, but the backlight dims or blinks momentarily. This often indicates that the backlight supply or backlight control section is more affected than the logic rail.

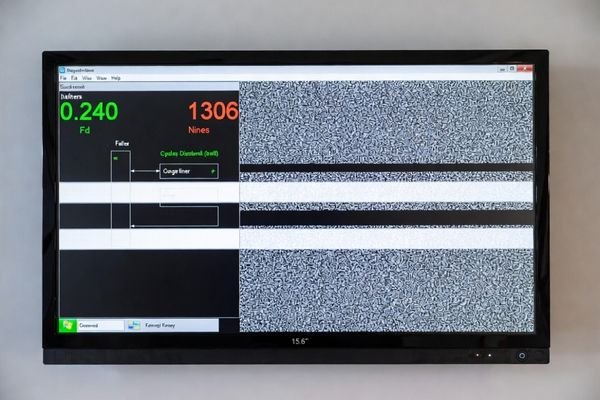

• Image Corruption or Noise²: The backlight stays on, but the image is replaced briefly by static, horizontal lines, or unstable frame data. This often points to a signal integrity problem on the display interface or to a temporary ground-reference disturbance.
• Module Reset: The display blanks and re-initializes, sometimes showing its startup behavior. This is a strong sign that the logic supply, reset line, or internal controller threshold has been disturbed badly enough to trigger a reset or brown-out condition.

If the LCD backlight flickers but the image remains stable, the disturbance may be concentrated in the backlight path. If the module resets during relay switching, the logic supply or reset line should be checked first. Defining the symptom accurately helps determine which part of the measurement plan should receive priority.

What Are the Most Common Electrical Causes Behind Surge or Ground Bounce?

When a relay switches, the LCD display module usually reacts to a disturbance created somewhere else in the system. The display is sensitive enough to expose that weakness, but the root cause is usually in the relay transient path, shared supply impedance, or grounding design.

The most common electrical causes include relay coil back-EMF during release, inrush current during energizing, shared supply impedance between the relay and the display path, inadequate local decoupling, and transient ground shifts caused by switching current flowing through common return paths.

From an engineering standpoint, these problems usually appear when noisy switching circuits and sensitive display electronics are not sufficiently separated in the electrical design. The relay event itself is normal, but the system allows that event to disturb a path that the LCD display module depends on.

Cause	Mechanism	Effect on LCD Module
Relay Coil Back-EMF3	When the relay coil is de-energized, the collapsing magnetic field generates a high transient voltage. If suppression is weak, the spike can couple into nearby power or signal paths.	Can create voltage overshoot, induce interface corruption, or disturb logic thresholds at the display module.
Inrush Current / Voltage Dip	When the relay energizes, the coil draws transient current that can pull down a shared supply rail.	A dip on the logic supply may cause image instability, reset behavior, or temporary module malfunction.
Ground Bounce	High switching current flows through a shared return path with non-zero impedance, causing a temporary shift in local ground potential.	The display’s local reference moves relative to the system reference, which can corrupt logic levels or interface timing.
Poor Decoupling	Insufficient local capacitive support near the LCD module leaves the display electronics exposed during a fast transient event.	The module may experience unstable logic supply, reset sensitivity, or interface behavior during the relay transition.

In many practical designs, more than one of these mechanisms exists at the same time. A flyback problem at the relay coil may coexist with poor display decoupling and a shared ground return. That is why diagnosis should not stop at identifying only the first visible waveform abnormality.

How Do You Separate Power Disturbance, Ground Bounce, and Signal Integrity Problems?

A successful diagnosis depends on separating these mechanisms clearly. Not every relay-switching flash is caused by the same path, even if the visible symptom looks similar.

The most reliable way to separate power disturbance, ground bounce, and signal integrity issues is to monitor multiple nodes simultaneously during the relay event. In most cases, the first or most severe disturbed node reveals whether the primary mechanism is supply instability, ground reference movement, or interface corruption.

In practical debugging, I usually begin with the logic supply rail and the local display ground. If those are unstable, the display interface is often only a secondary victim. If power and ground remain stable, the next priority is the reset line and the display data path.

A practical differentiation workflow is as follows:

• Power Disturbance⁴: Probe the LCD module logic supply directly at the module connector. If the flash coincides with a clear voltage dip or overshoot, the dominant problem is likely in the power distribution path. This is especially likely when the module resets or the entire screen blanks.
• Ground Bounce: Measure the module’s local ground relative to a cleaner system reference during the switching event. If the local ground shifts temporarily, ground bounce is likely dominant. This is a common cause when logic thresholds or interface references become unstable even though the nominal supply rail still appears acceptable.
• Signal Integrity: If power and ground remain relatively stable but the image shows momentary noise, line corruption, or unstable frame behavior, the display interface should be checked next. If power and ground remain stable, the next priority is display interface signal integrity.

If the LCD display module flashes during relay switching but the supply rail does not collapse, ground reference movement or interface corruption becomes much more likely. This distinction matters because each mechanism requires a different corrective strategy.

Which Test Methods and Measurement Points Help Confirm the Root Cause?

Transient problems can only be solved reliably if they are captured under repeatable conditions. Visual symptoms alone are not enough.

The most effective test method is a synchronized oscilloscope capture of the relay event while monitoring the relay coil voltage, the LCD logic rail, the local display ground, and one control-sensitive node such as RESET or a key interface line. These measurements help show not only that a disturbance exists, but where it enters the display path first.

A four-channel oscilloscope is ideal for this type of diagnosis because it allows the event source and the display response to be viewed at the same time. The relay control signal can be used as a trigger reference, while the other channels monitor the system response.

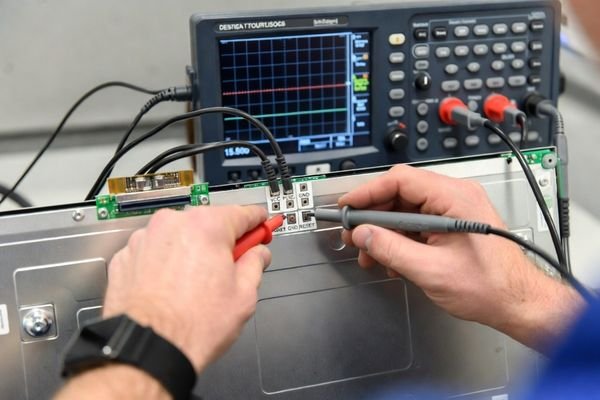

Useful measurement points include:

• Relay Coil Voltage: Probe across the coil to observe back-EMF during release and switching behavior during energizing. This shows how aggressive the transient source is and whether suppression is working correctly.
• Display Logic VCC⁵: Probe at the LCD display module connector or as close to the local power entry as possible. Look for dips, spikes, or ringing that violate the module’s operating tolerance.
• Display Local Ground: Measure local ground against a cleaner system ground reference. A pulse here is a strong indicator of ground bounce, especially if it aligns with interface instability or logic upset.
• Display RESET Line: If the RESET line drops unexpectedly during the relay event, that confirms the transient is severe enough to cause direct logic-level disruption.
• Relevant Interface Lines: If power and reset look stable but the image still corrupts, inspect the display interface path. Differential signaling may require more careful probing technique, but short-lived corruption here can explain image-only disturbances without full resets.

Ground-reference selection during measurement matters a great deal. Ground bounce can be hidden or misinterpreted if the oscilloscope ground is chosen poorly. For repeatable results, the switching condition, load state, and cable arrangement should remain controlled from one test to the next.

What Corrective Actions Usually Reduce Flashing During Relay Switching?

Once the dominant mechanism has been confirmed, the corrective action should target the real disturbance path rather than relying on general noise reduction attempts.

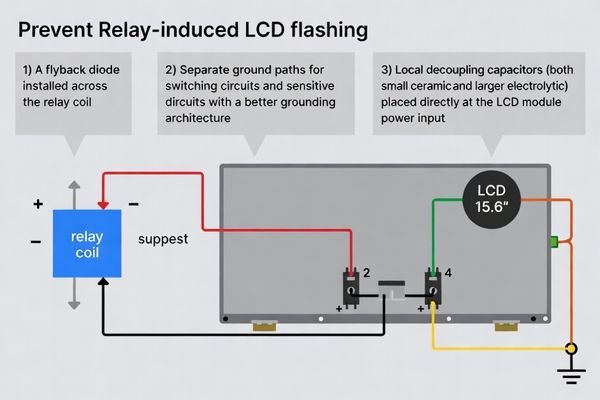

The most effective corrective strategy is to suppress the transient at the relay source, protect the LCD display module with stronger local power integrity, and redesign shared return or interface paths that allow the switching disturbance to reach the display.

In practical integration work, the best results usually come from a layered correction strategy rather than from a single change.

• Suppress the Source

  • Flyback Diode: For DC relay coils, a reverse-parallel flyback diode is often the first and most effective suppression step for coil back-EMF.
  • RC Snubber or Alternative Suppression: For AC relays, faster release requirements, or cases where a simple diode is not enough, an RC snubber or other suppression network may be more appropriate.

• Improve Power Integrity Near the LCD Module

  • Add Local Decoupling: Place a suitable combination of high-frequency ceramic capacitors and bulk capacitance close to the LCD display module power input.
  • Reduce Shared Supply Impedance: If the relay and display share the same weak supply segment, reduce path impedance or separate the rails more effectively.

• Correct the Grounding Scheme

  • Separate Noisy and Sensitive Return Paths: Relay switching current should not share the same return path as the sensitive LCD logic reference whenever possible.
  • Use Cleaner Ground Architecture: Star grounding or better-managed return paths can significantly reduce ground bounce.

• Improve Physical and Signal Path Separation

  • Route Noisy and Sensitive Paths Apart: Relay wiring and display cables should not run closely in parallel if it can be avoided.
  • Protect Sensitive Interface Paths: Where needed, better routing discipline, shielding, or cleaner reference layout can reduce coupled noise into the display signal path.

If the root cause is relay coil transient energy, source suppression should come first. If the root cause is shared supply impedance, power distribution improvement becomes more important. If ground bounce is dominant, the grounding scheme must be redesigned rather than merely filtered. Matching the fix to the confirmed mechanism is what turns troubleshooting into a reliable engineering correction.

FAQ

Does relay-switching flashing always mean the LCD display module is defective?
No. In most cases, the LCD display module is operating normally, and the flashing is a symptom of an external electrical transient disturbance in the system’s power, ground, or signal path.

What is the difference between surge and ground bounce in this kind of problem?
A surge usually refers to a transient voltage spike or dip on a power-related path. Ground bounce is a temporary shift in local ground potential caused by switching current flowing through a shared return-path impedance.

Which measurement point should be checked first?
A good starting point is the LCD display module logic power rail and local ground reference, measured directly at the module side during the relay switching event.

Can a flyback diode solve all relay-related flashing problems?
Not always. A flyback diode can greatly reduce relay coil back-EMF, but flashing may still remain if the system also has shared supply impedance, poor grounding, or coupled noise near the display path.

Why does the LCD flash only during relay release but not during relay turn-on?
Relay release and relay turn-on generate different transient behavior. Relay release often produces a stronger voltage spike from the collapsing magnetic field, while relay turn-on is more associated with inrush current and voltage dip. Depending on the system weakness, one event may be more disruptive than the other.

Should I focus on hardware only, or can software also help?
This is primarily a hardware-level electrical integrity problem, so diagnosis should begin with hardware. Software can still help by logging reset behavior, detecting event timing, or improving recovery after a transient disturbance, but it cannot replace a proper electrical correction.

Conclusion

Diagnosing surge or ground bounce when an LCD display module flashes during relay switching requires a system-level view of the transient path rather than a simple assumption that the display has failed. In most practical cases, the LCD display module is revealing a weakness in relay suppression, power distribution, ground reference control, or signal-path integrity.

At LCD Module Pro, I recommend a structured workflow: define the visible symptom clearly, capture the relay event at the display side, separate power disturbance from ground bounce and interface corruption, and then apply corrective action to the real disturbance path. When engineers treat relay-switching flashing as an electrical integrity problem instead of an isolated LCD fault, they are far more likely to improve display stability, reduce integration risk, and achieve a more reliable industrial LCD display module design.
