What is eDP link rate in an LCD display module, and can it affect bring-up stability?

When integrating LCD modules with embedded DisplayPort (eDP) interfaces into industrial or computing systems, engineers sometimes hit sporadic bring-up failures: the panel stays black on cold boot, comes up only after a retry, or shows black screens after resume. These issues are especially painful when they appear late, because the hardware “looks finished” and the failures feel random.

eDP link rate is the per-lane serial data speed on the eDP main link between the host and the LCD display module. If the chosen rate is too aggressive for the real signal channel, link training can become probabilistic—leading to intermittent initialization failures or resume black screens that vary with temperature, supply noise, EMI, and tolerance.

In LCD Module Pro customer projects, eDP link rate¹ problems are often hard to diagnose because they sit between analog channel margin and digital protocol state machines. Many teams treat link rate as a static “spec value,” but in practice it’s an operating point established by link training and limited by what your system can reliably sustain. A design can appear perfect in a quiet lab yet fail in production or field environments where temperature shifts, component tolerances, and electromagnetic noise reduce margin.

The goal of this article is to make link-rate-related instability easier to recognize and faster to prove—so you can stop chasing phantom software bugs and instead either choose a more conservative operating point or strengthen the channel to support higher rates reliably.

What does eDP link rate mean, and how is it negotiated during bring-up?

eDP link rate represents the fundamental main-link transmission speed per lane, which directly impacts both bandwidth capability and signal integrity margin.

eDP link rate is the serial bit rate per lane used on the DisplayPort main link. During bring-up, the source and sink negotiate a workable lane count and link rate through link training, with the final operating point constrained by advertised capabilities and the real channel quality (PCB, connectors, and any harness).

From an engineering standpoint, link rate is a trade-off between bandwidth demand and channel margin. Your video payload² is driven by resolution, refresh rate, and color depth, and it must fit within the available bandwidth from lane count and per-lane link rate (after protocol overhead). If bandwidth barely fits, the system may be forced into a higher link rate that leaves little margin for loss and jitter.

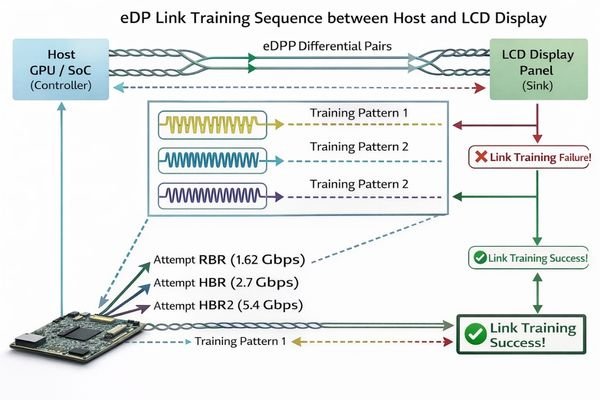

The Link Training Process

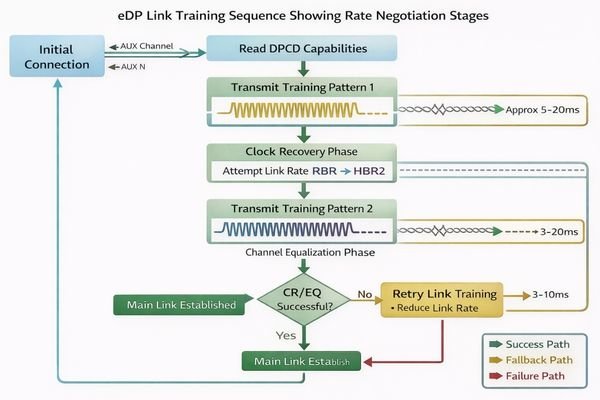

During initialization, eDP performs a structured negotiation to establish a stable main link:

1. Initial Connection: The source reads sink capabilities through the AUX channel, including supported rates and lane counts.

2. Link Training: The source sends training patterns and adjusts parameters (such as swing and emphasis/equalization) to converge on a reliable eye at the selected rate.

3. Fallback Mechanism: If training fails at the target rate, many systems will attempt a lower rate until training succeeds—unless firmware forces a fixed rate.

4. Main Link Establishment: Once training succeeds, the main link carries pixel data at the trained operating point.

The key point is that link training is not only a digital handshake. It is also an analog test of whether the physical channel can support the chosen rate. If a system is trying to operate at a high link rate without sufficient margin, it may “usually work” but still fail when conditions shift.

Can an incorrect or aggressive link rate cause intermittent bring-up failures?

Intermittent bring-up failures often come from operating too close to the channel’s physical limits, where the outcome of training can vary with small condition changes.

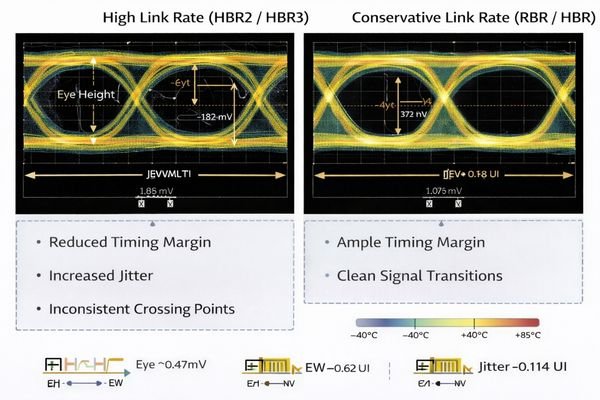

Yes. An overly aggressive eDP link rate can cause intermittent initialization or resume failures because it reduces eye margin and increases sensitivity to loss and jitter. Small changes in temperature, supply noise, EMI, or boot sequencing can determine whether training converges—so failures look random even when settings appear unchanged.

In real systems, you might see ten successful boots followed by one failure, or a display that resumes reliably at room temperature but goes black at cold start. That pattern is typical of a margin issue: training is converging only when the channel is “good enough” in that moment. At higher rates, timing budgets tighten and the channel becomes more vulnerable to attenuation, reflections, crosstalk³, and jitter.

The fastest way to prove a link-rate margin problem is a controlled A/B test: force a lower link rate (or a more conservative lane/rate combination) and run repeated boots and resume cycles. If the success rate jumps dramatically without changing anything else, you have strong evidence that the original operating point exceeded reliable margin. At that point, the work shifts from “find a bug” to “choose a safer operating point or improve the channel.”

What channel and system factors most strongly limit eDP link rate stability?

Bring-up stability is limited by the physical channel and by system-level noise sources that affect training convergence, especially at higher rates.

eDP link rate stability is most strongly limited by channel loss and discontinuities (traces, vias, connectors, harness), plus system contributors to jitter (clock quality, power noise, ground bounce) during training. Marginal combinations can pass in the lab but fail across temperature, EMI, and tolerance variation.

In LCD Module Pro integration reviews, instability rarely comes from a single “bad part.” It usually comes from the cumulative channel and system environment. A good mental model is: the main link is high-speed analog behavior governed by the entire path from the source pins to the sink pins.

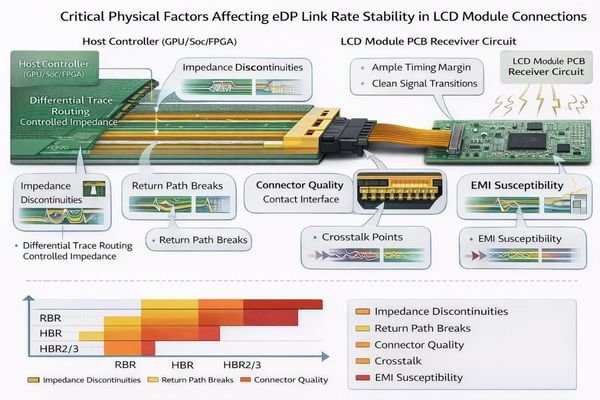

Factor Category	Specific Elements	Impact on Link Rate Stability
Physical Channel	Trace length and impedance control	Longer/more lossy channels shrink eye opening at higher rates
	Connector and interface quality	Discontinuities add reflections and degrade margin
	Via transitions and layer changes	Each transition can add loss and mismatch
	Cable or flex harness characteristics	Adds loss, skew, and EMI4 sensitivity if inconsistent
Signal Integrity	Crosstalk between differential pairs	Coupled noise rises with rate and routing density
	Return path discontinuities	Degrades reference stability and adds noise/jitter
	EMI susceptibility	External coupling can push a marginal link over edge
	Equalization settings	Poor tuning may not compensate for channel loss
System Timing & Power	Reference clock quality and jitter	More jitter reduces training convergence margin
	Power supply noise and stability	Noise can translate into jitter and eye closure
	Ground bounce during operation	Transient reference shifts harm high-speed margins
	Firmware bring-up sequencing	Training too early (before rails/clocks settle) increases failure risk

The practical takeaway is that “capability” is not the same as “margin.” Even if both source and sink support a high rate on paper, your real channel may not support it reliably across the conditions your product will see.

How do you troubleshoot link-rate-related bring-up instability efficiently?

You can diagnose link-rate problems quickly by converting “sometimes fails” into measurable statistics and changing only one variable at a time.

Make bring-up reliability measurable with repeated cold boots and sleep/resume loops, then force a lower link rate while keeping everything else constant. A large improvement in success rate strongly indicates a margin-limited link. From there, improve channel quality and power/clock integrity, and lock a deterministic training policy.

Based on common OEM and system integrator workflows, the key is to avoid trial-and-error and instead run controlled experiments.

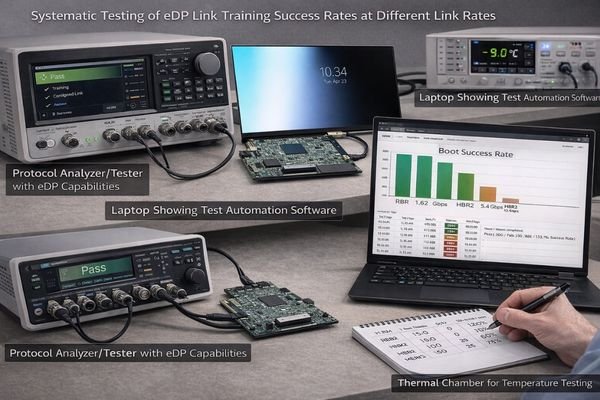

H3: Establishing a Baseline and Measuring Success Rate

Start by building a repeatable test procedure and collecting enough samples to see trends:

1. Define Clear Success/Failure Criteria: For example, “stable image within X seconds with no artifacts” versus “any image.”

2. Create a Consistent Test Cycle: Document the exact boot/resume sequence and timing.

3. Run Statistically Meaningful Samples: Repeat at least 50–100 cycles to establish a baseline rate.

4. Test Across Conditions: Include cold boot⁵s, warm restarts, and sleep/resume cycles.

A baseline expressed as a number (for example, “85% success at the current rate”) is what enables confident diagnosis.

H3: Systematic Link Rate Modification

Next, change only the link rate and re-run the same test:

1. Force a Lower Link Rate: Drop to a more conservative rate supported by both sides.

2. Re-run the Identical Test Cycle: Same sequence, same sample count.

3. Compare Success Rates: A dramatic improvement strongly implicates link rate margin.

4. Find the Threshold: If needed, test intermediate rates to locate where stability degrades.

If lowering link rate does not materially improve stability, the failure is more likely dominated by sequencing, power integrity, or firmware behavior unrelated to main-link margin. If it does improve, then you have a clear direction: either accept the lower rate (if bandwidth allows) or strengthen the channel and training environment to support the higher rate reliably.

How should you choose an LCD display module and specify eDP link rate to maximize stability?

Selecting and specifying eDP parameters is a system-level decision that should prioritize reliable margin over theoretical maximums.

Choose link rate and lane count based on bandwidth needs with margin for real channel loss and operating variation. Specify whether training may fall back or must be fixed, and validate statistically across temperature and supply corners at the module connector and any harness endpoint. A conservative, repeatable operating point is better than a faster but marginal one.

In practice, stable systems treat link rate as part of an end-to-end budget rather than a single checkbox. Start by estimating bandwidth from your resolution, refresh, and color depth (including overhead), then select a lane/rate combination that meets that demand without running at the edge of the channel.

When selecting an LCD display module⁶ with an eDP interface, use a process that makes stability explicit:

1. Start with Bandwidth Requirements

   • Estimate payload from resolution, refresh, and color depth
   • Include protocol overhead in planning
   • Consider whether future software changes could increase demand

2. Evaluate Physical Implementation Constraints

   • Confirm realistic trace lengths and routing density
   • Review connector choices and transition points
   • Consider the EMI environment and shielding/return paths
   • Define the full operating temperature range

3. Choose a Link Rate with Margin

   • Prefer an operating point that is not the maximum possible
   • Use lane count and link rate together to reduce per-lane stress when uptime is critical
   • Document the preferred operating point and the minimum acceptable bandwidth

4. Specify Training Policy

   • Decide whether the system may train down or should force a conservative fixed rate
   • Document the policy in interface control documentation
   • Ensure firmware applies it consistently across boot and resume

5. Design for Signal Integrity

   • Minimize length and discontinuities and avoid stubs
   • Use connectors suitable for high-speed differential signaling
   • Keep differential routing consistent and maintain return-path continuity
   • Reduce power/ground noise during training windows

6. Validate Across Corners

   • Run repeated cold boots and sleep/resume cycles at temperature extremes
   • Validate at input voltage corners
   • Include harness/cable tolerance in validation plans
   • Confirm that success rate stays high under realistic EMI exposure

A slightly lower link rate that works predictably across conditions is typically a better product decision than a higher rate that introduces intermittent field failures and support burden.

FAQ

Is eDP link rate the same as pixel clock or refresh rate?
No. Link rate is the serial speed per lane on the eDP/DP main link, while pixel clock and refresh describe the video timing at the pixel level; link bandwidth must exceed video payload plus overhead.

If the panel advertises a high link rate, should I always use it?
Not necessarily. You should choose a rate that meets bandwidth with margin for your channel quality; higher rates can reduce stability if the channel is borderline.

Why does lowering link rate sometimes "magically" fix bring-up?
Lowering rate increases eye margin and reduces sensitivity to loss and jitter, making link training converge more reliably across temperature and tolerance variation.

Can AUX communication work while video is unstable?
Yes. AUX is a separate low-speed channel; it can be fine while the high-speed main link fails training or has insufficient margin.

What tests best reveal link-rate margin issues?
Repeated cold boots and sleep/resume loops across temperature corners, combined with controlled link-rate changes and consistent measurement at the module connector and harness endpoints.

When is customization more appropriate than tuning firmware?
When the physical channel is inherently long or constrained, or uptime requirements are strict

---
