We develop special-shaped LCD module solutions for products that require round, bar-type, ultra-wide, square, or irregular display formats beyond standard panel structures.
The display outline is defined by the product rather than by a standard panel format.
Module size, viewing area, and connector position are planned around actual installation conditions.
Optical design, structural adaptation, and interface review are handled as one coordinated process.
The final target is a display module suitable for testing, integration, and manufacturing transition.
Special-shaped LCD module design refers to the development of non-standard display modules created to match unique product structures, front housing geometry, and application-specific interface requirements. It is commonly used when standard rectangular LCD panels cannot deliver the right mechanical fit, visual layout, or user interaction experience.

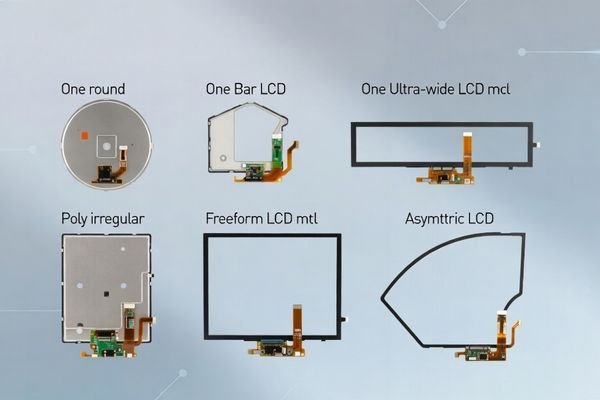

Different products require different custom display formats. The following module types are among the most common directions in special-shaped LCD design and each format serves a different integration purpose.

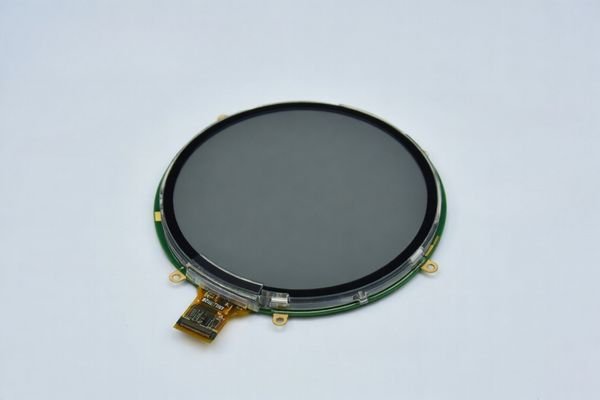

Developed for products that need circular interface layouts, dial-style interaction, or front panels designed around a fully round display window.
Used in narrow installation spaces where information must be presented in a long and efficient visual area without wasting structure.
Suitable for panoramic interface layouts that require a broad display zone for dashboard data, system status, or control information.
Created for products with unique outlines where the visible display area must follow a custom housing contour or interface concept.
Custom display formats are widely used in products where display performance must align with industrial design, front panel structure, and equipment-specific interaction needs.

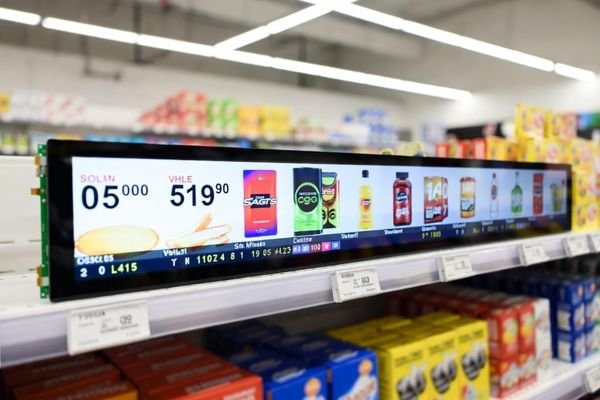

EV chargers, self-service systems, vending equipment, and commercial terminals often need display windows that fit branded enclosures or long, narrow structural openings.
A special-shaped LCD module helps maintain visual consistency while improving the usable interface area inside a limited front-panel space.

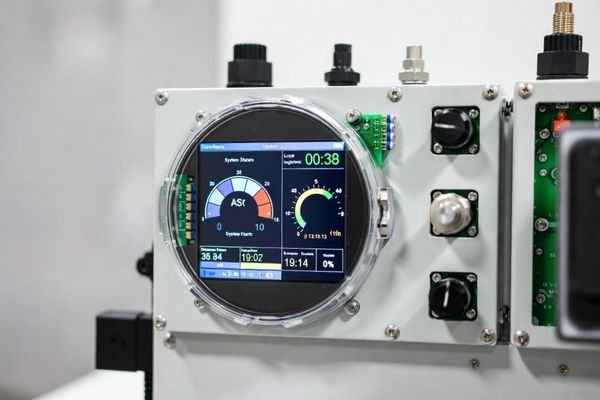

Industrial devices and embedded systems frequently require non-standard visible areas because of keys, housing geometry, reserved mounting zones, or machine layout constraints.
A custom LCD format allows the display to fit the equipment structure more naturally and improves system integration planning.
Special-shaped LCD development requires more than a custom outline. Stable project execution depends on how optical design, structure, signal architecture, and manufacturing logic are coordinated.
Compared with standard display modules, special-shaped projects introduce more variables during the design phase and place greater demands on feasibility evaluation.
Irregular module shapes can complicate light distribution and require more careful optical planning to achieve balanced brightness.
Narrow, curved, or unique visible areas may create edge variation that must be addressed during module development.。
The module outline, viewing area, cover lens, and installation zone must all align precisely with the target housing structure.
A custom concept must also be manufacturable, testable, and practical for prototype transfer and future supply execution.
A successful special-shaped LCD module project depends on balancing design freedom with practical engineering control. Early evaluation should connect optical targets, structural limitations, and system interface requirements before prototype decisions are made.
This helps reduce redesign risk and creates a more stable path from concept definition to integration.
Outer contour, viewing area, thickness, and mounting limits must match the real enclosure structure.
Brightness target, contrast balance, and viewing requirements should reflect the final use environment.
Signal method, connector format, and system power conditions must support stable communication.
Supply continuity, replacement risk, and long-term program support should be considered from the start.
A structured process keeps special-shaped LCD module projects aligned from concept review to prototype validation and production preparation.
Define target shape, visible area, installation limits, interface needs, and operating conditions.
eview whether the project is best suited to a round, bar-type, ultra-wide, or irregular module design.

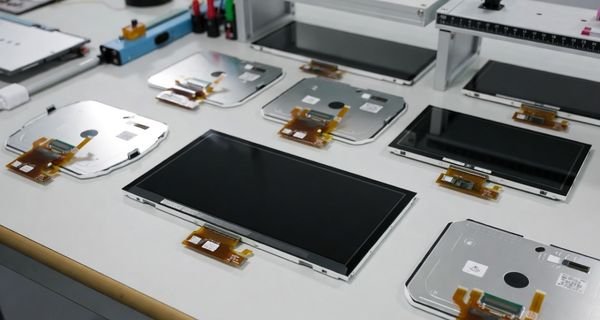

Evaluate optical structure, mechanical fit, driver method, and manufacturing practicality.
Build initial samples to verify form factor, display behavior, and installation compatibility.
Confirm visual performance, structural stability, and interface reliability in the application scenario.
Finalize the solution for repeatable manufacturing, quality review, and project transfer.
Early communication helps define the right direction for special-shaped LCD module design, interface planning, and integration feasibility.
Share your target product type, preferred display shape, interface requirements, and key structural limitations so the project can be reviewed more efficiently.
Shape, visible area, interface type, brightness expectation, installation space, and application environment.
It is best to begin discussion before the mechanical layout and interface structure are fully fixed.
Clearer technical direction, faster solution matching, and a smoother path toward custom module development.
