How do you validate backlight current limits and power budget for an LCD display module?

In industrial display deployments, reliable backlight operation directly impacts system uptime and long-term reliability. Many integration teams discover too late that optimistic power assumptions or inadequate current margin can lead to field issues—early brightness degradation, unexpected dimming behavior, thermal hotspots, or intermittent shutdowns and resets during boot or brightness changes.

Validating backlight current limits and power budget means measuring real LED string current across dimming, capturing inrush and transient overshoot, and confirming safe thermal and power margins at temperature and input-voltage corners. Done properly, it protects LED lifetime, prevents brownouts and protection trips, and ensures required brightness is achieved predictably in the final enclosure.

In LCD Module Pro customer integrations, backlight validation¹ is sometimes treated as a checkbox instead of a reliability gate. In most designs, the backlight is the dominant contributor to display heat and one of the largest variable loads in the product. If validation focuses only on “does it light up,” teams can miss the conditions that matter in the field: PWM peak stress, millisecond-scale overshoot on enable, rail droop during inrush, or thermal rise inside a sealed enclosure.

Proper validation links the complete subsystem—LED arrangement, driver topology, dimming method, thermal path, and control defaults—so the system meets brightness targets without operating near electrical or thermal cliffs. The sections below outline a practical workflow that produces defensible limits and a power budget you can trust.

Why do backlight current limits and power budget validation matter for real deployments?

Backlight current and power validation directly impact product reliability, thermal management, and long-term customer satisfaction in ways that go beyond simple brightness specifications.

Backlight overdrive and weak power margin often don’t fail immediately—they surface later as faster aging, thermal hotspots, protection-triggered “random dimming,” or rail droop that causes resets. Validating current limits and worst-case power prevents these delayed failures and keeps brightness, uptime, and thermal behavior stable across real environments.

In LCD Module Pro field analyses, the risk is rarely “the backlight is off.” The common failure is that it works—until time, temperature, and enclosure conditions remove the margin you assumed you had. Current that looks fine on an open bench can become unsafe in a sealed product where heat cannot escape. Likewise, a power rail that looks stable in steady state can droop during a fast brightness step and trip either the backlight driver’s UVLO or the system’s brownout threshold.

The Reliability Impact

Driving LEDs harder can increase brightness, but it also increases junction temperature² and accelerates aging mechanisms that show up as brightness loss, color shift, and non-uniformity. The key validation point is not “maximum brightness once,” but “brightness over time at safe current and safe temperature rise.” If you cannot demonstrate that LED current and hotspot temperature stay within your defined limits in worst-case operation, lifetime risk is being pushed into the field.

The System-Level Consequences

Power issues often present as “mysterious” resets during enable, boot, or rapid dimming transitions. The underlying mechanism is commonly supply droop caused by inrush or a peak load step that the wiring, regulators, or PSU cannot support with margin. Separately, thermal rise from the backlight can heat adjacent components and shift behavior elsewhere in the system. Validation should therefore treat the backlight as a system load that must be stable electrically and thermally, not as an isolated brightness component.

What specifications and limits should you confirm before you measure anything?

Before taking measurements, you need to establish the complete specification framework that defines safe and expected operation of your backlight system.

Before measuring, lock the backlight “contract”: LED string configuration, driver topology, dimming method, and brightness-to-current mapping; input rail limits and protections; and explicit pass/fail criteria for steady current, transient overshoot, thermal rise, and worst-case system power. Without these definitions, measurements can’t reliably prove safety or margin.

Based on common OEM and integrator workflows, the fastest path to confusion is measuring first and defining limits later. A good specification framework documents both intended operating points and absolute limits, and it makes “100% brightness” meaningful in electrical terms.

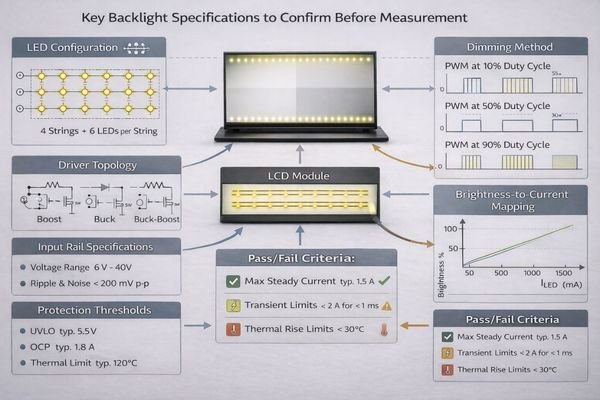

Specification Category	Key Parameters to Confirm	Why It Matters
LED Configuration	Number of strings, LEDs per string, series/parallel arrangement	Defines regulated current path and failure sensitivity
Driver Topology	Boost, buck, buck-boost converter type	Drives efficiency, thermal behavior, and transient response
Dimming Method3	PWM frequency/duty, analog current control, hybrid approach	Impacts peak stress, ripple, and measurement strategy
Brightness Mapping	Relationship between command (%) and actual LED current	Prevents unexpected overdrive when “100%” is requested
Input Rail Specifications	Voltage range, ripple limits, inrush capability	Defines the stable operating envelope for the driver
Protection Thresholds	UVLO, OVP, OCP, thermal, open/short detection	Explains when protection may trigger during transitions
Pass/Fail Criteria	Max steady current, transient overshoot limits, thermal rise limits	Turns validation into objective acceptance tests

This framework should also define the operating temperature range and any derating rules. If temperature changes the allowed current or the driver behavior, that must be explicit before you begin “worst-case” validation.

How do you measure and validate backlight current behavior across dimming and transients?

Proper validation requires measuring the right parameters, at the right points, under the right conditions to expose potential issues before deployment.

Measure LED string current (or the driver’s sense element) and driver input power with enough time resolution to capture PWM ripple and startup/step transients. Sweep dimming end-to-end, then capture enable, inrush, and brightness-step events. Repeat at temperature and input-voltage corners to confirm current limits, stability, and no protection retries.

In LCD Module Pro troubleshooting, the most common measurement gap is relying on average input current while missing short peaks and overshoot that actually stress LEDs and rails. A methodical approach makes those behaviors visible early.

Measurement Points and Methods

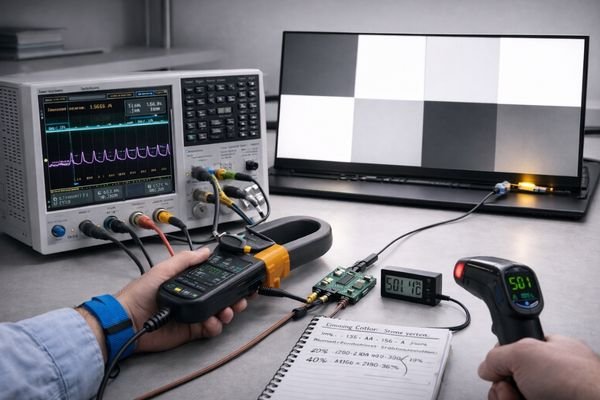

The highest-value measurement is LED string current⁴, because it represents LED electrical stress directly. For accuracy and diagnostic value:

1. Place current measurement at the LED string path where possible, or use the driver’s current sense element as the reference.
2. Use measurement settings that can capture switching behavior and millisecond-scale spikes during enable and brightness steps.
3. Capture both average behavior (for power budgeting) and peak/overshoot behavior (for limit validation).
4. Monitor hotspot temperature during sustained tests so electrical current can be tied to thermal rise and stability.

Key Validation Scenarios

A complete validation should include:

1. Dimming Linearity: Sweep minimum-to-maximum brightness and record command vs measured LED current to catch jumps or unexpected mapping.

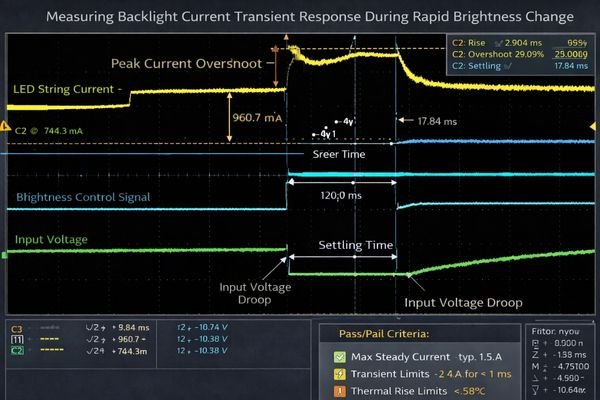

2. Turn-On Behavior: Capture the first window after enable to check inrush, overshoot, and settling time.
3. Transient Response: Step brightness up/down quickly and verify current does not overshoot beyond your defined transient limit.
4. Stability Testing: Run extended operation at key setpoints to confirm no oscillation, drift, or thermal runaway behavior.
5. Corner Cases: Repeat critical checks at minimum/maximum input voltage and at temperature extremes after thermal soak.

The pass condition is not “it looks bright.” It is “current stays within the defined steady and transient limits, behavior is repeatable, and no protection/retry behavior appears across corners.”

How do you build a credible power budget and confirm it under worst-case conditions?

A credible power budget accounts for all operating modes and environmental conditions, with clear separation between average and peak power requirements.

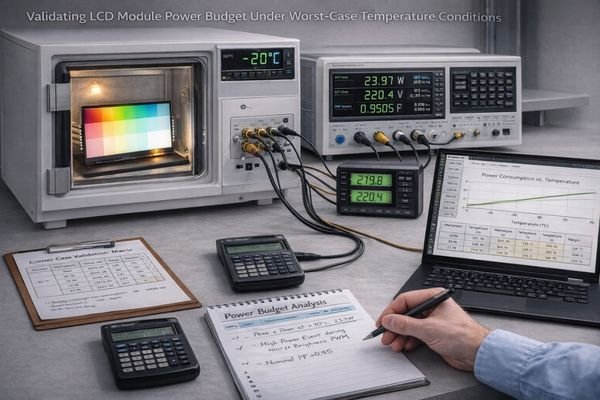

Build the budget from measured/validated LED current and temperature-dependent forward voltage, then include driver efficiency to compute input power by rail. Add LCD logic/interface power and system loads by mode. Validate with logging that captures both steady state and peaks (inrush, steps, resume) at voltage and temperature corners so headroom is proven, not assumed.

Many “good on paper” budgets fail because they assume best-case efficiency and ignore peak events. A credible budget distinguishes average versus peak, and it is tied to explicit scenarios that match real product behavior.

The backlight is typically the largest variable load. Start by estimating LED power using the regulated current and the forward-voltage behavior over temperature for your string configuration. Then apply driver efficiency and switching losses to compute input power on the driver rail at each brightness level and input voltage.

Next, build a scenario table for system power (at minimum: cold boot peak, steady UI, maximum required brightness mode, sleep/standby, and wake/resume). For each scenario, capture and log:

• Peak input power/current and the duration of the peak
• Supply droop and whether it crosses system brownout thresholds
• Thermal rise to steady state at the required brightness
• Whether any power limiters throttle brightness or trigger retries/resets

A budget is credible only when measured worst-case power aligns with your margin targets for PSU/regulators/wiring and with the enclosure thermal design.

Which LCD module options and integration choices best support safe current limits and power headroom?

Selecting the right LCD module and implementing proper integration practices are key to maintaining safe current limits and adequate power headroom.

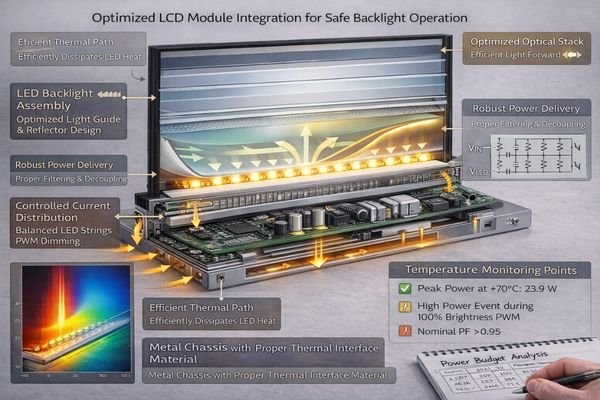

Choose modules and integration approaches that meet readability with efficiency and margin: avoid relying on current overdrive, control reflection losses with appropriate optics, and ensure the driver and rails can support inrush and steps with headroom. Pair that with a proven thermal path and safe boot defaults so current limits remain valid in the final enclosure.

From a system perspective, power headroom is created by reducing wasted light, minimizing thermal resistance, and ensuring rails and controls behave deterministically. Rather than selecting “the brightest option” and then trying to contain the consequences, better outcomes come from matching brightness needs to an efficient optical and electrical implementation.

When selecting LCD modules for power-sensitive applications, prioritize characteristics that reduce the temptation to overdrive current: efficient optical design⁵, uniformity that doesn’t require “compensation overdrive,” and dimming behavior that stays stable without excessive ripple. On the system side, focus on robust power delivery for peak events, predictable boot/default states that cannot unintentionally command maximum current, and a thermal interface that can actually remove the heat generated at the chosen operating point.

For demanding environments or tight enclosures, tailoring the integration plan—thermal interface, optical stack choices, and driver configuration—often reduces risk more effectively than late-stage tuning of a marginal design.

FAQ

Is maximum backlight current the same as "maximum brightness"?
Not always. Brightness depends on optics and efficiency; pushing current can increase heat and aging, so validate luminance targets with safe current and thermal margin.

What’s the most common measurement mistake when validating backlight current?
Measuring only average input current and missing short peaks, ripple, or overshoot during PWM dimming, power-on, or brightness steps.

How do I account for temperature in power budgeting?
LED forward voltage and driver efficiency change with temperature; budget at temperature corners and validate with thermal soak while logging rail power.

Why can the backlight trip UVLO or reset the system at turn-on?
Inrush and peak current steps can droop the input rail; if your supply or wiring is marginal, the driver or system may hit UVLO and retry.

Should I allow firmware to drive full brightness at boot?
Usually no. Define safe defaults and ramp policies so boot stages cannot unintentionally exceed current or thermal limits.

When is customization worth it for power-limited designs?
When ambient light demands are high, enclosure thermal paths are constrained, or rail headroom is tight, tailoring optics/driver settings can reduce risk.

Conclusion

Validating backlight current limits and power budget is about proving that brightness, electrical stress, and thermal behavior stay within safe margins under real transients and worst-case conditions. The most effective approach is to lock the specification contract, measure LED string current and rail power across dimming and enable/step events, and then close the loop with corner testing after thermal soak. When these measurements reconcile with a documented power budget and derating rules, teams avoid late surprises such as brownouts, thermal throttling, and premature backlight degradation.

At LCD Module Pro, we support this system-level validation by aligning backlight current limits, power headroom, and thermal reality—so products meet readability targets without sacrificing lifecycle reliability.
