How do you validate BL_EN logic compatibility for an LCD display module?

During the initial bring-up of an LCD display module, a common and frustrating problem is a perfectly dark screen, even when you are confident the display timing and data signals are correct. Before diving into complex timing debugging, one of the first things to check is the Backlight Enable (BL_EN) signal. This simple control line is often the culprit behind a “dead” display—where the image pipeline is alive, but the light source never turns on correctly.

Validating BL_EN logic compatibility means confirming that the host controller’s enable signal matches the LCD module’s requirements for active level, voltage thresholds, and timing sequence—proven at the module input. A mismatch can leave the backlight off or unstable, making a perfectly functional display appear broken.

BL_EN issues commonly waste time because they mimic deeper display problems: engineers may spend hours checking pixel clocks and synchronization signals when the root cause is simply that BL_EN is inverted, under-driven, floating during boot, or asserted at the wrong time in the power sequence. For example, the host may drive BL_EN¹ active-high while the module expects active-low, resulting in a consistently dark screen.

Validating BL_EN early prevents false negatives during bring-up. It also ensures the backlight behaves predictably during power-up, power-down, and system resets—key to a reliable product, especially once firmware evolves and the system sees real power and EMI stress.

What is BL_EN, and why does its logic level matter?

The BL_EN (Backlight Enable) signal is the primary digital control that tells the LCD module’s backlight driver to turn on or off. It does not define image content; it determines whether the image is illuminated.

BL_EN is the on/off switch for the backlight. Its logic compatibility matters because if the host and module disagree on what “on” means—high vs. low level, or when the enable is allowed to assert—the backlight may not illuminate (or may behave unpredictably) even if the panel is receiving valid image data.

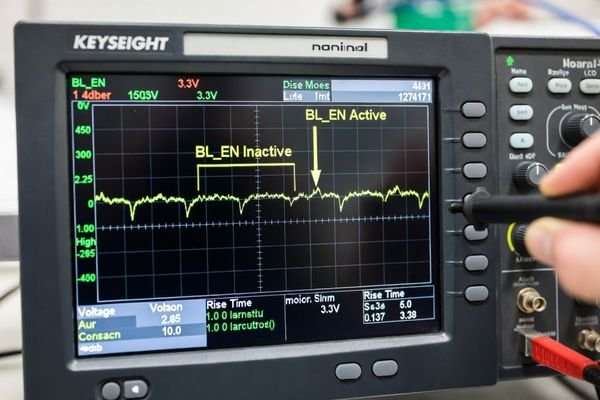

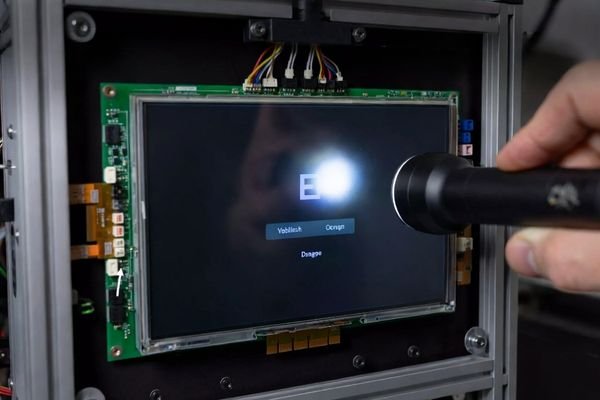

A quick field-oriented differentiator is to determine whether the image is truly absent or simply unlit. Shining a bright flashlight at an angle can sometimes reveal a faint image: if so, the LCD data path is likely working and the backlight path (power and/or enable logic) is the real problem.

It also helps to separate roles early: BL_EN controls backlight on/off, while PWM (or another dimming input) controls brightness level². Confusing these two can lead to misdiagnosis—especially when the backlight is “on” but appears unstable due to dimming behavior rather than enable logic.

Which BL_EN logic parameters must match between host and module?

Ensuring BL_EN compatibility goes beyond simply connecting a GPIO from the host to the BL_EN pin on the module. Several electrical and timing parameters must align.

To ensure BL_EN compatibility, you must match the active state (high/low), voltage thresholds (e.g., 1.8 V vs. 3.3 V logic), drive type (push-pull vs. open-drain), default state during boot, and power-on sequencing requirements between the host controller and the display module.

Active State (Active-High vs. Active-Low)

Confirm whether the module enables backlight when BL_EN is high or low, then verify the host’s default boot state doesn’t accidentally assert it. Next, confirm the voltage thresholds: the host “on” level must exceed VIH with margin and the “off” level must stay below VIL, especially under noise or droop. Finally, ensure the drive type matches expectations (push-pull vs. open-drain) and that BL_EN never floats at reset.

Timing and Sequencing

Treat BL_EN as part of the power sequence³, not just a GPIO toggle. Many drivers require BL_EN to remain inactive until the backlight rail is stable, and sometimes until panel bias rails are valid, to avoid inrush, flicker, or resets. Verify BL_EN’s assertion timing during cold boot and reset, and ensure it never glitches during firmware handover. A correct sequence prevents boot flashes and keeps illumination stable when the system experiences brownouts or load steps.

What symptoms indicate BL_EN logic incompatibility (not a panel timing problem)?

A key skill in display debugging is separating “backlight problems” from “panel timing problems.” BL_EN incompatibility mostly affects illumination behavior, not geometry.

BL_EN incompatibility symptoms typically involve the light source, not the image content. Common signs include a completely dark screen with a faint image visible under a flashlight, brief backlight flashes during boot/reset, or backlight flicker/pulsing that correlates with power events. Image geometry usually remains correct.

Use the table below as a quick triage tool:

Symptom	Likely Cause	Why It Points to BL_EN
Completely Dark Screen	BL_EN active state mismatch or BL_EN never reaches the required level	The LCD may be updating (faint image), but the backlight is not being enabled correctly.
Backlight Flashes on Boot	BL_EN floating/glitching during reset, or sequencing asserted too early	BL_EN briefly enters an active state before firmware sets the intended default and sequence.
Backlight Flickers or Pulses4	BL_EN voltage margin issue or threshold crossing due to droop/noise	Noise/droop repeatedly crosses the enable threshold, making backlight appear to “breathe.”
Screen is Scrambled or Tearing	Panel timing/data issue	HSYNC/VSYNC/PCLK/data problems affect content geometry, not just illumination.

A fast system-level cross-check is to confirm the device is otherwise alive (sounds, touch events, debug logs, UI state changes) while the screen remains dark or unstable. If so, prioritize BL_EN logic, thresholds, and sequencing before spending time on pixel timing.

How do you test and verify BL_EN logic during bring-up?

Verifying BL_EN logic should be a methodical process: align requirements to documentation, then prove behavior with measurements at the module input across real scenarios.

To verify BL_EN logic, measure the waveform at the module connector during boot, reset, and normal operation. Confirm active level, voltage margins, and sequencing match the module requirements—with no floating states or unintended glitches.

Here is a practical four-step validation flow:

1. Datasheet alignment: Identify the module’s BL_EN active state, VIH/VIL thresholds, drive expectations (push-pull/open-drain), and sequencing constraints relative to backlight power rails.

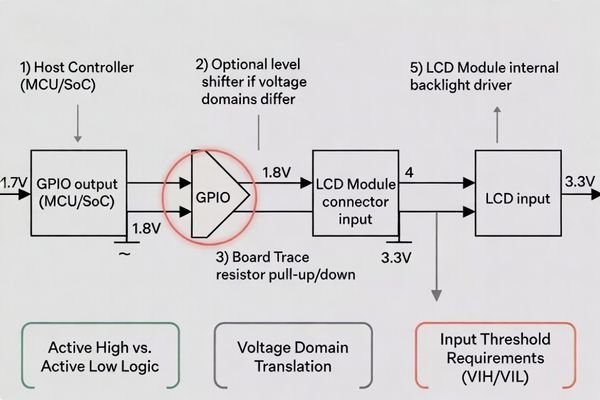

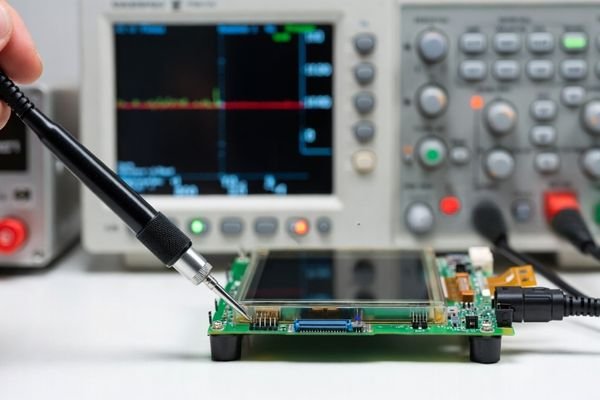

2. Instrumented measurement at the module connector: Probe BL_EN at the module’s connector (not only at the MCU pin). Capture cold boot and reset waveforms and verify:
   • The “on” level exceeds VIH with margin.
   • The “off” level stays below VIL.
   • BL_EN does not float or glitch during reset/boot transitions.
   • BL_EN asserts only after the relevant rails are stable.
3. Forced state test (controlled and within limits): As a diagnostic, you can pull BL_EN to its expected active state using a controlled method (for example, a known resistor network or fixture) while staying within the module’s input voltage limits and using current limiting. If the backlight becomes stable immediately, that is strong evidence the host drive, default state, or sequencing is the issue—not the backlight hardware itself.
4. Stress testing across corners: Validate BL_EN margin across temperature and supply variation (brownouts, low-voltage conditions, and load steps). Threshold-related issues often appear only when margins shrink in real conditions.

What design rules prevent BL_EN compatibility issues in production systems?

The best way to handle BL_EN problems is to design them out early. Production robustness depends on deterministic defaults, clean routing, and controlled sequencing.

To prevent BL_EN issues, ensure BL_EN has a defined state at all times, respect voltage domains with proper level shifting, and enforce a clean power-on sequence where BL_EN asserts only after rails are stable. Include reset/brownout behavior in regression and manufacturing checks so enable behavior cannot drift across releases.

Here are practical design rules:

• Rule #1: No floating pins. BL_EN must never float—especially during boot/reset. Use a pull-up or pull-down so the default is a known inactive state until firmware intentionally enables backlight.
• Rule #2: Respect voltage domains⁵. If the host GPIO domain does not meet BL_EN VIH/VIL requirements, use proper level shifting. Do not rely on “it works on the bench.”
• Rule #3: Enforce sequencing. Use PMIC control, enable logic, or delay elements so BL_EN asserts only after the backlight rail (and any required bias rails) is stable, preventing inrush-related flashes and droops.
• Rule #4: Clean routing. Route BL_EN away from noisy switching nodes and high-current paths. Keep a solid ground reference to reduce EMI coupling that can create threshold crossings.
• Rule #5: Make enable ownership explicit. Define a single, authoritative control point for BL_EN (avoid multiple gates or mixed hardware/software ownership). If BL_EN is tied to a rail for automatic behavior, ensure the default and timing remain controlled and documented.

For production readiness, include BL_EN waveform checks (boot, reset, brownout scripts) in validation plans, and keep BL_EN timing behavior under version-controlled firmware and configuration baselines so enable behavior cannot change silently across releases.

FAQ

Is BL_EN the same as PWM dimming control?
No. BL_EN typically turns the backlight on/off, while PWM (or another dimming input) controls brightness level. Some systems gate PWM with BL_EN, but they serve different purposes.

What if the backlight flashes briefly on boot?
That often indicates BL_EN is floating or toggling during reset, or sequencing is wrong relative to the backlight power rail. Add a defined pull state and verify the boot waveform at the module input.

Can BL_EN be 1.8 V from the host and still work?
Only if the module’s BL_EN input threshold supports it, or if level shifting is used. Always validate with measurements at the module connector.

Why does the backlight pulse when other peripherals switch on?
Noise or droop may be crossing the BL_EN threshold, or the enable is coupled through grounding/EMI paths. Improve power integrity and ensure BL_EN has strong margin and clean routing.

Should BL_EN be asserted before or after the LCD data interface starts?
Typically after rails are stable; whether before or after pixel data starts depends on system UX and driver requirements. The key is to avoid unintended flashes and ensure stable brightness behavior.

What’s the quickest proof that BL_EN logic is the culprit?
Measure BL_EN at the module input during boot/reset and correlate it with backlight behavior; if forcing the expected active state makes the backlight stable, logic compatibility is likely the issue.

Conclusion

BL_EN logic compatibility is a simple but critical aspect of LCD display module integration that is often overlooked. Many hours are spent debugging timing when the real issue is a mismatch in the backlight enable signal’s active level, voltage threshold margin, default state, or power-on sequence. A display that appears “dead” may simply be unlit: the image path can be fine while BL_EN is inverted, under-driven, floating, or mistimed.

At LCD Module Pro, we encourage teams to validate BL_EN with the same rigor as any other interface signal: align to requirements, measure at the module connector across boot/reset/brownout scenarios, and lock production design rules that keep enable behavior deterministic. Getting BL_EN right ensures predictable, stable backlight behavior, reduces bring-up surprises, and lowers field failure risk.
