How do you validate PWM frequency to avoid camera banding on an LCD display module?

One of the most common field complaints for modern HMI, kiosk, and self-service devices is that the built-in LCD display module looks fine to the human eye but shows distracting dark bands when viewed through a smartphone camera. This issue, known as camera banding, can ruin the user experience and create a perception of poor quality—especially at low brightness.

Validating PWM frequency to avoid camera banding requires a repeatable camera test across multiple brightness levels, plus electrical verification of the LED current waveform (effective modulation frequency, duty behavior, and burst modes). The goal is to lock a camera-safe dimming strategy that stays stable across devices, temperatures, and future firmware changes.

In LCD Module Pro customer integrations, teams sometimes treat backlight brightness as a simple setting. In reality, PWM dimming¹ is a time-domain modulation that can be invisible to humans yet obvious to cameras. Diagnosing banding is not about picking a larger frequency number from a datasheet. It is a system validation task that links three things: (1) what the backlight driver does to LED current, (2) how the host generates the dimming control, and (3) how real cameras capture frames.

A PWM setup that passes one phone can still band on another because rolling shutter speed, frame rate, and exposure algorithms vary. The sections below provide a practical workflow to make results repeatable, explainable by measurements, and robust for production.

Why does PWM backlight dimming create camera banding in the first place?

To solve banding, it is essential to first understand the mechanism. The issue is a timing conflict between how the display emits light and how the camera samples it.

Camera banding occurs when a rolling-shutter camera captures different sensor rows during different phases of the backlight’s PWM cycle. Some rows are exposed while the backlight is “on,” others while it is “off,” creating visible bright/dark bands even though the display looks stable to the human eye.

This is a classic sampling artifact. Most phone cameras use rolling shutter: the sensor is exposed and read out line-by-line, not all at once.

The Rolling Shutter vs. PWM Collision

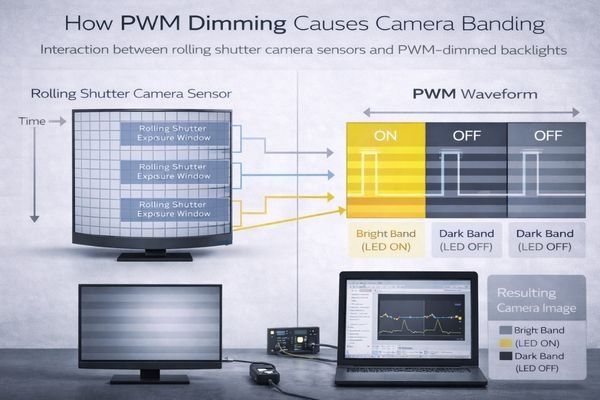

While the sensor scans from top to bottom, the backlight current is being chopped by PWM². If the “off” time is long enough relative to the sensor’s scan timing, some rows will be captured darker than others. When the image is assembled, those differences show up as horizontal bands. The effect can appear or disappear depending on shutter speed, frame rate, and even anti-flicker settings.

Why It’s a System-Level Problem

Banding severity depends on both sides of the interaction. On the display side: effective LED current modulation frequency, duty cycle at low brightness, waveform shape, and any gating/burst behavior. On the camera side: rolling shutter behavior, exposure time, frame rate, and processing. Because camera behavior varies widely across devices, “camera-safe” dimming must be validated across representative cameras, not assumed.

Which PWM parameters actually matter when you’re trying to eliminate banding?

While PWM frequency gets the most attention, it is only one piece of the puzzle. The correct focus is what the LED current is doing over time.

The most critical parameter is the effective modulation at the LED current, not just the MCU’s PWM pin frequency. Duty-cycle range, low-brightness behavior (including burst modes), and waveform shape (ripple, peaky current, slow edges) often determine whether cameras resolve the “off” periods into visible bands.

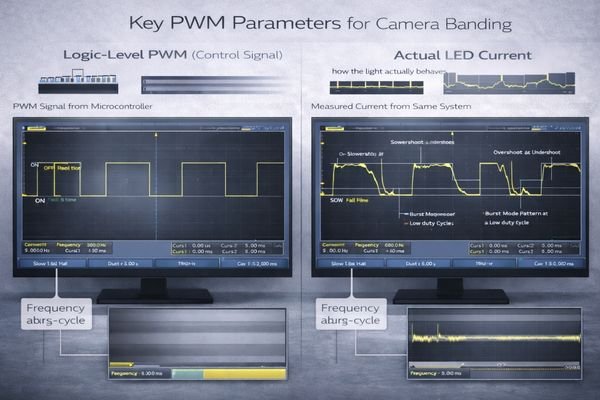

A clean logic PWM signal does not guarantee clean emitted-light modulation. Backlight drivers can filter, reshape, re-chop, or switch operating modes at low brightness. Key parameters to investigate include:

• Effective Frequency: The actual chopping seen in LED current (the light source), which may differ from the control signal.
• Duty Cycle Behavior³: Very low duty cycles create long “off” windows that cameras can resolve easily.
• Waveform Shape: Ripple, overshoot, or slow rise/fall can introduce additional flicker energy.
• Burst Modes: Drivers may output packets of pulses separated by longer gaps at low brightness—often the most common cause of severe banding.

A fast “don’t misdiagnose” check: use a uniform gray or white test screen. Patterns, reflections, or moiré can mimic banding and should be ruled out before tuning PWM.

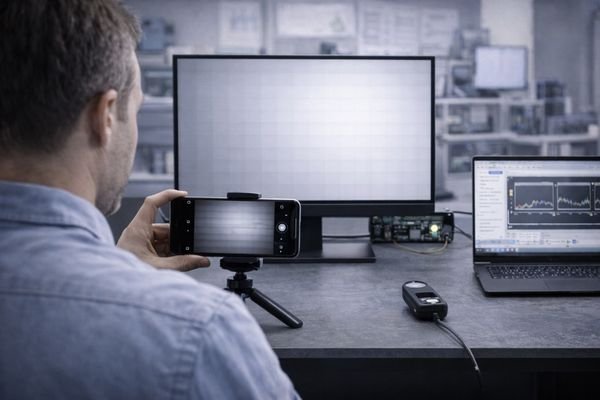

How do you set up a repeatable camera-banding validation test?

A subjective “it looks okay” test is not sufficient. To compare results across settings and devices, you need a controlled, repeatable procedure.

Make the test repeatable by fixing brightness states, locking camera exposure parameters where possible, and controlling distance/angle/framing. Include low-brightness points, capture both video and stills, and use more than one representative camera so the chosen PWM strategy is robust across real user devices.

The goal is to change only one variable at a time (the PWM strategy) and prevent auto-exposure from hiding or reshaping the problem.

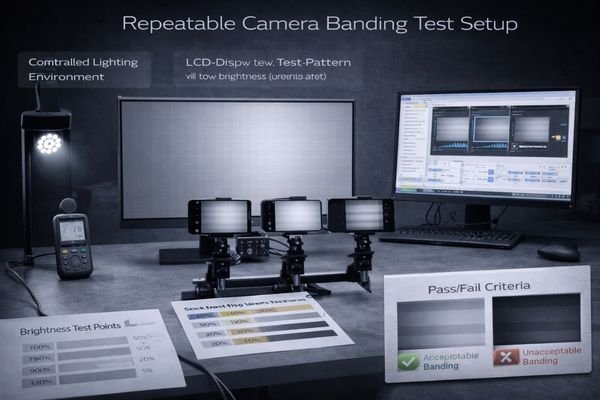

Test Parameter	Controlled Setting	Rationale
Display State	Test fixed brightness levels (include low levels).	Banding is often worst at low brightness where “off” time grows and burst modes appear.
Camera Selection	Use at least two common smartphone models; include built-in camera if relevant.	Rolling shutter and processing vary widely between devices.
Camera Settings	Use a manual camera mode4 to lock shutter/ISO/frame rate; run baseline with anti-flicker off, then repeat with it on.	Prevents camera automation from masking or shifting banding.
Physical Geometry	Fix distance and angle; keep display fill consistent in frame.	Keeps rolling shutter interaction comparable between runs.
Capture Method	Record short video clips and take stills.	Video reveals time-varying banding; stills can capture worst-case shutter interactions.

Define a simple pass/fail rule before testing (for example, “no visible bands at required brightness levels on representative cameras”) and keep evidence (clips + settings) so results can be reproduced later.

What measurements confirm the real PWM behavior at the LED current?

Camera tests tell you whether banding exists. Electrical measurements explain why and reveal which knob will actually fix it.

Measure the LED string current waveform (or the driver’s sense node) with adequate bandwidth to capture PWM chopping, ripple, and burst behavior. Confirm effective frequency, duty behavior at low brightness, peak/ripple characteristics, and transient behavior during brightness changes—then correlate these findings with camera results.

The most useful measurements are taken where light is generated, not only where the control signal toggles.

Capturing the LED Current Waveform

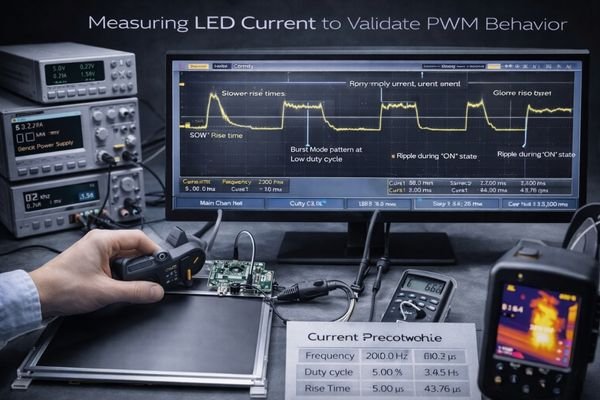

Use a current probe or measure across the driver’s sense resistor to observe real modulation. Verify effective frequency and duty behavior, and specifically look for burst patterns or long “off” gaps at low brightness. If the driver reshapes PWM internally, this is where it becomes visible.

Analyzing Transients⁵

Banding often gets worse during brightness ramps or step changes, especially if the driver changes operating mode or applies soft-start behavior. Capture current during brightness transitions and align timestamps with video frames when banding appears. This correlation turns a subjective camera complaint into an actionable root cause (for example, “banding appears only below X% because burst mode starts”).

If you need support interpreting current waveforms or mapping them to camera behavior, LCD Module Pro can help define a targeted validation plan and acceptance criteria.

What LCD module and integration choices reduce camera banding risk long-term?

Solving banding on a single prototype is not enough. Long-term success requires stable dimming behavior across brightness range, temperature, and platform revisions.

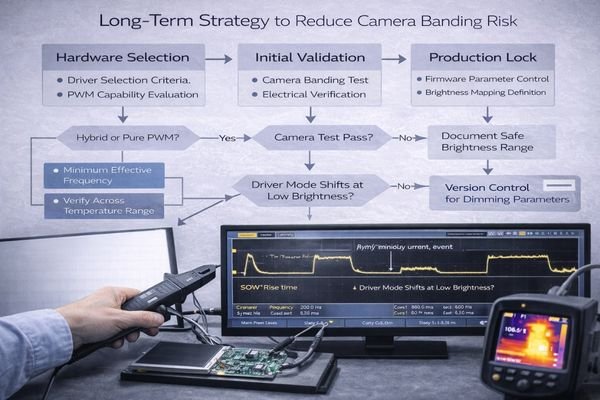

Reduce long-term banding risk by using backlight drivers that maintain stable, high effective modulation (or hybrid dimming) and by defining a verified camera-safe brightness range and ramp policy. Lock these settings in production firmware and include camera regression checks so updates can’t reintroduce low-frequency or bursty behavior.

A robust strategy covers hardware capability, software control, and ongoing validation.

Hardware and Integration Choices

Prefer driver and integration approaches that avoid bursty low-brightness behavior and support higher effective dimming frequencies. Hybrid dimming⁶ can reduce extreme low duty cycles by using analog control at low brightness and PWM higher up. Ensure the host generates deterministic PWM (correct polarity, stable frequency) and does not boot into unintended low-frequency states during early startup.

Software and Configuration Control

Once a camera-safe operating window is identified, treat it as a controlled configuration item: lock frequency, polarity, brightness mapping, and ramp behavior in production. Add camera-based regression tests (at least representative devices and low-brightness points) so firmware updates cannot silently revert to a banding-prone default.

FAQ

Is increasing PWM frequency always enough to eliminate banding?
Not always. If the LED current enters burst modes at low brightness or the driver reshapes the waveform, banding can persist even with a higher control-pin frequency.

Why does banding get worse at low brightness?
Low duty cycles create longer “off” times and can trigger driver burst behavior, making modulation easier for cameras to resolve.

Do different phones show different banding on the same display?
Yes. Rolling shutter speed, frame rate, and exposure algorithms vary widely, so validation should include representative camera types.

Should I validate still photos or video?
Both. Video reveals rolling artifacts over time, while stills can capture worst-case banding at certain shutter settings.

Where should I measure to understand the true modulation?
At the LED string current or the driver sense node, because logic PWM pins don’t always reflect emitted-light modulation.

When is customization preferable for camera-facing products?
When low-brightness banding, strict camera requirements, or tight thermal limits exist, tailoring driver settings and dimming strategy can reduce risk.

Conclusion

Avoiding camera banding requires treating the backlight as a time-domain light source, not a simple brightness number. The most effective workflow is: run repeatable camera tests across brightness levels, measure the real LED current waveform to confirm effective modulation and identify burst behavior, then lock a camera-safe dimming strategy that survives production and firmware updates.

At LCD Module Pro, we support camera-facing applications by helping teams validate PWM behavior at both the camera and electrical levels, define acceptance criteria, and prevent regressions so LCD display modules look clean to humans and to cameras in real deployments.
