What is color depth (8-bit/10-bit) in an LCD module?

When specifying an LCD module for an industrial or embedded device, engineers often focus on core metrics such as resolution, brightness, and interface type. However, color depth—commonly listed as 8-bit or 10-bit—is another critical parameter because it directly influences how accurately the module reproduces color, gradients, and subtle visual details.

Color depth, or bit depth, defines how many distinct shades each color channel (red, green, and blue) can reproduce in an LCD module. An 8-bit panel can display over 16 million colors, while a 10-bit panel can display over 1 billion colors, enabling smoother gradients and more accurate tonal transitions.

Based on my engineering experience with LCD integration, choosing the right color depth is not about pursuing the highest specification by default. It is about matching the display capability to the actual visual demands of the application. In an industrial control interface, for example, a subtle change between two warning colors may represent different operating states. If the LCD module cannot reproduce those differences clearly, the interface may become less reliable for the operator.

Understanding the technical difference between 8-bit and 10-bit displays¹, and knowing when that difference has practical value, is essential for selecting an LCD module that is both cost-effective and functionally reliable. A proper choice helps ensure the final device delivers a clear, accurate, and trustworthy user interface.

Understanding Color Depth in LCD Modules

At its most basic level, color depth describes how much digital information is used to represent the color of a single pixel. It defines the fineness of color variation the display can achieve across the screen.

Color depth specifies the number of bits assigned to each of the three primary color channels: red, green, and blue. A higher bit depth provides more shades per channel, which increases the total number of displayable colors and improves the smoothness of tonal transitions.

When I review display issues in field applications, one recurring complaint is color banding. Instead of showing a smooth gradient, the LCD module displays visible steps between shades. In many cases, this is a direct result of limited color depth relative to the visual content being shown.

From Shades to Total Colors

The total number of colors a display can reproduce is calculated from the number of shades available in each of the three RGB channels.

• 8-bit Color: Each channel has 2^8 = 256 possible shades. The total number of colors is 256 × 256 × 256 = 16,777,216, commonly described as 16.7 million colors.
• 10-bit Color²: Each channel has 2^10 = 1024 possible shades. The total number of colors is 1024 × 1024 × 1024 = 1,073,741,824, which is over 1 billion colors.

Impact on Visual Fidelity

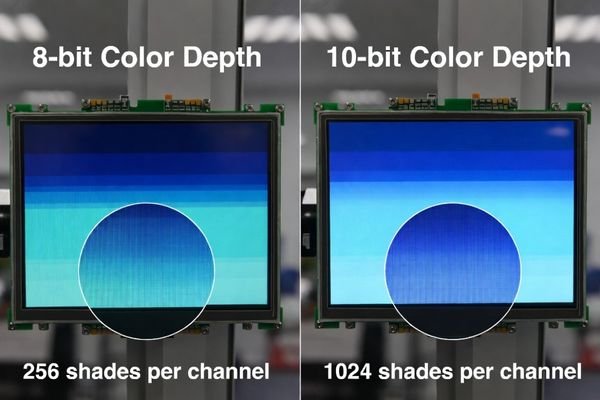

Although 16.7 million colors sounds sufficient for many uses, the limitation becomes more visible when the interface includes subtle and continuous color transitions, such as sky-like gradients, heat maps, shaded UI elements, or soft shadows. An 8-bit panel must map the signal to one of its 256 available shades per channel, which can create visible stepping. A 10-bit panel provides much finer tonal granularity, so those transitions appear significantly smoother.

The Technical Basis of 8-bit vs 10-bit LCD Panels

The difference between an 8-bit and a 10-bit panel is not simply a software preference. It is tied to the hardware capability of the LCD panel, the driver IC, and the signal chain feeding the module.

A higher bit depth requires the display driver to generate more precise and stable voltage levels so the liquid crystals can reproduce finer shade differences. Many 10-bit capable displays also use Frame Rate Control (FRC) on an 8-bit panel to simulate additional intermediate shades.

In practical LCD module integration, it is important to distinguish between true 10-bit panels and 8-bit + FRC solutions. A true 10-bit panel uses hardware that can drive 1024 discrete levels per sub-pixel, which typically increases design complexity and cost.

A more common engineering solution is [8-bit + FRC](https://linustechtips.com/topic/980150-8-bit-vs-8-bit-frc/)[^3]. In this method, the panel rapidly alternates between two adjacent shades so the human eye perceives an intermediate value. For example, to simulate a level between shade 120 and shade 121, the driver switches between those two values at high speed. This approach is effective and widely used in professional display systems, but it can introduce subtle dithering artifacts in specific patterns or highly sensitive visual applications.

For projects where gradient smoothness or color differentiation is especially important, understanding whether the module is native 10-bit or 8-bit + FRC helps reduce integration risk and avoids mismatched expectations during validation.

Why Color Depth Matters in Industrial and Embedded Applications

In industrial and embedded systems, color depth is not only a visual specification. It can directly affect how clearly information is communicated to the user.

In industrial applications, appropriate color depth is important for the accurate display of gradients, status indicators, process charts, and heat maps. If bit depth is too limited, similar shades may merge together or visible banding may appear, increasing the risk of user misinterpretation.

In many professional environments, color is used as data rather than decoration. A slight color shift in a monitoring graph, a gradual change in a thermal map, or a soft transition in a status interface may represent meaningful system information. If the LCD module cannot reproduce that difference faithfully, the operator may lose visual clarity at exactly the point where precision matters.

Application / Scenario	Why High Color Depth3 Matters	Potential Risk of Low Color Depth

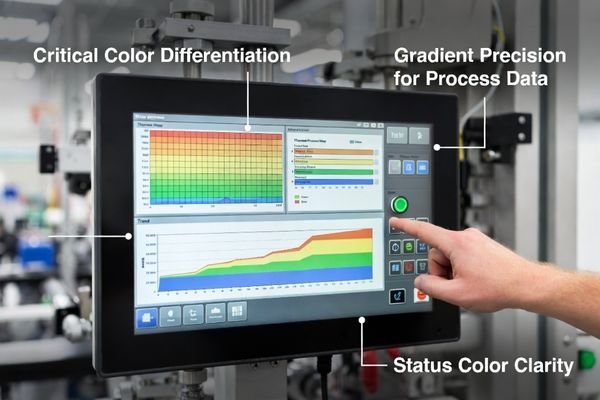

Industrial HMI	Clear visualization of process data, status indicators, and alerts.	Color banding on gradients; similar warning shades may be difficult to distinguish.
Instrumentation Displays	Accurate presentation of charts, waveform transitions, and color-coded data.	Loss of subtle tonal detail, reducing the clarity of visual data interpretation.
Digital Signage / Kiosks	Smooth gradients in UI design, backgrounds, and brand visuals.	Visible banding in images or interface elements, lowering perceived display quality.
Automotive Dashboards	Distinct warnings, navigation gradients, and system status visibility.	Critical visual cues may appear coarse or insufficiently differentiated.

Selecting the right color depth helps ensure that what appears on the screen remains a reliable visual extension of the system logic behind it. This is especially important in industrial display solutions where visual accuracy supports user confidence and operating efficiency.

Factors Affecting Perceived Color Quality Beyond Bit Depth

Bit depth is an important specification, but it is only one part of the overall display result. A 10-bit LCD module will not automatically deliver superior visual quality if other parts of the display system are poorly designed or mismatched.

Perceived color quality depends on the complete display system, including panel technology, viewing angle behavior, backlight uniformity, and optical stack design. Bit depth alone does not guarantee better real-world color performance.

From an engineering perspective, the final visual result should always be evaluated as a system rather than as a single parameter. In many OEM projects, panel behavior, backlight performance, and optical treatment all influence whether the color performance actually meets expectations.

Panel Technology⁴ and Viewing Angle

Panel technology has a major impact on perceived color stability. IPS panels are often preferred in industrial LCD module designs because they provide wide viewing angles and more stable color performance when viewed from different positions. In control terminals, kiosks, and embedded systems, users do not always look at the screen straight on. A panel with poor off-axis behavior can shift color noticeably even if the nominal bit depth is high.

Backlight and Optical Stack

Backlight quality also plays a major role. If the backlight is not uniform, colors may appear uneven across the display area, which reduces the practical benefit of higher color depth. In addition, the optical stack—including the cover glass, surface treatment, and optical bonding layer—affects contrast, reflection, and perceived saturation. A well-designed optical structure can improve readability and color fidelity, especially in bright ambient environments.

Choosing the Right Color Depth for Your LCD Module

Choosing between an 8-bit and a 10-bit LCD module should be based on application requirements, interface capability, visual expectations, and overall system constraints.

A 10-bit color depth module is generally the better choice when smooth gradients, precise color differentiation, or advanced visual content are important. For many standard industrial interfaces, embedded control panels, and cost-sensitive projects, an 8-bit LCD module can still provide excellent practical performance.

When I help customers evaluate this choice, I usually focus on a few practical engineering questions rather than specification numbers alone.

Analyze the UI Content

Start with the interface itself. If the device uses fine gradients, layered graphical effects, soft shadows, thermal maps, or visually rich branding, a 10-bit panel or 8-bit + FRC solution is often the safer option. If the interface mainly consists of solid colors, icons, text, and simple control elements, an 8-bit panel is often fully adequate and more economical.

Consider the System Capabilities

The entire signal chain must also be considered. Your host processor, graphics controller, timing configuration, and display interface—such as LVDS, eDP, or MIPI DSI—must all support the intended bit depth. A 10-bit panel cannot deliver meaningful benefit if the upstream system only outputs 8-bit data. It is also good engineering practice to verify gamma behavior, timing compatibility, and bandwidth margin during integration, especially in custom LCD module projects.

FAQ

What is the difference in color representation between 8-bit and 10-bit LCD modules?
8-bit panels display 256 shades per color channel, producing about 16.7 million colors, whereas 10-bit panels support 1024 shades per channel, resulting in over 1 billion colors.

Can FRC improve 8-bit panels to simulate 10-bit color?
Yes. Frame Rate Control (FRC) is a common technique that allows an 8-bit panel to simulate 10-bit color depth by rapidly alternating between adjacent shades, although minor visual artifacts can appear in certain conditions.

How does color depth affect industrial applications?
Higher color depth improves the rendering of gradients, status indicators, and color-coded visual data. This is especially useful in industrial HMIs, automotive dashboards, instrumentation terminals, and other embedded systems where color conveys operational meaning.

Is 10-bit always necessary?
No. For interfaces built around simple graphics, high-contrast text, and standard color blocks, an 8-bit panel is often sufficient and may offer a better balance of cost and performance.

Does higher bit depth increase power consumption?
Slightly. A higher bit depth can require more precise processing and drive control, but in most LCD modules the power impact is relatively small compared with the backlight system.

Conclusion

Color depth is a fundamental specification that shapes how accurately an LCD module reproduces gradients, tonal transitions, and color-coded visual information. The choice between an 8-bit and a 10-bit panel is not only about image quality, but also about how reliably the display communicates information in an industrial or embedded environment.

At MEIDAYINGNUO, I recommend evaluating color depth together with panel technology, viewing angle stability, backlight quality, interface compatibility, and optical design. A system-level selection process is the most reliable way to achieve a display solution that is both visually effective and integration-friendly. A thoughtful selection helps ensure the LCD module delivers clear, stable, and trustworthy visual performance throughout the product lifecycle.
