What is ΔE in an LCD module? What does it affect?

When integrating an LCD display module, engineers usually focus first on resolution, brightness, and interface type. Those are important, but they do not tell the whole story. When color accuracy matters, ΔE becomes one of the most useful parameters in the entire display evaluation process because it directly reflects how closely the module reproduces the intended color.

ΔE (Delta E) is a standard metric used to quantify the visible difference between a target color and the actual color reproduced by an LCD module. In general, a lower ΔE value means better color accuracy and smaller visible color deviation.

In LCD module projects, I often find that ΔE¹ is treated as a simple specification line on a datasheet, when in fact it has a direct impact on the real user experience. It affects whether interface colors remain consistent, whether warning colors are clearly differentiated, whether brand colors look correct, and whether products from different batches still feel visually uniform in the field.

That is why ΔE matters in practical engineering. It helps connect design intent to what the user actually sees on the screen. A well-controlled ΔE supports color consistency, clearer interfaces, and more reliable visual communication. For industrial and embedded products, that is not a cosmetic detail. It is part of making the display trustworthy in actual use.

What Does ΔE Mean in an LCD Module?

In simple terms, ΔE answers a practical question: how close is the displayed color to the reference color it is supposed to match?

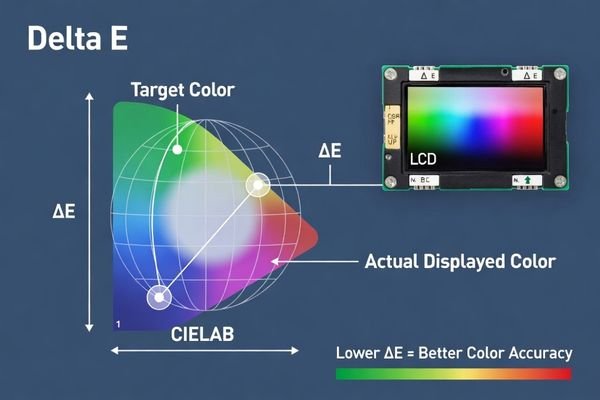

ΔE represents the measurable distance between two colors in a perceptual color space. For an LCD module, it describes the difference between a reference target color and the color actually reproduced by the display, with lower values indicating smaller and less noticeable color error.

When I check color-related issues in an LCD module, ΔE is usually the first objective metric I look at. It gives a measurable way to evaluate color performance instead of relying on subjective comments such as “too warm,” “too dull,” or “slightly off.”

Quantifying Perceptible Color Difference

The human eye does not perceive every color shift in the same way. Some differences are obvious, while others are difficult to notice even when they are measurable. That is why ΔE is based on color-space calculations designed to better reflect perceived visual difference.

In practical display evaluation, lower ΔE values are generally associated with less noticeable color deviation. However, the acceptable ΔE level depends on the application, the reference standard, and the measurement method used. For an industrial controller, one threshold may be acceptable. For a product with strong brand color requirements or visually sensitive UI design, the tolerance may need to be tighter.

A Standard for Color Fidelity

For product developers and OEMs, ΔE is also a useful quality-control target. It creates a measurable standard for color fidelity² across samples, batches, and production lots. Without that kind of target, color consistency can drift over time, which leads to products that look different from one shipment to the next.

A defined ΔE requirement makes color performance easier to verify, communicate, and control. This matters not only for appearance, but also for display consistency, user trust, and the professional feel of the final product.

How Is ΔE Measured and Interpreted?

ΔE is not an estimated value. It must be measured with dedicated instruments under controlled conditions, and the result only makes sense when the test method is clearly defined.

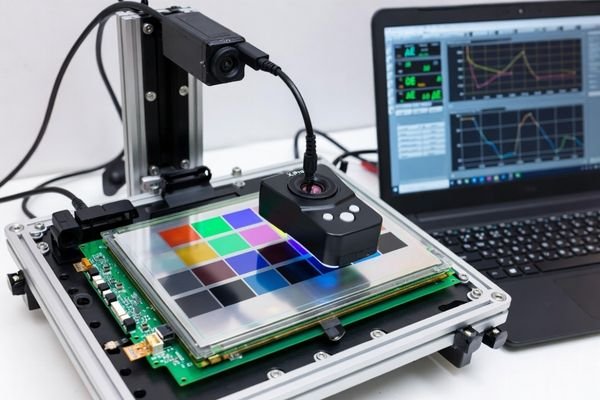

ΔE is typically measured by using a colorimeter or spectroradiometer to read a series of color patches displayed on the LCD module. The measured values are then compared with the reference values of a target color space, such as sRGB, to calculate the color difference for each patch.

From an engineering standpoint, I never look at a ΔE number by itself. The first thing I want to know is how it was measured. Was the value taken at the center of the panel only, or averaged across multiple points? What brightness setting was used? Was the module fully warmed up before testing? Which white point, gamma target, and reference color space were used? All of these details affect the final result.

It is also important to remember that the reported ΔE can vary depending on the calculation model used. Different formulas and evaluation methods may produce different values even for the same display sample. That is why supplier data should always be read together with the test standard and measurement context.

Interpretation also depends on the application. A very low ΔE may be valuable for products that depend on strict color matching³, but it may not be necessary for every embedded display. On the other hand, if the display is used for brand-sensitive graphics, color-coded status information, or visually dense interfaces, poor ΔE performance can quickly become a real problem. The useful question is not whether a number looks impressive on paper, but whether it meets the needs of the actual product.

What Does ΔE Affect in Real LCD Module Applications?

The effect of ΔE goes well beyond appearance. In many real products, it directly influences how clearly the display communicates information and how consistent the product feels from a customer’s point of view.

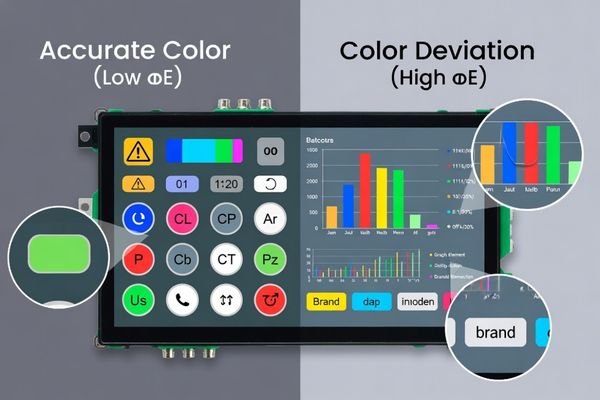

In real LCD module applications, ΔE affects color consistency, interface clarity, brand color reproduction, and the reliability of color-based visual information. Poor ΔE control can make colors look inconsistent, reduce distinction between UI elements, and weaken confidence in the display.

In OEM projects, the consequences of poor color accuracy⁴ are usually easy to see. A product may function correctly, but if the colors are unstable or obviously incorrect, users often perceive the display as lower quality. In some cases, color errors also make the interface harder to read or less reliable in daily operation.

Application Area	Impact of High ΔE (Poor Color Accuracy)	Why It Matters
Industrial HMI / Control Panels	Status indicators such as green, yellow, and red may appear inconsistent or too close to one another.	Can reduce operator clarity and slow response to important visual signals.
Instrumentation Displays	Charts, gradients, and color-coded data may lose visual accuracy.	Makes subtle data differences harder to interpret and lowers interface confidence.
Branded Commercial Devices	Logos, UI themes, and product visuals may not match intended brand colors.	Weakens brand consistency and can make the final product look less refined.
Retail / Self-Service Kiosks	Product images and promotional graphics may look unnatural or inconsistent.	Can reduce visual appeal and affect customer perception of quality.

In short, ΔE affects more than color science. It affects how dependable the display feels in real use. When color is part of how the product communicates status, identity, or information, controlling ΔE becomes part of the functional design process, not just an image-quality exercise.

Which Factors Influence ΔE Performance in an LCD Module?

The final ΔE result of an LCD module depends on the entire display system. It is not determined by a single part or a single parameter.

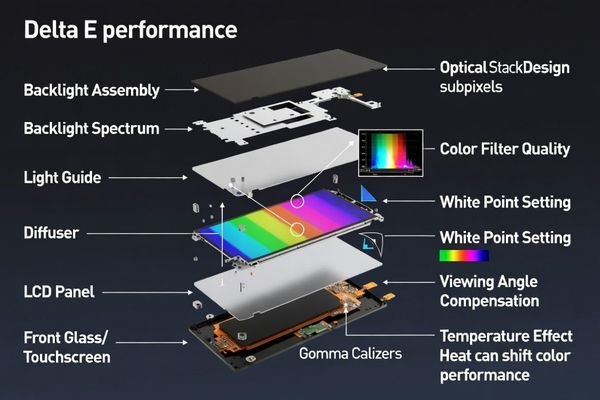

The ΔE performance of an LCD module is influenced by the panel’s color filter characteristics, the spectral quality of the backlight, factory gamma and white point calibration, viewing angle behavior, optical stack design, and operating conditions such as temperature.

When I evaluate display color performance, I look at the full chain. A strong panel alone is not enough. If the backlight spectrum is unstable, the calibration is weak, or the optical design changes the perceived color, the final ΔE can still be unsatisfactory.

Panel and Backlight Characteristics

The panel and backlight form the foundation of color accuracy. The panel’s color filters define the red, green, and blue characteristics that the module can reproduce, while the backlight spectrum determines how effectively those colors can be formed in practice.

If the backlight has weak spectral separation or poor consistency, it becomes harder for the module to reproduce target colors accurately. Variations in these underlying components can also create differences from batch to batch, which is why repeatability matters just as much as single-sample performance.

Calibration and System-Level Factors

Factory calibration⁵ has a major influence on ΔE because it determines how well the module is aligned to its intended white point, gamma behavior, and grayscale balance. Even a capable panel can produce mediocre color accuracy if calibration is inconsistent or incomplete.

System-level factors also matter. Viewing angle can change the apparent color of the module, especially in real products where users do not always look at the display straight on. Optical bonding layers, cover glass, and surface treatment can slightly affect the light path and perceived color. Temperature changes may also shift performance over time. That is why ΔE should be treated as a system validation issue rather than a single lab number.

How Should Engineers Evaluate ΔE When Selecting an LCD Module?

A useful ΔE evaluation starts with the application, not with the lowest number on a datasheet. Good engineering decisions come from matching the measurement approach to the product requirement.

Engineers should evaluate ΔE by first defining the application’s color accuracy target, the reference color space, and the required viewing conditions. Supplier data should then be reviewed carefully to confirm how the measurement was performed and whether the result is relevant to the final product.

When I help customers compare display options, I usually reduce the decision to four practical steps.

First, define the real requirement. Does the product need strict brand color matching? Does it rely on color-coded status logic? Is the display mostly text and simple icons, or does it use gradients, visual themes, and rich interface graphics? Without that context, a ΔE target has very little meaning.

Second, lock down the test condition. The target color space, white point, gamma, brightness, warm-up condition, and measurement position should all be clearly defined before comparing numbers. Otherwise, supplier data may look comparable when it really is not.

Third, review the supplier’s measurement method carefully. A center-point ΔE result may look very good, but it does not automatically tell you how the full screen behaves. In many projects, multi-point consistency⁶ matters just as much as the best-case number. Measurement transparency is important, especially when batch-to-batch consistency is a concern.

Finally, validate the sample in the real product context. A display that performs well in a test report still needs to be checked under actual integration conditions. Viewing direction, enclosure design, ambient light, and final UI content all influence whether the measured color accuracy translates into a good result in the finished device.

FAQ

What is a good ΔE value for an LCD module?
A good ΔE value depends on the application target. In general, a lower ΔE means better color accuracy, but the acceptable threshold should be defined according to the visual requirements, measurement method, and usage environment of the project.

Does a low ΔE mean the LCD module is always better?
Not always. A low ΔE is important for color accuracy, but it should be evaluated together with brightness, viewing angle, contrast, color gamut, and overall display stability to determine whether the module is suitable for the final product.

Can two LCD modules with the same panel size have different ΔE results?
Yes. Even when two modules share the same size, differences in panel design, backlight spectrum, calibration quality, optical structure, and production consistency can lead to very different ΔE performance.

Does ΔE affect industrial HMI readability?
Yes. If an interface uses similar colors for status indication, charts, or warning levels, poor ΔE control can reduce color distinction and make visual information less reliable for operators.

Is ΔE related to factory calibration?
Yes. Factory calibration directly affects ΔE because it influences white point alignment, gamma behavior, grayscale balance, and overall color consistency. Better calibration usually leads to more repeatable color performance.

Should ΔE be tested only at the center of the screen?
No. Center-point data is useful, but for engineering validation it is usually better to test multiple points across the display area because color uniformity also affects the real visual result.

Conclusion

ΔE is one of the most practical indicators of color accuracy in an LCD module because it turns color quality from a subjective impression into measurable engineering data. It affects how faithfully the module reproduces UI colors, warning signals, gradients, branded visuals, and other color-dependent content in real applications.

At MEIDAYINGNUO, I always recommend evaluating ΔE in context rather than treating it as an isolated number. The most reliable approach is to assess it together with panel behavior, backlight quality, calibration method, viewing conditions, and batch consistency. When that process is done properly, engineers can reduce color-related risk and select an LCD module that delivers stable, trustworthy, and application-relevant visual performance over time. If you need support with color validation for your next project, our team is ready to assist.
