What is polarity in an LCD module?

When bringing up a new LCD module, engineers often encounter frustrating issues like a shifted image, mysterious black bars, or edge flicker. While many teams rush to re-check timing parameters like pixel counts and blanking intervals, the root cause is often simpler and more fundamental: a mismatch in signal polarity. Understanding what polarity is—and how to configure it correctly—is a core skill for successful display integration.

In an LCD module interface, “polarity” is the agreement between the host controller and the display about which signal level (high or low) or edge (rising or falling) is considered “active.” Because polarity defines boundary recognition and data sampling, a mismatch typically causes stable, repeatable artifacts such as incorrect image placement or clean black bars.

Polarity issues¹ are a frequent source of “almost working” displays: the image can be sharp and stable, but shifted by a few pixels or bordered by a black bar. This happens because the module is receiving valid pixel data, yet it is capturing or framing that data at the wrong moment due to a disagreement about what constitutes an “active” timing boundary.

This is a logical configuration error, not automatically a signal integrity or hardware failure. The host may be sending signals according to one rulebook (for example, “a high level on a sync signal is active”), while the display module is decoding them using another (for example, “the active state is low” or “the boundary is recognized on the opposite edge”). Aligning these rulebooks is often the fastest path to resolving bring-up headaches.

What does “polarity” mean in LCD module interfaces?

In display interfaces, “polarity” is a precise engineering term, not a vague electrical concept. It is the contract that defines how timing and control signals are interpreted at the module.

Polarity in an LCD interface determines whether a signal is active when it is electrically high or low, and whether a timing event is recognized on a rising or falling edge. These definitions are foundational to how the module decodes boundaries and latches pixel data.

For clarity, polarity can be viewed in two complementary categories. Both must match between host and module for stable output.

Active level polarity (high vs. low)

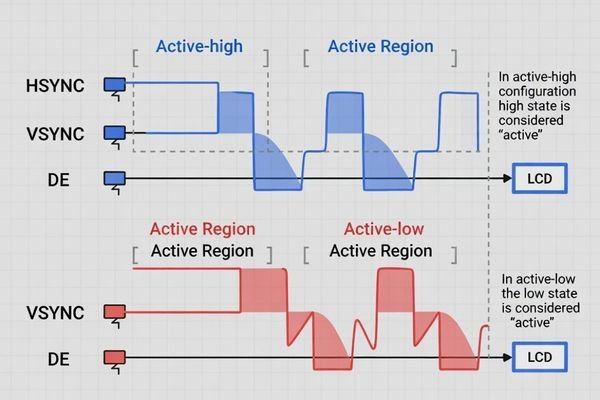

Active level polarity² defines which voltage level signifies an “asserted” state for a control signal. For example, HSYNC defines a line boundary event. If the module expects an active-low HSYNC, it will treat the low-going portion (or low level) as the meaningful state for line timing. If the host outputs an active-high definition instead, the module may recognize the wrong portion of the waveform as the boundary, resulting in repeatable placement errors such as a stable horizontal shift or boundary-related flicker.

Active edge polarity (rising vs. falling)

Active edge polarity most commonly applies to pixel data sampling relative to the pixel clock (PCLK). Pixel data is only guaranteed stable within a defined setup/hold window around the sampling edge. If the host presents data stable around the rising edge but the module samples on the falling edge (or vice versa), the module may latch data while it is transitioning. Depending on margin, this can show up as color errors, edge instability, or intermittent “sparkly” pixels.

Which signals have polarity settings, and what do they control?

Polarity settings are most critical for signals that define “boundaries” (line/frame) and “validity” (active pixel window), plus the clock edge that determines when data is captured.

Polarity settings most commonly apply to synchronization signals (HSYNC, VSYNC), the Data Enable (DE) signal, and the PCLK sampling edge. Together, these control line boundaries, frame boundaries, and when pixel data is considered valid and sampled.

These are the key signals to check during bring-up:

• HSYNC (Horizontal Sync) polarity³: Defines the line boundary convention the module uses. A mismatch often appears as stable horizontal misplacement or boundary-related instability.
• VSYNC (Vertical Sync) polarity: Defines the frame boundary convention. A mismatch can appear as stable vertical misplacement, incorrect top/bottom boundary behavior, or frame-aligned instability.
• DE (Data Enable) polarity: Marks when pixel data is valid. If DE polarity is wrong, the module can treat blanking as active video (or ignore valid pixels), causing black bars, clipping-like symptoms, or a severely incorrect active area.
• PCLK (Pixel Clock) sampling edge: Determines whether pixel data is sampled on the rising or falling edge. A mismatch violates setup/hold assumptions and may cause color errors, random-looking pixel artifacts, or edge shimmer, especially when margins are tight.

What symptoms suggest a polarity mismatch versus other timing errors?

A key skill in display debugging is learning to “read the screen.” Polarity mismatches tend to create deterministic artifacts because the module interprets the active moment incorrectly in the same way every frame.

Polarity mismatches typically cause stable, repeatable shifts, clean black bars, or boundary-tied flicker because boundary recognition or sampling is consistently wrong. This contrasts with timing count errors that cause wrapping/rolling or clipping patterns, and signal integrity issues that create random, intermittent pixel noise.

Use the table below as a quick triage tool:

Symptom Type	Typical Appearance	Likely Cause
Polarity Mismatch	Stable horizontal/vertical shift; a clean black bar on one side; boundary-related flicker. Image content is mostly correct but misplaced.	HSYNC/VSYNC/DE active level is wrong, and/or PCLK sampling edge is wrong.
Timing Parameter Error	Image wraps around; rolls vertically; parts of the image are clipped or repeated in a “canvas size” way.	Incorrect active pixel counts, porch values, or blanking intervals.
Signal Integrity Issue4	Random “sparkly” pixels; noise that changes with temperature, load, or cable movement; intermittent color corruption.	Grounding/power noise, overly long cabling, impedance mismatch, or marginal margins.

The key takeaway is consistency. If the artifact is exactly the same on every power cycle and does not drift, it is often configuration-related (including polarity). If it is random or varies with conditions, prioritize physical-layer checks.

How do you verify and correct polarity settings during bring-up?

Correcting a polarity issue should be an evidence-based process, not trial-and-error. The goal is to prove that the signals arriving at the module connector match the module’s timing requirements.

To verify polarity, configure the host based on the module’s timing definition, then measure HSYNC, VSYNC, DE, and PCLK at the module input. Confirm the active levels and sampling edges the module actually sees, and correlate boundary transitions to the first active pixels using deterministic test patterns.

Here is a practical approach:

Step 1: Configure and visually check with test patterns

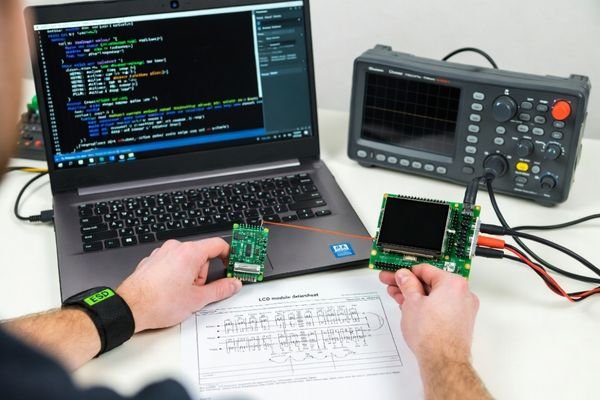

Start from the LCD module datasheet timing definition. Look for “active-high,” “active-low,” “rising edge,” and “falling edge” requirements, and configure the host controller accordingly. Display a deterministic pattern (a thin full border plus near-edge markers). If the border is intact but consistently shifted inward/outward or leaves a clean black bar, treat polarity/edge-reference as a prime suspect.

Step 2: Instrumented verification at the module connector

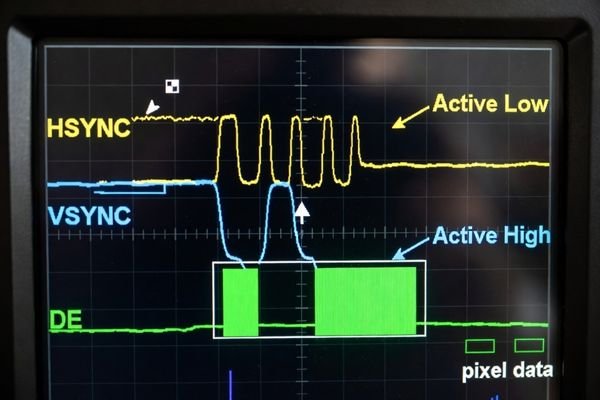

Never assume the host output equals what the module receives. Probe signals at the display’s FPC or cable connector with an oscilloscope or logic analyzer⁵. Trigger using a stable reference (often VSYNC, if present), then inspect HSYNC/DE behavior around the active region. Confirm the waveform’s active level matches the expected polarity and that pixel data is stable around the intended PCLK sampling edge while the active window is asserted. When iterating, change only one polarity-related setting at a time, and record its effect on the border/markers to avoid confusion.

What engineering practices reduce polarity-related integration risk?

The best way to handle polarity issues is to reduce the probability of mismatch and to make verification fast and repeatable. Treat polarity as a controlled system parameter, not a last-minute tweak.

To reduce polarity-related risks, lock polarity definitions early with measurable evidence, minimize elements that can invert or distort timing signals, and always verify timing at the module input—not only at the host output—especially after any system change.

Practical risk-reduction strategies include:

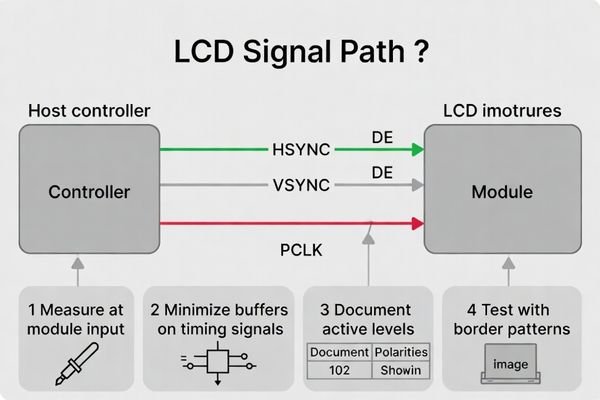

• Design a “polarity-safe” signal path: Minimize unnecessary buffers, conversions, or level shifting on timing signals. If they are required, document their behavior and confirm they do not invert or reshape edges unexpectedly.
• Use deterministic patterns consistently: A full border, corner markers, and single-pixel lines near edges make boundary issues obvious during bring-up and manufacturing.
• Version-control timing/polarity configuration: Treat display register settings like code. Store them with comments explaining the active levels and sampling choices, and keep them tied to validated hardware revisions.
• Verify at the destination: Make connector-level probing a standard step so you confirm what the module actually sees, including cable and board effects.
• Re-validate after changes: Any change to cabling, grounding, power, bridge configuration, firmware/driver updates, or board revision can shift margins and reintroduce polarity-related failures.

FAQ

Is polarity the same thing as “signal phase”?
Not exactly. Polarity usually refers to which level or edge is treated as active, while phase often describes relative timing shifts between signals. In practice they interact, especially around pixel clock sampling.

Can a polarity mismatch still show a mostly correct image?
Yes. If data is valid but boundaries are recognized on the wrong edge/level, the image can appear stable but shifted, clipped, or bordered by black bars rather than completely broken.

Which polarity setting should I check first when an image is shifted?
Start with boundary signals (line/frame recognition and data-enable definition), then confirm the pixel clock sampling edge, because these most directly affect where pixels land on the screen.

Can intermediate boards or bridges invert polarity without you noticing?
Yes. Some converters, level shifting stages, or board circuits can invert or reshape timing signals, so measure at the module input, not only at the controller output.

Does polarity matter for backlight control too?
It can. If a backlight enable or dimming control line is active-low but driven as active-high (or vice versa), brightness behavior may look unstable even if pixel timing is correct.

What’s the fastest way to validate a polarity fix?
Use a border test pattern and confirm stability across resets and a short power/temperature sweep, then verify boundary-to-pixel alignment at the module connector with instrumentation.

Conclusion

In LCD module integration, polarity is the fundamental contract that allows the host and display to interpret timing and data consistently. Many bring-up issues that manifest as stable but misplaced images are the result of a polarity mismatch—a disagreement on whether “active” means high or low, or which edge defines a boundary or sampling moment. The fastest path to resolution is methodical: read the timing definition, configure the host, confirm behavior with deterministic patterns, and measure at the module connector to prove the module sees the intended active levels and sampling edges.

At LCD Module Pro, we encourage teams to treat polarity settings with the same rigor as any other critical system parameter. By designing a clean signal path, version-controlling validated settings, and validating at the point of impact, you can reduce debugging time and deliver a more robust integration.
