What is dual LVDS in an LCD display module, and what bandwidth issue does it solve?

When integrating a high-resolution LCD display module, engineers often encounter interface specs like “dual-channel LVDS” or “dual LVDS.” Confusion usually shows up as classic bring-up symptoms: a black screen, half-screen output, repeating regions, or stable-but-garbled images—especially when the host platform was only designed or validated for single-channel LVDS.

Dual LVDS splits one image stream across two synchronized LVDS channels in parallel. It increases effective transport throughput and reduces per-channel data-rate stress, enabling higher pixel clocks for higher resolution/refresh/color depth. When a module requires dual LVDS, it is not a “performance option”—both channels must be present and correctly configured to display a correct image.

In LCD Module Pro customer projects, a common root cause of high-resolution bring-up failures is a mismatch between what the host can output and what the module expects to receive. The connector can look identical to single-channel LVDS, which leads teams to assume compatibility until the first power-on. Dual LVDS is a hard electrical/timing requirement: if the module expects two channels, a single-channel source will not “just run slower”—it will typically fail to initialize correctly or will produce repeatable artifacts.

This article explains what dual LVDS¹ is, what bandwidth ceiling it addresses, how the data is split, and which integration pitfalls most often cause surprises—so you can validate compatibility early and avoid costly rework.

What does “dual LVDS” mean in an LCD display module?

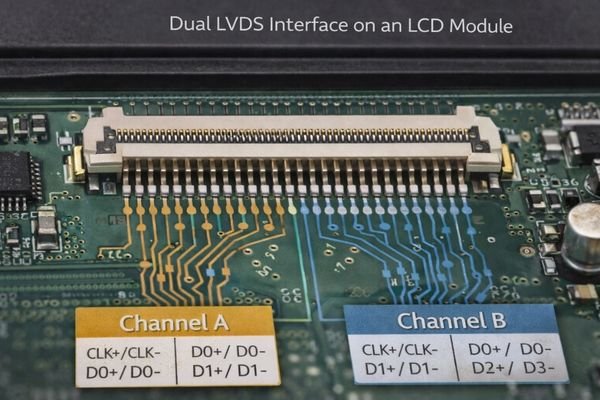

Dual LVDS is a parallel video transport architecture. It uses two separate LVDS channels, often labeled Channel A and Channel B, to carry different portions of the pixel data for one complete frame.

Dual LVDS splits a high-rate pixel stream across two synchronized LVDS channels to overcome single-channel bandwidth limits. Both channels are required for normal operation; it scales throughput by parallel transport, not by redundancy or failover.

The key clarification is that “dual” refers to two parallel data links acting as one interface. The module’s timing controller (TCON)² is designed to receive both streams and reassemble them into a coherent frame using shared timing references. If one stream is missing or misconfigured, the TCON cannot reconstruct the image as intended.

How Data is Transported

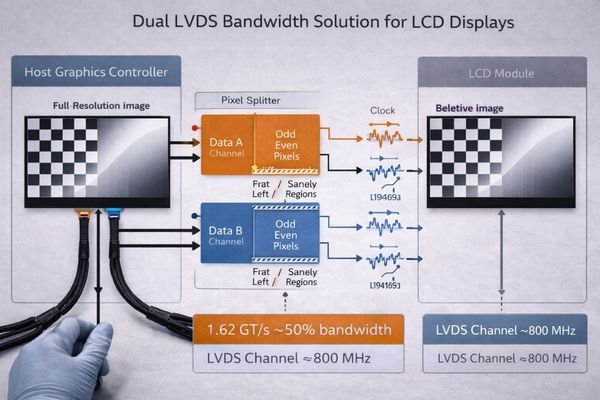

Each LVDS channel has its own set of differential data pairs and a clock. The host graphics controller splits the full pixel stream into two synchronized parts and transmits them in lockstep. The module’s TCON receives both channels, aligns them using timing references, and reconstructs the original pixel order before driving the panel.

Why It Is Not Redundancy

Dual LVDS is not backup wiring. If one channel is disconnected or inactive, the system does not “fall back” to the other channel. Depending on the panel/TCON behavior, the result is typically a black screen, a partial image, or severe, repeatable corruption. Reliable operation requires both channels to be active and configured exactly as the module expects.

What bandwidth problem does dual LVDS solve, and when is it needed?

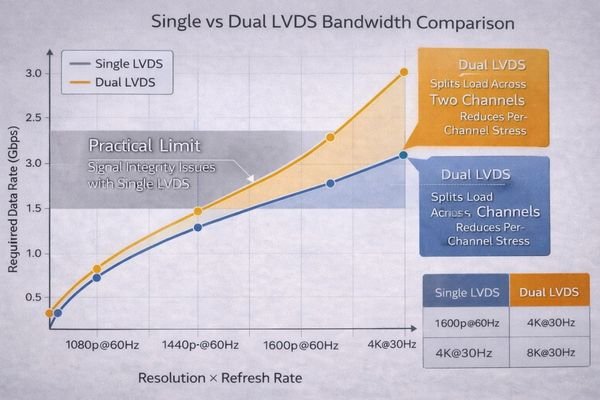

Dual LVDS addresses the practical bandwidth ceiling of single-channel LVDS when resolution, refresh rate, and color depth push pixel throughput beyond what one channel can carry with margin.

Dual LVDS solves the pixel-throughput bottleneck of single-channel LVDS. As pixel clock requirements rise, a single link can become margin-limited by loss, reflections, crosstalk, and EMI. Splitting the stream across two channels increases effective transport capacity and lowers per-channel stress, improving stability for higher native timings.

Every LVDS channel has a practical operating limit determined by the transmitter/receiver capability and the real signal chain: trace quality, connector integrity, harness length, and EMI environment. As pixel rates increase (higher resolution, higher refresh, or higher color depth), the required link throughput³ rises and the eye margin shrinks. At that point, bit errors or lock failures become more likely.

Dual LVDS becomes necessary when the module’s native interface definition specifies dual channel to support its required timing. Practically, dual LVDS works by distributing the pixel stream so each channel carries a smaller portion at a lower effective per-channel rate than a single-channel solution would need. That lower per-channel stress often provides the margin needed for reliable operation in industrial or commercial environments.

How is pixel data split across the two LVDS channels, and what symptoms appear if it’s wrong?

In a dual LVDS system, the host partitions pixel data according to the module’s expected scheme. The module’s TCON is built to a specific split convention, so mismatches create distinctive, repeatable artifacts.

Dual LVDS pixel data is split according to the panel convention—commonly odd/even pixel interleaving, but sometimes left/right partitioning. If the host’s split, mapping, lane order, or polarity does not match the module’s expectation, you’ll see stable, repeatable artifacts (half-screen, repeating regions, vertical banding, wrong colors), not random noise.

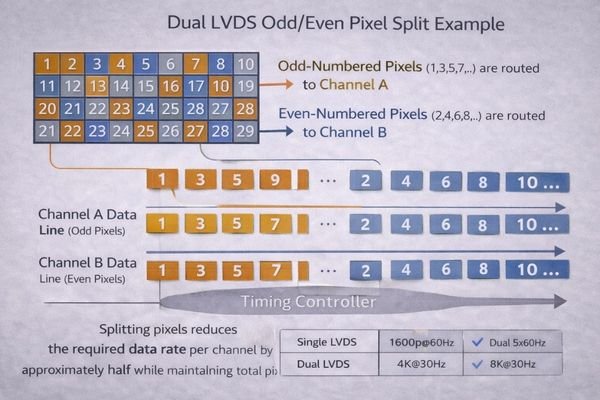

Odd/even splitting is common: one channel carries odd pixels and the other carries even pixels for each line, then the TCON interleaves⁴ them. Some panels instead use a left/right split. The only reliable authority is the module/panel interface definition, because the TCON will reassemble pixels based on that expectation.

Configuration Error	Common Symptom	Engineering Explanation
Host set to single-channel mode	Half screen displayed, or black screen	The TCON cannot reconstruct a full frame from one channel; behavior depends on TCON design.
Mismatched channel split (e.g., host sends odd/even, panel expects left/right)	Scrambled or repeating image	Pixels are reassembled in the wrong order, producing coherent but incorrect patterns.
One channel has swapped polarity	Color distortion or severe banding	Inverted differential interpretation corrupts data for that channel’s portion of the stream.
Host mapping (e.g., JEIDA/VESA) is wrong on one or both channels	Incorrect colors, "sparkling" pixels	Bit-to-lane mapping is incorrect; both channels must match the expected convention.

A fast debug priority is: (1) confirm both channels are toggling at the module connector, then (2) confirm the host is set to dual mode with the correct split and mapping, and only after that (3) investigate physical-layer margin (harness, routing, EMI).

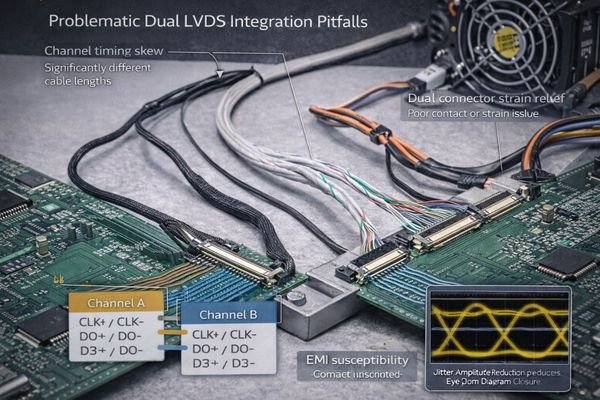

What integration pitfalls cause dual LVDS bandwidth and stability issues?

Many dual LVDS failures come from treating the interface as “two separate links” rather than one tightly synchronized parallel bus that must maintain alignment and margin on both channels.

Common pitfalls include host misconfiguration (single vs dual mode, wrong split, wrong mapping), asymmetrical harness design that creates skew between channels, and bring-up sequencing issues that cause one channel to appear late or glitch at boot. These faults reduce timing margin and can mimic “panel defects” with repeatable artifacts or intermittent lock.

Mismatched Host Controller Configuration

This is the most frequent bring-up blocker. The host must be configured for dual-channel output⁵ and must match the module’s required split scheme and mapping convention. If the host outputs single-channel mode or the wrong split/mapping, the result is guaranteed to be incorrect—typically half-screen, repeating regions, or stable corruption. The first debug step should be to compare the host settings to the module’s interface definition, not to assume “LVDS is LVDS.”

Asymmetrical Cable and Harness Design

Dual LVDS depends on two channels arriving aligned enough for the TCON to reassemble correctly. If Channel A and Channel B see different loss, different delay, poor return-path continuity, or inconsistent impedance, skew and reflections can reduce margin. This is why “generic” cables can be risky when they don’t specify length matching, impedance control, and shielding/return-path intent for high-speed differential pairs. A robust approach is to define harness constraints explicitly and validate both channels at the module connector under temperature and EMI stress.

How do you choose and specify an LCD display module interface to avoid dual-LVDS bandwidth surprises?

To avoid dual-LVDS surprises, treat the interface definition as a system requirement early: bandwidth, channel mode, split, mapping, and harness constraints must close with margin before hardware is frozen.

Prevent surprises by calculating required pixel throughput, confirming whether the module requires single or dual LVDS for its native timing, and ensuring the host can output that exact dual-channel mode (split + mapping). Lock these details in an ICD and validate both channels at the module connector across temperature and EMI so margin is proven, not assumed.

When supporting system integrators, LCD Module Pro recommends an Interface Control Document (ICD) that locks the parameters that actually prevent last-minute surprises—especially when a connector can look identical across single and dual implementations.

Here is a checklist I use to guide the specification process:

• Calculate Required Bandwidth: First, determine the total pixel rate. The formula is (Horizontal Pixels + Blanking) × (Vertical Pixels + Blanking) × Refresh Rate. This gives you the required pixel clock frequency.
• Check Module & Host Specs: Compare your required pixel clock to the specifications in the LCD module datasheet. The datasheet will explicitly state if single or dual LVDS is required. Simultaneously, confirm that your host system’s graphics controller can output the required dual-channel mode.
• Define the Channel Configuration: Document the exact configuration. This includes:
  • Channel Mode: Single or Dual.
  • Pixel Split: Odd/Even or another scheme.
  • Data Mapping: VESA or JEIDA format.
  • Bit Depth: 6-bit or 8-bit color per channel.
• Specify Physical Layer Constraints: The ICD should also define the physical connection requirements. This includes the exact connector type, pinout, and maximum cable length. For dual LVDS, it must also specify that the two channels within the cable harness must have matched lengths to avoid timing skew.
• Establish a Validation Plan: The plan should include verifying signal integrity for both channels at the module’s connector, not just at the host board. This test should be performed across the full operating temperature range to ensure there is enough margin for reliable operation in the final product.

By following this structured approach, you move from assuming compatibility to verifying it with objective checks, and you reduce the risk that a supplier or revision change silently breaks the display path.

FAQ

Is dual LVDS the same as dual-link DVI or “two-cable redundancy”?
No. Dual LVDS is a two-channel parallel transport method required to carry one image stream at higher throughput; it is not redundancy, and both channels are needed for normal operation.

If I only connect one LVDS channel, will I get half the image?
It depends on the panel; some show nothing, while others show partial content with severe artifacts. Correct dual-channel configuration is required for reliable operation.

What’s the fastest way to confirm a dual LVDS configuration mismatch?
Verify both channels are toggling at the module connector and compare the host’s configured channel mode/split/mapping to the module’s expected interface definition.

Can dual LVDS reduce EMI compared with single-channel LVDS?
It can reduce per-channel data rate for the same pixel throughput, which may improve margin, but EMI depends heavily on routing, return paths, and shielding.

Does dual LVDS change JEIDA/VESA mapping considerations?
Mapping conventions can still apply; you must ensure the correct mapping and lane assignment for each channel as specified by the module and the host controller.

When should I consider moving to eDP instead of dual LVDS?
If your platform and module support it and you need higher bandwidth, better link management, or simpler harnessing, an eDP-based solution may reduce integration risk—pending system constraints.

Conclusion

Dual LVDS is a practical way to overcome the single-channel LVDS bandwidth ceiling by splitting one image stream across two synchronized channels. It enables higher native pixel throughput while lowering per-channel stress, but it also demands precise configuration and adequate signal margin on both channels. Most dual-LVDS failures trace back to interface definition issues—mode, split, mapping, lane order—or to harness symmetry and boot stability, not to mysterious panel defects.
