HB156S is a 15.6-inch high brightness IPS LCD module reference design for industrial and embedded display projects.
It is suitable for applications that require full HD resolution, wide viewing angles, stable long-term operation, and integration with custom structures or control systems.
This page is for reference only. All display modules can be customized based on project requirements.
HB156S is designed as a reference solution for industrial equipment, embedded terminals, and semi-outdoor systems that require stable full HD display performance.
With IPS wide viewing angles, 1200 nits high brightness, and a standardized mechanical outline, it supports easier integration into custom device structures and control platforms.
Customization is available for interface, brightness, touch integration, and mechanical structure.
HB156S is presented as a reference design for industrial and embedded display applications. It is not a fixed off-the-shelf product listing. Final specifications, interfaces, mechanical details, and optional features can be adjusted according to your project requirements.
Typical customization options include brightness level, interface conversion, touch integration, optical bonding, cover glass, mounting structure, and cable solutions.
HB156S is intended for industrial HMI, security terminals, kiosk systems, and control interfaces that require a 15.6-inch full HD display with stable brightness and wide viewing angles.
As a reference design, it helps project teams evaluate outline compatibility, brightness targets, interface adaptation, and long-term integration feasibility before final customization.
| Model | HB156S IPS LCD Module |
|---|---|
| Size | 15.6 inch |
| Pixel Number (Resolution) | 1920(RGB) × 1080 (FHD) |
| Active Area (AA) | 344.16(W) × 193.59(H) mm |
| Pixel Pitch | Approx. 0.179(H) × 0.179(V) mm |
| Aspect Ratio | 16:9 |
| LCD Type | a-Si TFT-LCD, Normally Black |
| Viewing Angle | 85/85/85/85 (Typ.) (CR ≥ 10) |
| Brightness | 1200 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Response Time | Depends on final panel configuration |
| Color Depth | Available upon project confirmation |
| Surface Treatment | Optional by project requirement |
| Backlight Type | LED backlight |
| Backlight Lifetime | To be confirmed |
| Interface | VGA interface |
| Power Supply | Depends on driver board solution |
| Power Consumption | To be confirmed |
| Operating Temperature | -30℃ to +85℃ |
| Storage Temperature | Available upon project confirmation |
Specifications shown on this page are for reference evaluation. Final parameters can vary depending on interface solution, touch option, optical treatment, and mechanical integration requirements.
For projects based on HB156S or similar display configurations, engineering support can include interface matching, mechanical adaptation, sample preparation, and supporting documentation for integration.
Driver board, signal conversion, cable definition, and connector matching based on system requirements.
Outline review, mounting structure alignment, bracket options, and front assembly integration support.
Brightness enhancement, optical bonding, anti-glare treatment, and semi-outdoor readability optimization.
Reference drawings, basic parameter confirmation, and sample preparation for project evaluation.
The 15.6-inch full HD format provides a practical display area for industrial HMI, control panels, and embedded terminals. It helps project teams align screen size, viewing space, and interface layout more efficiently during product integration.
The 1200 nits high brightness configuration improves readability in bright indoor and semi-outdoor environments. It helps maintain clearer interface visibility where standard brightness modules may appear dim under stronger ambient light conditions.
The IPS panel structure supports wide viewing angles and more consistent image visibility from different positions. This is especially useful for applications where operators, technicians, or multiple users need to view the same screen clearly.
Built on an a-Si TFT LCD structure, the module is suitable for long-cycle industrial and embedded display projects. It provides a stable technical foundation for applications that require dependable visual performance during continuous daily operation.
The operating temperature range supports use in equipment exposed to wider environmental variation. This helps project teams evaluate the module for industrial cabinets, transportation devices, and other systems working under more demanding conditions.
The module is designed with a standardized integration approach that supports matching with driver boards and cable solutions. This helps simplify system adaptation, reduce interface uncertainty, and improve development efficiency during project implementation.
HB156S can serve as a reference display solution for factory automation interfaces that require stable full HD visualization, wide viewing angles, and reliable long-hour operation. It is suitable for HMI panels, production terminals, and industrial control interfaces in equipment systems.

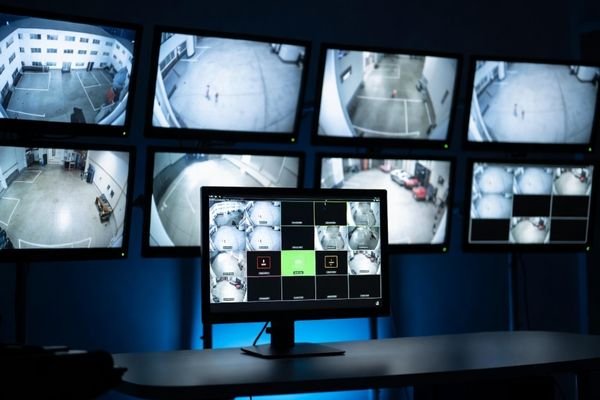

HB156S can serve as a reference display solution for security monitoring systems that require clear image presentation, wide-angle visibility, and reliable continuous operation. It is suitable for monitoring terminals, control room panels, and embedded surveillance interfaces in integrated systems.

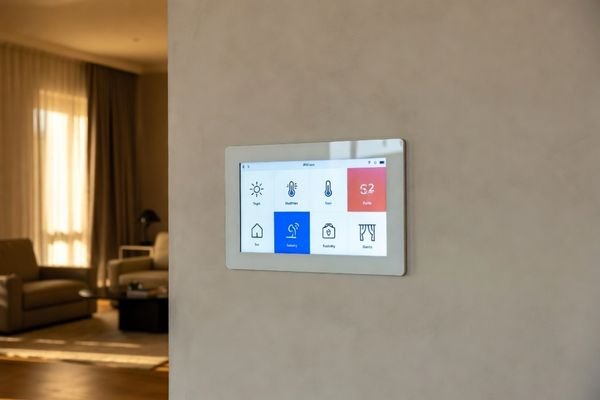

HB156S can serve as a reference display solution for smart control panels that require bright visual output, stable display performance, and easy system integration. It is suitable for building control panels, smart home interfaces, and integrated terminal devices in embedded applications.
This reference design helps project teams evaluate a common 15.6-inch integration format for industrial HMI, embedded terminals, and control panel applications, reducing early-stage selection uncertainty.
The combination of 1920 × 1080 resolution and 1200 nits brightness makes this reference solution suitable for projects that require both detailed image presentation and visibility under strong ambient light.
IPS wide viewing angles help maintain image readability from different positions, which is useful for shared workstations, monitoring panels, and multi-user operating environments.
This type of display configuration is suitable for industrial systems that require stable long-term operation, helping project teams assess reliability expectations for extended daily use.
The reference design can be used as a starting point for OEM/ODM customization, including brightness tuning, interface matching, touch integration, and mechanical adaptation.
Engineering support can help confirm interface compatibility, mounting feasibility, and configuration direction, making project evaluation and integration more efficient.
HB156S is presented as a reference design for industrial and embedded display projects. It can be used as a starting point for evaluating size, brightness, interface, and mechanical compatibility. Final specifications can be adjusted according to the actual project requirements.
Interface support depends on the final system architecture. Depending on the project, the solution can be matched with suitable driver boards, signal conversion, and cable definitions for interfaces such as LVDS, eDP, HDMI, or VGA.
Yes. Depending on the application, customization may include brightness adjustment, touch integration, cover glass, optical bonding, and other front assembly options. The final configuration is defined according to the target environment and product design.
The reference design shows a 1200 nits high brightness configuration, which is suitable for many bright indoor or semi-outdoor environments. The final readability performance can be further optimized through optical treatment, bonding, and front surface design.
Key items usually include mechanical outline, mounting method, interface definition, brightness target, touch requirement, operating environment, and system power architecture. Early confirmation of these points helps reduce integration risk.
Use proper grounding and shielding around the display, and route cables to avoid coupling with noisy power or motor lines. Add common-mode chokes and ESD devices near the interface, and apply anti-static or conductive border designs on the cover glass or touch panel to protect the IPS LCD module.
Yes. HB156S can serve as a reference basis for OEM/ODM development, including interface matching, brightness tuning, touch options, mechanical adjustments, and front assembly optimization.
