This 21.5-inch high brightness LCD module is a reference design for outdoor and semi-outdoor display applications. It is developed for projects that require sunlight readability, stable operation, and reliable integration into digital signage, kiosks, transportation displays, and industrial terminals. Final specifications can be customized based on interface, brightness, structure, and application requirements.
The HB215X is a 21.5-inch high brightness LCD module reference solution designed for outdoor and semi-outdoor systems that require strong sunlight readability, stable image performance, and reliable long-term operation. It can be adapted for digital signage, kiosks, EV charging terminals, transportation displays, and other embedded applications.
The HB215X is developed as a high brightness LCD module reference solution for projects that require strong ambient-light readability, long operating stability, and reliable embedded integration. Based on a 21.5-inch IPS panel architecture, it is suitable for digital signage, self-service terminals, transportation displays, and other commercial or industrial systems. The solution can be further customized in brightness level, interface configuration, touch integration, surface treatment, and mechanical structure according to project requirements.
The specifications below are based on the current reference design. Final parameters may vary depending on project requirements and customization scope.
| Model | HB215X high brightness LCD module |
|---|---|
| Size | 21.5 inch, portrait |
| Pixel Number (Resolution) | 1080 × RGB × 1920 pixels |
| Active Area (AA) | Approx. 260.28(H) × 478.656(V) mm |
| Pixel Pitch | Approx. 0.241(H) × 0.249(V) mm |
| Aspect Ratio | 9:16 (portrait) |
| LCD Type | a-Si TFT-LCD, IPS, transmissive |
| Viewing Angle | 89°(L) / 89°(R) / 89°(U) / 89°(D) (Typ.) |
| Brightness | 1200 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Response Time | TBD |
| Color Depth | 16.7M colors |
| Surface Treatment | Anti-glare surface, hard coating |
| Backlight Type | White LED backlight, high brightness |
| Backlight Lifetime | 50,000 hours (Typ.) |
| Interface | LVDS interface, 30-pin connector |
| Power Supply | TBD (depends on final configuration) |
| Power Consumption | TBD (depends on final configuration) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Module Outline Dimension | Approx. 292.2(W) × 495.6(H) × 8.0(D) mm |
Need a similar display with different interface, brightness, or structure?
Built on a 21.5-inch IPS panel structure optimized for portrait-oriented commercial and public display systems.
Supports strong screen visibility in bright ambient light for outdoor and semi-outdoor deployment scenarios.
Keeps image and color presentation consistent from multiple viewing directions in public-facing installations.
Provides a familiar electrical interface foundation that simplifies embedded system integration work.
Suitable for commercial equipment that requires extended daily operation and dependable display performance.
Can be adjusted in structure, optical treatment, interface, and related configuration according to application needs.

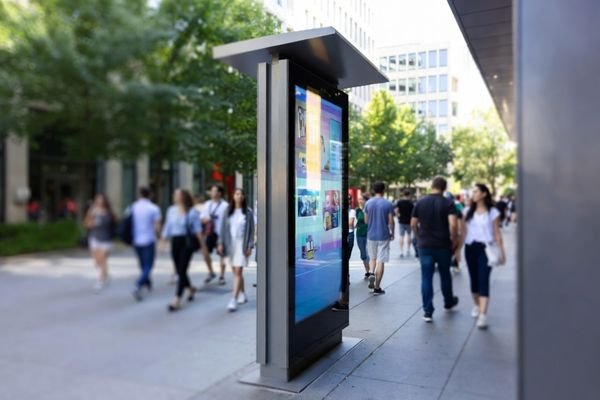

Suitable for public-facing signage systems that require high visibility under changing natural light conditions.
Supports information display and operational guidance in outdoor or semi-outdoor service terminals.
Can be integrated into urban guidance systems that need clear public information delivery and stable operation.
The HB215X reference design can be adapted to better match your system architecture, environmental conditions, and installation requirements.
Backlight level can be adjusted based on indoor, semi-outdoor, or outdoor brightness targets.
Signal interface and connector configuration can be optimized for your embedded hardware system.
PCAP or other touch options can be added when user interaction is required in the final product.
Outline, bracket design, and mounting details can be refined for system-level integration.
Surface treatment and optical bonding options can improve readability and user experience.
Configuration planning can support long-term supply expectations for industrial and commercial projects.
The HB215X reference solution is developed for display projects that must remain readable and visually stable under strong ambient light conditions in outdoor or semi-outdoor installations.
Its high brightness output and IPS viewing performance help maintain clear content visibility from different angles, supporting easier information reading in public-facing applications.
The module structure is intended for commercial and industrial systems that require dependable display performance during long daily operating hours and repeated use cycles.
A standard interface base and practical mechanical design help simplify engineering adaptation, making it easier to evaluate fit within embedded system development projects.
The solution can be adjusted in brightness, interface, touch integration, surface treatment, and mechanical details to better match different installation and application requirements.
Project review, technical discussion, and long-term supply planning help teams reduce development uncertainty while improving execution confidence for customized display deployment.
HB215X is presented as a reference display solution for project evaluation. Final configuration can be customized according to interface, brightness, touch, mechanical structure, and application environment.
Yes. The brightness level can be optimized based on whether the display will be used indoors, semi-outdoors, or under direct sunlight.
The reference design is based on LVDS, but actual interface options may be adjusted depending on the target system architecture and control board requirements.
Yes. Touch integration can be considered if the final application requires user interaction, depending on structure and environmental conditions.
It is intended for commercial and industrial projects that require stable operation over extended daily use, subject to final system design and thermal management.
It is helpful to provide target size, resolution, brightness requirement, interface type, installation space, operating environment, and whether touch is needed.
