When designing public information systems or smart terminals, project teams often start the display selection process by asking, “What screen size do we need?” While this question is understandable, it is usually not the best starting point. Screen size should be the result of earlier decisions about information flow, viewing distance, installation space, and equipment structure.
A display can be large enough and still be the wrong choice if its format does not match how information needs to be presented. In public-facing systems, the wrong display format can lead to wasted space, poor visibility, awkward UI layouts, and unnecessary enclosure changes.
The right display format should follow the information flow, viewing context, and equipment structure. A larger screen in the wrong format can be less effective than a smaller display that fits the system correctly.

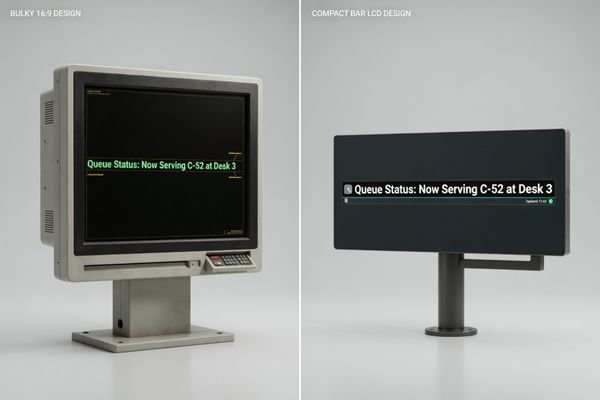

In LCD module integration projects, we often see poorly chosen display formats create unnecessary compromises. For example, a standard 16:9 screen may be forced into a wide, shallow installation space, leaving much of its vertical area unused or filled with low-priority content. The result is a system that becomes physically larger, less efficient, or more difficult to integrate than necessary.
This article provides a practical decision guide for teams working on public-facing equipment, service terminals, and smart terminal systems. The goal is to move beyond a simple “size-first” approach and evaluate display format around information flow, installation constraints, viewing distance, and module-level integration. For a project-level starting point, you can also review our 21.5-Inch Bar LCD Module for Information & Smart Terminal Displays page.
Why screen size alone is not the right starting point
Starting the conversation with screen size is a common mistake. It feels like a concrete first step, but it can overlook the core purpose of the display: to communicate information clearly within a specific system context. A large display that does not match the information structure or installation environment can become an inefficient solution.
Focusing on screen size first can lead to a display that is physically large but functionally awkward. The better starting point is to understand the content, the user’s viewing context, and the installation environment before deciding the display shape and size.

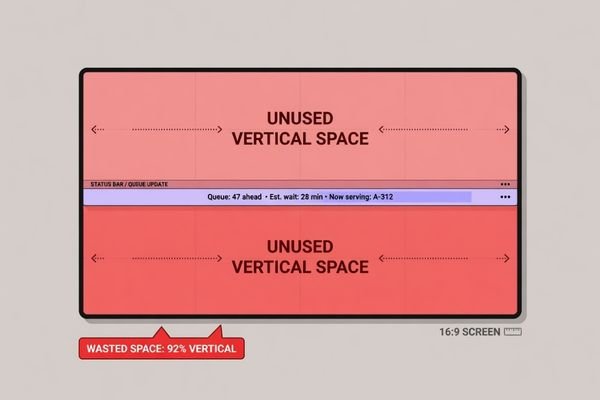

This issue often appears when the display format fights against the content1. For example, a service queue system may need to show ticket numbers, counter status, and directional prompts in a horizontal information strip. If a standard rectangular display is used only to show that narrow band of information, much of the screen area may remain unused. The enclosure still needs to accommodate the full height of the display, even though the useful content does not require that height.
A better approach is to let the system’s functional requirements define the display format first. Once the project team understands what information must be shown, where users will view it, and how the display fits into the equipment, the screen size can be selected with much less risk.
How information flow should shape the display format
The most effective displays are those whose shape naturally supports the structure of the information they present. In public information systems, content is rarely just a single block of text or one full-screen image. It may include service status, queue updates, directional prompts, system messages, operating instructions, directories, or multi-zone information.
The display format should be selected after the content structure is mapped, not before. Horizontal information flows may be better served by bar-type displays, while maps, detailed menus, or complex interactive interfaces may require a standard rectangular format.

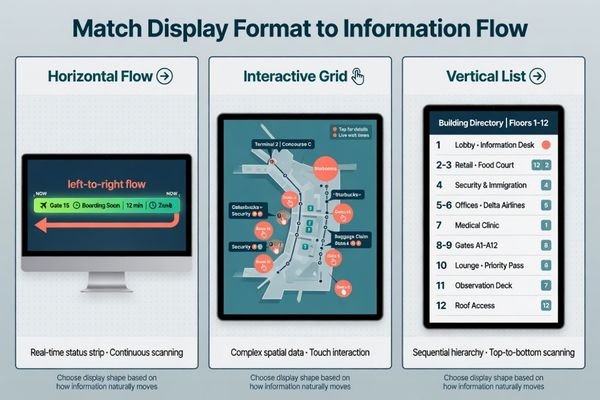

Before selecting a display module direction, project teams should first map the information structure. Different types of content naturally point toward different display formats.
- Horizontal flow: Service status, queue updates, directional prompts, warning messages, and system notifications are often easier to read in a wide horizontal layout. A bar LCD or ultra-wide display can make this information easier to scan without wasting vertical space.
- Grid or interactive flow: Interactive directories, maps, multi-step menus, and complex user interfaces often need a standard rectangular display area. These applications benefit from a more flexible visual canvas.
- Vertical flow: Building directories, event agendas, or list-based information may work better in portrait orientation when users naturally read from top to bottom.
Choosing the display format around the information flow creates a clearer and more intuitive experience. For broader bar and ultra-wide display directions, you can also review our Bar & Ultra-wide LCD Display Modules page.
How installation space and viewing distance affect the decision
A display format that works well in one installation environment may be impractical in another. Public-facing systems can be installed in service counters, embedded terminals, wall-mounted housings, information counters, public halls, corridor areas, and terminal header zones. Each installation context changes how the display should be selected.

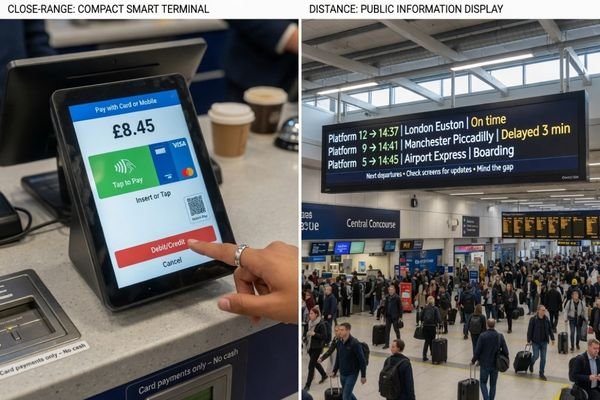

A display intended for close-up interaction has different requirements from one viewed at a distance. Installation space and viewing distance often determine whether a standard screen, bar LCD, or another display format is the more practical direction.
A close-range smart terminal may need detailed interaction, touch support, and a readable UI at arm’s length. In this case, the display format must support user interaction and front-panel structure together. A compact standard display may be suitable if the UI is detailed, while a smaller bar display may be useful for status or instruction areas.
A public service display viewed from a distance has a different set of requirements. The information needs to be larger, clearer, and easier to scan quickly2. In these cases, a wide display format may help present service status, direction, or system messages across a longer viewing area.
An embedded terminal or service counter display creates another kind of constraint. The screen may need to fit into a predefined window or equipment housing. In this situation, the available installation space can become more important than the diagonal screen size. A format that looks appropriate on paper may become difficult to integrate if the physical opening, mounting direction, or visible area does not match the final equipment.
By evaluating installation space and viewing distance together, project teams can narrow down the display format before becoming locked into a specific size.
When a bar LCD format becomes more practical
A bar LCD, also known as a stretched or bar-type display, becomes more practical when the system needs a wide but shallow information zone. This need often appears in public-facing equipment where the display is used as a dedicated area for service status, directional guidance, system messages, or compact public information.
A bar LCD becomes practical when the system needs a wide but shallow information zone for status, guidance, service messages, or embedded public-facing communication. Its value is not that it looks different, but that it aligns the display area with the system’s information and installation logic.
The value of a bar LCD in these projects is efficiency. It can help integrate digital information into a device or public-facing system without creating a bulky enclosure or wasting vertical screen space. It may be more suitable when a standard screen would be too tall, interrupt the surrounding structure, or create a display area larger than the information actually requires.
A bar LCD format may be worth evaluating when:
- the information is naturally horizontal;
- the installation area is wide but not tall;
- the display is used for status, service, or directional information;
- the system needs a clean embedded display window;
- a standard screen would waste vertical space or complicate the housing design.
For teams evaluating this direction, our 21.5-Inch Bar LCD Module for Information & Smart Terminal Displays page provides a project-level starting point for brightness, interface, structure, and integration discussion.
When a standard or larger display may still be better
A bar LCD should not be treated as a universal replacement for standard displays. A traditional rectangular screen may still be the more suitable choice when the content is visually rich, complex, or requires full-screen interaction.
Standard or larger displays are often better for applications involving maps, videos, detailed menus, portrait-style content, multi-window interfaces, or full-screen touch interaction. If the installation space is not constrained and the content is already designed around a standard rectangular format, forcing it into a bar display may reduce usability rather than improve it.
The decision is not “bar LCD versus standard screen.” The real decision is whether the display format supports the content, user behavior, installation space, and system architecture.
This balanced view is important. A bar LCD can be a strong direction when the system needs a compact information strip or embedded horizontal display window. But if the system needs a full visual interface, a larger rectangular display may still be the better option. The goal is not to use a non-standard display format wherever possible; the goal is to choose the format that best supports the project.
What to evaluate before selecting a display module direction
Before committing to a display format, project teams should review the system as a whole rather than comparing screen shapes in isolation. A display that looks suitable as a standalone screen may become difficult to integrate once content type, brightness environment, mounting structure, interface path, and validation stage are considered.
Before selecting a display module direction, project teams should evaluate content type, information flow, viewing distance, installation space, brightness environment, interface path, mounting structure, touch requirement, and validation stage. This reduces the risk of late-stage redesign and integration problems.
In project reviews, we usually start by separating the display decision into four practical questions: what the display must communicate, where it will be installed, how users will view it, and what structural constraints are already fixed. This helps avoid choosing a screen format that looks suitable in isolation but later creates problems with mounting, interface routing, visible area, or enclosure design.
This review is especially useful when the equipment already has a defined front-panel window, limited internal space, or a fixed controller-board location. In those cases, the display format cannot be judged only by appearance or diagonal size. It has to be reviewed together with mechanical fit, cable path, visible area, brightness environment, and the remaining flexibility in the project schedule.
| Evaluation Item | Key Question | Why It Matters |
|---|---|---|
| Content Type | Is the content status-based, directional, interactive, or visual-heavy? | Determines whether a bar, standard, or larger display format is more suitable. |
| Information Flow | Does the content move horizontally, vertically, or through multiple zones? | Helps match the display shape to the information structure. |
| Viewing Distance | Will users read it from close range or from a distance? | Affects text size, contrast, layout density, and display format. |
| Installation Space | Is the display installed in a front panel, wall, counter, or embedded structure? | Determines physical fit and available display area. |
| Brightness Environment3 | Is the system used indoors, near windows, or in bright public areas? | Impacts brightness and readability requirements. |
| Interface Path | How will the display connect to the controller or mainboard? | Affects signal compatibility and internal cable routing. |
| Mounting Structure | How will the module be fixed into the equipment? | Influences mechanical reliability and production repeatability. |
| Touch Requirement | Does the system require touch interaction? | Changes cover glass, front surface, and mechanical stack decisions. |
| Validation Stage | Is the project in concept, prototype, pilot, or redesign? | Determines how much design flexibility remains. |
For equipment-level fitting, mounting, housing alignment, and cable-clearance considerations, see our mechanical integration for LCD modules page.
This structured review shifts the decision from “which screen looks suitable?” to “which display module direction can be integrated reliably into the final system?” That distinction matters because display format affects not only visual presentation, but also enclosure design, interface planning, mounting repeatability, and production readiness.
Final Takeaway: choose the format around the system, not the screen
The right display format for public information and smart terminal systems should be selected around the system’s information flow, viewing context, installation space, and integration requirements. A bar LCD can be a practical choice when the project needs a wide information zone for service status, directional guidance, public messages, or embedded communication. A standard or larger rectangular display may still be better when the system relies on video, maps, detailed UI, or full-screen interaction.
For OEM equipment teams, display format selection is a module-level integration decision, not just a choice of screen size or shape. It involves content strategy, user experience, mechanical design, interface planning, brightness environment, and validation timing. A manufacturer-oriented, engineering-driven partner for custom LCD module development and integration can help evaluate whether the display format is practical before enclosure, interface, or production decisions are locked.
For teams evaluating a bar LCD direction for public information or smart terminal equipment, review our 21.5-Inch Bar LCD Module for Information & Smart Terminal Displays page.
FAQ
Is a bar LCD always better for public information systems?
No. A bar LCD is better only when the information flow, installation space, and viewing distance benefit from a wider display format. If the system needs video, maps, complex UI, or full-screen interaction, a standard display may still be more practical.
What display format is best for smart terminal systems?
There is no single best format. The right display format depends on content type, information flow, viewing distance, front-panel space, brightness environment, interface path, and integration requirements.
When should a standard screen be used instead of a bar LCD?
A standard screen may be better when the system needs video playback, maps, detailed menus, portrait content, complex interaction, or a full standard rectangular visual area.
Can display format, brightness, and interface be customized together?
Yes. Display format, brightness direction, interface path, mechanical structure, touch option, cover glass, and mounting details can be evaluated together according to the project.
Next step for public information and smart terminal projects
If your public information system, service terminal, or smart terminal equipment needs a bar LCD direction, review our 21.5-Inch Bar LCD Module for Information & Smart Terminal Displays page or share your project requirements for a practical feasibility review.
-
