When Standard LCD Modules Do Not Fit the Equipment Structure

In OEM equipment development, the display module is rarely the starting point of the product design. More often, the enclosure, front-panel opening, controller-board position, and internal component layout are defined first. The display is then selected to fit these existing constraints. The problem appears when a standard LCD module that looks suitable in a catalog fails to integrate cleanly into the real equipment structure.

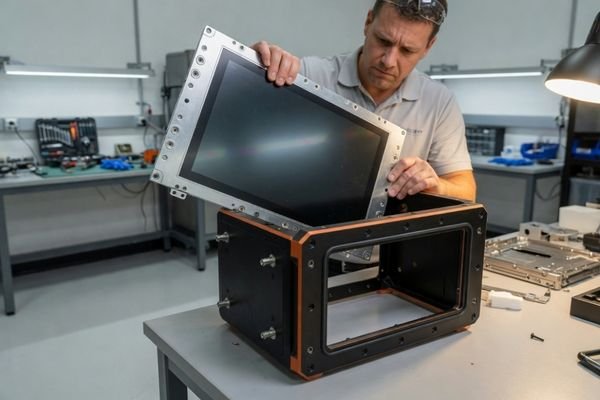

A standard LCD module usually fails to fit an equipment structure when the selected module does not align with the front-panel opening, active area, FPC exit direction, connector position, or controller-board interface path. In these cases, the project team should review the display direction before redesigning the equipment.

This situation appears more often than many OEM teams expect¹. A project team may select a standard module based on size, resolution, brightness, and interface type, only to discover during the first prototype build that it is not a viable fit. The active area may be shifted, the module frame may collide with an internal bracket, or the flexible printed circuit (FPC) may exit in a direction that makes a clean and repeatable connection to the controller board difficult.

These are not simple sourcing problems. They are system-level integration risks. The core issue is often a lack of alignment between mechanical design, electronics layout, display selection, and production planning. This article breaks down why these problems occur, where standard modules typically fail, and how project teams can make a structured decision about whether to keep adapting the product around a standard LCD module or explore a custom LCD module direction. The goal is to reduce redesign risk and create a more predictable path from prototype review to pilot production.

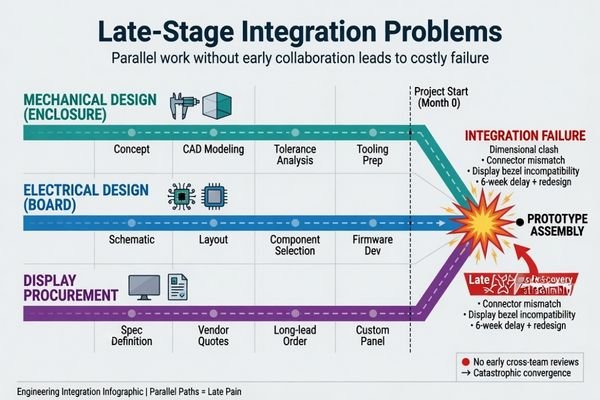

Why Display Fit Problems Often Appear Late in OEM Projects

Display integration problems frequently appear late in the development cycle, not because of one single poor decision, but because several project decisions are made in parallel. In many OEM projects, the mechanical team defines the enclosure, the electrical team lays out the controller board, the product team plans the user interface, and the procurement team searches for a standard display based on primary specifications.

Display fit issues are often discovered late because the enclosure, controller board, UI layout, and display selection are not reviewed together early enough. The mismatch usually becomes clear only when all components are brought together during sample assembly or pilot preparation.

A display is not only a set of specifications on a datasheet. It is a physical module that must coexist with other components inside a constrained product structure. When a project team focuses too early on catalog data such as diagonal size, resolution, brightness, and interface name, it may overlook the actual integration conditions².

The selected standard module does not fail as an isolated component. It fails because it no longer aligns with the equipment structure and system layout that have already been defined around it. By the time the problem appears during sample assembly, the display decision may already affect the enclosure, front panel, controller board, FPC routing, and production plan.

In practice, this is where many projects shift from component selection to system-fit evaluation. A display that looked suitable during procurement comparison may become the part that exposes gaps between mechanical, electrical, and product-design decisions.

Where Standard LCD Modules Usually Fail

To prevent late-stage surprises, project teams need to understand the specific points where a standard LCD module usually clashes with a custom equipment structure. Recognizing these symptoms early can help determine whether the issue can be solved through adjustment or whether a custom LCD module direction should be evaluated.

A standard LCD module may appear to fit based on diagonal size, but integration failures often occur because the active area position, module outline, FPC exit path, interface connection, or screen aspect ratio does not match the real equipment structure.

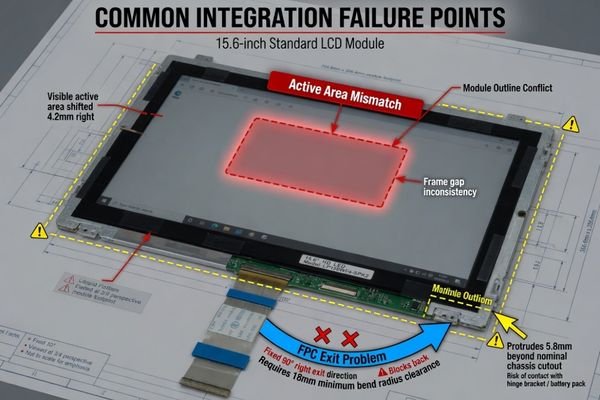

From an engineering integration perspective, the following five failure points are the most common reasons standard modules become unsuitable for OEM equipment projects.

Active Area Does Not Match the Viewing Window

One common misconception is assuming that module size and visible screen area are the same thing. The active area, which is the part of the display that actually shows content³, is only one region within the module’s full mechanical footprint.

A standard LCD module may have the right diagonal size but still place the active area in the wrong position for the equipment’s front-panel opening. This can lead to uneven borders, shifted content, or a user interface that does not appear where the product design expected it to appear. In compact devices, control panels, and self-service terminals, this type of mismatch can quickly become a front-panel design problem.

For example, a compact terminal may use a front panel that has already been tooled around a specific viewing window. If the selected standard module places the active area several millimeters off-center, the issue may not be obvious during datasheet comparison, but it becomes clear during front-panel assembly.

The key point is simple: the module outline and the visible active area are not the same. A display that looks correct by size may still fail at the viewing-window level.

Module Outline Conflicts with the Enclosure

Beyond the active area, the module’s total physical outline can conflict with the equipment enclosure. The metal frame, PCB area, mounting tabs, thickness, or backlight structure may interfere with internal ribs, brackets, cables, power components, or other mechanical features inside the device.

In some projects, the selected module may technically fit within the product size, but not within the actual usable internal space. The enclosure may already be designed around a controller board, power supply, cable path, or mounting structure. When the standard display module forces the team to redesign the enclosure just to make room for the screen, the issue has moved beyond normal component sourcing.

At that point, the display becomes a mechanical integration risk. The project team is no longer choosing a standard module; it is changing the product around that module.

FPC Exit Direction Creates Assembly Problems

In compact devices, the direction and location of the flexible printed circuit can be as important as the screen size itself. A standard LCD module may have its FPC exit from the top, bottom, or side in a way that does not match the controller-board location or cable routing path.

If the FPC exit direction is wrong, the circuit may need to bend sharply, cross other components, use excessive length, or pass through a difficult assembly path. These problems can make prototype assembly difficult and reduce production repeatability. Poor FPC routing may also affect serviceability and long-term reliability.

For this reason, FPC exit direction should not be treated as a minor detail. It directly affects how the display can be assembled, connected, and repeated during pilot production.

Interface Path Does Not Match the Controller Board

Interface compatibility is not limited to matching “LVDS,” “eDP,” or “MIPI” on two datasheets. The physical connector type, connector location, cable route, signal path, and validation workload all affect whether the display can be integrated with the controller board.

A standard module may use an acceptable interface type but place the connector in a difficult location. It may require an awkward cable direction, a less suitable connector, or additional validation effort to confirm timing and signal stability. In some cases, what looks like a mechanical fit problem is actually a combination of interface path and controller-board layout mismatch.

The interface should be reviewed as part of system integration, not as an isolated specification line. When the interface path and mechanical structure are not evaluated together, late-stage redesign risk increases.

Standard Aspect Ratio Does Not Fit the UI Layout

Sometimes the mismatch is not mainly mechanical. It is functional. A device may need a long horizontal status area, a compact square control zone, a side indicator, or a non-standard visible region. Forcing a standard 16:9 or 4:3 display into that layout can waste screen area and compromise the user interface.

When the screen proportion does not match the equipment’s interaction logic, the display starts to limit the product design. The team may need to redesign the UI, enlarge the front panel, or accept inefficient use of space.

In these cases, the project team should not only ask whether a larger or smaller standard display is available. It should also evaluate whether a non-standard display direction would better support the product structure and user interaction.

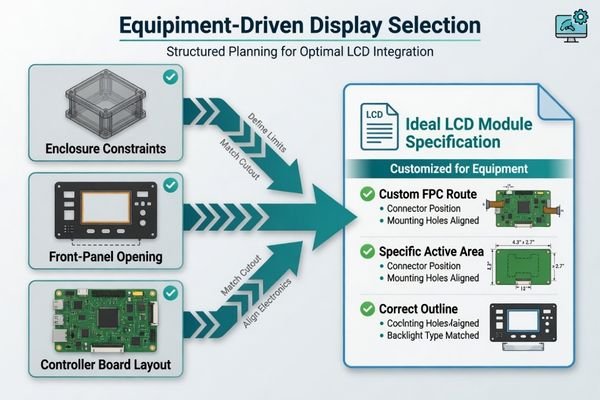

How Equipment Structure Affects LCD Module Selection

A more reliable display integration process starts with the equipment structure rather than the catalog display list. Instead of selecting a standard module first and forcing the equipment to adapt around it, the project team should use the real structure, front-panel design, controller-board position, and UI layout to define the display direction.

LCD module selection should be directly influenced by the equipment’s physical design. The front-panel opening defines the real visible area, the enclosure defines the allowable module outline and thickness, and the controller-board position affects the interface path and FPC routing.

In practice, display selection should not be handled by one team in isolation⁴. Mechanical, electrical, product, and procurement teams all influence whether a standard LCD module is a practical fit.

The front-panel opening determines where the visible active area must be located. The enclosure geometry defines the maximum module outline, thickness, and possible mounting direction. The controller-board position affects the most efficient cable path and interface routing. The UI design determines whether a standard aspect ratio supports the required content layout. The production assembly method affects whether the display connection can be repeated reliably beyond the first prototype.

When these factors are reviewed together, the best display is not necessarily the one with the highest resolution or the lowest unit cost. It is the one that fits the system with fewer compromises and lower integration risk.

When a Custom LCD Direction Becomes Worth Evaluating

The decision to evaluate a custom LCD module direction should be made carefully. Not every mismatch requires a fully new display design. However, repeated structural, interface, or assembly conflicts are often a sign that the project has moved beyond standard module selection.

A custom LCD direction becomes worth evaluating when the standard module starts forcing repeated changes to the enclosure, front-panel opening, FPC routing, interface path, or UI layout. The purpose is not to create a special display for its own sake, but to restore alignment between the display and the real equipment structure.

This inflection point usually appears after several attempts to make a standard module fit have created unacceptable compromises. The module may keep forcing enclosure changes. The active area may never align cleanly with the viewing window. The FPC route may remain difficult to assemble. The interface path may not match the controller board. The UI may require a non-standard display proportion that standard screens cannot support efficiently.

At this stage, the custom direction should not be understood as “starting from zero.” It may involve changes to the module structure, FPC design, connector location, cover lens, touch integration, or interface path. The real value is not only the display shape. The value is creating a more suitable display direction for the equipment structure, controller-board architecture, and production plan.

For a broader overview of customized equipment display directions, the Custom LCD Modules page can be used as a category-level starting point. For projects where structure, interface, and front-panel fit need to be reviewed together, the related commercial page Custom Special-Shaped LCD Modules with LVDS / eDP / MIPI Integration provides a more direct project-direction reference.

What Project Teams Should Review Before Redesigning the Product

Before a team commits to a full product redesign to accommodate a standard display, it should first perform a structured review of the mismatch. This review can help determine whether the issue can be solved through mechanical adjustment, interface review, FPC modification, cover-lens coordination, or a more customized LCD module direction.

Instead of immediately redesigning the equipment, project teams should first review display shape, active area, front-panel fit, interface path, FPC routing, and production repeatability. This helps determine whether a custom LCD module direction can solve the integration problem more efficiently than changing the product around a standard module.

In a structured LCD module fit review, LCDModulePro usually separates the mismatch into several practical areas: active area alignment, front-panel opening, enclosure clearance, FPC exit direction, controller-board interface, and sample-to-pilot repeatability. This helps determine whether the issue can be solved through module adjustment, interface review, FPC modification, or whether a more customized LCD direction should be evaluated.

A useful feasibility review usually starts with a few project inputs: the target display area, front-panel opening, enclosure constraints, controller-board interface, preferred FPC routing direction, and current project stage. These details help clarify whether the project needs a small integration adjustment or a more defined custom LCD module direction.

Display Shape and Active Area

The first step is to identify the real nature of the mismatch. The issue may not be the overall display size. It may be the active area position, aspect ratio, viewing-window alignment, or the relationship between the visible area and the module outline.

In some cases, the product does not need a completely new display panel. It may need a more suitable module structure, a different active-area alignment, or a display direction that better matches the equipment front panel.

Front-Panel Opening and Cover Lens

The relationship between the LCD module, front-panel opening, cover lens, and visible boundary should be reviewed carefully. A mismatch in this area⁵ can create both visual and mechanical problems.

If the cover lens or front panel has already been designed, the display active area must align with the visible opening. Otherwise, the final product may show uneven borders, partially hidden content, or a front surface that does not match the intended industrial design. In some projects, a modified cover lens or adjusted module stack can resolve the issue without requiring a complete product redesign.

Interface Path and Controller Architecture

The controller-board architecture should be reviewed before the display direction is frozen. The team should confirm whether the board supports LVDS, eDP, MIPI, or another display interface, and whether the chosen module direction can match that architecture without introducing unnecessary validation risk.

A problem that appears mechanical may sometimes be solved by reviewing the interface path. A different cable route, connector position, or module-side interface arrangement may reduce integration difficulty while preserving the existing controller-board concept.

FPC Exit and Connector Location

The physical path of the FPC should be mapped before the module direction is confirmed. The team should check where the FPC exits the module, where the connector sits on the controller board, how much bending space is available, and whether the routing path can be repeated in production.

A custom FPC length, shape, or exit direction may sometimes be more practical than changing the enclosure or controller-board position. This is especially important in compact equipment where every internal space has already been assigned to other components.

Sample-to-Pilot Repeatability

A display solution that works in one prototype build is not always suitable for pilot production. If the assembly requires special handling, unstable FPC bending, difficult alignment, or manual adjustment, it may create production variability later.

The project team should evaluate whether the display direction can be repeated from sample validation to pilot planning. If the fit depends on a workaround that is hard to control, the standard module may not be a sustainable choice for long-term production.

How Interface Choices Affect the Final Module Direction

A display fit problem that looks purely mechanical may also be related to the electrical interface. The choice between LVDS, eDP, MIPI, or another interface affects not only signal transmission, but also module structure, connector position, FPC routing, validation workload, and system integration.

Interface choice should not be reviewed separately from the equipment structure. LVDS, eDP, and MIPI each create different requirements for cable routing, connector layout, controller-board support, and validation. The final module direction should be based on both mechanical fit and electrical integration.

LVDS is common in many industrial and embedded display paths, but cable width, connector location, and routing space still matter. In a compact device, the physical space required for the cable and connector may become part of the integration challenge.

eDP may be evaluated when a project requires higher resolution, a thinner integration path, or a different board architecture, but it depends on controller-board support and validation requirements. MIPI is often considered in compact embedded systems, but it requires closer review of controller-board architecture, signal integrity, and development path.

For this reason, LCDModulePro does not treat LVDS, eDP, or MIPI as isolated interface labels during project review. The interface path is usually reviewed together with controller-board architecture, connector location, FPC routing, mechanical space, and validation requirements. For a deeper interface-focused explanation, see the Display Interface Customization engineering page.

The final display direction should not be decided by interface name alone. It should be based on the display requirement, controller-board architecture, mechanical space, FPC path, and validation plan. In many projects, structure and interface must be reviewed together before the correct LCD module direction becomes clear.

Why Early Review Reduces Redesign and Supply Risk

The main benefit of early display integration review is risk reduction. By identifying potential mismatches before the equipment structure and specification are frozen, project teams can avoid a chain reaction of costly and time-consuming changes later in the development cycle.

Early review helps reduce redesign and supply risk by aligning the display module with the equipment structure, controller-board path, front-panel design, and production plan before late-stage changes become difficult and expensive.

When a display fit issue is discovered after design freeze, the consequences can be significant. The enclosure may need to be modified. The front panel or cover lens may need to be revised. The controller board may need a layout change. Cable routing may need to be reworked. Each change may affect the project schedule, sample validation, and pilot preparation.

Late display replacement can also create procurement risk. A quick replacement module may solve one prototype problem but fail to support long-term availability, consistent assembly, or future production continuity. A display direction that has not been reviewed for repeatability may create new problems during pilot production.

This is where a manufacturer-oriented, engineering-driven review can support the project. For LCDModulePro, the review is not limited to whether a standard module can be sourced. It focuses on whether the display direction can remain practical across structure, interface path, sample validation, and future production planning. The purpose of this review is not to make display selection more complicated. It is to reduce avoidable uncertainty and support a more predictable path from concept review to sample validation and pilot planning.

FAQ

Does a standard LCD module need to fit the enclosure exactly?
Not always. But if the active area, module outline, FPC exit direction, interface path, or mounting method affects the equipment structure, the display direction should be reviewed again.

When should a custom LCD module be considered?
A custom LCD module direction should be considered when the standard module creates repeated limitations in structure, front-panel fit, interface routing, FPC position, or UI layout.

Does custom LCD always mean a fully new display design?
No. A custom direction may involve structure, interface, FPC, cover lens, touch, or integration-path adjustments. It does not always mean a completely new display design from zero.

Which interface should be reviewed first: LVDS, eDP, or MIPI?
The interface should be reviewed based on controller-board architecture, resolution needs, mechanical space, cable routing, and validation requirements, not by interface name alone.

Conclusion: Review the Display Direction Before Redesigning the Equipment

When a standard LCD module fails to fit the equipment structure, the first reaction should not always be a full product redesign. The mismatch should first trigger a structured engineering review. By examining the active area, module outline, front-panel opening, FPC routing, and interface path, the project team can identify where the conflict really comes from.

If these factors continue to create assembly challenges, UI compromises, sample delays, or pilot-production uncertainty, then evaluating a custom LCD direction becomes a logical next step. The goal is not to make the display more complex. The goal is to simplify system integration by aligning the display direction with the real equipment structure, controller-board architecture, and long-term production requirements.

For projects where structure, interface path, FPC routing, and front-panel fit need to be reviewed together, the page on Custom Special-Shaped LCD Modules with LVDS / eDP / MIPI Integration can serve as the next project-direction reference.
