Custom LCD module support for non-standard display shapes, interface matching, and equipment-level integration from concept review to production planning.
In many OEM projects, the display problem only becomes clear after the enclosure, mainboard, or UI direction is already constrained.
Standard modules may not match the visible area, bezel opening, or industrial design target defined by the final equipment structure.
LVDS, eDP, or MIPI direction should be reviewed together with the controller board, signal path, connector position, and available internal space.
If shape, FPC exit direction, cover lens, mounting, and interface are not aligned early, the project may face avoidable changes after sample testing.
A custom special-shaped LCD module may be required when a standard rectangular display cannot match the product structure, front-panel layout, interface path, or user interaction logic.
The real goal is to confirm whether the display direction is practical before the structure, interface, and supply path become difficult to change.
A special-shaped LCD module decision should help your project move forward with clearer structure, interface, validation, and production planning.
This page is not based on a fixed catalog model. The final configuration should be evaluated according to the device structure, display form factor, controller board, and production goal.
| Display Form Factor | Custom bar, round, square, or irregular LCD module direction based on the actual device structure. |
|---|---|
| Interface Integration | LVDS, eDP, or MIPI integration path depending on controller-board architecture and signal routing constraints. |
| Module Structure | Project-based display structure definition, visible-area alignment, FPC direction, connector layout, and mounting review. |
| Optical Direction | Wide viewing angle, cover glass, front-surface treatment, and application-specific optical stack can be evaluated. |
| Production Planning | Configuration stability, sample validation, repeatability, and long-term supply continuity should be reviewed before launch. |

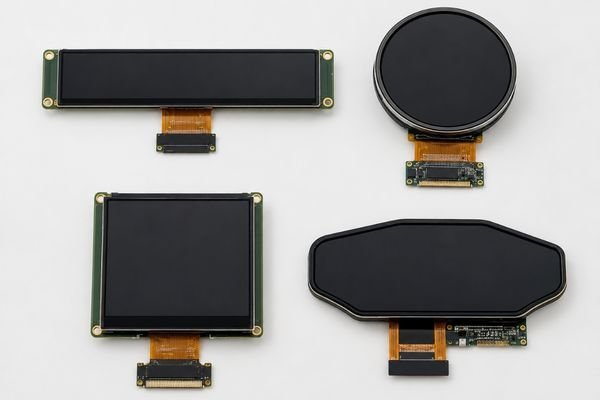

These directions are not presented as fixed stock items. They are practical starting points for project discussion when the product requires a non-standard display form factor.
| Bar-Type | For long, narrow display zones, horizontal information layouts, and compact front-panel integration. |
|---|---|
| Round | For circular visual areas that support the product’s industrial design or user interaction logic. |
| Square | For balanced display proportions, compact UI zones, and symmetrical front-panel structures. |
| Irregular | For projects where the visible area, cover lens, enclosure, or front-panel opening cannot follow a standard rectangle. |
Interface selection should not be treated as a simple connector choice. It needs to match the controller board, signal path, display resolution direction, mechanical space, and production plan.
LVDS can be evaluated for embedded equipment projects that require stable display integration, practical cable routing, and controlled system-level compatibility.
eDP can be evaluated when the project requires compact internal display connection, higher-resolution direction, and alignment with the device’s mainboard architecture.
MIPI can be evaluated for compact devices where space, power, board architecture, and integration constraints require earlier engineering review.
The value is not claiming that every shape is automatically possible. The value is helping the project evaluate what can be defined, adjusted, or validated early.
Display outline, visible area direction, and active area relationship to the product front panel.
LVDS, eDP, or MIPI direction based on controller-board architecture and integration constraints.
FPC exit direction, connector layout, cable routing, and available internal equipment space.
Cover lens shape, front-surface treatment, optical stack, and application-specific protection needs.
Optional touch integration based on user interaction method, front-panel design, and structure stack.
Mounting, enclosure fit, stack definition, and module-level structure review for equipment integration.
Instead of treating the project as a simple display sourcing task, this checklist helps clarify what should be reviewed before sample development, validation, and production planning.
| Stag | What to Review | Project Output |
|---|---|---|
| Requirement Review | Shape direction, visible area, interface type, brightness expectation, installation space, and application environment. | A clearer starting point for judging whether the special-shaped LCD direction is worth pursuing. |
| Feasibility Direction | Display architecture, interface route, FPC direction, optical stack, connector layout, and mechanical fit. | A more practical configuration direction before enclosure and board decisions become fixed. |
| Sample Validation | Structure fit, display performance, interface stability, front-surface design, and system integration. | Better evidence for whether the display direction can move toward pilot or production planning. |
| Production Planning | Configuration stability, sourcing continuity, repeatability, MOQ direction, and long-term project supply requirements. | A more controlled route from validated sample direction to repeatable project supply. |
This page is intended for teams that need a manufacturer-oriented, engineering-driven partner for custom LCD module development and integration.
Review shape, visible area, structure, and module feasibility.
Evaluate LVDS, eDP, MIPI, and controller-board paths.
Review enclosure fit, mounting, FPC direction, and cover lens.
Review custom module directions for equipment-level display projects.
No. Final specifications may vary depending on shape direction, interface path, optical treatment, structure, and integration requirements.
Not always. The answer depends on the target shape, active area, interface path, and the degree of deviation from standard module architecture.
They can be evaluated depending on the controller-board architecture, integration path, and actual project requirement.
Shape direction, visible area, target interface, enclosure space, FPC direction, brightness expectation, application environment, touch requirement, and estimated production plan are useful for early evaluation.
Yes. This page is designed as a commercial entry page and is supported by engineering pages such as special-shaped display engineering, interface customization, mechanical integration, and custom LCD module development.
Share your display shape, interface direction, structure constraints, and expected project stage. We can help evaluate a practical route before the design becomes difficult to change.
