Best Display Solutions for Outdoor Kiosks

Choosing the right display for an outdoor kiosk is a complex engineering decision that goes far beyond simply picking a bright screen. While high brightness is often necessary, it is only one part of a much larger display system. An outdoor kiosk display must remain readable, responsive, and reliable while facing sunlight, temperature changes, long operating hours, and repeated public interaction.

The best display solution for an outdoor kiosk is not just a high-brightness screen. It is an integrated display stack designed to manage sunlight readability, reflection, thermal load, touch interaction, cover glass protection, and long-term operational stress. A successful solution depends on the complete optical, mechanical, electrical, and thermal environment.

In outdoor kiosk projects, one common issue is that teams evaluate the LCD module in a controlled indoor setting and underestimate what changes after deployment. A screen that looks clear in the lab may become difficult to read in strong ambient light. A touch panel that works well during a quick test may become unstable when cover glass, rain exposure, or glove operation is introduced. A high-brightness backlight may also create more heat than the enclosure can release¹.

This article looks at outdoor kiosk display selection from a practical engineering perspective. Instead of treating brightness as the only decision point, it focuses on the display stack, optical structure, touch integration, cover glass, thermal design, interface matching, and lifecycle needs that determine whether the final kiosk is truly ready for long-term public use.

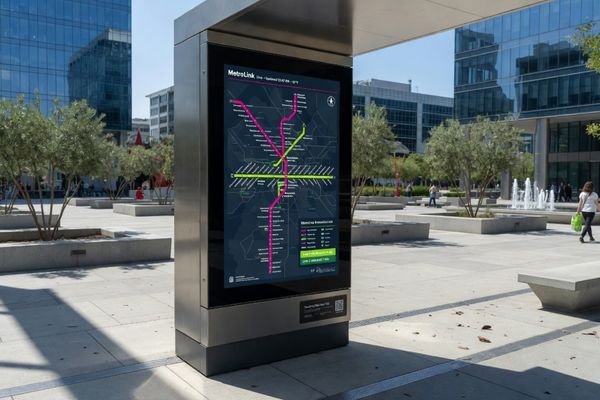

Outdoor Kiosks Need More Than a Bright Screen

It is easy to think of an outdoor kiosk display as a high-brightness LCD installed inside a protective housing. In reality, the display is part of the kiosk’s user interface, front panel, enclosure system, thermal environment, and long-term operating model. Brightness is important, but it cannot solve every outdoor display problem by itself.

An outdoor kiosk display is a complete system. Its true performance is determined not by brightness alone, but by how well the LCD panel, touch layers, cover glass, optical design, sealed housing, and thermal structure work together under sunlight, reflection, and long operating hours.

From an engineering standpoint, the display should be treated as both an optical and thermal subsystem. Sunlight increases ambient light and adds heat to the front surface. A sealed enclosure protects the electronics, but it can also trap heat from the backlight and internal components. Cover glass and touch layers improve durability and interaction, but they also introduce additional reflective surfaces.

For kiosk, vending, and self-service equipment projects, smart terminal display solutions should be evaluated around the complete front-panel structure, touch interaction, and long-hour operating environment. A display solution that ignores these system-level conditions may look acceptable on paper but fail to deliver stable readability and interaction in the field.

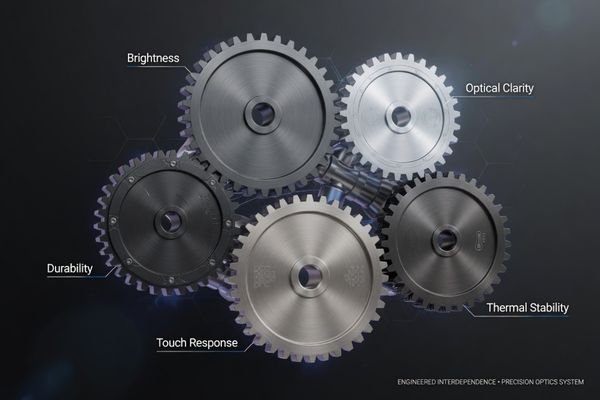

Key Display Requirements for Outdoor Kiosks

A successful outdoor kiosk display must balance multiple requirements at the same time. If one part of the system is weak, the full display experience can suffer. A bright panel may still be unreadable if reflection is uncontrolled. A strong cover glass may protect the screen, but it can also reduce touch sensitivity or add glare if not properly integrated.

A suitable display solution for an outdoor kiosk should be evaluated as a complete display stack, balancing sunlight readability, optical clarity, thermal stability, touch performance, cover glass protection, wide-temperature operation, interface compatibility, mechanical fit, and long-term lifecycle support.

In project reviews, display problems are rarely caused by one isolated component. More often, the issue comes from how the panel, touch sensor, cover glass, interface board, enclosure, and thermal structure were combined. This is why outdoor kiosk display selection should not start and end with size and brightness. It should start with the complete operating environment.

The Display Stack as a Unified System

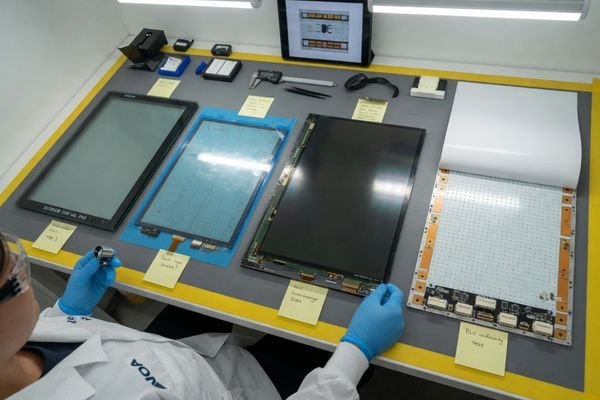

The display stack includes the backlight, LCD panel, polarizers, touch sensor, bonding layer, cover glass, surface treatment, and front-panel structure. Every layer affects optical performance and mechanical integration. If an air gap creates internal reflection or the cover glass reflects too much ambient light, a high-brightness LCD may still lose contrast outdoors².

This is also why bare-panel testing can be misleading. A module that looks good before final assembly may perform differently after the kiosk front glass, black frame printing, touch panel, sealing gasket, and mounting structure are added. The final judgment should be based on the complete integrated display assembly, not only the panel specification.

Lifecycle and Integration Demands

Outdoor kiosks are commercial equipment, so the display must also support stable integration and long product life. The module must match the kiosk mainboard interface, power design, mechanical mounting method, front-panel opening, and service plan. A panel that is technically acceptable but unstable in supply may create future maintenance or replacement problems.

For projects expected to run for several years, lifecycle support matters as much as initial performance. Consistent module availability, interface stability, and controlled changes are important for production continuity and field replacement. This is especially true for kiosk programs deployed across multiple locations.

High Brightness, Optical Bonding, and Reflection Control

High brightness is often a foundational requirement for outdoor kiosks, especially in semi-outdoor or direct sunlight environments. However, brightness only becomes effective when reflection is controlled. In bright ambient light, surface reflection can overpower the displayed image and make the screen appear washed out.

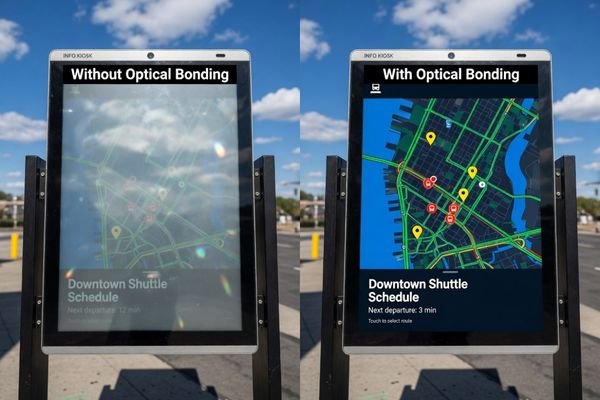

High brightness is only effective when reflection is properly managed. Optical bonding, anti-glare treatment, anti-reflective coating, low-reflection cover glass, and proper front-panel design help preserve contrast and improve real sunlight readability in outdoor kiosks.

For projects where sunlight readability is a core requirement, high brightness LCD modules usually provide a better starting point than standard indoor LCD modules. But the brightness value should still be reviewed together with the cover glass, optical bonding, surface treatment, installation angle, and enclosure design.

In outdoor kiosk display reviews, our engineering team usually avoids judging readability by nits alone. We first check the sunlight exposure, cover glass structure, expected viewing angle, front-panel design, and whether optical bonding or surface treatment is needed. This helps define whether the project truly needs a higher-brightness LCD module, or whether the main issue is reflection and contrast loss.

The reason is simple: users perceive contrast, not only light output. Every reflective surface inside the display stack can add unwanted light and reduce dark-level clarity. Optical bonding reduces internal reflections by filling the air gap between the LCD and the cover layer. Anti-glare or anti-reflective surface treatments can further improve visibility at the front surface.

In many outdoor kiosk projects, a well-integrated 1000–1500 nit display with good optical design may perform better than a brighter display with poor reflection control. The goal is not to chase the highest nits value, but to deliver readable, stable, and efficient visual performance in the actual kiosk environment.

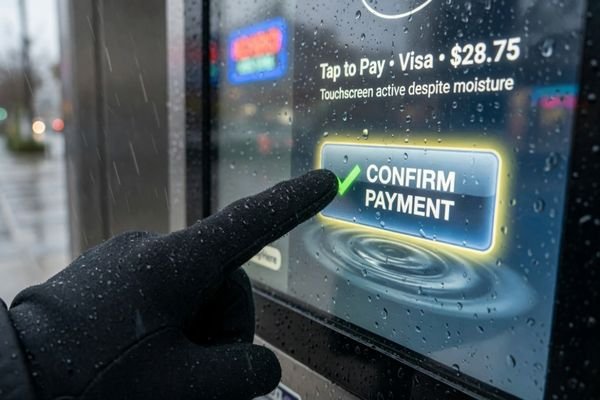

Touch Panel and Cover Glass Integration

Outdoor kiosks are interactive devices, so the touch panel and cover glass are central parts of the display solution. They affect not only user experience, but also optical clarity, durability, front-panel appearance, sealing, and long-term reliability. A bare LCD module that performs well in testing may behave differently once the final touch and cover glass assembly is added.

The integration of the PCAP touch panel and cover glass is critical. Cover glass thickness, surface treatment, bonding method, water exposure, glove operation, and controller tuning all affect the final usability, readability, and reliability of the outdoor kiosk display.

PCAP touch is commonly used for modern kiosks because it supports clean front-panel design and smooth interaction. However, outdoor use adds more variables. Thicker cover glass improves protection, but it can weaken the touch signal. Rainwater, surface contamination, gloves, and temperature changes can also affect touch response if the controller is not tuned for the final structure.

When touch response, cover glass thickness, and outdoor usability need to be evaluated together, touch integration for LCD modules becomes an important part of kiosk display design. The touch sensor, controller, cover glass, bonding method, and front-panel structure should be selected and validated as one system, not as separate parts.

During kiosk touch integration reviews, we usually look beyond whether the touch panel works in a short indoor test. We check the final cover glass thickness, touch controller tuning, wet-finger behavior, glove operation requirements, bonding method, and front-panel sealing conditions. These details often determine whether the kiosk remains easy to operate after it is installed outdoors.

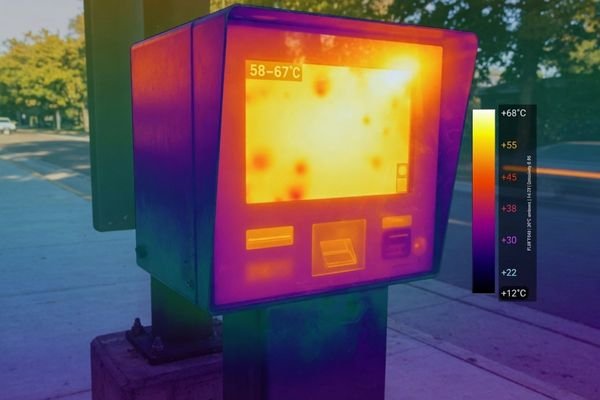

Thermal Design for Sealed and Long-Hour Operation

Outdoor kiosks are often installed in sealed or semi-sealed enclosures to protect the electronics from weather, dust, and public use. That protection is necessary, but it also creates a thermal challenge. High-brightness backlights generate heat, and direct sunlight adds additional thermal load to the front surface and enclosure.

Effective thermal management is essential for outdoor kiosks. Poor heat dissipation can lead to brightness instability, accelerated backlight aging, touch malfunction, optical changes, or reduced long-term reliability.

In kiosk design reviews, thermal performance should be checked before locking the brightness target. A high-brightness backlight may look good in a short demo, but if the enclosure cannot release heat, the display may become unstable after long operating hours. Temperature rise can affect the LCD panel, LED backlight, touch controller, adhesives, and other components in the display stack.³

Before recommending a brightness direction, our engineering review usually checks whether the kiosk enclosure is sealed or vented, how long the display will run each day, how much backlight power is required, and whether there is a reliable heat path from the display area to the enclosure. This helps avoid selecting a brightness level that looks attractive in specifications but creates long-term thermal stress in the final product.

A reliable outdoor kiosk display solution should balance brightness, power consumption, enclosure structure, heat dissipation path, and duty cycle. This is especially important for equipment that operates 12 hours per day, 24/7, or under direct sunlight. In some cases, a moderate brightness level with better optical design and thermal planning is more practical than pushing the backlight to a higher level.

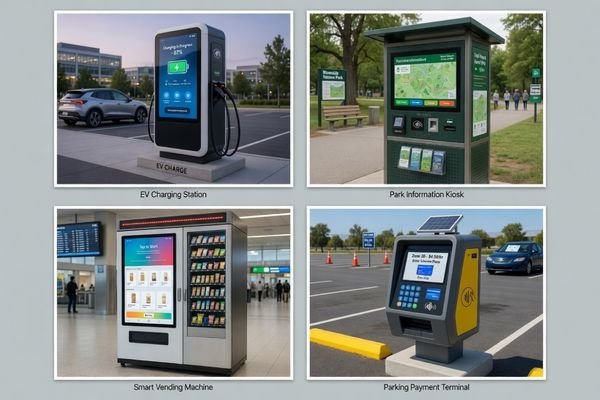

Best Display Solutions by Outdoor Kiosk Type

Not all outdoor kiosks have the same display requirements. Most need some level of sunlight readability, but the actual priorities depend on the kiosk function, location, user behavior, and operating time. A payment kiosk, vending machine, EV charging terminal, and ticketing system should not all use the same display specification by default.

The optimal display solution depends on the kiosk type. A payment terminal may prioritize touch durability and thermal stability, while an EV charging kiosk may require stronger sunlight readability, wide-temperature performance, and long-hour reliability.

In practical display selection, the first question should be what the kiosk is expected to do. A vending machine may need strong UI clarity and long operating hours. A ticketing kiosk may need high touch durability. An EV charging kiosk may face direct sunlight and high enclosure temperature. This application-centric approach helps avoid both under-specification and over-specification.

For different equipment environments, it is also useful to compare broader application solutions and related LCD module types before defining the final display direction. This helps connect the kiosk use case with the right module format, brightness level, touch structure, and engineering review path.

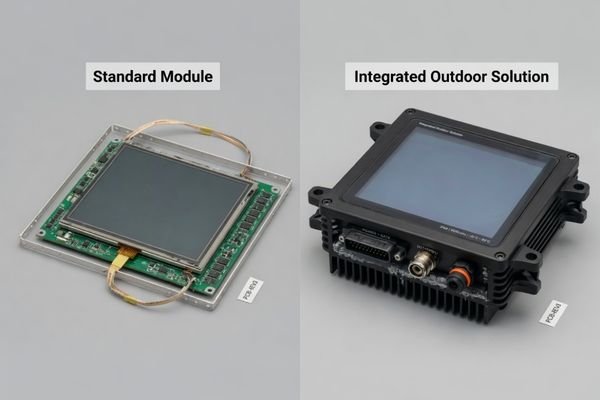

When Standard LCD Modules Are Not Enough

Standard LCD modules can be useful for early evaluation or protected semi-outdoor equipment. However, they may become insufficient when the kiosk display needs to meet multiple constraints at the same time. Outdoor kiosks often combine brightness, touch, cover glass, thermal design, interface, enclosure structure, and lifecycle requirements in one product.

A standard LCD module is usually not enough when the kiosk display must be adapted to the enclosure, front panel, mainboard interface, operating temperature, cover glass structure, power budget, and long-term commercial deployment requirements at the same time.

Customization becomes necessary when the display must fit the kiosk rather than forcing the kiosk design around a standard module. This may involve brightness target adjustment, optical bonding, cover glass selection, PCAP touch integration, LVDS or eDP interface matching, mechanical mounting changes, thermal review, or long-term supply planning.

When these requirements appear together, our usual approach is to separate the project into practical decision points: which parts can use standard module resources, which parts require modification, and which parts need a fully customized structure. This prevents the project from becoming over-customized too early while still addressing the real constraints that standard LCD modules cannot solve.

When brightness, cover glass, touch, interface, enclosure, and thermal limits must be reviewed together, it is better to discuss your custom display project before locking the display specification. An engineering review can help determine whether the project can use a standard high-brightness module, needs optical enhancement, or requires a more customized LCD module structure.

Outdoor Kiosk Display Checklist

Before selecting a display, project teams should define the complete operating conditions of the kiosk. Starting only from screen size or brightness is usually premature. A useful display recommendation depends on knowing where the kiosk will be installed, how it will be used, and what constraints the final product must meet.

The first step in selecting an outdoor kiosk display is to create a clear engineering profile of the kiosk environment. This turns a vague request for a “bright screen” into a practical set of requirements for brightness, optics, touch, structure, interface, heat, and lifecycle support.

Before choosing the display direction, clarify these questions:

• Will the kiosk be used indoors, semi-outdoors, or in a fully outdoor location?
• Will the screen face direct sunlight during any part of the day?
• Is touch operation required, and will users need glove or wet-finger operation?
• What cover glass thickness, hardness, printing, and surface treatment are planned?
• Will the final enclosure be sealed, fanless, vented, or actively cooled?
• What display interface does the mainboard support, such as LVDS, eDP, HDMI, or MIPI?
• How many hours per day will the kiosk operate?
• What are the minimum and maximum operating temperatures?
• Is optical bonding required for readability, durability, or structure⁴?
• Is long-term supply consistency required for production and service?

This is also the type of information our engineering team usually reviews before recommending a display direction. The clearer these conditions are, the easier it is to decide whether the project should use a standard module, a high-brightness module, optical enhancement, or a more customized LCD module design.

Outdoor Kiosk Display FAQ

What brightness is best for outdoor kiosks?

Semi-outdoor kiosks often start around 700–1000 nits, while direct sunlight applications may require 1500 nits or higher. The final choice depends on cover glass, reflection control, installation angle, thermal design, and operating time.

Do outdoor kiosks need optical bonding?

Optical bonding is often useful when the kiosk has cover glass, touch layers, strong ambient light, or durability requirements. It can reduce internal reflection, improve contrast, and strengthen the display stack.

What touch panel is suitable for outdoor kiosks?

PCAP touch is commonly used for modern kiosks because it supports smooth interaction and clean front-panel design. However, cover glass thickness, water exposure, glove use, and controller tuning must be evaluated together.

Is a standard LCD module enough for outdoor kiosks?

A standard module may work for protected or semi-outdoor kiosks, but customized solutions are often needed when brightness, touch, cover glass, thermal design, interface, and lifecycle requirements must be matched together.

What information is needed before choosing a kiosk display?

Important information includes installation environment, sunlight exposure, target size, touch requirements, cover glass design, interface, enclosure structure, thermal limits, operating hours, mounting method, and long-term supply expectations.

Conclusion

The best display solution for an outdoor kiosk is rarely the brightest screen or the most advanced standalone LCD module. It is the solution that fits the complete kiosk system, including sunlight exposure, touch interaction, cover glass, optical performance, thermal design, mechanical structure, interface, and lifecycle requirements.

For outdoor kiosk projects, our engineering review usually starts with the real installation environment, display stack, enclosure structure, power budget, and long-term operating conditions. If your project needs a display solution that balances brightness, touch, cover glass, thermal reliability, and stable supply, custom LCD module engineering is usually the best next step.
